iBASE MPT-7000VSM Intelligent Transportation with MBT-7001VR (Intel i7-6600U) w/ 2x 4GB DDR4-2133, 2x SSD bay, No PSU, No storage (RoHS) 9-36VDC
Out of stock
iBASE MPT-7000VSM Intelligent Transportation with MBT-7001VR (Intel i7-6600U) w/ 2x 4GB DDR4-2133, 2x SSD bay, No PSU, No storage (RoHS) 9-36VDC
- Brand: iBASE
- MPN: MPT-7000VSM
- Part #: WKSIBA7000
- UPC:
- Brand: iBASE
- MPN: MPT-7000VSM
- Part #: WKSIBA7000
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular Other Accessories





iBASE MPT-7000VSM Intelligent Transportation with MBT-7001VR (Intel i7-6600U) w/ 2x 4GB DDR4-2133, 2x SSD bay, No PSU, No storage (RoHS) 9-36VDC
- Brand: iBASE
- MPN: MPT-7000VSM
- Part #: WKSIBA7000

Product URL: https://www.pbtech.co.nz/product/WKSIBA7000/iBASE-MPT-7000VSM-Intelligent-Transportation-with
Branch | New Stock | On Display |
---|---|---|
Auckland - Albany | 0 | |
Auckland - Glenfield | 0 | |
Auckland - Queen Street | 0 | |
Auckland - Auckland Uni | 0 | |
Auckland - Newmarket | 0 | |
Auckland - Westgate | 0 | |
Auckland - Penrose | 0 | |
Auckland - Henderson (Express) | 0 | |
Auckland - St Lukes | 0 | |
Auckland - Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Auckland - Head Office | 0 | |
Auckland - East Tamaki Warehouse | 0 | |
Christchurch - Hornby | 0 | |
Christchurch - Christchurch Central | 0 | |
Dunedin | 0 |
Features
The MPT-7000V is an E-Mark certified in-vehicle fanless computer system designed to meet the ITS market demand for IoT devices. It uses a wide-range voltage GPIO interface and provide network stability, supporting dual WAN card, redundant wireless communication, 3G/4G/LTE mPCIe modules with M.2 interface and two separate SIM slots. In addition to the adjustable tri-axial G-sensor with shock protection, it offers a wide-range 12V~36V DC power input and a wide-range -40°C to 70°C operating temperature, allowing it run in demanding transportation conditions.
The system features an innovative cable-free and swappable separate power supply module design that meets various regulatory requirements. It come with self-protection, self-debugging and reporting capabilities to actively or passively carry out the necessary protective measures. The system incorporates a rich set of I/O connectivity including two Gigabit Ethernet, two USB, three COM for optional CAN Bus 2.0B / OBD-II, one PCI-E(x4) slot and two 2.5" drive bays for SSD drives.
Frequently asked questions
Can I swap out parts and/or add/change/remove operating systems in a PB Tech PC?
We can add any part to a PC for a small fee as long as we don't need to remove an existing part for it to fit, for example adding more RAM, an extra hard drive, installing a Windows OS, or adding a graphics card to a PC without one (we can even SLI/Crossfire for you if it is compatible). We cannot change components that are part of an existing build e.g. Upgrade an existing graphics card or add a SSD with Windows installed if the PC only has a single hard drive (as the OS is already pre-installed). If you do have a specific requirement, then one of our experienced sales team will be happy to build a system that suits your needs.
Contact our WebSales team here
What parts are used in this PC?
The parts are subject to change depending on stock availability but the specifications listed in the title will always be correct. If you have specific parts you are after, one of our experienced sales team will be happy to build a system that suits your needs.
Once again, you can contact our WebSales team here
I've just purchased my first custom PC, how do I set it up?
Our short new PC setup guide shows you how to safely unbox it, and set it all up so you can get to work or start playing games.
Specifications
System Mainboard
MPT-7001V
CPU Type
7th/6th Generation Intel® Core Processor
System Speed
2.6 GHz
Memory
2x 4GB DDR4-2133 SO-DIMM (Dual Channel)
Certification
Aluminum
Chassis Color
Black
Front Panel External I/O
CFast, 2.5" device bay, 2nd Mic-In & Line-Out 2x SIM sockets, 2x USB 3.0, Reset button Status LEDs, 4x antenna connectors
Rear Panel External I/O

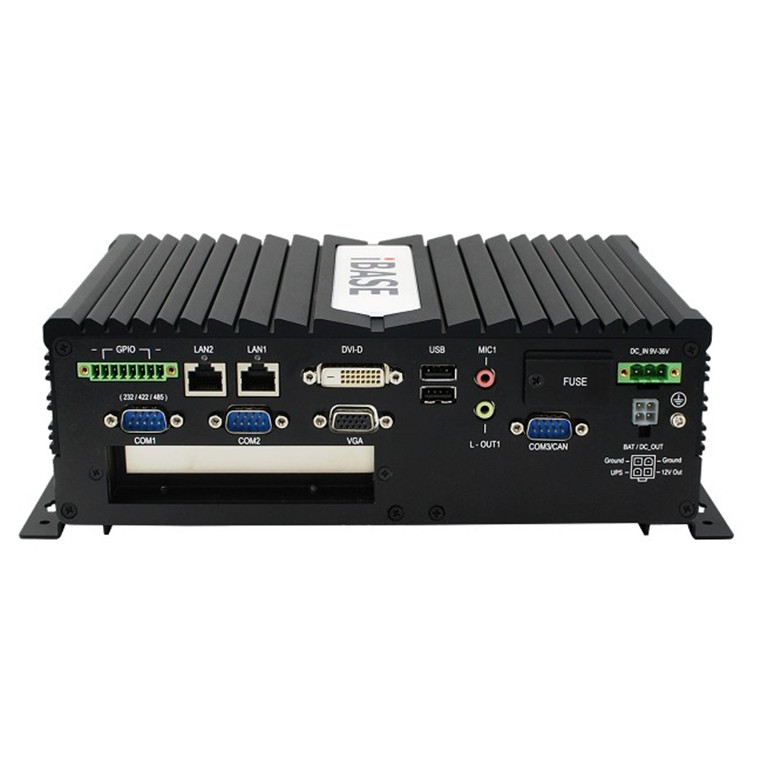

DVI-D, VGA, 3x COMs (one with RS422/485 options), 2x GbE, 2x USB 2.0, power connection, 1st Mic-In & Line-Out, GPIO, GbE status LEDs, 1x PCI-E (x4) slot
Storage
2x 2.5" device bay for SSD & HDD
Expansion slot
1x Half size Mini PCI-E socket (USB 2.0)
1x Full size Mini PCI-E socket (USB 2.0 + PCI-E)
1x 2230 Socket 1 M.2 socket (USB 2.0 + PCI-E)
1x 3042 Socket 2 WWAN M.2 socket (USB 2.0)
1x 2280 Socket 3 SSD M.2 socket (SATA)
Power Supply
DC 9V~36V
Mounting
Custom mounting rail
Dimensions
256.0 (W) x 182.0 (D) x 83.0 (H) mm
10.08" (W) x 7.17" (D) x 3.27" (H)
Operating Temperature
SSD: -30°C ~ 55°C (-22°F~131°F)
HDD: -20°C ~ 45°C (-4°F~113°F)
SSD: -40°C ~ 70°C (-40F ~ 158F) system only
Storage Temperature
-35°C ~ 85°C (-31°F~185°F)
Relative Humidity
10 ~ 95% RH @ 45°C (non-condensing)
Vibration Operating/Non-operating (SSD):
2,26 Grms (5~500 Hz) / MIL-STD-810G composite wheeled condition (Z-axis only)
Operating/Non-operating (HDD):
1,04 Grms (5~500 Hz) / MIL-STD-810G highway truck condition (Z-axis only)
Shock
Non-operating: Sawtooth: 40G, 11 msec (Z-axis)
Operating: Sawtooth: 20G, 11msec (Z-axis)
Certification
E-Mark, CE class B, FCC class B
