Alphacool HDX Apex Acetal M.2 2280 SSD Cooler

PB Tech price
PB Tech price
$ 77 .39
 +GST
$ 89 .00
 inc GST
$77.39  +GST
$89.00

Alphacool HDX Apex Acetal M.2 2280 SSD Cooler

Copper instead of aluminum!
PB Tech price
$ 77 .39 $ 89 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$77.39  +GST
$89.00

Fan Size

N/A

Colour

Black

Number of Fans

None

CPU Air Cooler Height

N/A

Radiator Size

N/A

LED Colour

N/A

Reversed Fan Blade

N/A

Sound Level (Roughly)

N/A

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Alphacool HDX Apex Acetal M.2 2280 SSD Cooler
Alphacool HDX Apex Acetal M.2 2280 SSD Cooler
Total:
$ 337 .24
 +GST
$ 387 .83
Buy together and save $8.71 $10.02
Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1200K/1550K IOPS - 5 Years Warranty or 600 TBW
Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1200K/1550K IOPS - 5 Years Warranty or 600 TBW
$189.00 $217.35

$184.20  +GST

$211.83

Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB Fan, Dual loop Addressable RGB Lighting, 3 X 120MM ARGB Fans with Controller
Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB Fan, Dual loop Addressable RGB Lighting, 3 X 120MM ARGB Fans with Controller
$60.00 $69.00

$56.52  +GST

$65.00

Save 40% with code MOVEITPB Save 40% with code MOVEITPB

Features

SSDs in M.2 format are becoming increasingly popular. The high transfer rates and extremely low access times allow you to work or play on your PC faster and more effectively. To ensure that you can use the full performance of the M.2 2280 SSD permanently, Alphacool offers the HDX Apex Acetal M.2 2280 SSD cooler. It is a useful extension for any water circuit and ensures that the M.2 SSD memory can release its full potential.

Why an active M.2 cooler?

Due to their design, M.2 SSDs are only able to reach their maximum performance for a short period of time. The controller chip heats up extremely quickly and begins to throttle the performance of the M.2 SSD early on to prevent overheating. Independent tests have shown that during write operations, the transfer rates of uncooled M.2 SSDs can drop after just 30 seconds. During read operations, throttling usually occurs a few seconds later. With the Alphacool HDX Apex Acetal M.2 2280 SSD cooler, you can use the maximum performance of the SSD over a much longer period of time. This is clearly noticeable during longer read and write operations.

Assembly

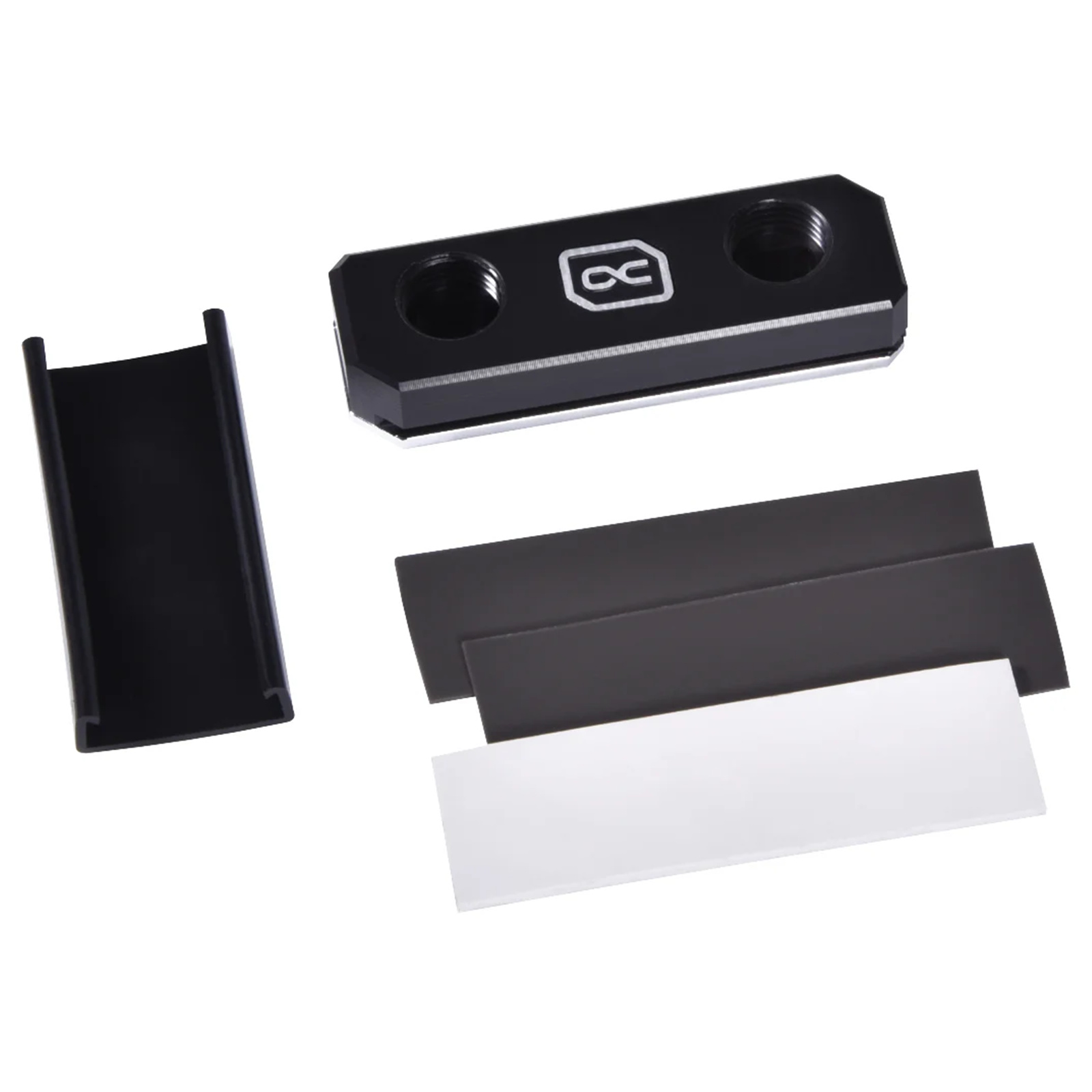

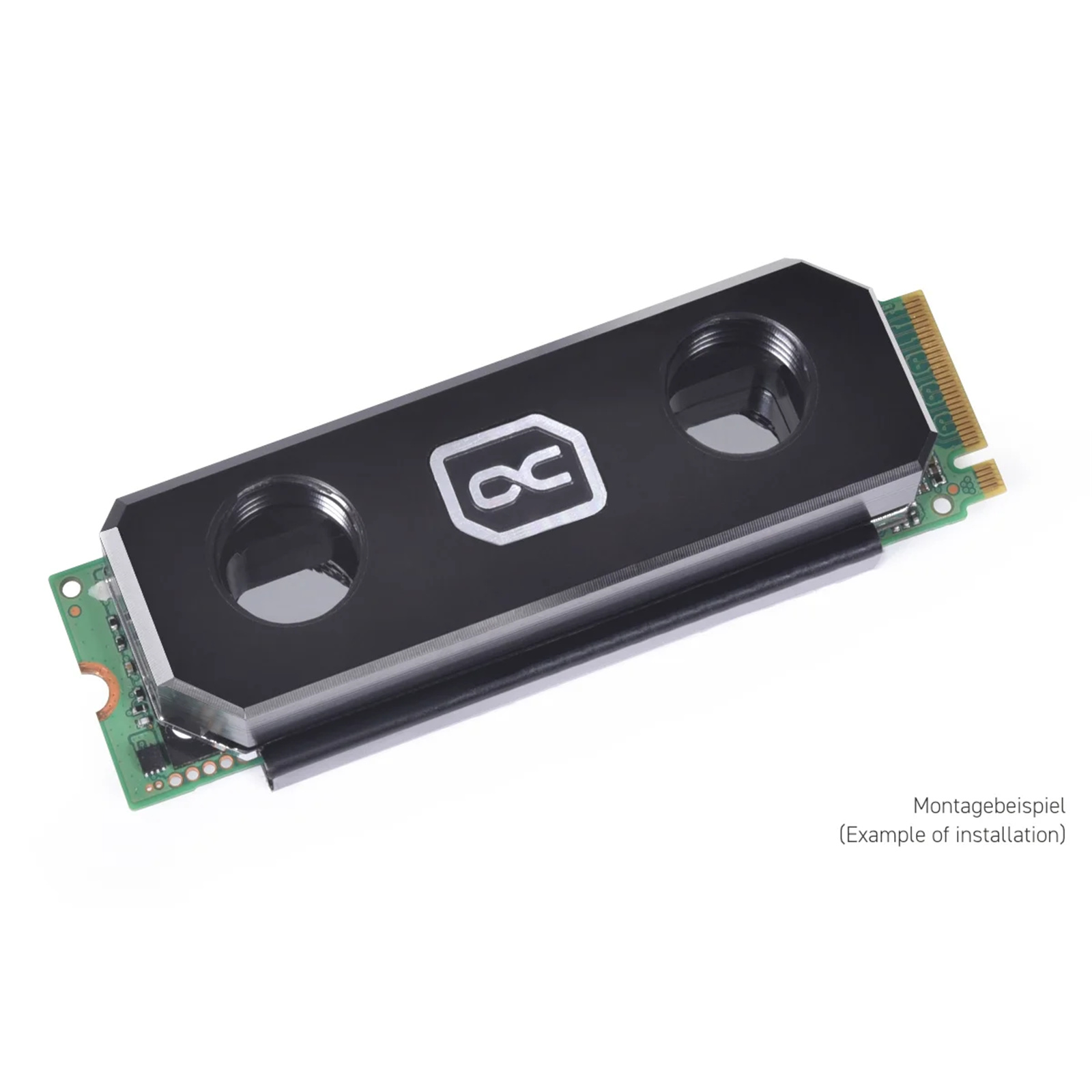

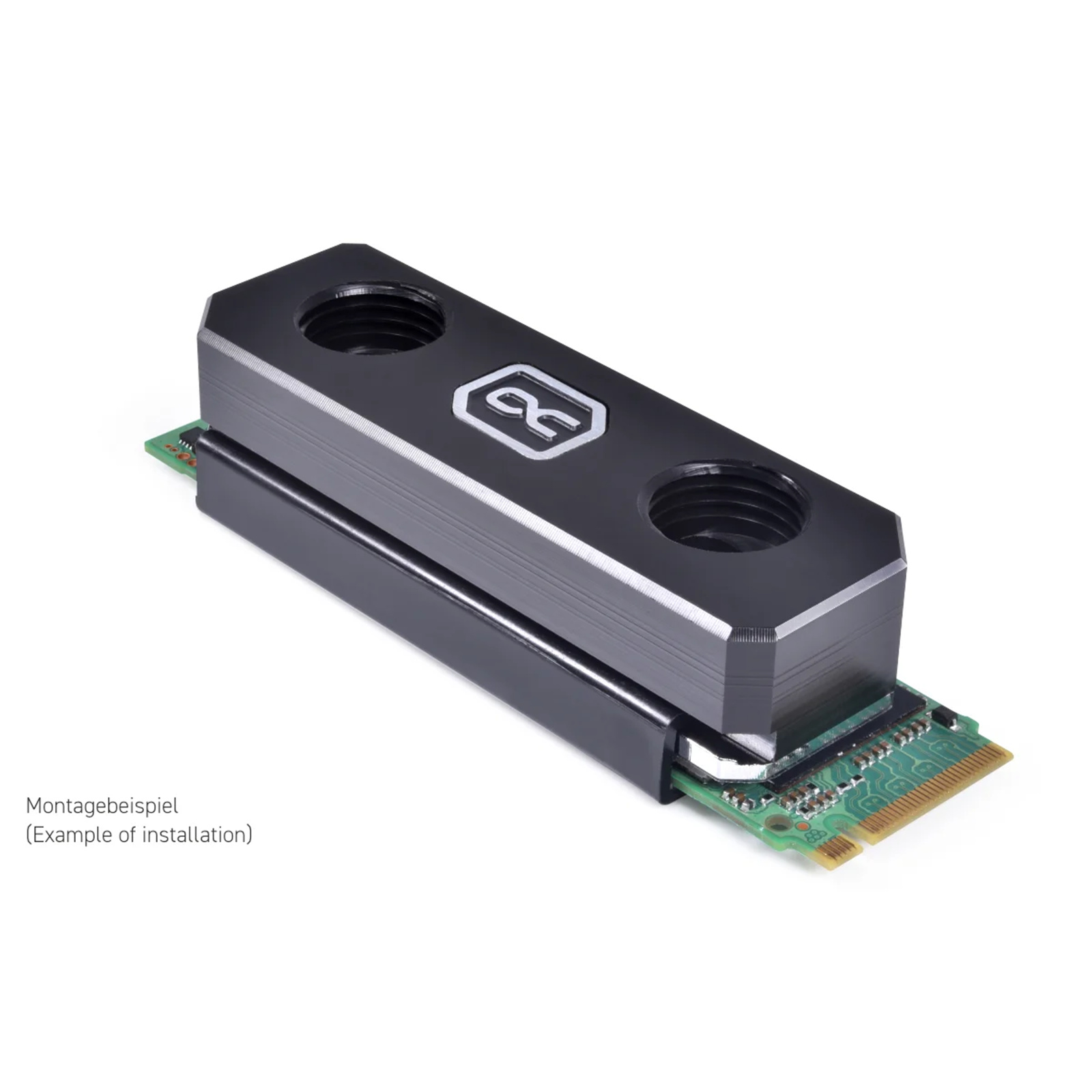

The HDX Apex Acetal cooler is compatible with M.2 2280 SSDs that are equipped on one or both sides. If the PCB is equipped with memory chips on both sides, the 0.5 mm thermal pad is used on both sides. If memory chips are only installed on one side, the 1.5 mm thermal pad is used on the side without chips. After the top and bottom of the SSD have been equipped with thermal pads, the SSD memory is pushed into the retaining clip and mounted under the cooler. Installation on the mainboard is then carried out as usual. The cooler can now be integrated into the water circuit using the existing G1/4" connections.

Copper instead of aluminum!

Alphacool only uses copper in its water coolers. The reason is simple: copper has almost twice the thermal conductivity of aluminum and is therefore obviously the better choice of material for water cooling.

Specifications

Dimension (L x W x H)

67.99x25.6x16.8mm

Radiator base material

nickel-plated copper

Material radiator top

Acetal

Material Clip

plastic

Connections

2x G1/4"

Thickness of radiator base

1.6mm

Thermal Conductivity Thermal Pads

3 W/mK

Pressure tested

0.8 bars

Maximum working temperature

60°C

Weight

43g

Color

black

Compatibility

- M.2 2280 SSD

Manufacturer Part No:
11968
Brand:
Product Type:
-
UPC
-
Product Family:
HDX
Shipping Weight:
2 kg
PB Part No:
WTRAPH11968
Product Model:
Apex Acetal
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
