Alphacool Core 100 Aurora Reservoir Acetal/Acrylic With Apex Pump - 131mm Height

PB Tech price
PB Tech price
$ 155 .65
 +GST
$ 179 .00
 inc GST
$155.65  +GST
$179.00

Alphacool Core 100 Aurora Reservoir Acetal/Acrylic With Apex Pump - 131mm Height

Extensive assembly options!
2
PB Tech price
$ 155 .65 $ 179 .00
 +GST  inc GST

No store stock available.

Click & Collect: Select your store to check availability
Delivery: Order now and it ships on 24 Oct When will I receive it?
$155.65  +GST
$179.00

Fan Size

Not Specified

Colour

Black

Number of Fans

None

CPU Air Cooler Height

Not Specified

Radiator Size

N/A

LED Colour

RGB

Reversed Fan Blade

N/A

Sound Level (Roughly)

Not Specified

What PB Tech customers are saying about this product...

See More Reviews

"its def pumps it and didnt leak works great"

ES
By: EmilieS23 01/09/25

"Good flow from pump and works as described."

FB
By: FinnB21 29/04/25
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Alphacool Core 100 Aurora Reservoir Acetal/Acrylic With Apex Pump -...
Alphacool Core 100 Aurora Reservoir Acetal/Acrylic With Apex Pump - 131mm Height
Total:
$ 415 .50
 +GST
$ 477 .82
Buy together and save $8.71 $10.02
Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1200K/1550K IOPS - 5 Years Warranty or 600 TBW
Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1200K/1550K IOPS - 5 Years Warranty or 600 TBW
$189.00 $217.35

$184.20  +GST

$211.83

Save $37 with code PBGAMER25 Save $42 with code PBGAMER25
Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB Fan, Dual loop Addressable RGB Lighting, 3 X 120MM ARGB Fans with Controller
Cooler Master MasterFan MF120 Halo 3 in 1 Kit ARGB PWM 120mm ARGB Fan, Dual loop Addressable RGB Lighting, 3 X 120MM ARGB Fans with Controller
$60.00 $69.00

$56.52  +GST

$65.00

Save 30% with code PBGAMER25 Save 30% with code PBGAMER25

Features

The Alphacool Core reservoir has an integrated pump top for powerful D5 pumps and is supplied with a VPP Apex pump. The reservoir tube is made of acrylic, the D5/VPP pump top and the lid are made of acetal. The combination of these two materials gives the reservoir a subtle appearance. 12 digitally addressable RGB LEDs in the pump top and the light tower water effect inside the acrylic tube provide the wow effect.

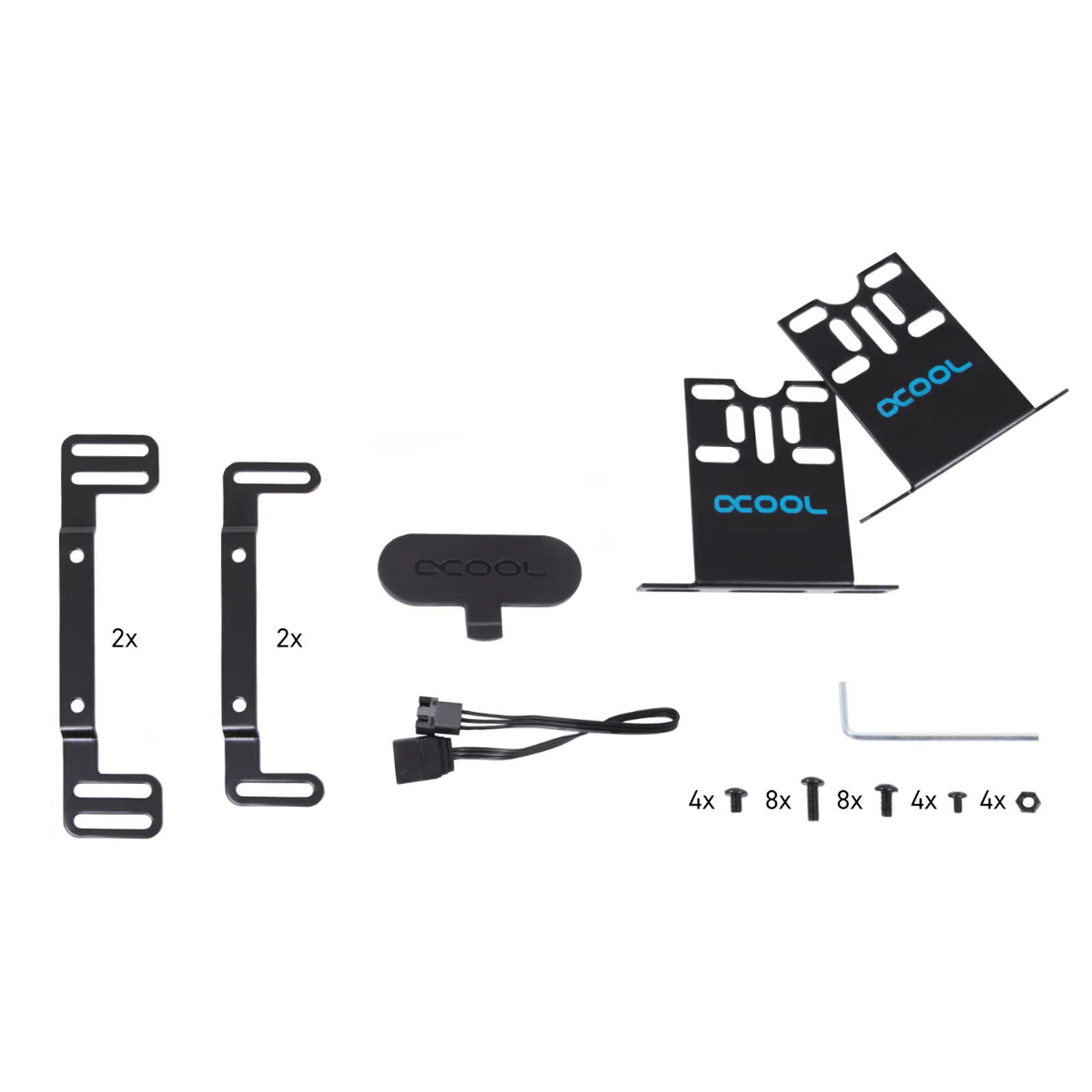

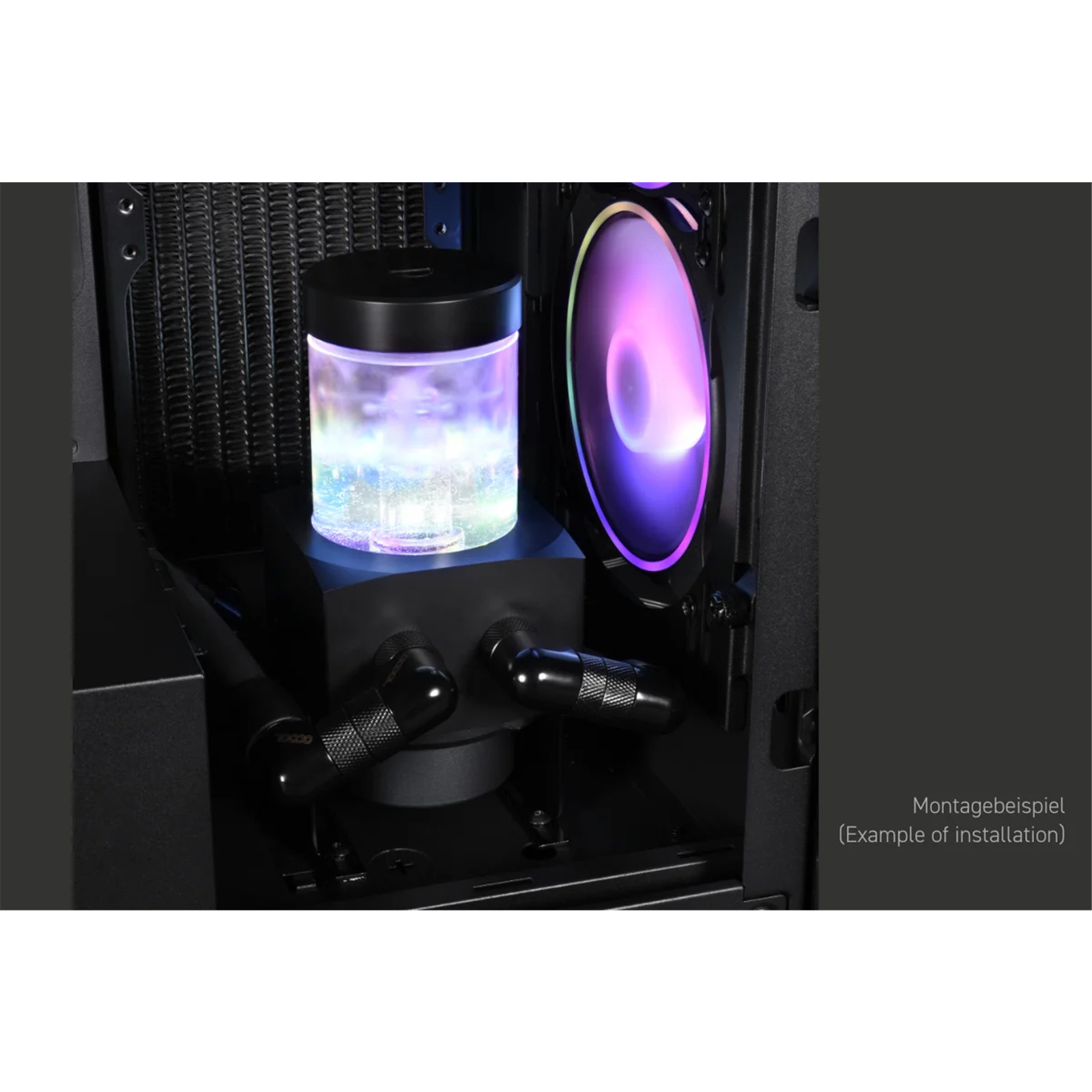

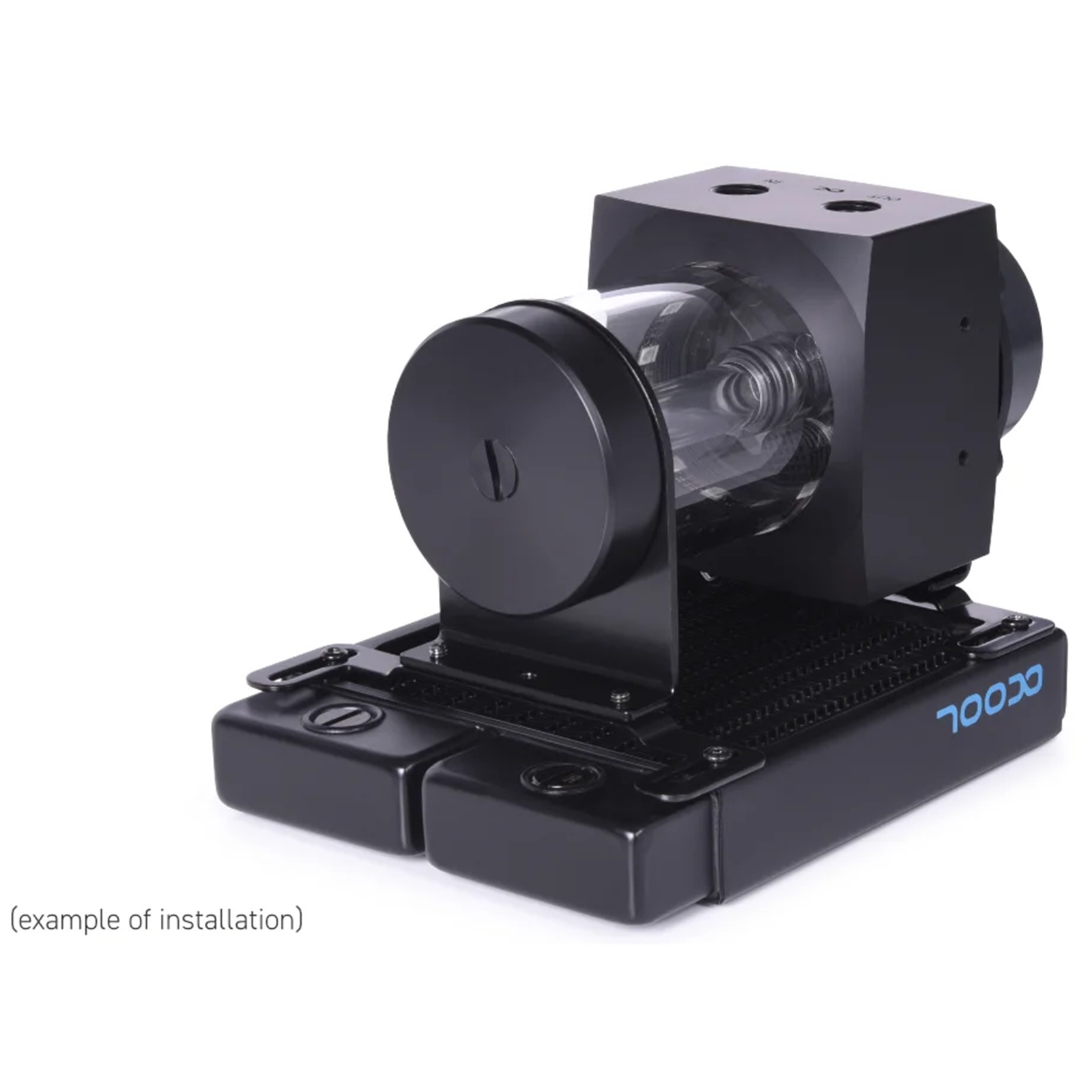

Extensive assembly options

Mounting option 1:
The scope of delivery includes feet which, among other things, enable the expansion tank to be mounted on the bottom of the housing.

Mounting option 2:
The scope of delivery includes 120mm/140mm mounting frames with which the Core expansion tank can be attached to free fan slots, radiators or to the fans on radiators.

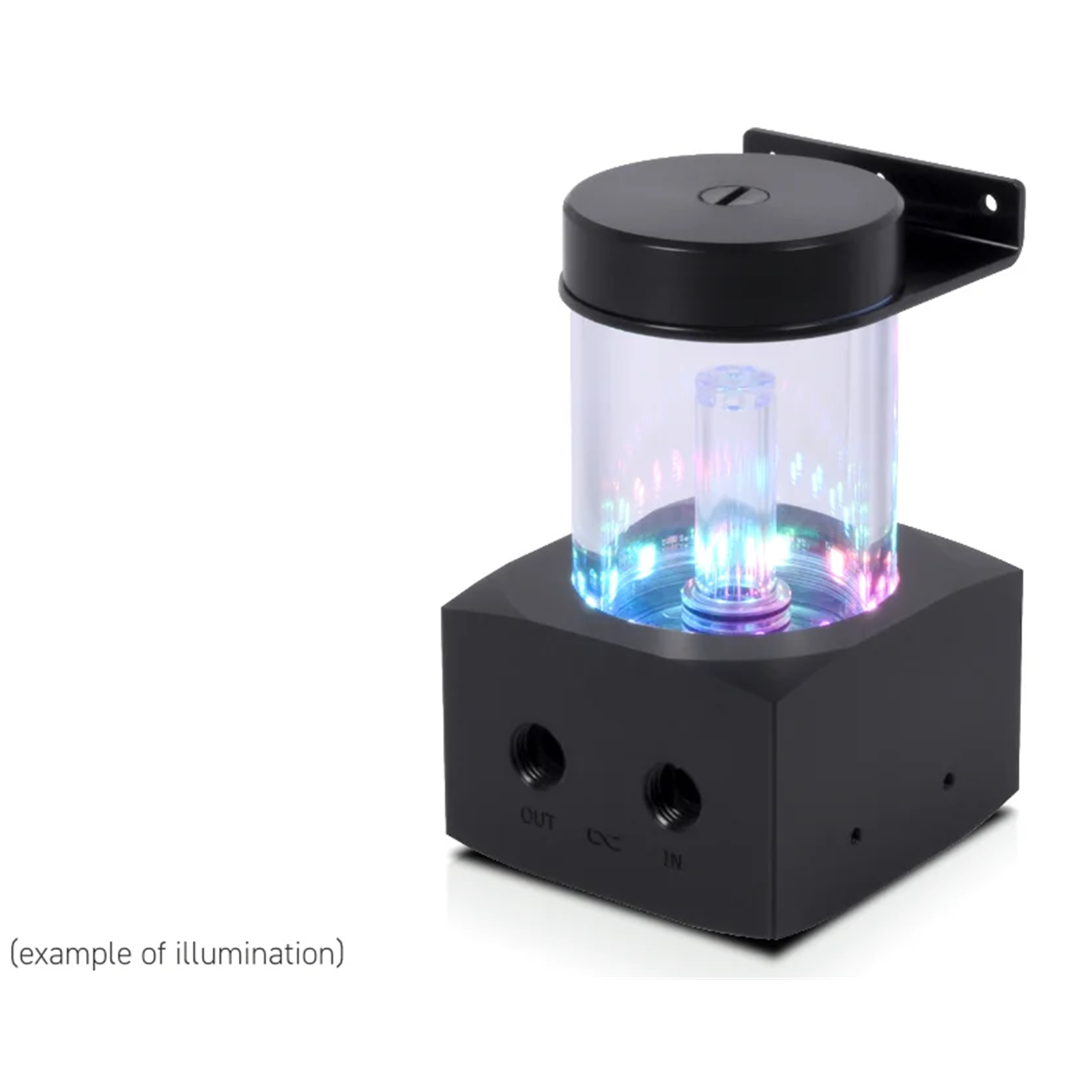

Digitally addressable RGB lighting

12 digitally addressable RGB LEDs illuminate the acrylic tube of the expansion tank. They are arranged in a ring at the lower end of the tube in the transition to the pump top and ensure brilliant illumination of the entire expansion tank. In combination with the Lighttower water effect, a very special ambience is achieved. The digital aRGB LED lighting is connected via a JST 3-pin connector and can be controlled with a digital RGB controller (eg Alphacool Aurora Eiscontrol, Art.15360) or a digital RGB capable mainboard.

Lighttower water effect

A special water effect is created in the core reservoir via the riser tubes. If you do not fill the expansion tank beyond the upper edge of the riser tube, you get a kind of fountain effect. The water is pushed out of the sides of the riser tube and sprayed against the glass tube. The effect is stronger or weaker depending on the flow of the circuit. The effect can be placed at the lower or upper inlet using the riser tubes included in the delivery.

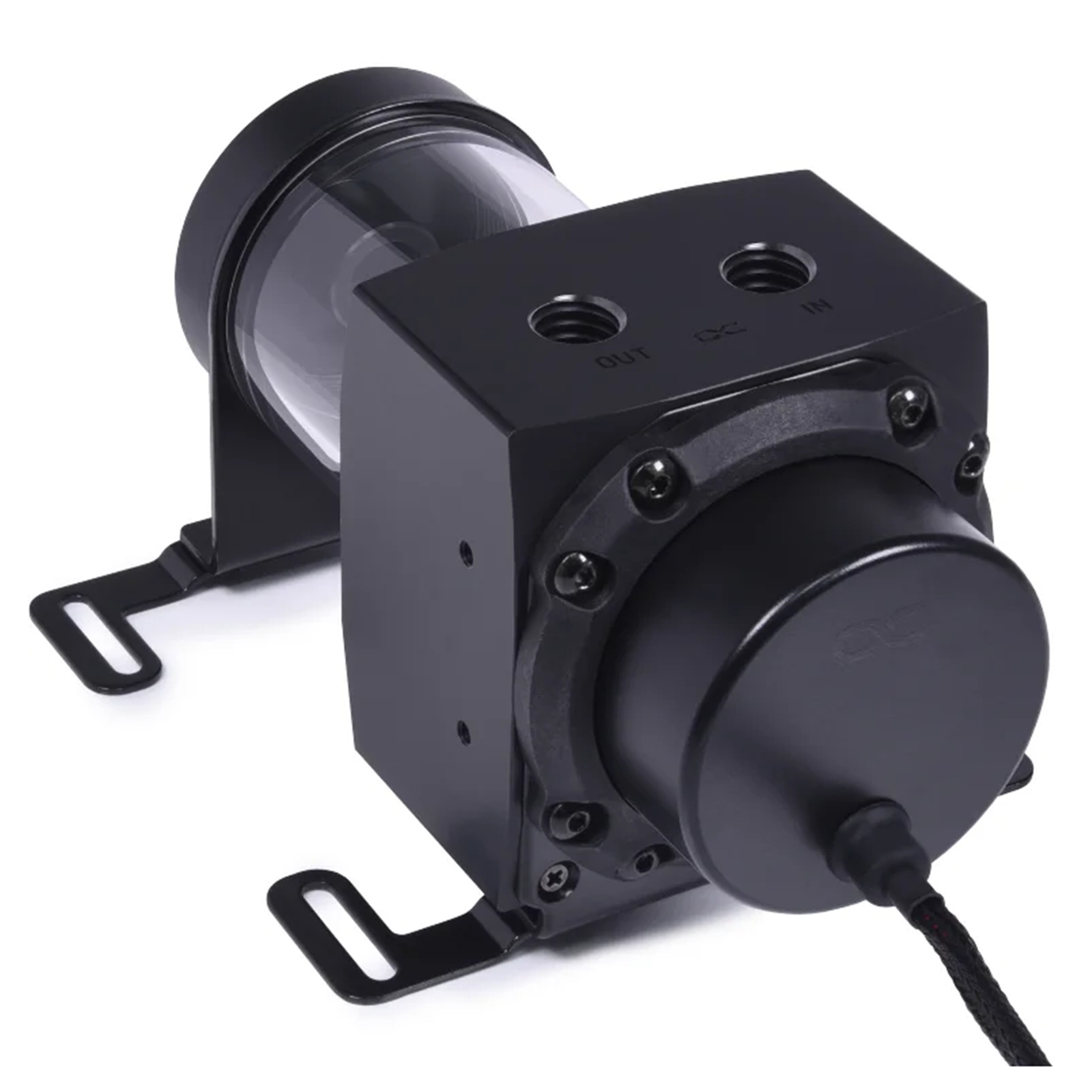

Pump compatibility

The Alphacool Core reservoir has an integrated pump top and is compatible with all original D5 pumps as well as all Alphacool VPP pumps. The pump retaining ring, a pump O-ring and all screws are included in the delivery.

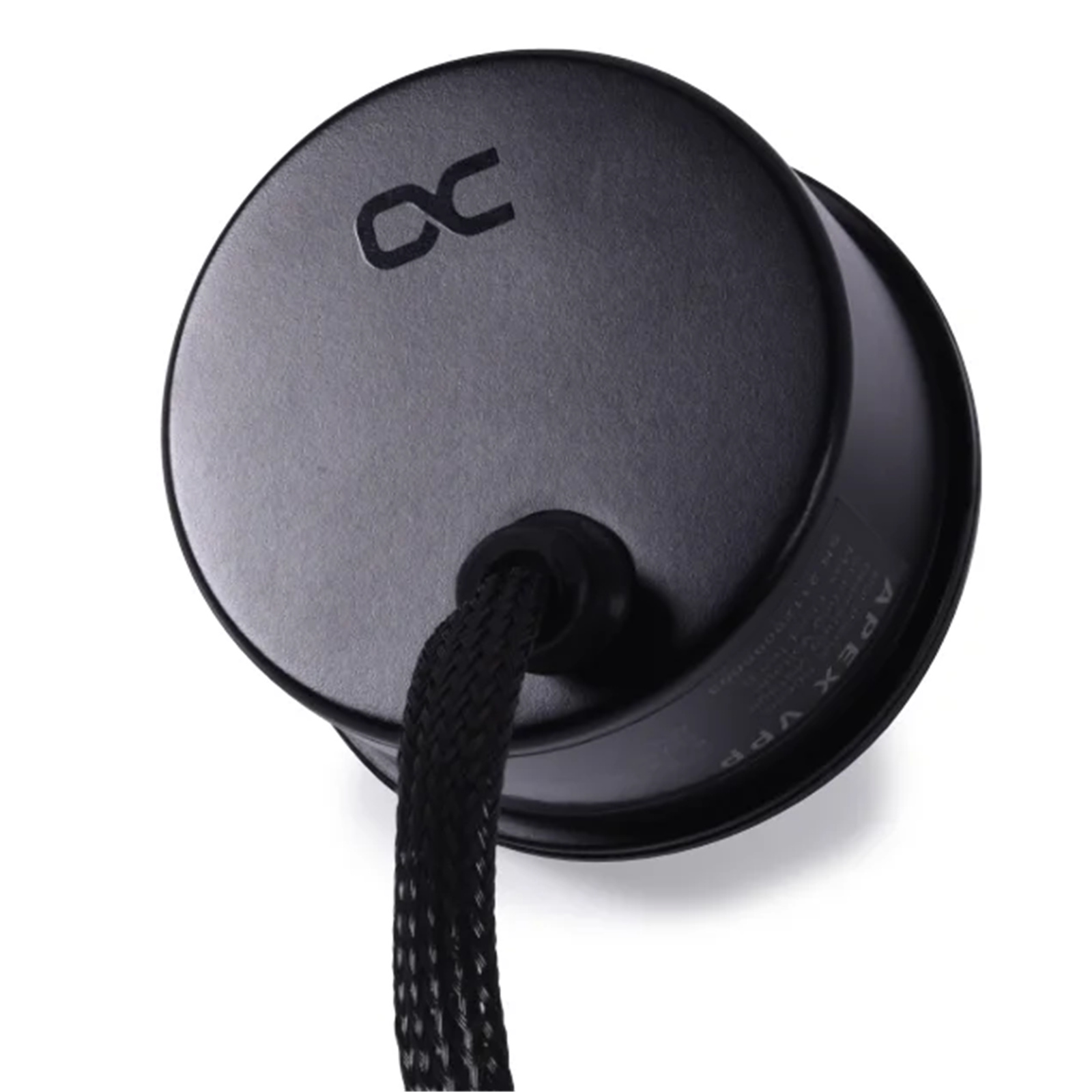

pump

The VPP Apex pump does not have a spherical bearing and uses a ceramic axle. The motor coils have been moved from the inside to the outside. The changes mean that the pump is fundamentally more stable and runs more smoothly and vibrations have been significantly reduced. Another positive side effect is that power consumption has been almost halved. In comparison to Alphacool's ice pumps, the power supply is not via a 4-pin Molex connection. Instead, the Apex VPP pump is connected to the power supply using a SATA connection. The Apex VPP pump has a 4-pin fan connection that is connected to the mainboard or to an external controller. This allows the speed range of the pump to be controlled and read via PWM.

Specifications

Dimension (L x W x H)

131x76.5x76.5mm

Pump compatibility

D5

volume

200ml

Material pump top & lid

Acetal

Material tube

Acrylic

Connections

3x G1/4" internal thread

Maximum working temperature

60°C

Pressure tested

0.8 bars

Number of digital aRGB LEDs

12

Voltage digital aRGB LEDs

5V

Power connection digital aRGB LEDs

3-Pin JST (male & female switch)

Weight

504g

Color

black

Technical data VPP Apex

Dimensions (L x W x H)

65x65x41mm

Material pump

plastic

Material pump cover

aluminum

Material Axle

Ceramics

Power connection

4-pin PWM | SATA

Control range

2500 - 4500 RPM

Cable lengths

4-Pin PWM - 48cm | SATA - 48cm

Operating voltage

8-13V DC / 14W IP32

Starting voltage

12V DC

Maximum discharge head

4.25m

Maximum flow

340 l/h

Maximum working temperature

60°C

Net weight

276g

Color

black

Manufacturer Part No:
15380
Brand:
Product Type:
-
UPC
-
Product Family:
Core
Shipping Weight:
1 kg
PB Part No:
WTRAPH15380
Product Model:
-
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
