EKWB EK-Quantum Velocity2 D-RGB For Intel Socket LGA 1700 CPU With DDC 4.23 PWM Built In Nickel + Plexi
Out of stock
EKWB EK-Quantum Velocity2 D-RGB For Intel Socket LGA 1700 CPU With DDC 4.23 PWM Built In Nickel + Plexi
- Brand: EKWB
- MPN: WTREKW897539
- Part #: WTREKW897539
- UPC:
- Brand: EKWB
- MPN: WTREKW897539
- Part #: WTREKW897539
- UPC:
Product is out of stock. View similar products in-stock at PB Tech
Features

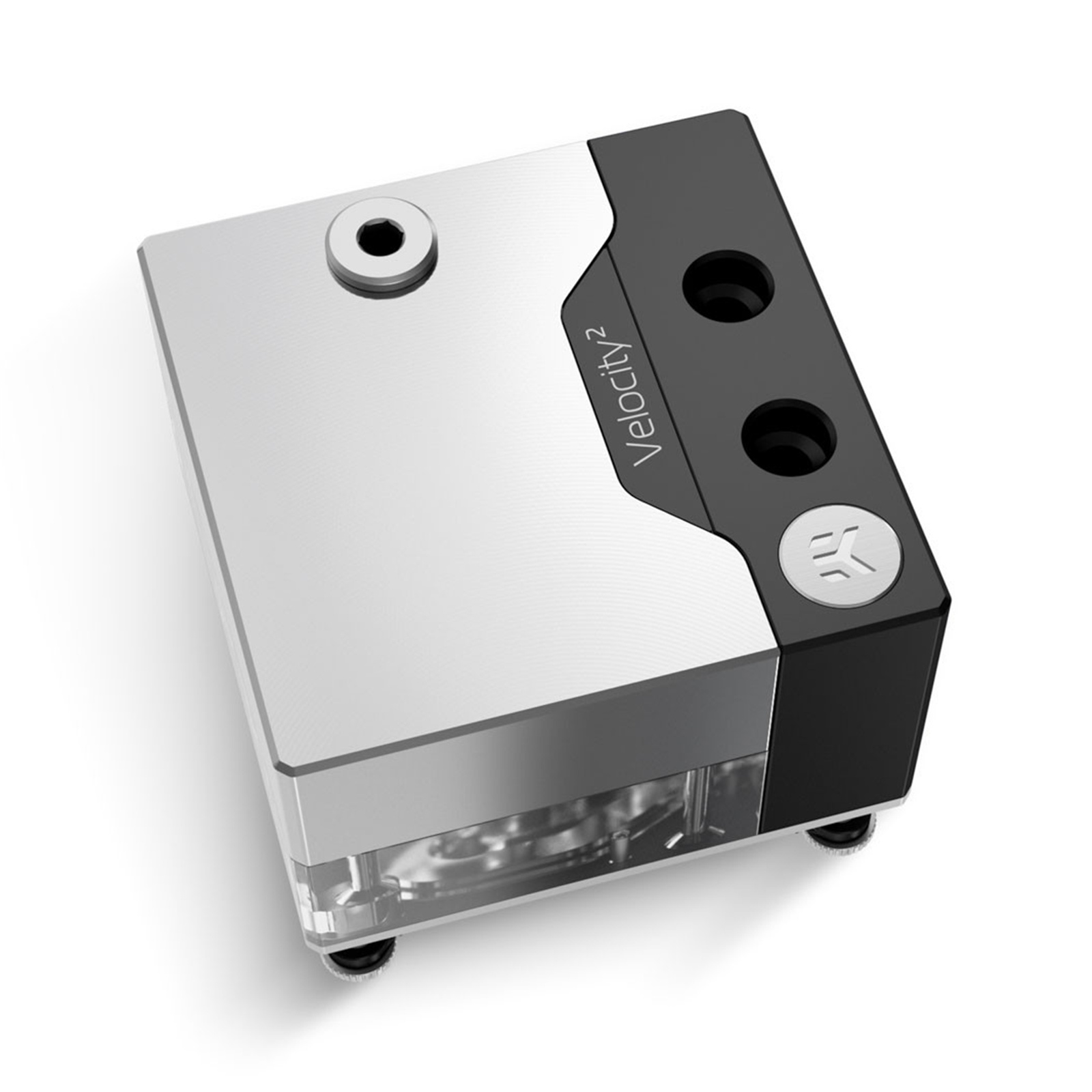

EK-Quantum Velocity² DDC 4.2 PWM D-RGB - 1700 Nickel + Plexi is a unique pump-reservoir-water block combo for Intel® 12th Gen Core CPUs and LGA 1700 socket-based motherboards. It features the latest EK-Quantum Velocity² cooling engine that is socket-specific. The CPU water block has an integrated genuine DDC 4.2 PWM pump, which is cooled by a metal part of the water block acting as a heatsink. It is the perfect companion for ITX (SFF) builds where space for a dedicated pump and reservoir is an issue. This product effectively combined 4 distinct products into a single small enclosure.
With this water block, you will not require a dedicated reservoir either, as it incorporates a small reservoir to ease the filling process, but also to ensure the water-lubricated DDC pump always has sufficient coolant not to run dry. It has two G1/4" fill ports to account for both vertical and horizontal motherboard mounting and two sets of inlets and outlets.
DDC 4.2 PWM Pump with a Reservoir
This pump was chosen over the D5 due to its compact design. The quiet and powerful motor, in conjunction with its size, makes it ideally suited for heavy-duty cooling in environments where space is at a premium. The main difference between this DDC 4.2 PWM and a DDC 3.2 PWM is the black cabling, SATA power connector instead of MOLEX, and 32-bit communication.
Since DDC pumps benefit from additional cooling to ensure longer life and fewer issues, the nickel-plated brass top is used as a heatsink for the pump housing via thermal pads that transfer the heat away from the pump. Two fill ports are located in the brass top. Two sets of G1/4" inlets and outlets are made on the side of the block which is made of durable black acetal.
OptiFlow Cooling Engine
EK-Quantum Velocity² series CPU water blocks embed the next generation cooling engine named OptiFlow. They use a specific combination of mounting pressure and coldplate geometry tailored for the IHS and die layout of Intel LGA 1700 socket processors. Low hydraulic flow restriction enables these products to be used in setups using weaker water pumps or lower pump speeds for added silent operation while still achieving top performance! The lathe-turned coldplate is made with precision to effectively cover the IHS and put pressure on the die area.
Water Block Material and Manufacturing
The coldplate is manufactured out of the highest-grade 99.99% pure electrolytic copper, machined with precision for the best possible contact and heat transfer which is further nickel-plated. The middle section is made of glass-like cast acrylic that is CNC-machined. On top of it stands the DDC pump with the block top that is made of CNC-machined nickel-plated brass.

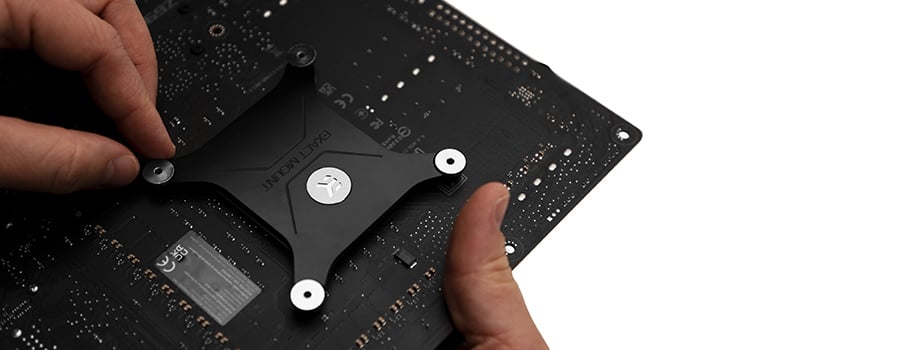

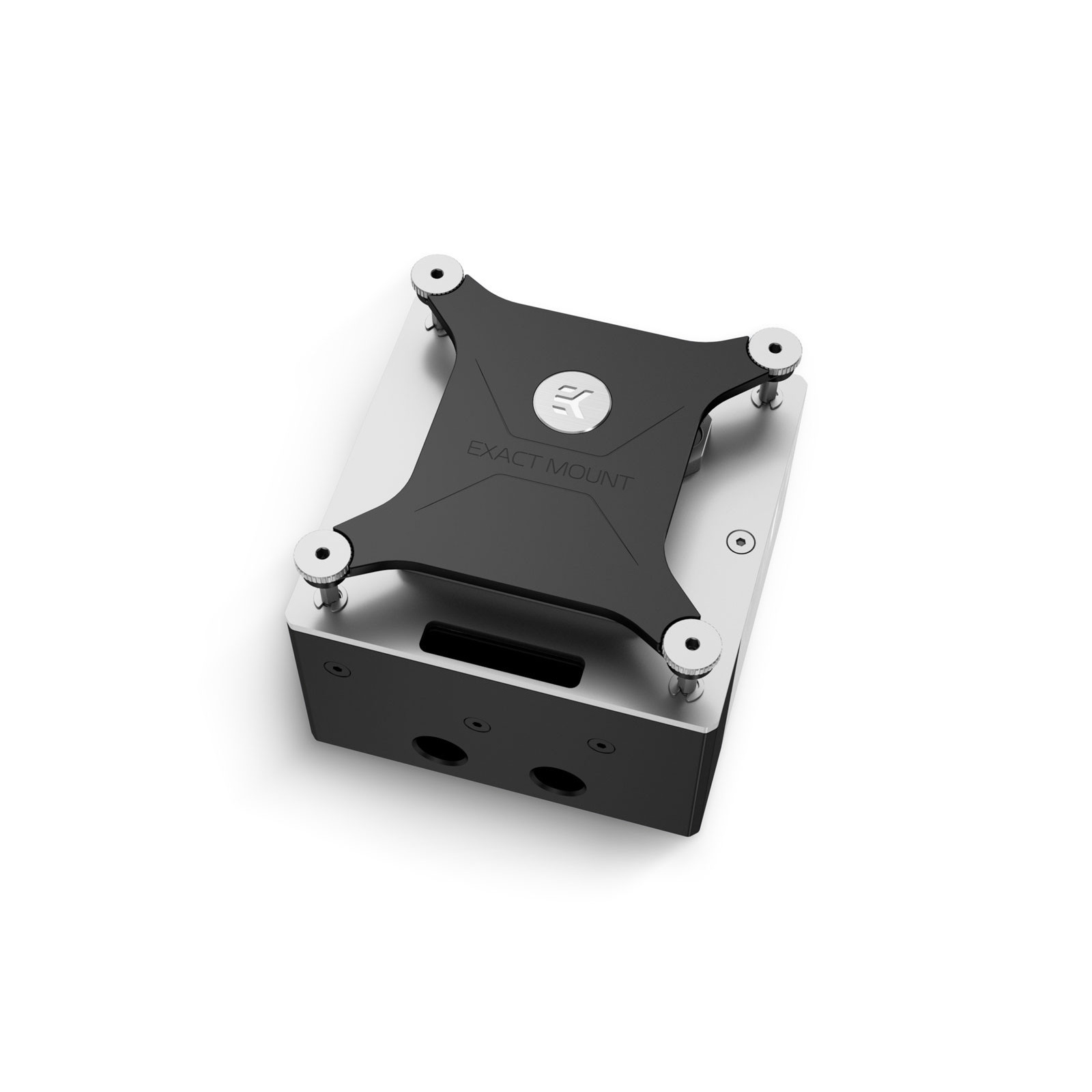

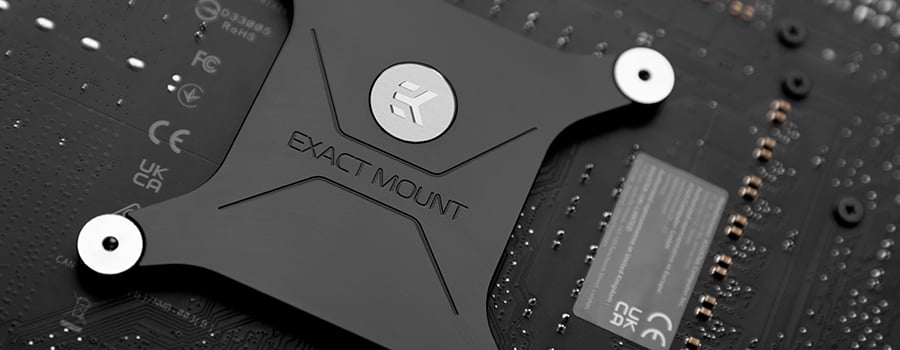

EK-Quantum Velocity² Patent-pending Mounting
EK-Exact Mount is a patent-pending mounting system designed and engineered by EK in the search for an easy-to-use, but aesthetically pleasing mounting mechanism. It's made up of only three pieces - the backplate, mounting screws, and the water block itself. It's screwed in from the back, allowing for a seamless and clean front aesthetic without any screws disrupting the harmony of shape. The system uses pre-tensioned springs concealed in the water block top, so with just a few turns of the thumb nuts, the installation is finished, and you get the exact mounting pressure needed.
EK-Quantum Velocity² D-RGB LED Lighting
This product is compatible with all popular addressable RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB header. The middle section of the block, which is made of glass-like acrylic, is lit with addressable 14 LEDs.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Custom Cooling Parts
BYKSKI Acrylic 1000mm Clear 12mm ID x 16mm OD Rigid Acrylic Tube,...
Alphacool Core 1 Aurora Black For Intel LGA 1700 / LGA 1851, AMD:...
Alphacool Tec Protect 2 Clear 1000ml
Alphacool NexXxoS ST30 Full Copper X-Flow 360mm - Black - 30mm...
Alphacool Core Flat Reservoir ARGB 240mm Right with VPP Apex Pump
EKWB EK-Quantum Velocity2 D-RGB For Intel Socket LGA 1700 CPU With DDC 4.23 PWM Built In Nickel + Plexi
- Brand: EKWB
- MPN: WTREKW897539
- Part #: WTREKW897539
Product URL: https://www.pbtech.co.nz/product/WTREKW897539/EKWB-EK-Quantum-Velocity2-D-RGB-For-Intel-Socket-L
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
EK-Quantum Velocity² DDC 4.2 PWM D-RGB - 1700 Nickel + Plexi is a unique pump-reservoir-water block combo for Intel® 12th Gen Core CPUs and LGA 1700 socket-based motherboards. It features the latest EK-Quantum Velocity² cooling engine that is socket-specific. The CPU water block has an integrated genuine DDC 4.2 PWM pump, which is cooled by a metal part of the water block acting as a heatsink. It is the perfect companion for ITX (SFF) builds where space for a dedicated pump and reservoir is an issue. This product effectively combined 4 distinct products into a single small enclosure.
With this water block, you will not require a dedicated reservoir either, as it incorporates a small reservoir to ease the filling process, but also to ensure the water-lubricated DDC pump always has sufficient coolant not to run dry. It has two G1/4" fill ports to account for both vertical and horizontal motherboard mounting and two sets of inlets and outlets.
DDC 4.2 PWM Pump with a Reservoir
This pump was chosen over the D5 due to its compact design. The quiet and powerful motor, in conjunction with its size, makes it ideally suited for heavy-duty cooling in environments where space is at a premium. The main difference between this DDC 4.2 PWM and a DDC 3.2 PWM is the black cabling, SATA power connector instead of MOLEX, and 32-bit communication.
Since DDC pumps benefit from additional cooling to ensure longer life and fewer issues, the nickel-plated brass top is used as a heatsink for the pump housing via thermal pads that transfer the heat away from the pump. Two fill ports are located in the brass top. Two sets of G1/4" inlets and outlets are made on the side of the block which is made of durable black acetal.
OptiFlow Cooling Engine
EK-Quantum Velocity² series CPU water blocks embed the next generation cooling engine named OptiFlow. They use a specific combination of mounting pressure and coldplate geometry tailored for the IHS and die layout of Intel LGA 1700 socket processors. Low hydraulic flow restriction enables these products to be used in setups using weaker water pumps or lower pump speeds for added silent operation while still achieving top performance! The lathe-turned coldplate is made with precision to effectively cover the IHS and put pressure on the die area.
Water Block Material and Manufacturing
The coldplate is manufactured out of the highest-grade 99.99% pure electrolytic copper, machined with precision for the best possible contact and heat transfer which is further nickel-plated. The middle section is made of glass-like cast acrylic that is CNC-machined. On top of it stands the DDC pump with the block top that is made of CNC-machined nickel-plated brass.
EK-Quantum Velocity² Patent-pending Mounting
EK-Exact Mount is a patent-pending mounting system designed and engineered by EK in the search for an easy-to-use, but aesthetically pleasing mounting mechanism. It's made up of only three pieces - the backplate, mounting screws, and the water block itself. It's screwed in from the back, allowing for a seamless and clean front aesthetic without any screws disrupting the harmony of shape. The system uses pre-tensioned springs concealed in the water block top, so with just a few turns of the thumb nuts, the installation is finished, and you get the exact mounting pressure needed.
EK-Quantum Velocity² D-RGB LED Lighting
This product is compatible with all popular addressable RGB sync technologies from all major motherboard manufacturers. The arrow marking on the 3-pin D-RGB LED connector is to be aligned with the +5V marking on the D-RGB header. The middle section of the block, which is made of glass-like acrylic, is lit with addressable 14 LEDs.
Specifications
Technical specifications
- Dimensions (W x D x H): 94.5 x 60.7 x 94.5mm
- G1/4" ports: 6 ports, of which two are dedicated fill ports.
- Reservoir volume: 64ml
- D-RGB cable length: 50cm
- D-RGB connector 3-pin 5V digital LED header (Pinout: +5V | Digital | Blocked | Ground)
- LED count: 14
- DDC pump 32-bit communication 4-pin cable length : 75cm
- DDC pump SATA power cable length: 50cm
CPU socket compatibility
- Intel LGA 1700
Enclosed
- EK-Quantum Velocity² DDC 4.2 CPU Water Block + Pump Reservoir Combo
- Integrated DDC pump heatsink
- Mounting mechanism for socket LGA 1700
- Thermal interface material
