TP-LINK MODEM / ROUTER SETTINGS
VDSL & Fibre/UFB Settings for TP-Link Modems & Routers running on Spark, Vodafone, 2degrees, Slingshot, and Orcon Networks.
Modems
Archer VR400 / Archer VR600 / Archer VR600v / Archer VR2800 / Archer TD-W9960
Archer D9
Archer VR2600
Routers
Archer C5400X (US) V1.0 / Archer C5400 (US) V2.0 / Archer C4000 (US) V2.0 / Archer C3150 (US) V2.0 / Archer C2300 (US) V1.0 / Archer C9 (EU) V4.0 / Archer C9 (EU) V5.0 / Archer C8 (US) V3.0 / Archer C7 (EU) V4.0 / Archer C7 (US) V4.0 / Archer C7 (US) V5.0 / Archer C60 (EU) V2.0 / Archer C1200 (US) V3.0 / Archer C59 (US) V2.0
Archer C3150 (US) V1.0/ Archer C9 (EU) V3.0/ Archer C1200 (EU) V1.0 / Archer C59 (EU) V1.0

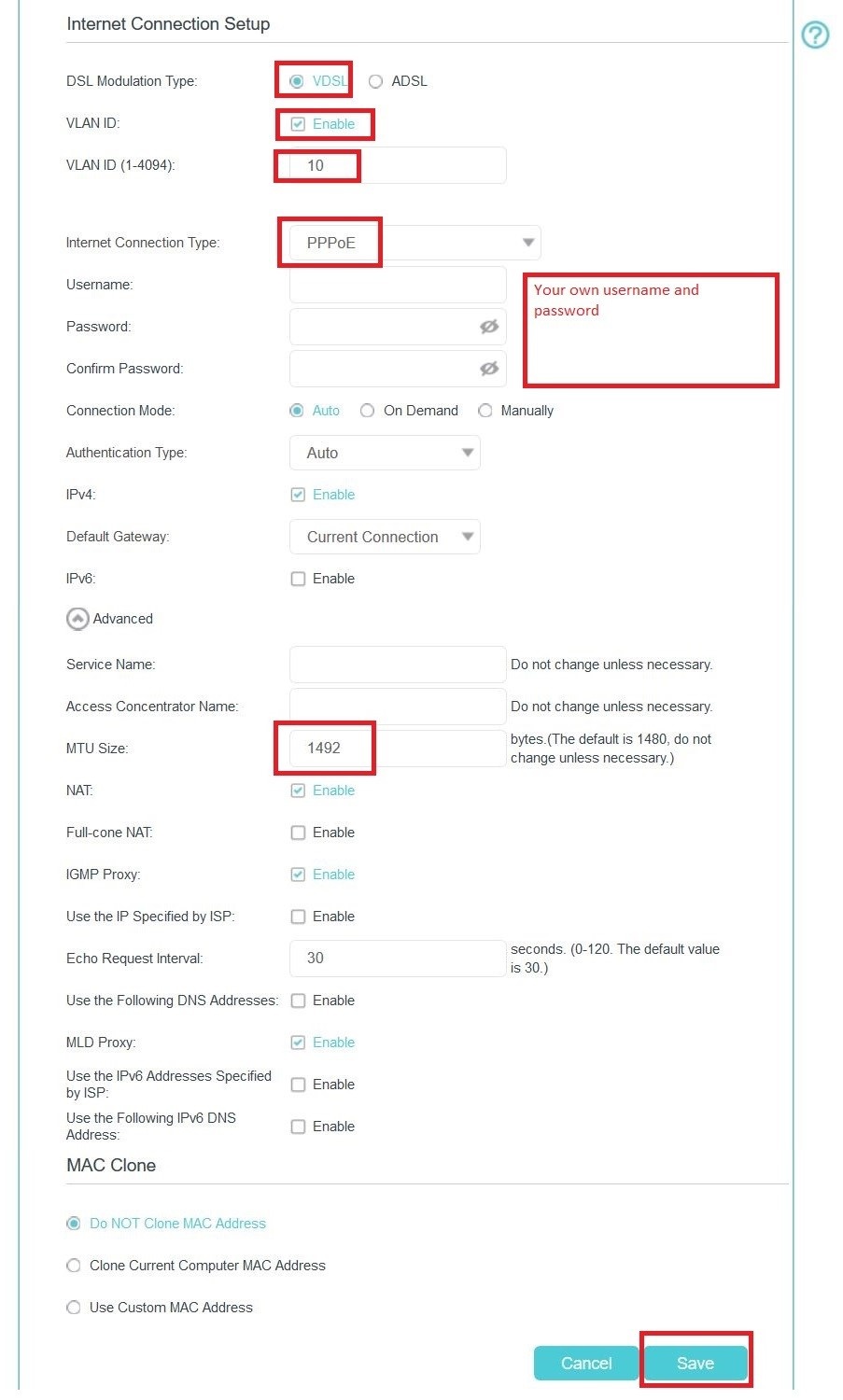

VDSL configuration for Archer VR300 / VR400 / VR600 / VR600v / VR2800 / TD-W9960 (Spark / Vodafone)
Step 1
Step 2
Fibre / UFB configuration for Archer VR400 / VR600 / VR600v / VR2800 (Spark / 2degrees / Slingshot)
Step 1
Step 2

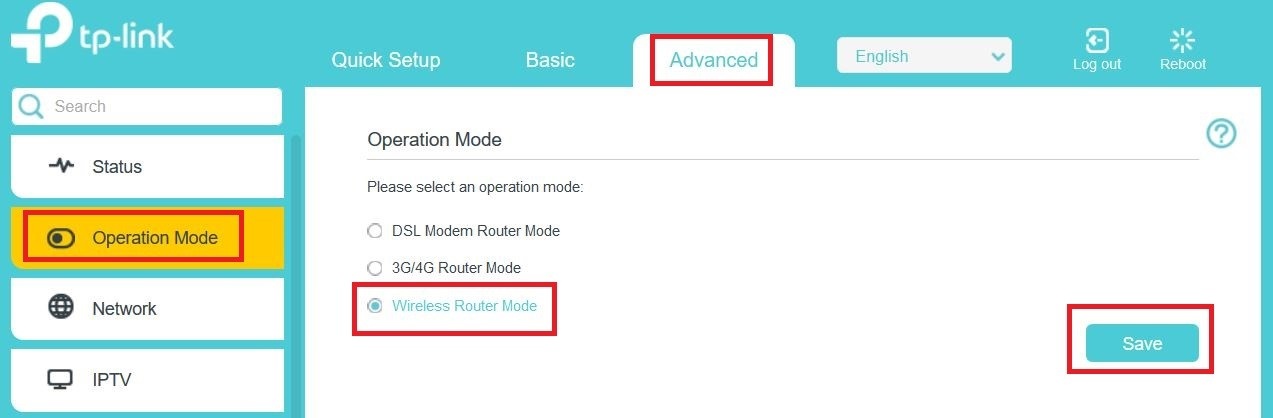

Fibre / UFB configuration for Archer VR400 / VR600 / VR600v / VR2800 (Vodafone / Orcon)
Step 1
Step 2

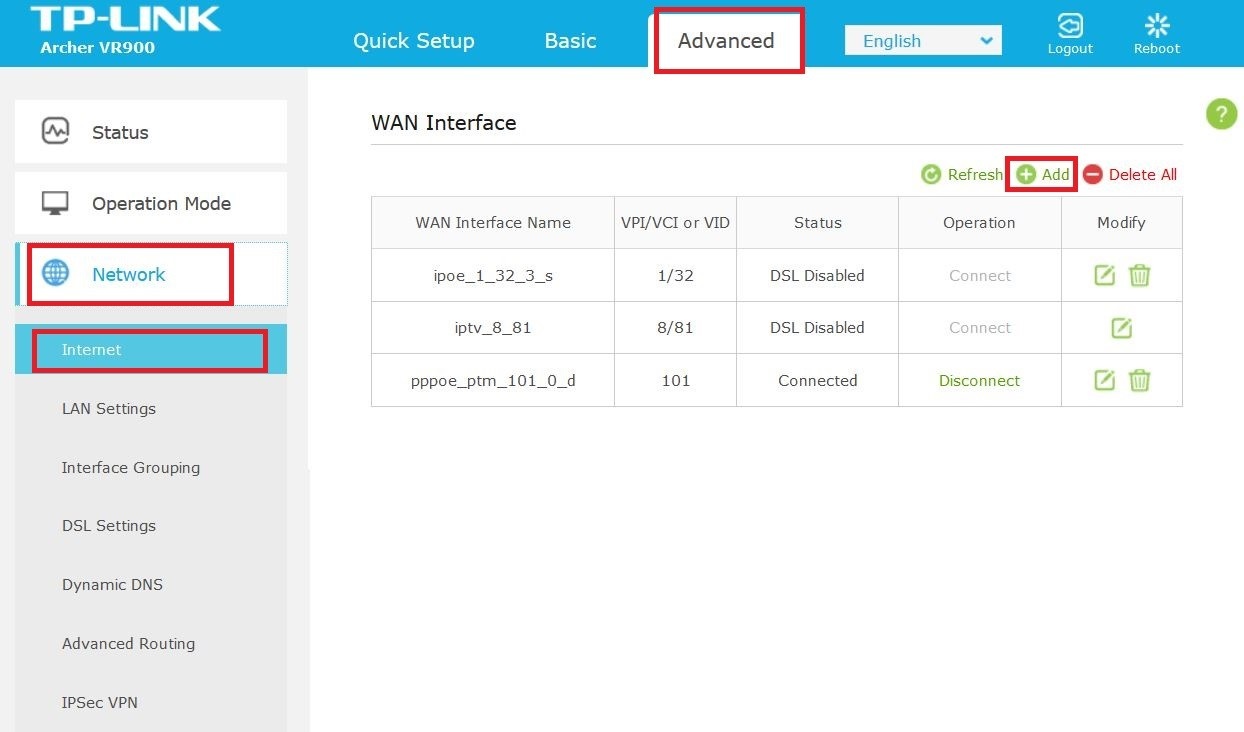

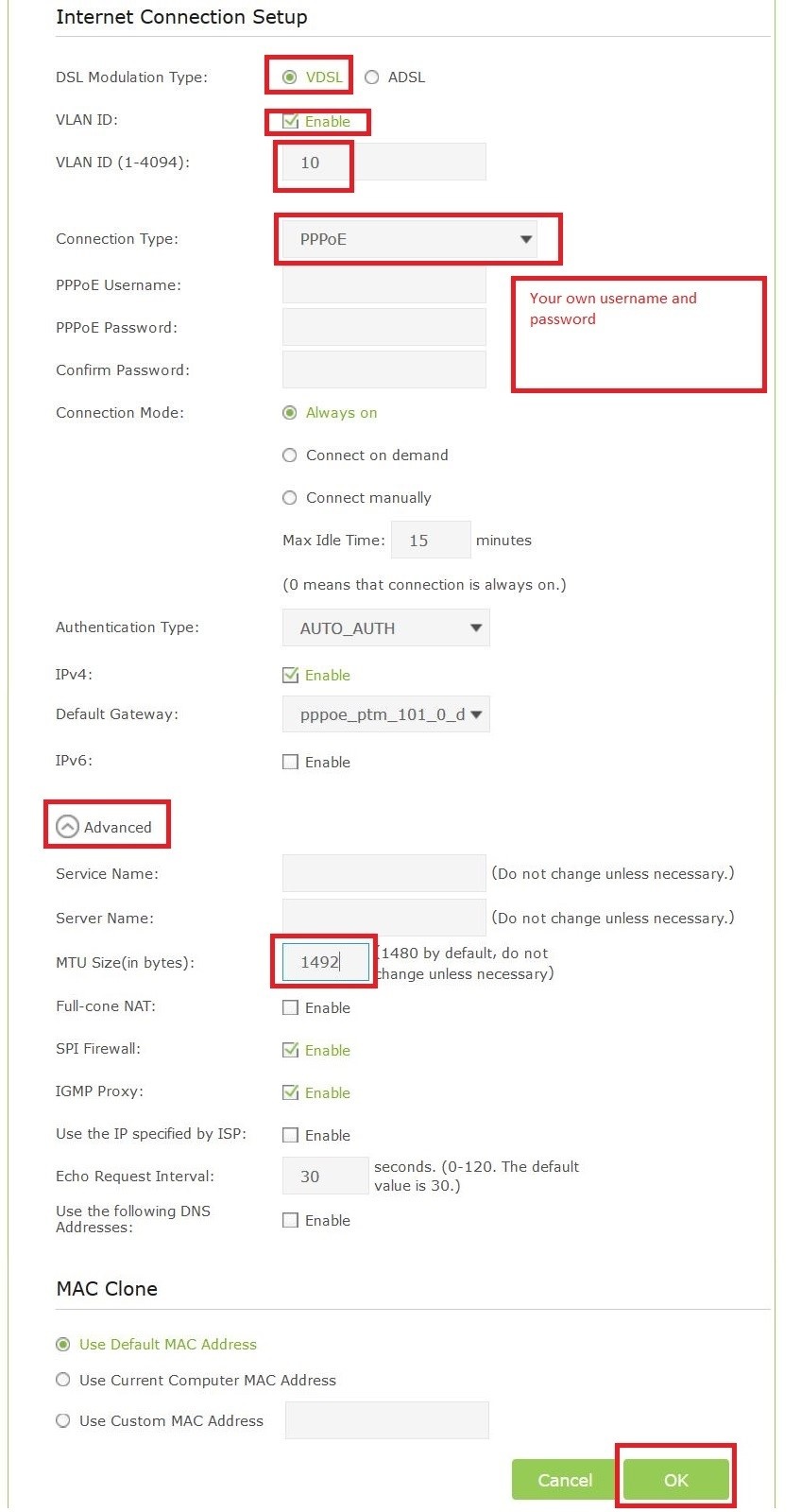

VDSL configuration for Archer VR900 / D9 / VR2600 (Spark / Vodafone)
Step 1
Step 2
Fibre / UFB configuration for Archer VR900 (spark / 2degrees / slingshot)
Step 1
Step 2

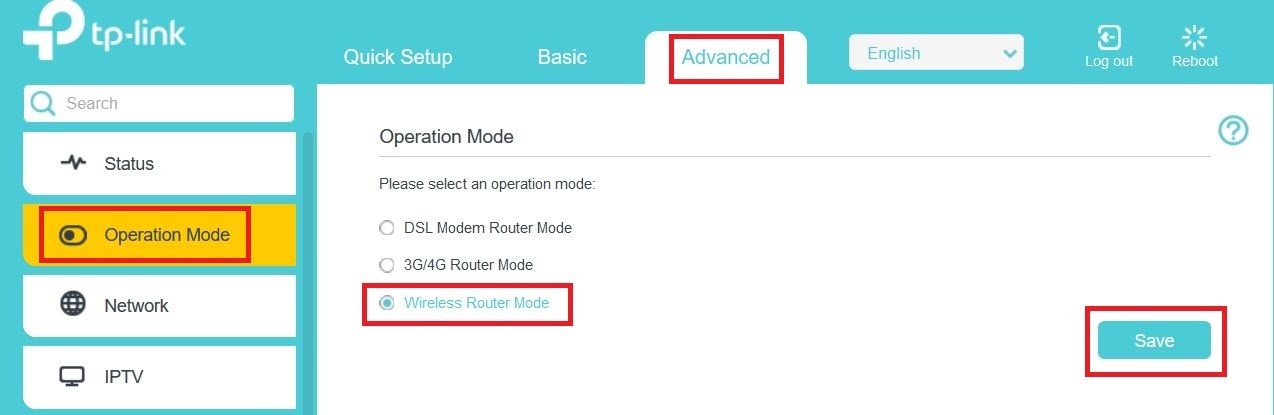

Fibre / UFB configuration for Archer VR900 (Vodafone / Orcon)
Step 1
Step 2

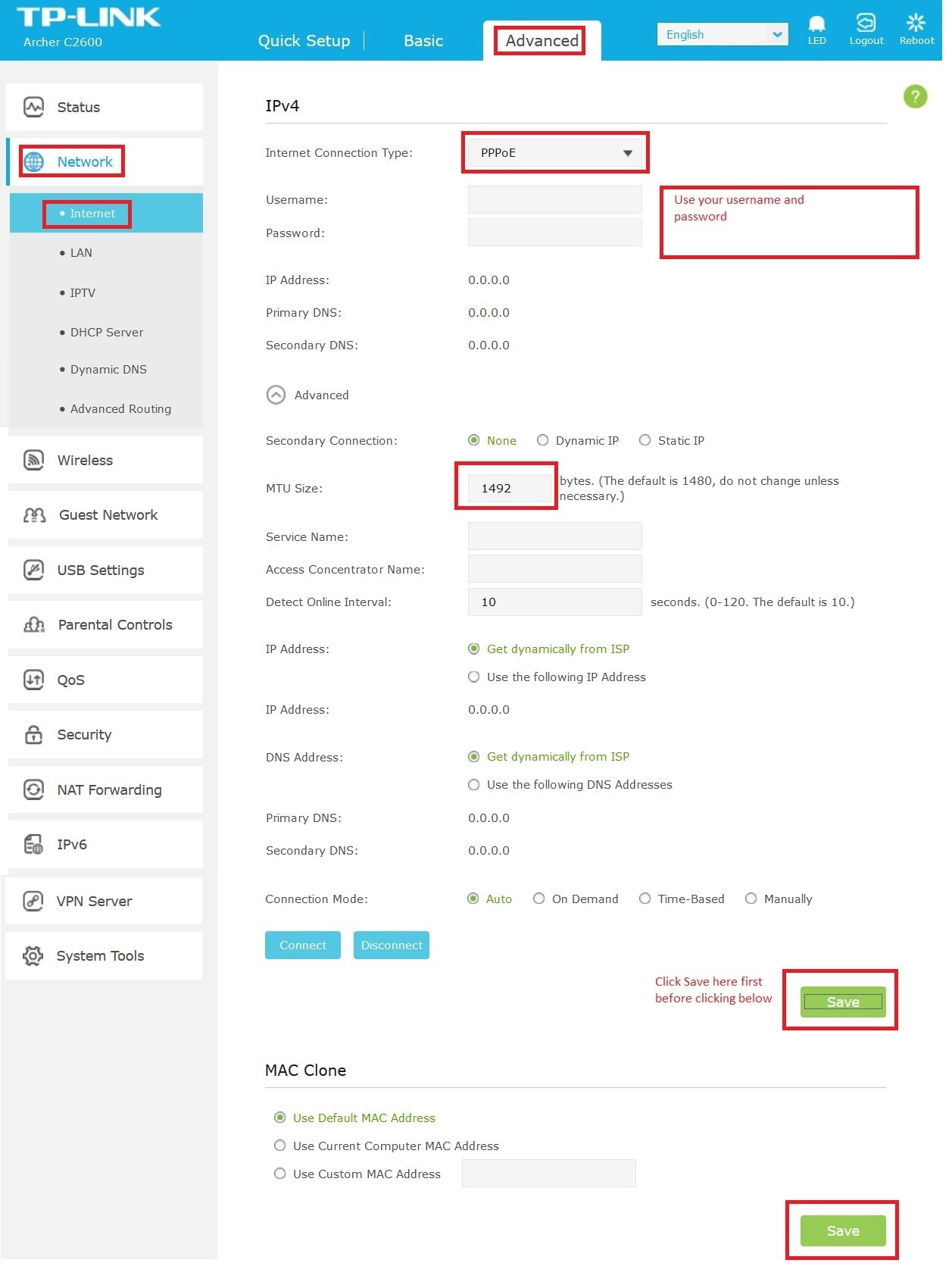

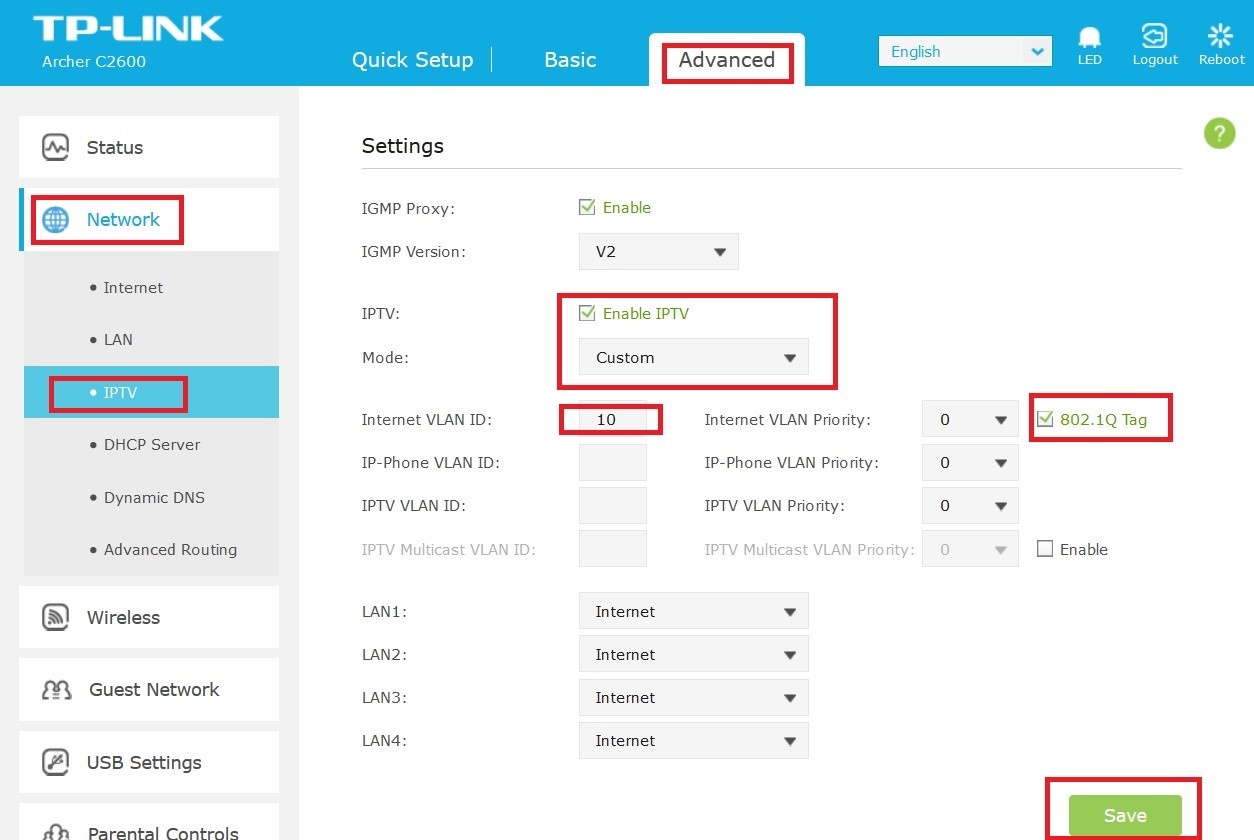

Fibre / UFB configuration for Archer VR2600 for (Spark / 2degress / Slingshot)
Step 1
Step 2

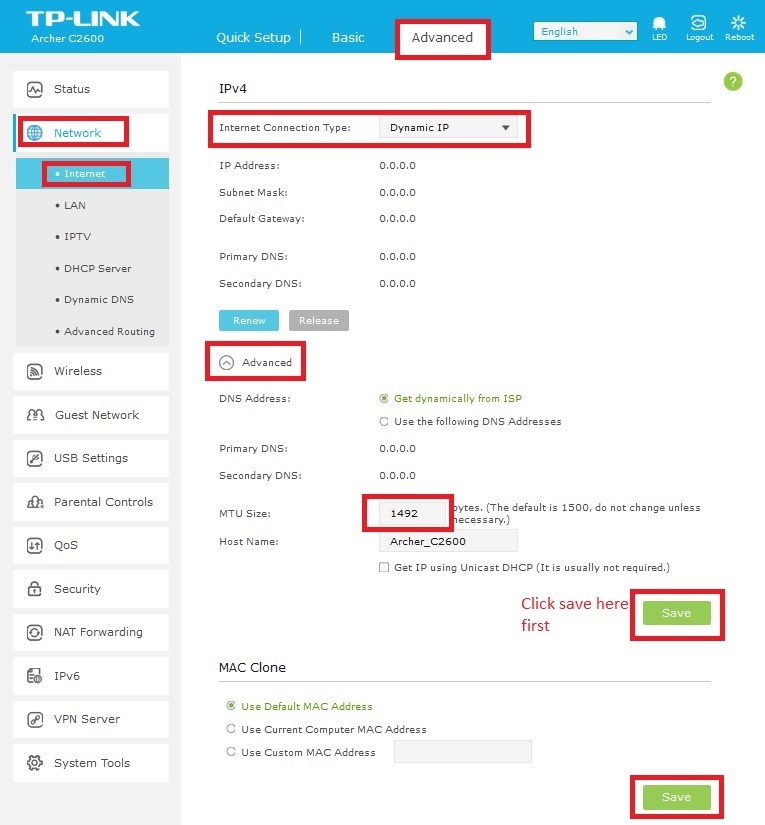

Fibre / UFB configuration for Archer VR2600 for (Vodafone / Orcon)
Step 1
Step 2

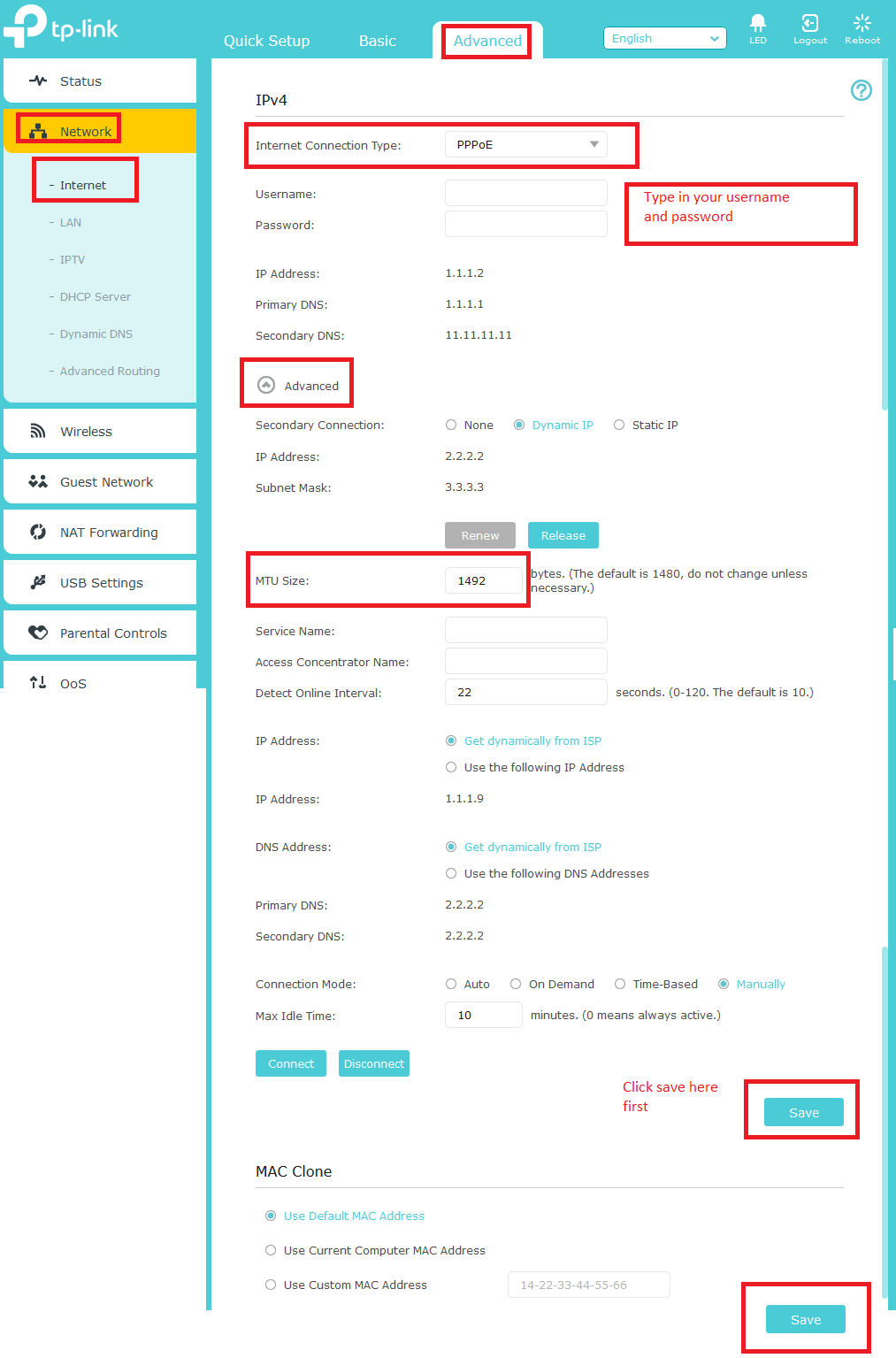

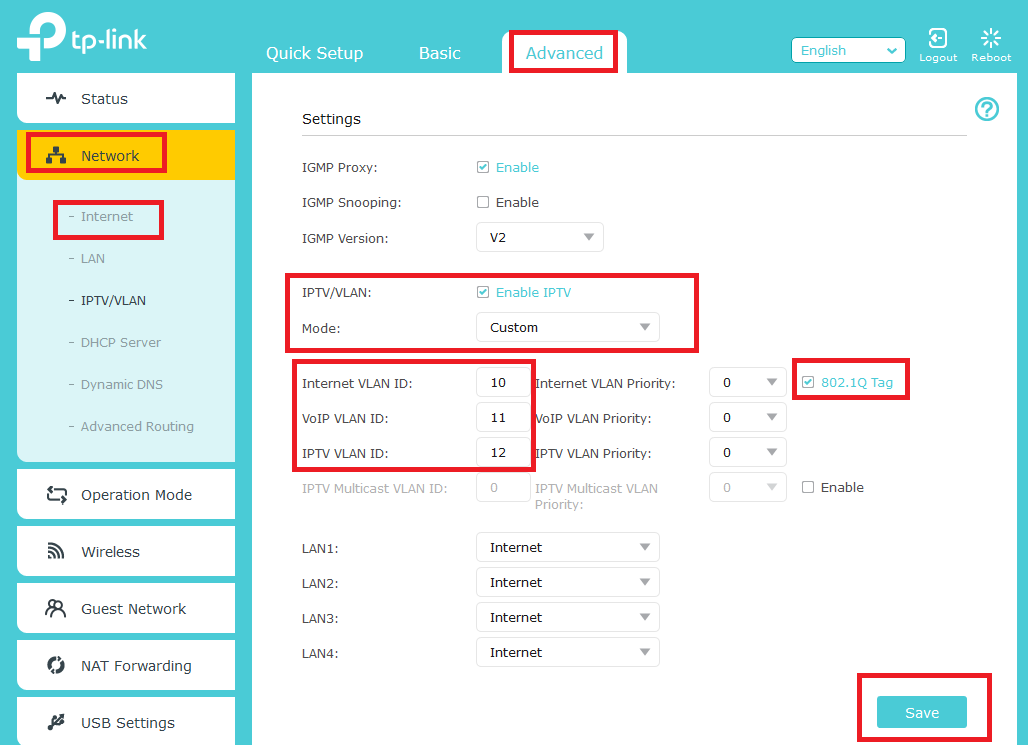

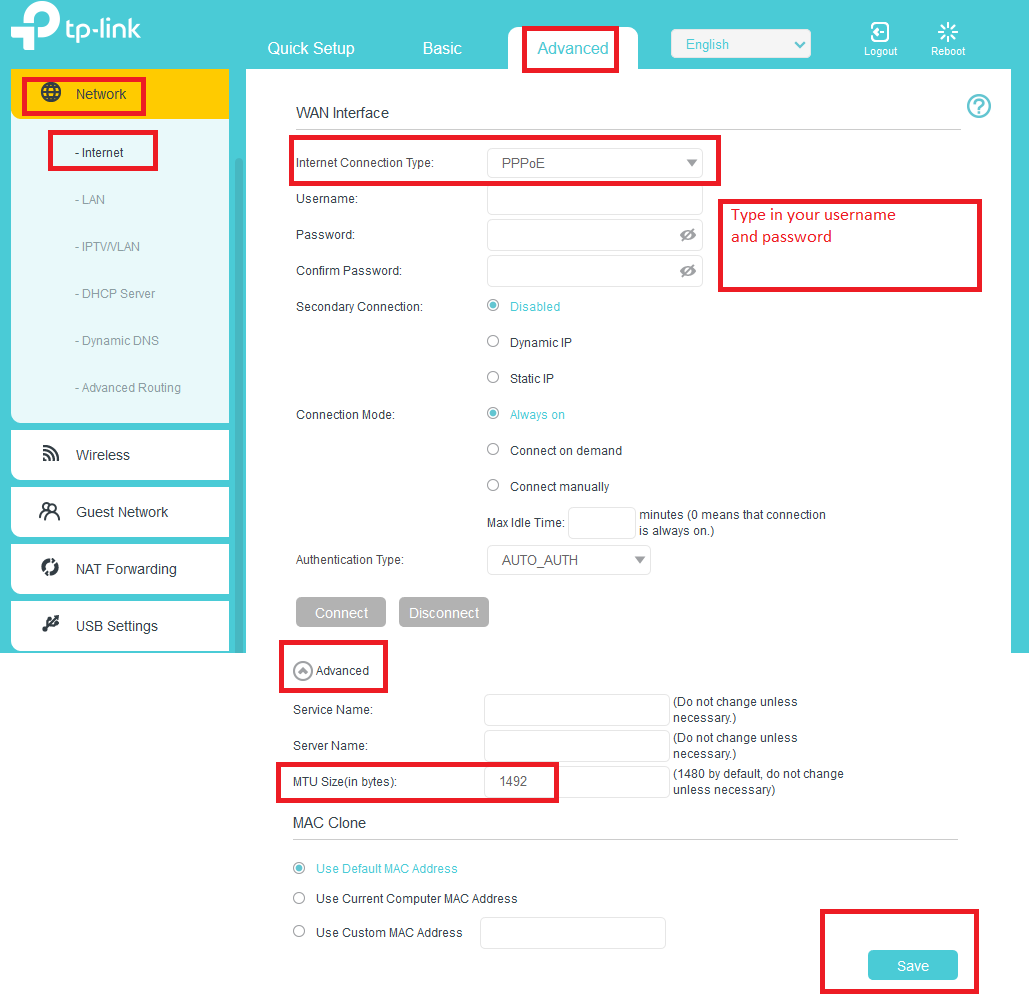

Fibre / UFB configuration for Archer C5400X (US) V1.0 /Archer C5400 (US) V2.0 /Archer C4000 (US) V2.0 /Archer C3150 (US) V2.0 /Archer C2300 (US) V1.0 /Archer C9 (EU) V4.0 /Archer C9 (EU) V5.0 /Archer C8 (US) V3.0 /Archer C7 (EU) V4.0 /Archer C7 (US) V4.0 /Archer C7 (US) V5.0 /Archer C60 (EU) V2.0 /Archer C1200 (US) V3.0 /Archer C59 (EU) V2.0 (Spark / 2degrees / Slingshot)
Step 1
Step 2
Step 3

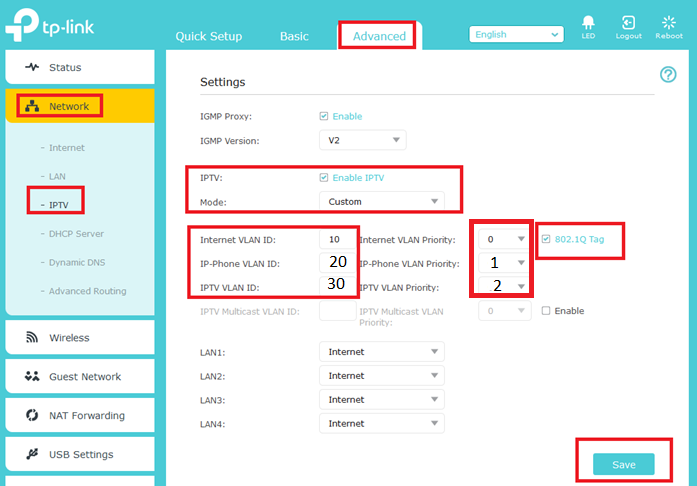

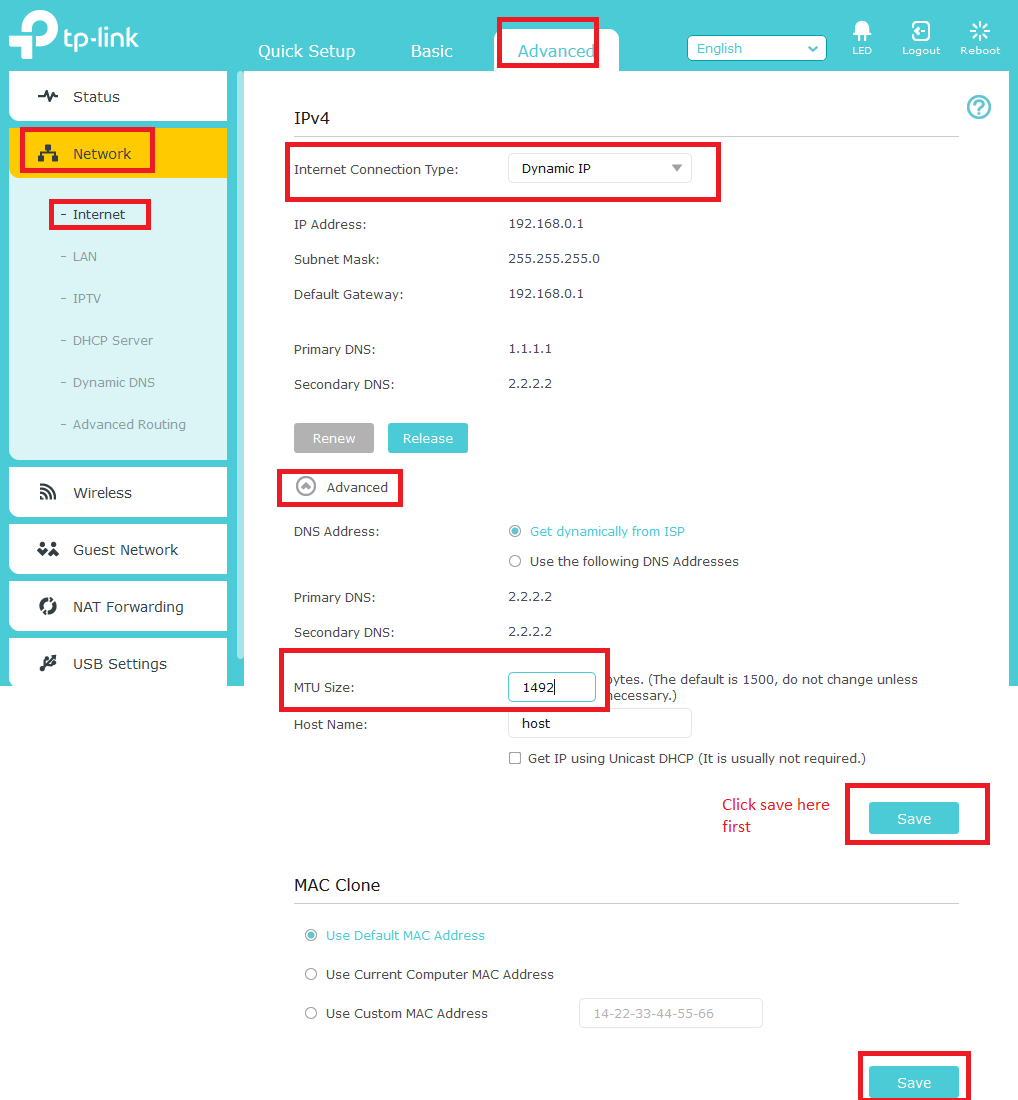

Fibre / UFB configuration for Archer C5400X (US) V1.0 /Archer C5400 (US) V2.0 /Archer C4000 (US) V2.0 /Archer C3150 (US) V2.0 /Archer C2300 (US) V1.0 /Archer C9 (EU) V4.0 /Archer C9 (EU) V5.0 /Archer C8 (US) V3.0 /Archer C7 (EU) V4.0 /Archer C7 (US) V4.0 /Archer C7 (US) V5.0 /Archer C60 (EU) V2.0 /Archer C1200 (US) V3.0 /Archer C59 (EU) V2.0 (Vodafone / Orcon)
Step 1
Step 2
Step 3
Fibre / UFB configuration for: Archer C3150 (US) V1.0 / Archer C9 (EU) V3.0 / Archer C1200 (EU) V1.0 / Archer C59 (EU) V1.0 (Spark / 2degrees / Slingshot)
Step 1
Step 2
Fibre / UFB configuration for: Archer C3150 (US) V1.0 / Archer C9 (EU) V3.0 / Archer C1200 (EU) V1.0 / Archer C59 (EU) V1.0 (Vodafone / Orcon)
Step 1
Step 2
