ZHIYUN FIVERAY M20C (PLM103-BLACK) Powerful Pocket Fill light

PB Tech price
PB Tech price
$ 173 .04
 +GST
$ 199 .00
 inc GST
$173.04  +GST
$199.00

ZHIYUN FIVERAY M20C (PLM103-BLACK) Powerful Pocket Fill light

  • Brand: ZHIYUN
  • MPN: C040036ABR1
  • Part #: CAAZYN040021
  • UPC: 191493003910
PB Tech price
$ 173 .04 $ 199 .00
 +GST  inc GST


Click & Collect: Available from 11 stores.
Select your store to check availability
Delivery: Order now and it ships on 23 Sep When will I receive it?
$173.04  +GST
$199.00
  • Brand: ZHIYUN
  • MPN: C040036ABR1
  • Part #: CAAZYN040021
  • UPC: 191493003910

Kit Type

N/A

Colour

Black

Features

Zhiyun introduces the FIVERAY M20C RGB LED Light as part of their FIVERAY Series, known for convenient, cost-effective LED light sources designed for creative video/photo work. The M20C responds to the content creator's need for simplicity and functionality in its compact 3 x 3" body. This on-camera light features RGB capability, a wide 2500 to 10,000K adjustable color temperature, a separate 0 to 100% dimming function, and a runtime of up to 40 minutes at the maximum brightness. The integrated battery charges in about two hours using the included PD charging cable.

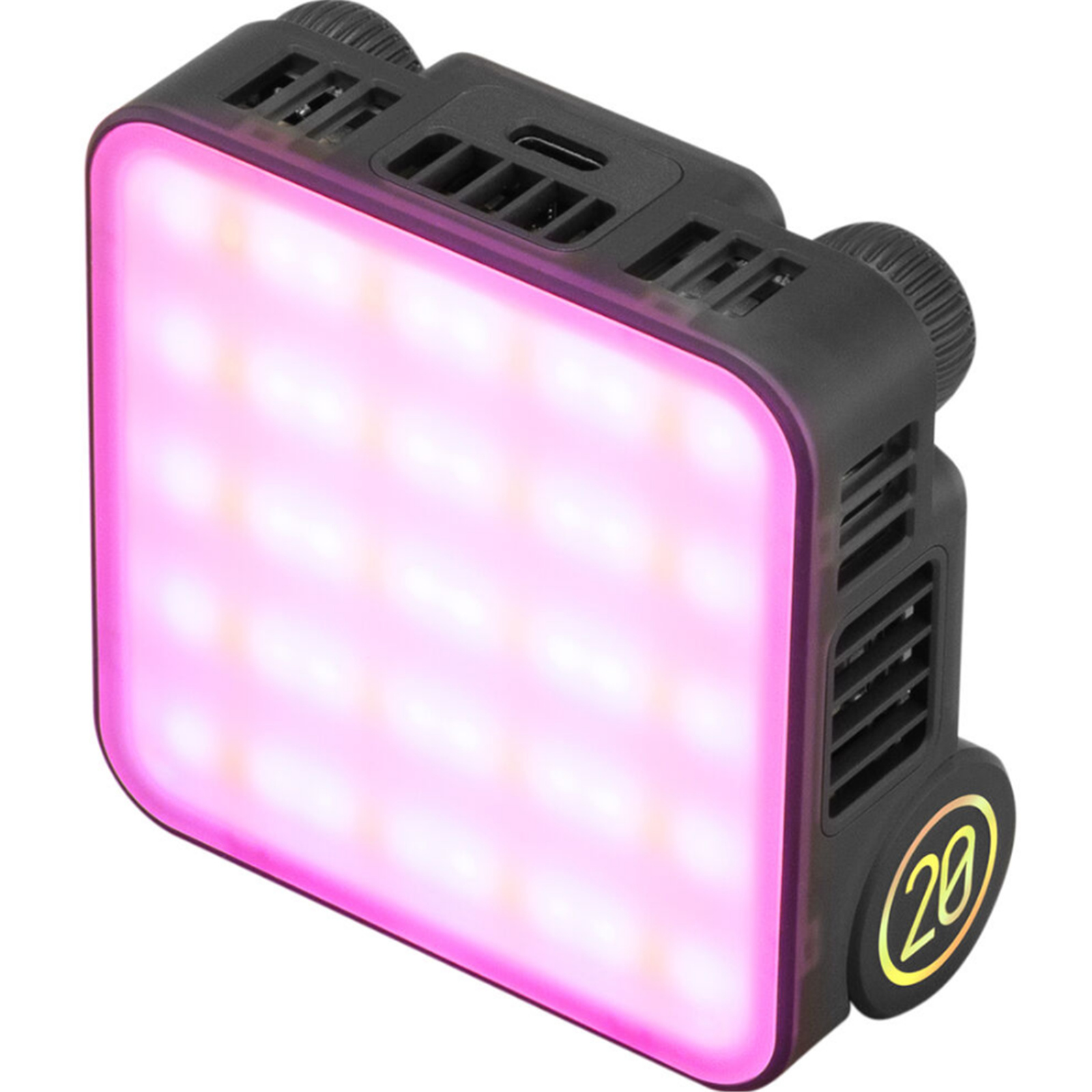

RGB Capability

The M20C's RGB output allows you to add creative colors to your still and video content. The red color will produce up to 276 lux, the green up to 319 lux, and the blue up to 117 lux, all at 100% brightness.

Bright Output, Natural Color Reproduction

At its maximum power output of 20W, the light can reach up to 529 lux at 3.3' when outputting a 4300K color temperature. A CRI level of 94 and a TLCI level of 96 render authentic colors.

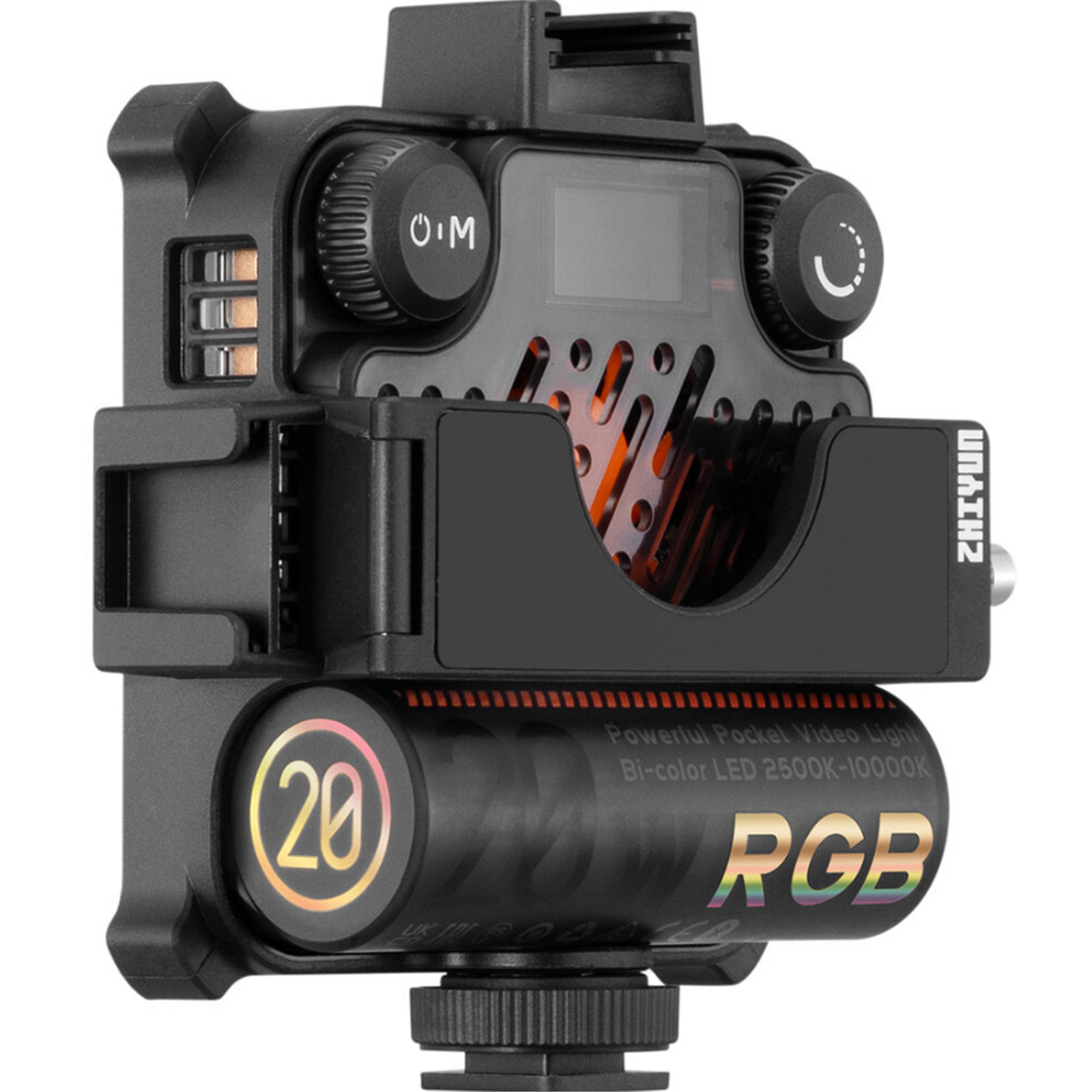

Mounting

The included extension bracket allows you to mount the M20C directly on your camera. The bracket's bottom shoe adapter and three shoe mounts around each side enable you to expand your rig. You can add multiple lights for increased brightness levels or attach other compatible accessories without much added weight.

Specifications

Light Fixture

Item Type

1 x LED Light Panel

Included Storage Case

No

Photometrics

4300K:
49 fc / 529 Lux at 3.3' / 1 m*
186 fc / 2010 Lux at 1.6' / 0.5 m
483 fc / 5200 Lux at 1' / 0.3 m

Color Temperature

2500 to 10,000K

Color Modes

RGB, Daylight, Tungsten

Color Accuracy Standard

CRI 94
TLCI 96

Dimmable

0 to 100%

Built-In Flash

No

Umbrella Mount

No

Front Accessory Mount

Proprietary

Power & I/O

Power Source

Battery (Built-In)

Battery

1 x Rechargeable, 4500 mAh (Built-In)
- Up to 40-Minute Runtime at Maximum Brightness
- 2-Hour Charge Time

Battery Charging

Charging Cable (Included)

Power Consumption

20 W

Environmental

Environmental Protection

No

Operating Temperature

14 to 104°F / -10 to 40°C

General

Dimensions

3 x 3 x 1.4" / 7.6 x 7.6 x 3.6 cm (Fixture)

Weight

0.4 lb / 202 g (Fixture)

Manufacturer Part No:
C040036ABR1
Brand:
Product Type:
-
UPC
191493003910
Product Family:
-
Shipping Weight:
0.45 kg
PB Part No:
CAAZYN040021
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
