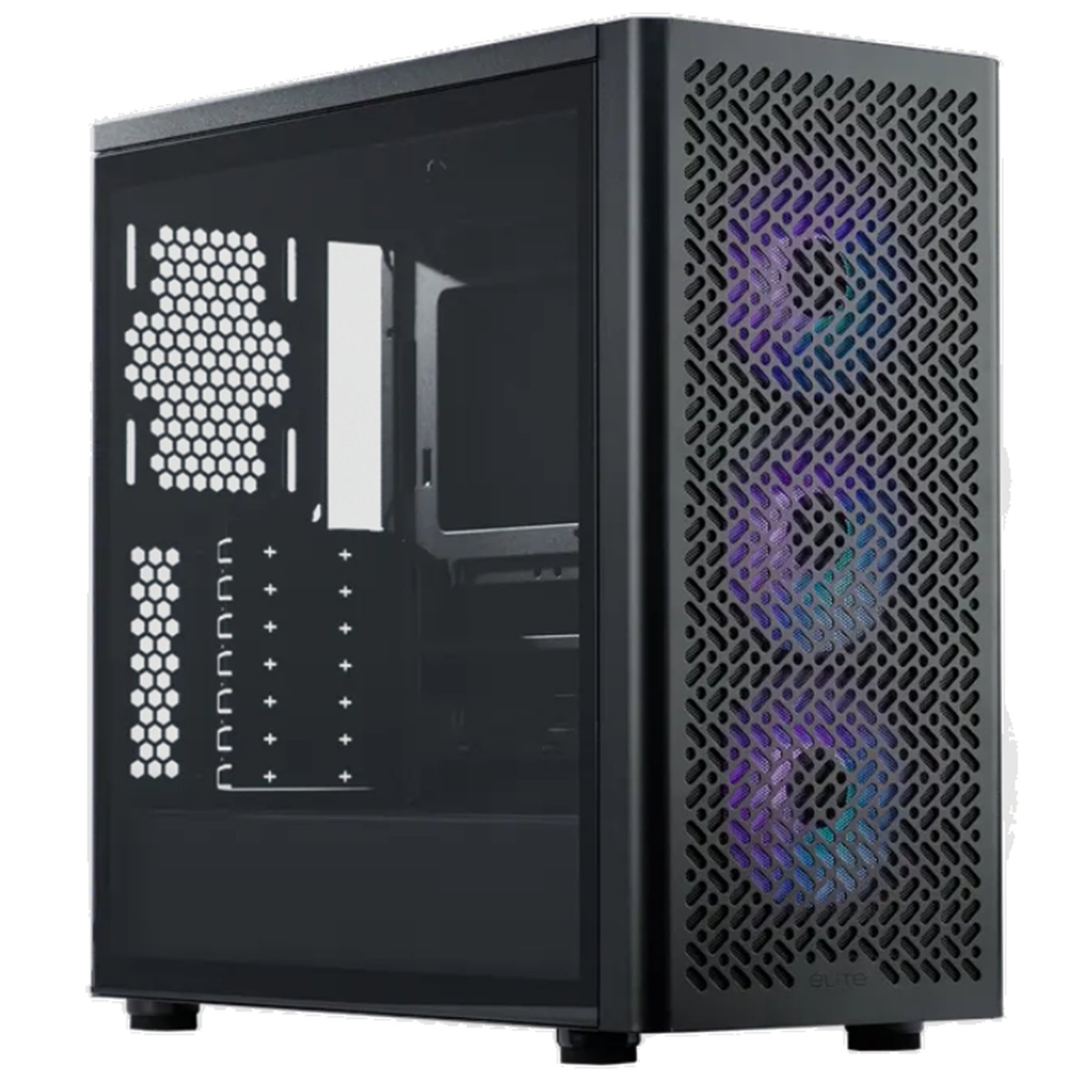

Cooler Master Elite 502 MidTower Gaming Case Tempered Glass, 4x ARGB 120mm Fan Pre-installed, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB 3.2, 1x Type C, HD Audio

PB Tech price
PB Tech price
$ 103 .48
 +GST
$ 119 .00
 inc GST
$103.48  +GST
$119.00

Cooler Master Elite 502 MidTower Gaming Case Tempered Glass, 4x ARGB 120mm Fan Pre-installed, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB 3.2, 1x Type C, HD Audio

  • Brand: Cooler Master
  • MPN: E502-KGNN-SAZ
  • Part #: CHACLM0530
  • UPC: 884102131851
NEW ARRIVAL
PB Tech price
$ 103 .48 $ 119 .00
 +GST  inc GST


Click & Collect: Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$103.48  +GST
$119.00

Four payments of $30.05 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Cooler Master
  • MPN: E502-KGNN-SAZ
  • Part #: CHACLM0530
  • UPC: 884102131851

Form Factor

ATX

Side Window

Yes

Radiator Support

360mm

Maximum Card Length

410mm

CPU Cooler Height Clearance

170mm

Colour

Black

Dedicated 2.5" Bay

2

2.5" / 3.5" Bays

4

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Cooler Master Elite 502 MidTower Gaming Case Tempered Glass, 4x ARGB...
Cooler Master Elite 502 MidTower Gaming Case Tempered Glass, 4x ARGB 120mm Fan Pre-installed, CPU Cooler Support Upto 170mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 1x USB 3.2, 1x Type C, HD Audio
Total:
$ 434 .91
 +GST
$ 500 .15
Buy together and save $8.82 $10.14
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
Dynamix CK-AD400 400ml Air Duster, Super High Pressure, Non-Flammable Safe on all Electronics, Computer and Office Equipment - Ozone Friendly
$12.56 $14.44

$11.54  +GST

$13.27

You save 8% You save 8%
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
$109.00 $125.35

$105.00  +GST

$120.75

You save $4 You save $4
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
DEEPCOOL PN850M 850W ATX 3.1 Power Supply 80 Plus Gold - Full Modular with PCIe 5.1 12V-2X6 Cable - 10 Years Warranty
$199.13 $229.00

$195.76  +GST

$225.12

Features

Elite 502

The Elite 502 delivers exceptional cooling and performance with its advanced mesh front panel for enhanced airflow. Designed for mid-to-entry-level builders, it supports up to a 420mm radiator, 410mm GPUs, and modern back-connector motherboards, offering a streamlined and efficient building experience at an accessible price.

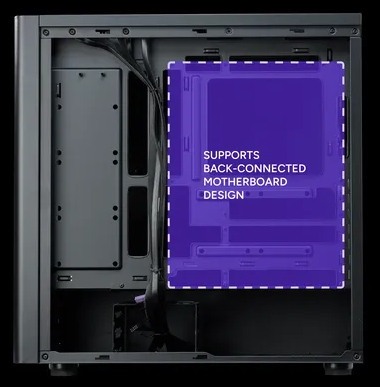

BACK-CONNECTED MOTHERBOARD SUPPORT?

Supports back-connected motherboard design, freeing up space at the front of the case and providing 33-35mm of space behind the motherboard tray for easier cable management.

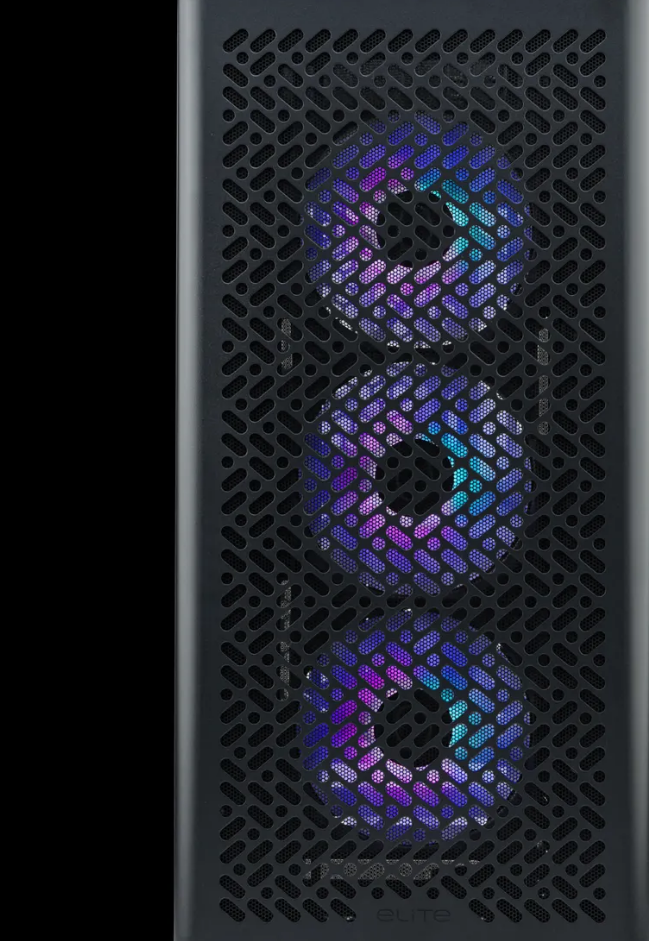

OPTIMIZED AIRFLOW?

Equipped with three 120mm ARGB fans, it offers stable cooling performance while adding stunning lighting effects to your build.

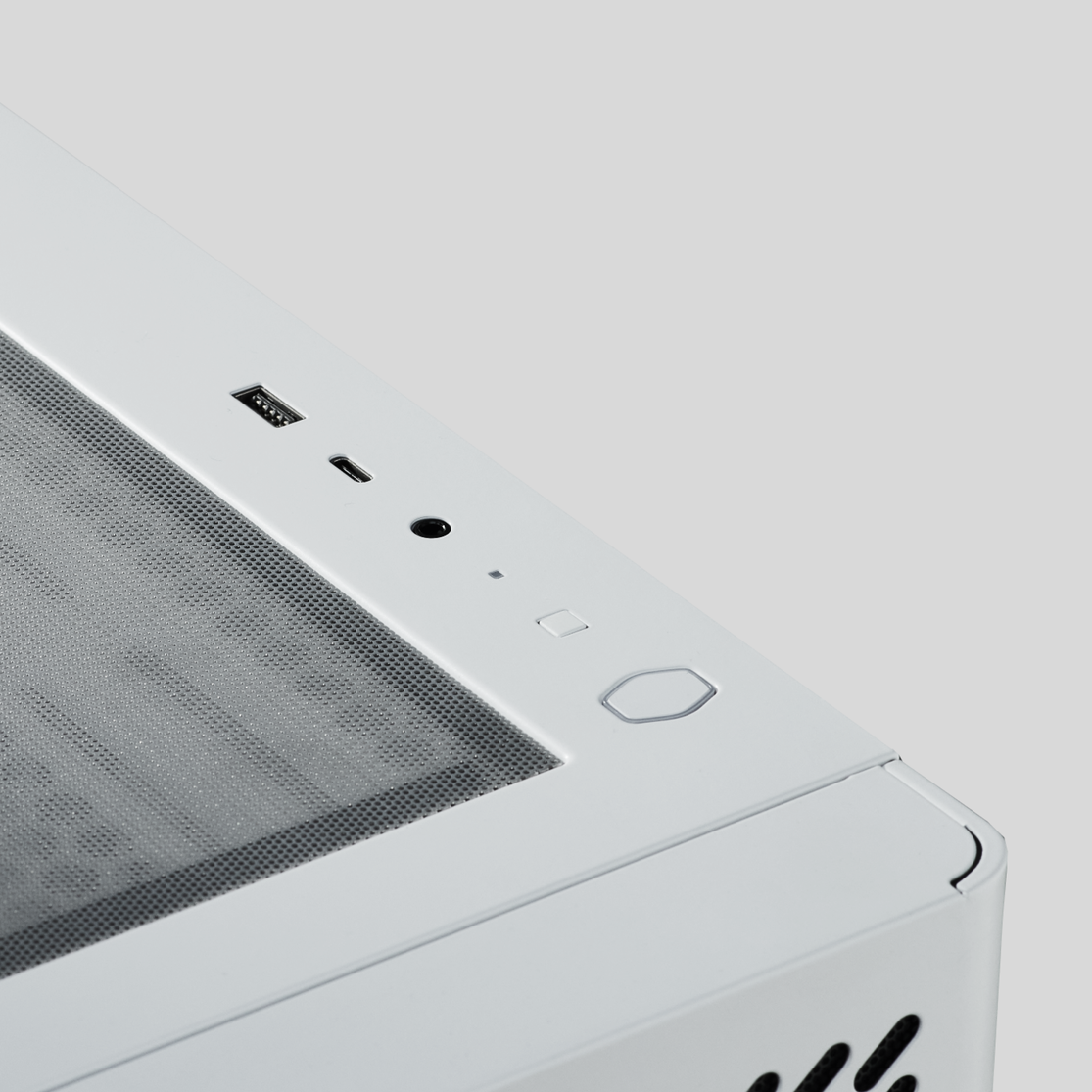

USB TYPE-C UPGRADE?

USB Type C port built into the I/O panel allows multi-purpose, streamlined data transmission. ?

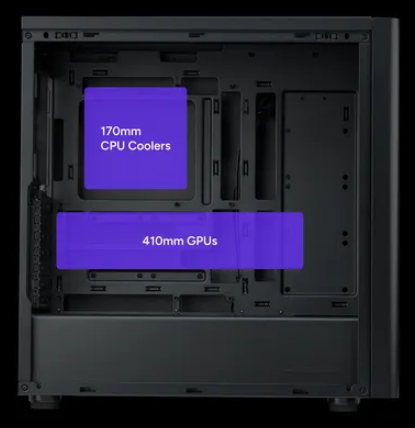

ROOM FOR UPDATES?

Supports a 410mm GPU, a 170mm CPU cooler, and ample space for future hardware upgrades.

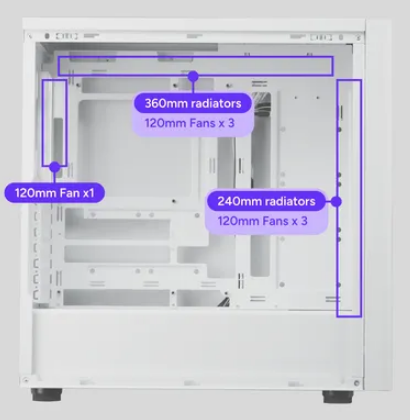

VERSATILE THERMAL OPTIONS

Supports up to seven 120mm fans and either a top-mounted 360mm radiator or a front-mounted 420mm radiator, offering hyper-effective CPU thermal performance.

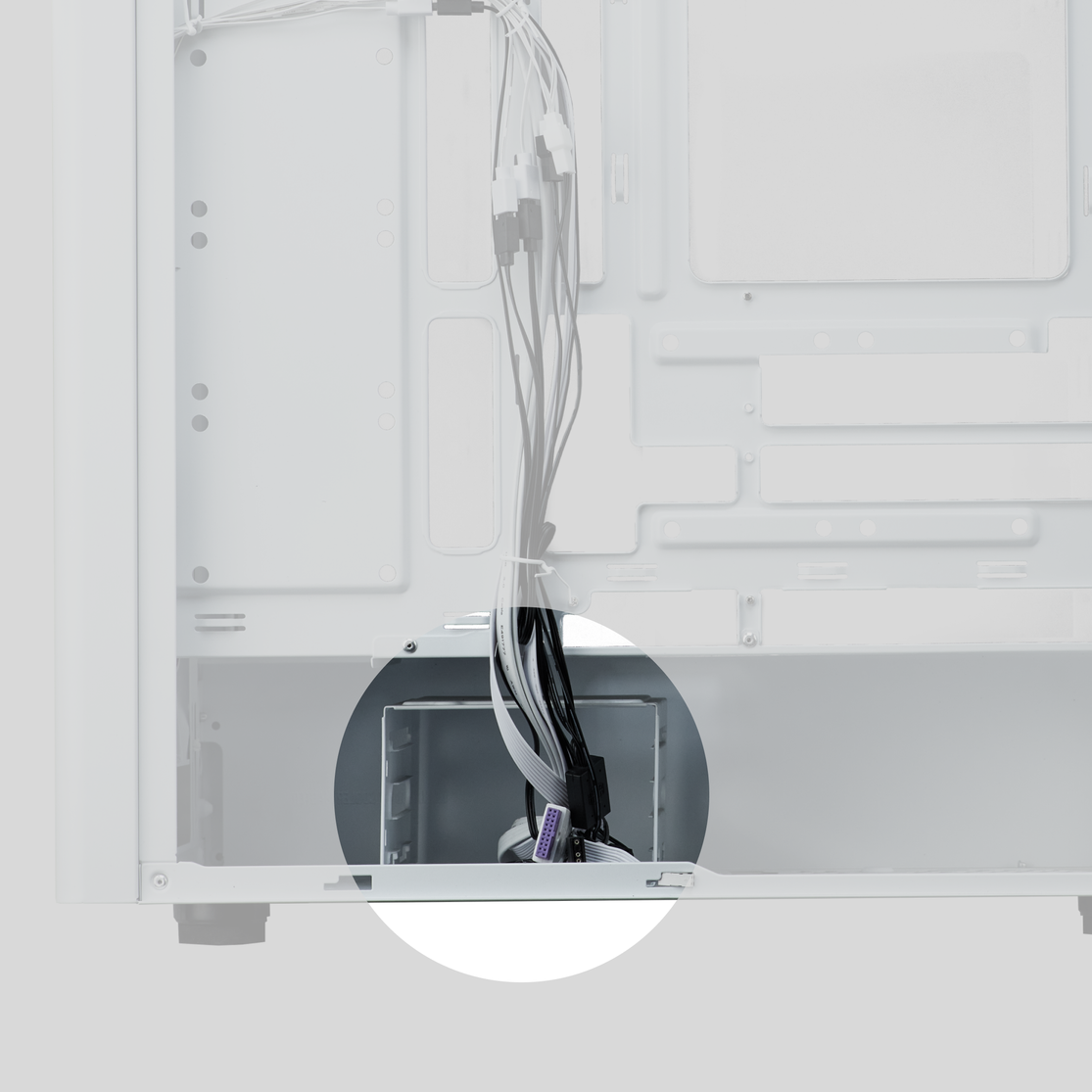

REMOVABLE HDD CAGE

The HDD cage is completely removable, providing better access during assembly and system upgrades.

Specifications

Color

White

Materials - Exterior

Steel

Materials - Right Side Panel

Steel

Materials - Left Side Panel

TG

Dimensions (L x W x H)

474 x 230 x 481 mm(Incl. Protrusions), 435 x 230 x 465 mm(Excl. Protrusions)

Volume (incl. Protrusions)

49.73 L

Motherboard Support

ITX / Micro ATX / ATX (Supporting Back-connector Motherboard) / E-ATX (*up to 12"x10.9"/ 30.5cmx27.7cm motherboards, may impact cable management)

Expansion Slots

7

5.25" Drive Bays

N/A

3.5" Drive Bays

2

2.5" Drive Bays

2 (Max.6)

I/O Panel - USB Ports

1x USB 3.2 Gen1 Type A, 1x USB 3.2 Gen1 Type C?

I/O Panel - Audio In / Out

3.5 mm Combo x 1

Fan Support - Front

(Filtered) 140 mm x 3 / 120 mm x 3

Fan Support - Top

(Filtered) 140 mm x 2 / 120 mm x 3

Fan Support - Rear

1x 120mm

Pre-installed Fans - Front

3x 120mm ARGB Fans

Pre-installed Fans - Top

N/A

Pre-installed Fans - Rear

N/A

Radiator Support - Front

120 / 140 / 240 / 280 / 360 / 420 mm (Limit: 457*140*27 mm)

Radiator Support - Top

120 / 140 / 240 / 280 / 360mm

Radiator Support - Rear

120mm

Clearance - CPU Cooler

170mm

Clearance - PSU

170mm, 210mm (w/o HDD Cage)

Clearance - Graphics Card (installed 3.5"HDD BRK)

360 / 410 mm (w/o front radiator)

Cable Routing - Behind Motherboard Tray

33-35 mm

Dust Filters

Top, Front, Bottom

Power Supply Support

ATX

Series

Elite Series

Size

Mid Tower

Manufacturer Part No:
E502-KGNN-SAZ
Brand:
Product Type:
MidTower Gaming Case
UPC
884102131851
Product Family:
Elite 502
Shipping Weight:
9.28 kg
PB Part No:
CHACLM0530
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product
