DEEPCOOL CG580 Black V2 ATX Mid Tower Tempered Glass, with 4x 120mm ARGB Fans Pre-installed, CPU Cooler Support Upto 176mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Ratiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio
DEEPCOOL CG580 Black V2 ATX Mid Tower Tempered Glass, with 4x 120mm ARGB Fans Pre-installed, CPU Cooler Support Upto 176mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Ratiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio
- Brand: DEEPCOOL
- MPN: R-CG580-BKADA4-G-2
- Part #: CHADPC2077
- UPC:
- Brand: DEEPCOOL
- MPN: R-CG580-BKADA4-G-2
- Part #: CHADPC2077
- UPC:
Features

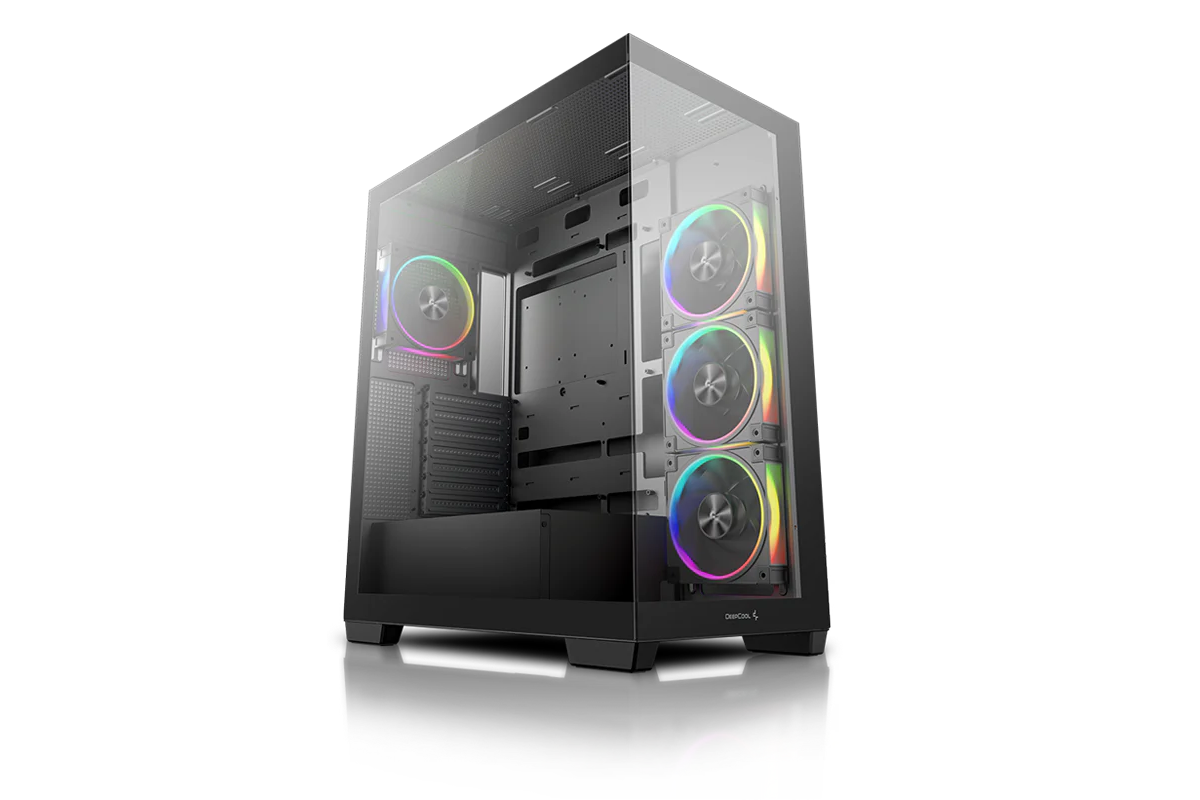

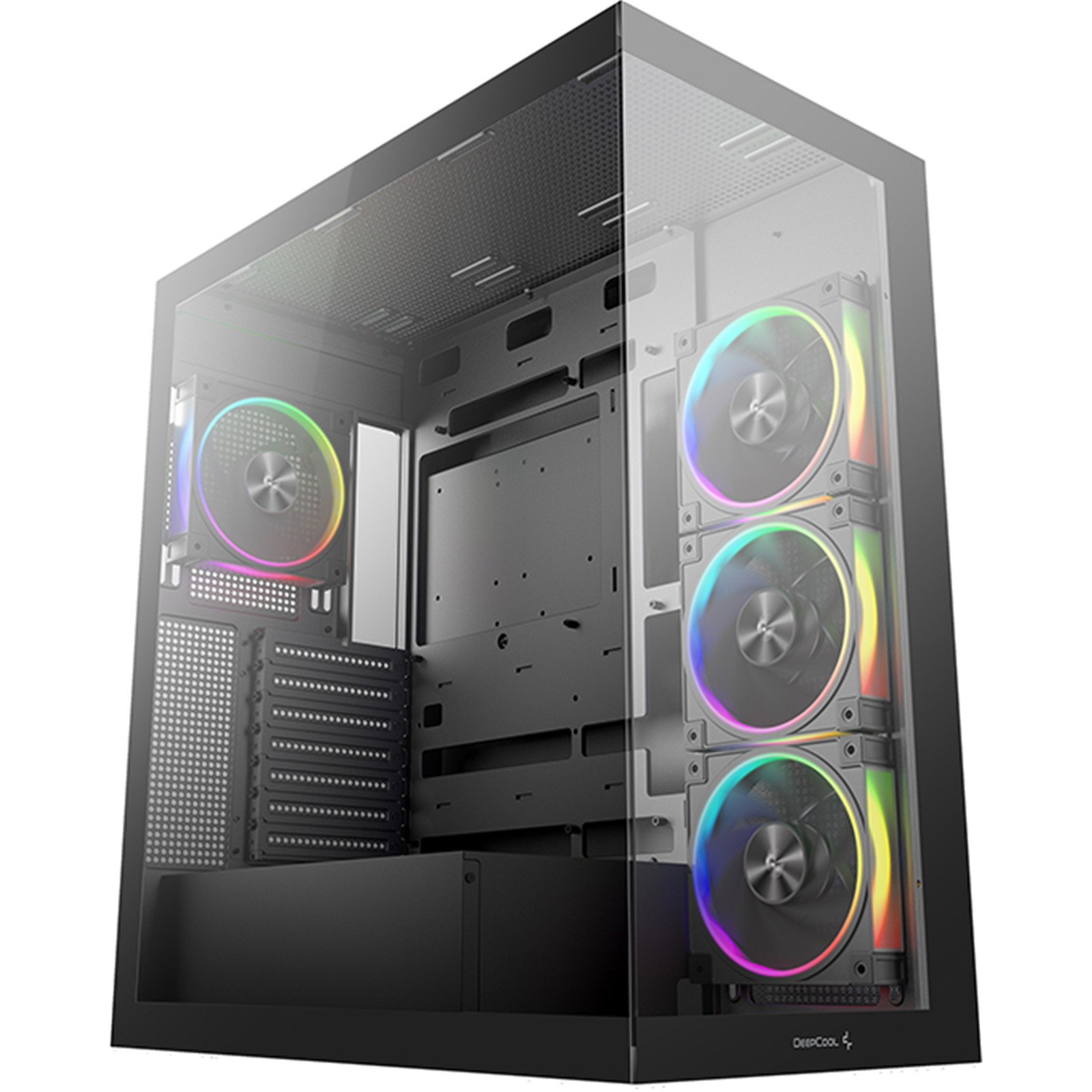

CG580 4F V2 - STUNNING PANORAMIC SHOWCASE

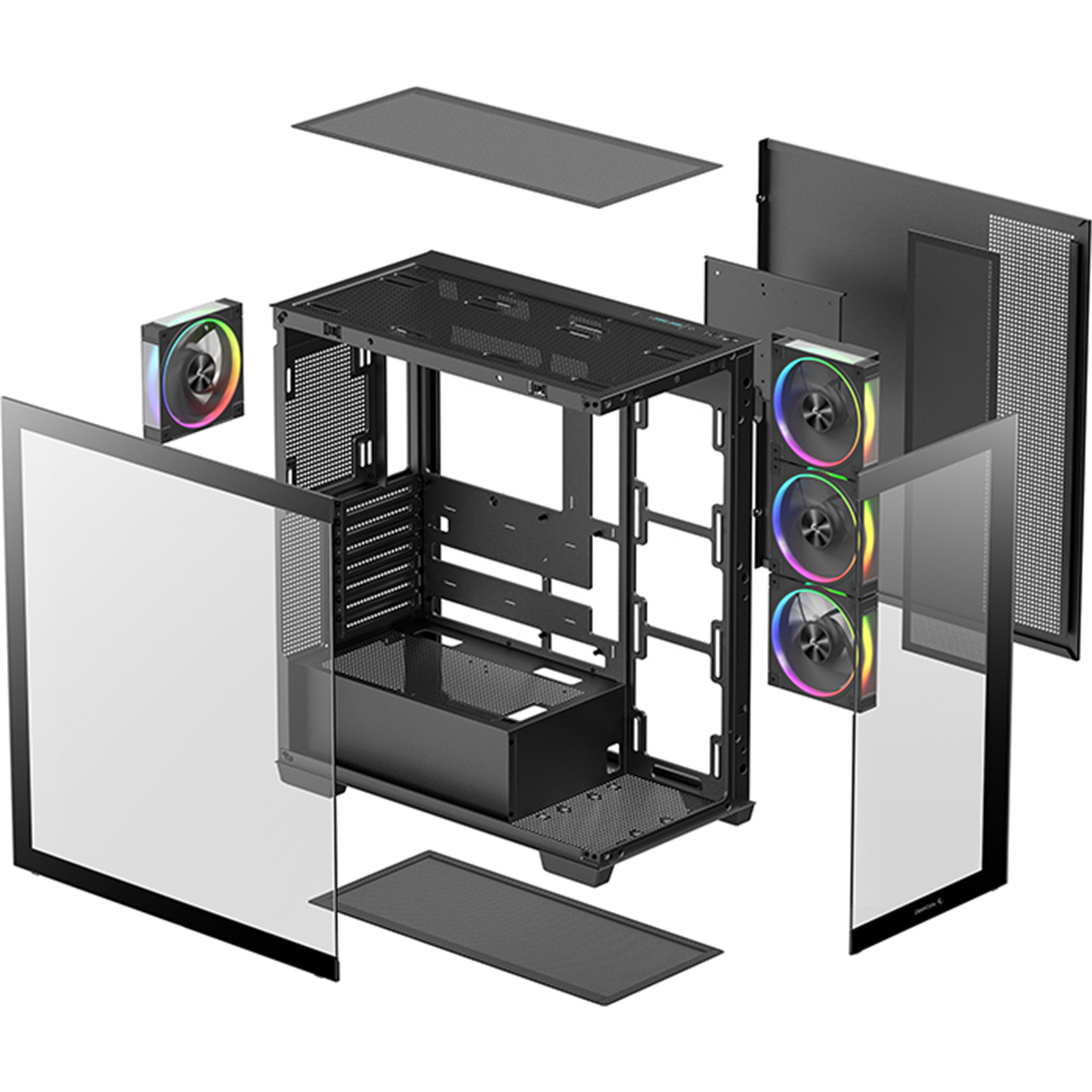

The CG580 4F V2 is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.
SCENIC VIEW

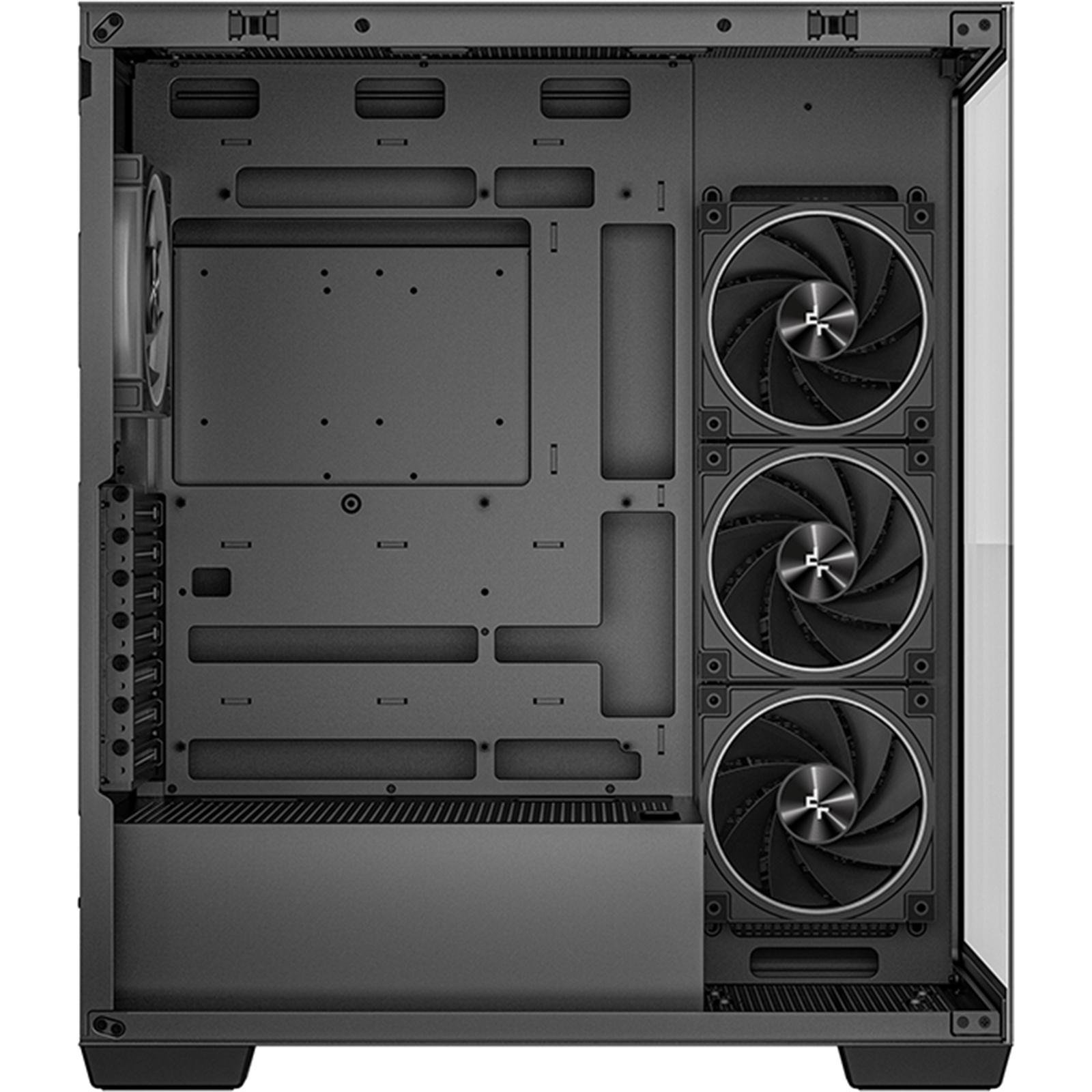

The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.

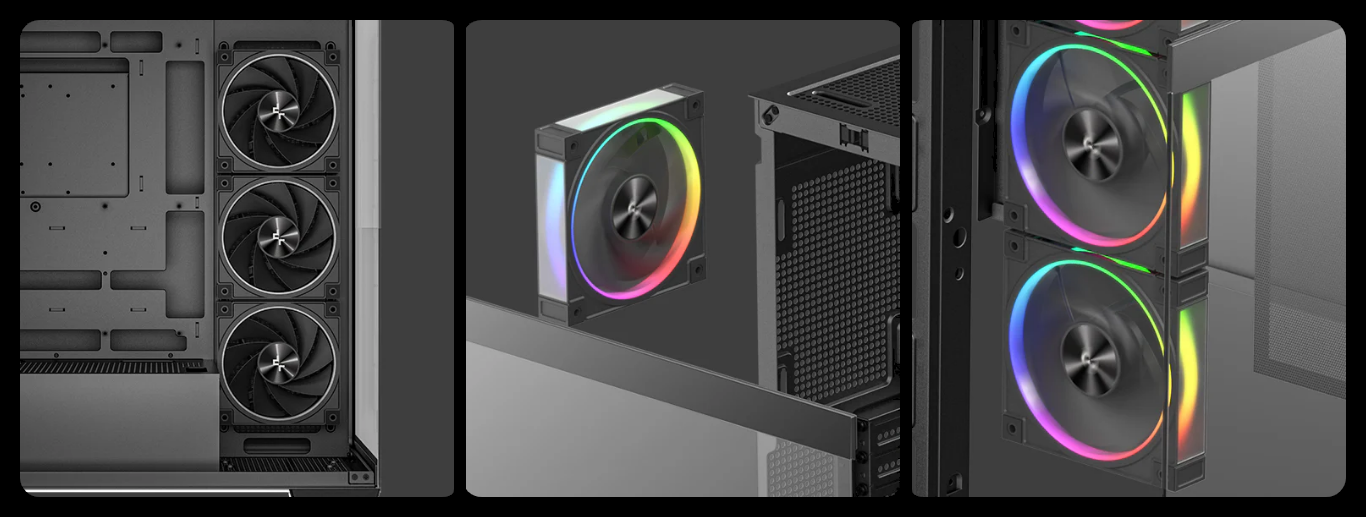

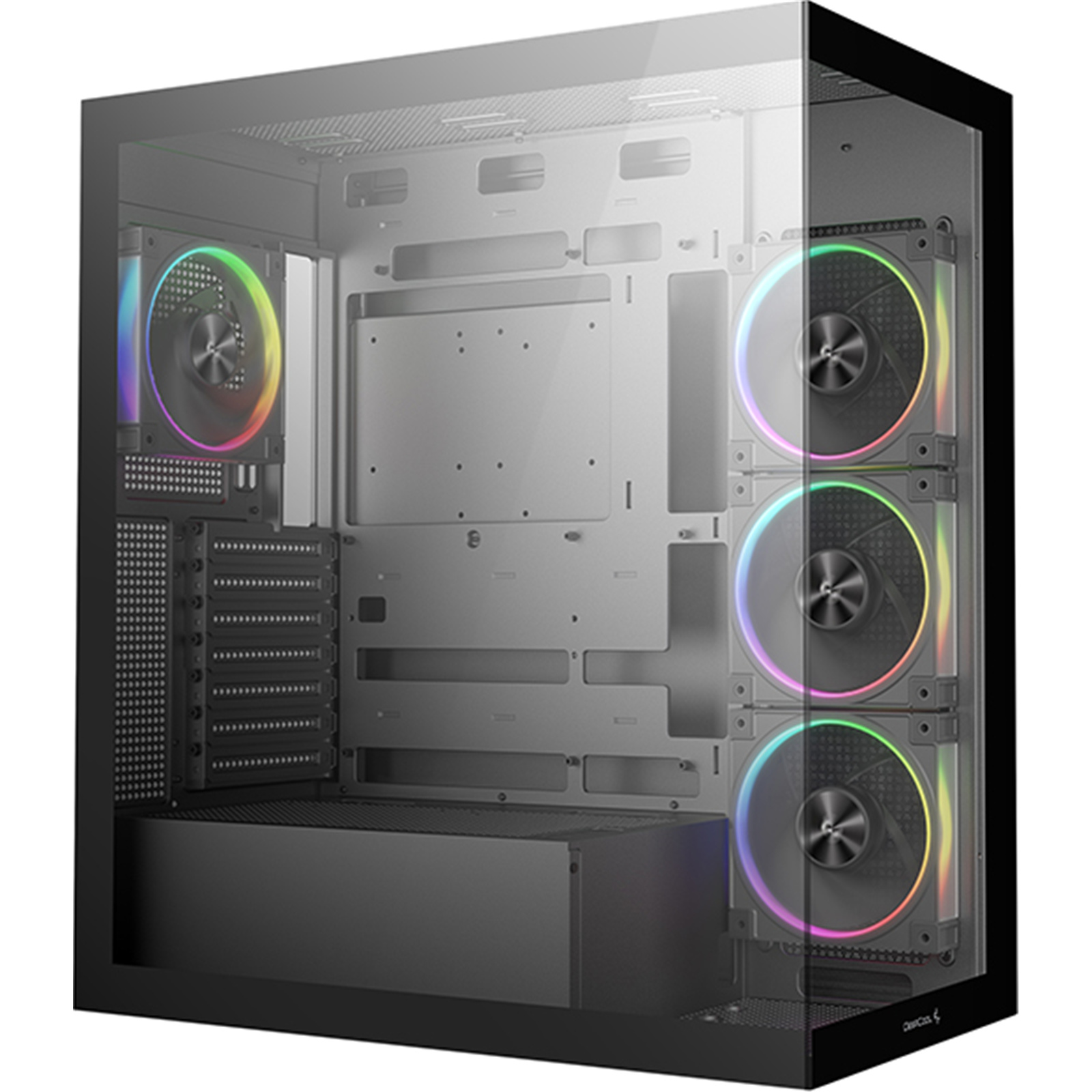

INNOVATIVE COOLING PLUS VISUAL EXPERIENCE

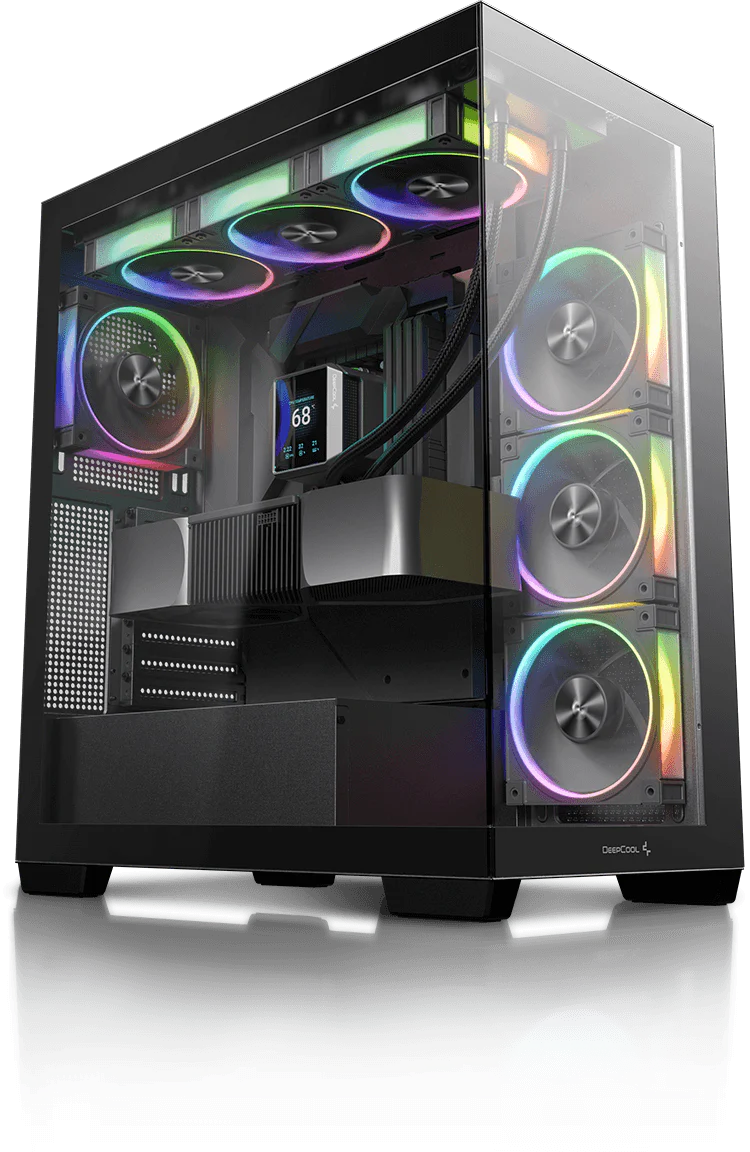

The CG580 4F V2 stands out with a pre-installed cooling setup, featuring three PWM ARGB reverse flow fans on the side and one standard PWM ARGB fan at the rear. This configuration creates a streamlined airflow path that enhances thermal efficiency. Coordinated ARGB lighting across the fan frames and rings supports motherboard sync for a unified and dynamic visual effect.

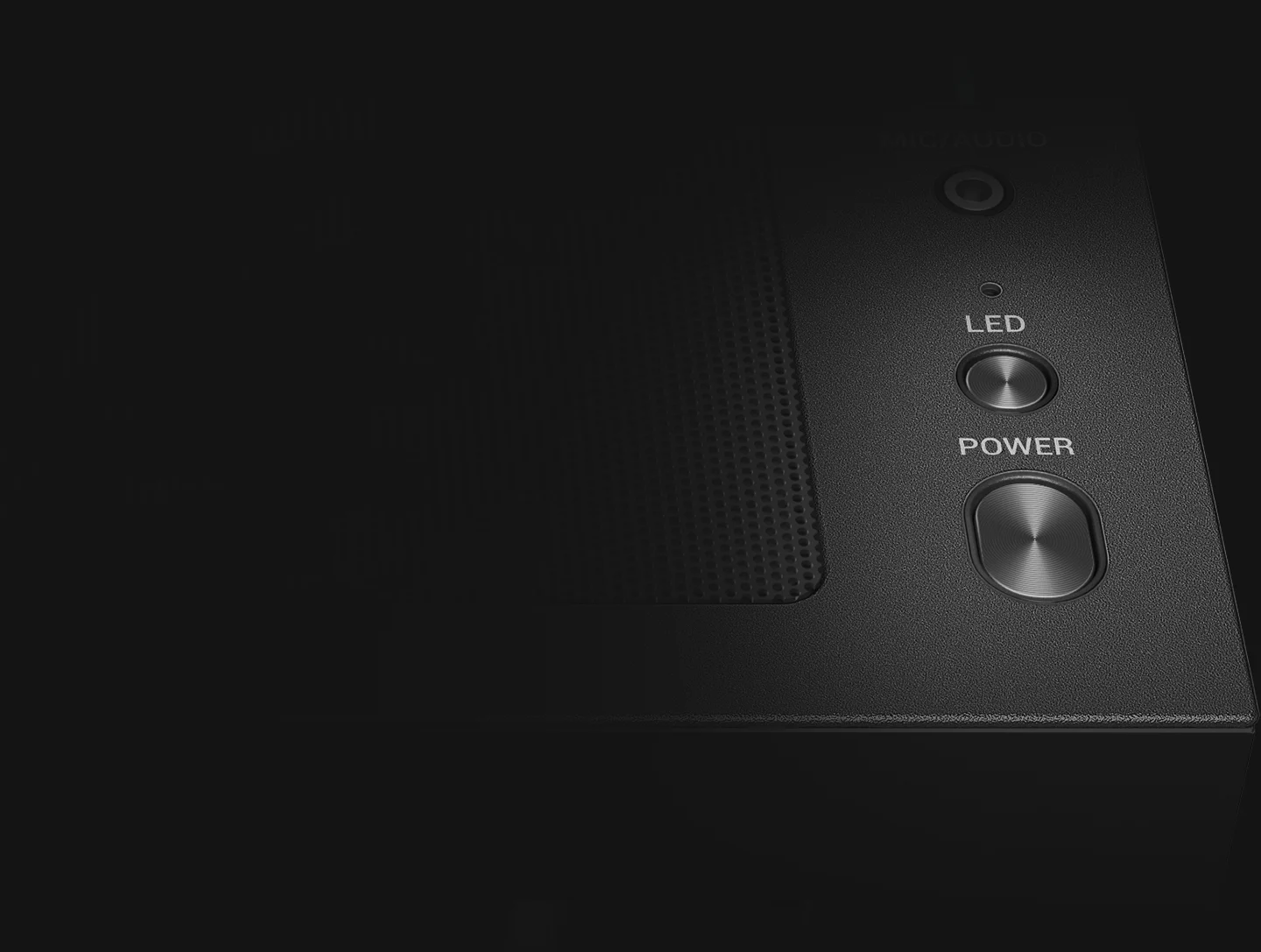

LED BUTTON OPERATION INSTRUCTIONS
Switching Lighting Effect
Short press the LED button to cycle through 16 pre-set lighting effects.
When Connected to Motherboard Sync Cable
Long press the LED button (about 2-3 seconds) until a white flash: Enter motherboard synchronization mode. The lighting effects will now be controlled by the motherboard.
During Motherboard Sync Mode
Long press the LED button for 2 seconds: Exit the motherboard sync mode and return to lighting control by the case lighting control board.

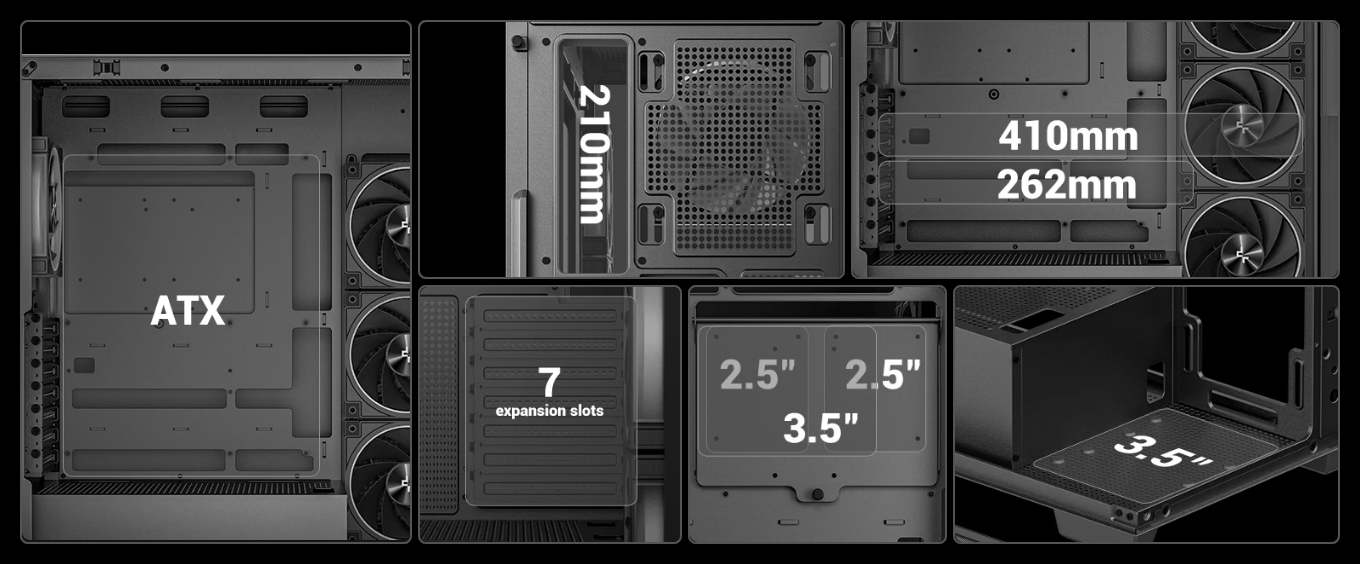

THE SUPPORT YOU NEED

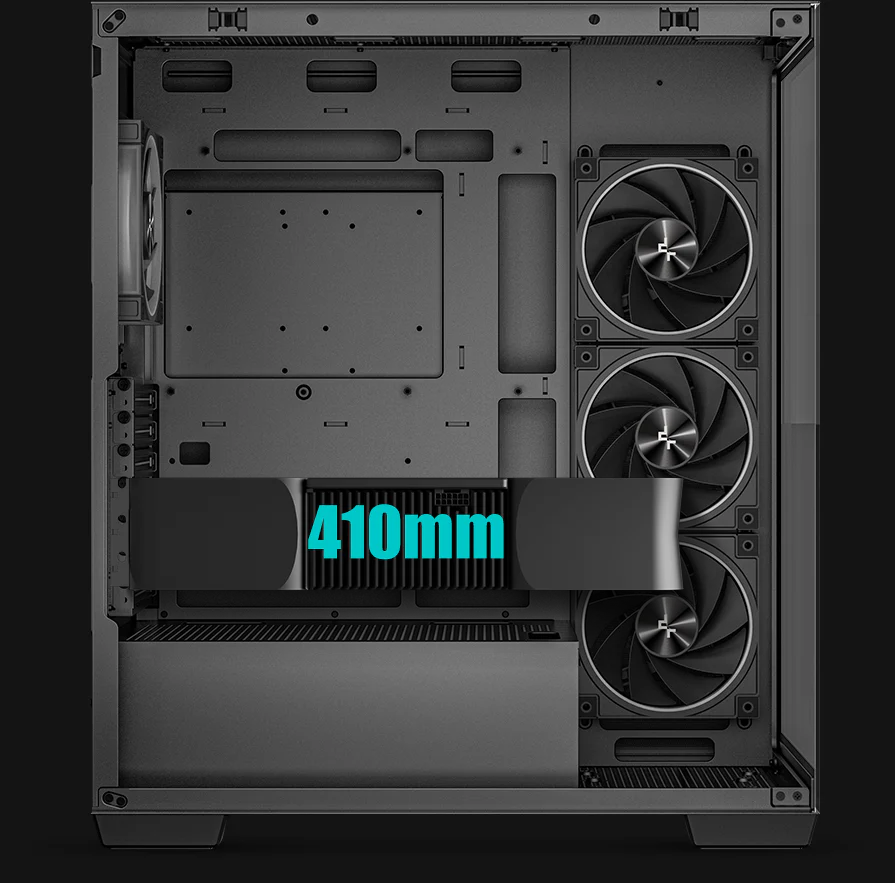

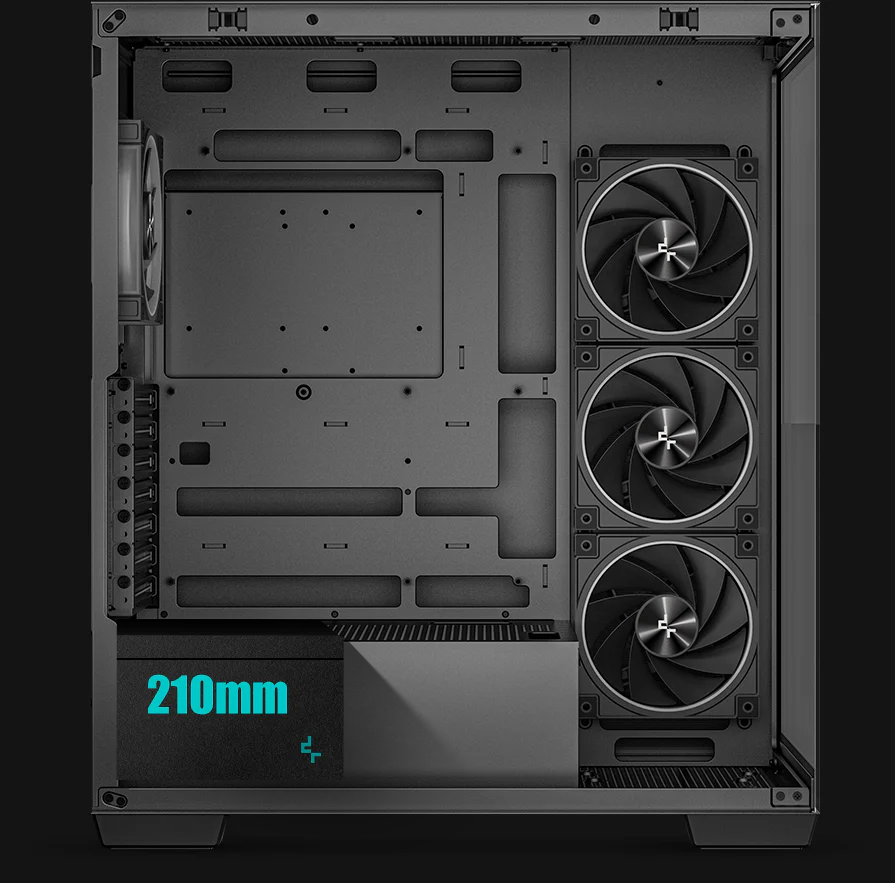

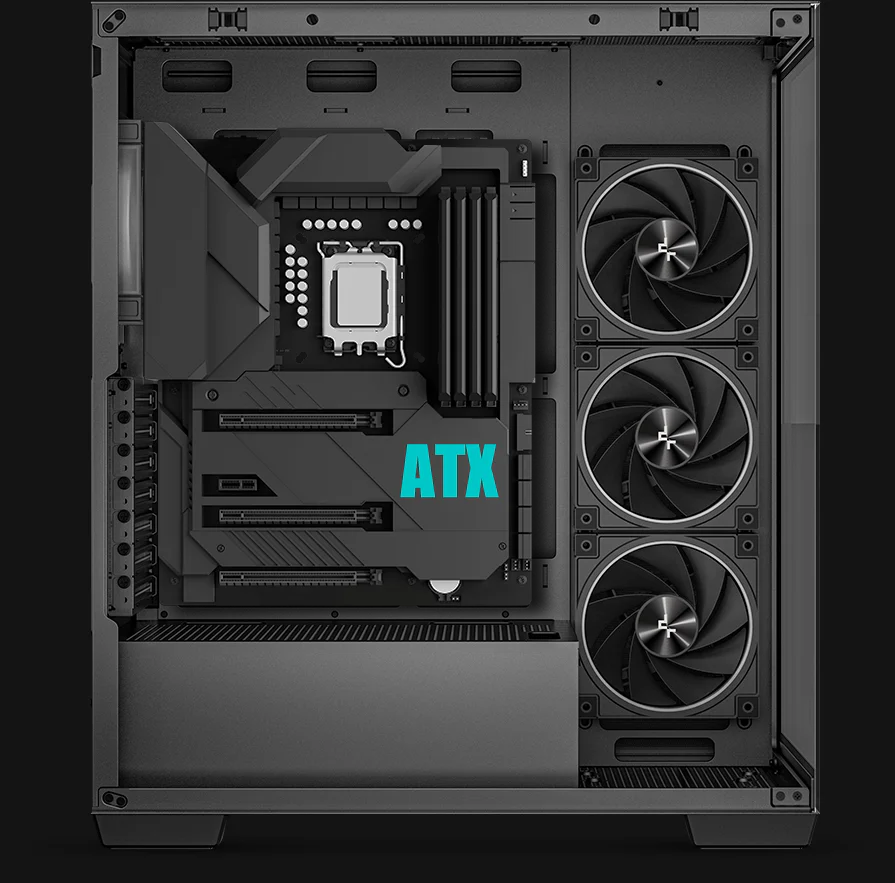

The CG580 4F V2 is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5" drive bays and 2 x 2.5" drive bays, providing ample space for storage and expansion.

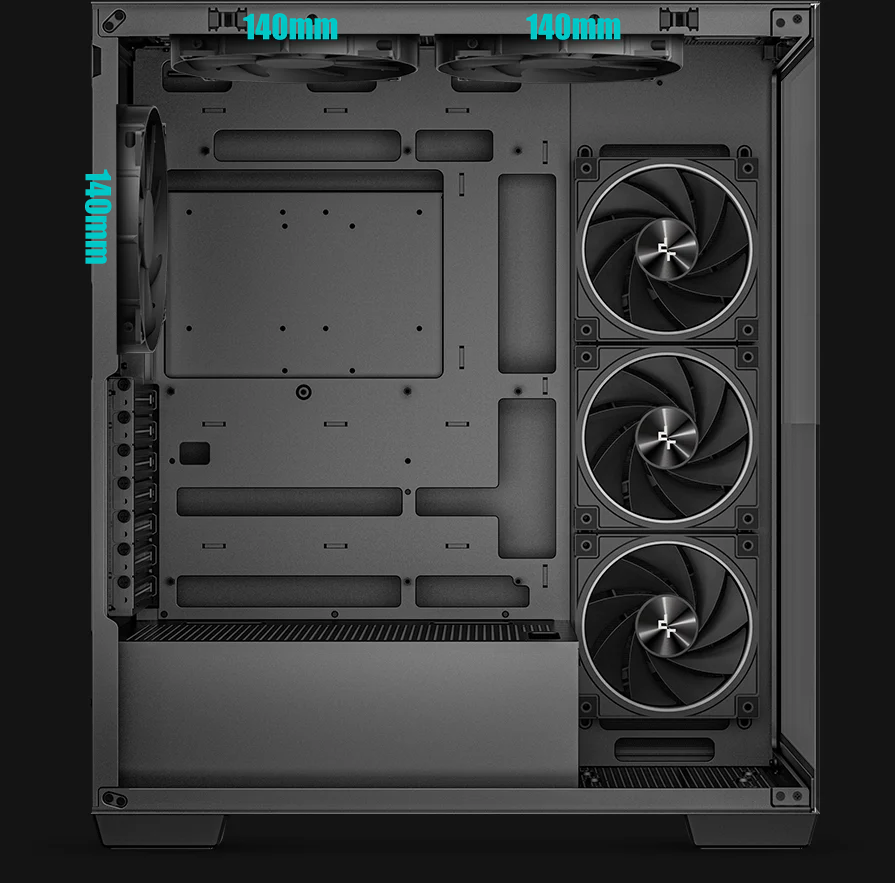

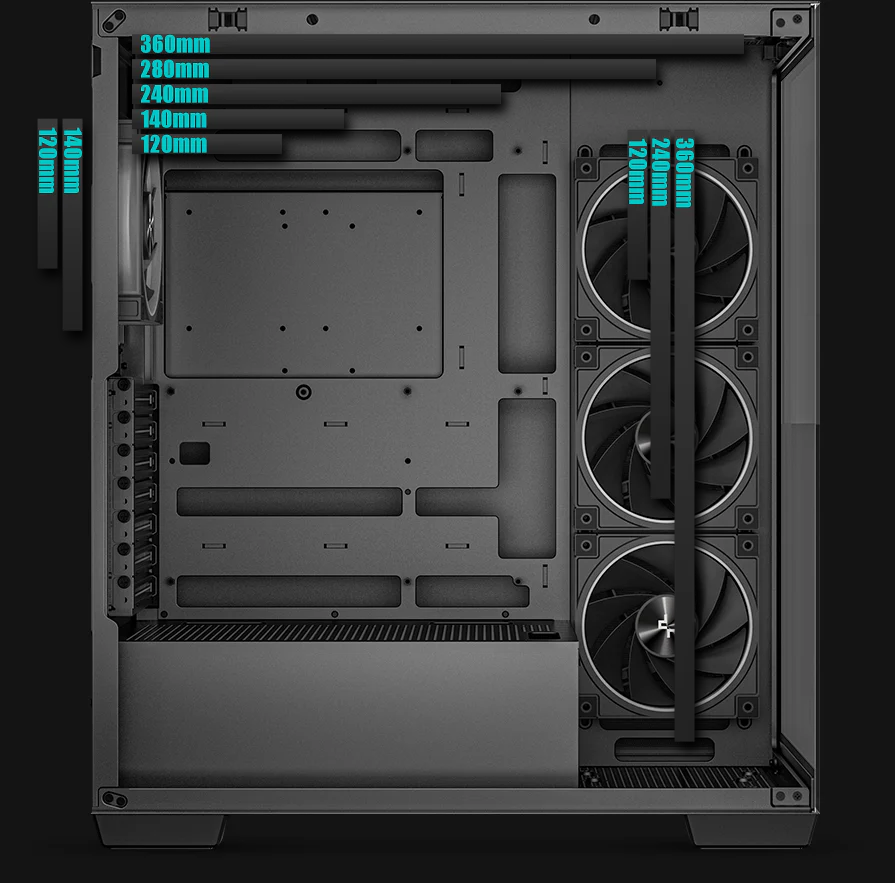

EXCEPTIONAL COOLING CAPACITY

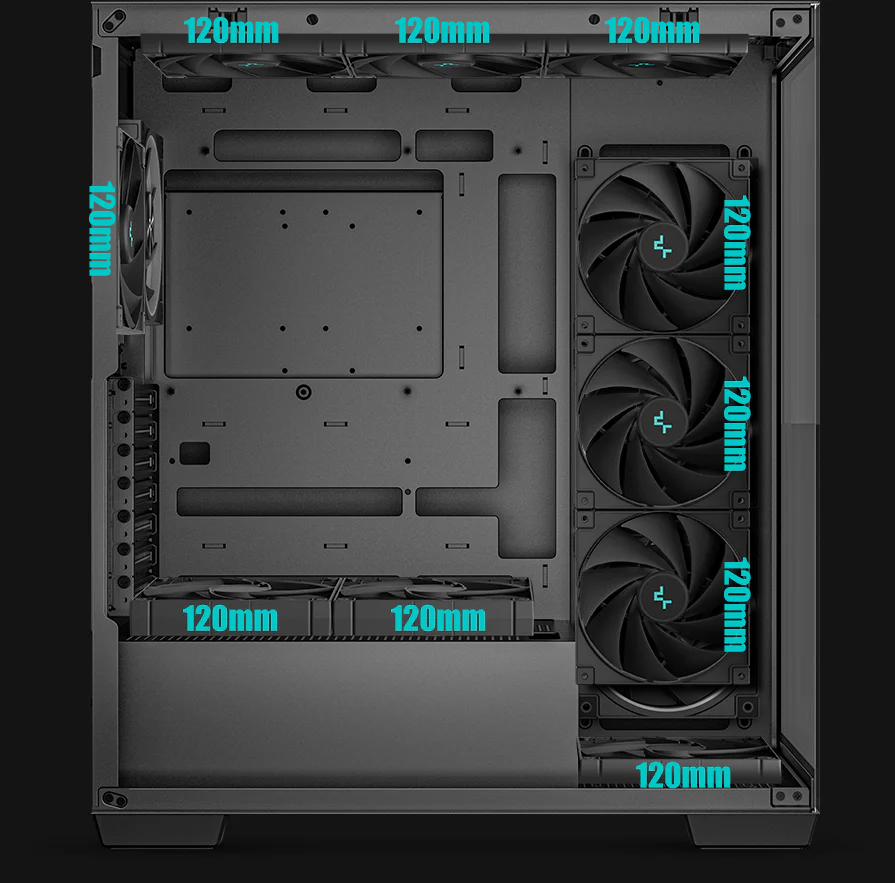

The CG580 4F V2 is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3x120mm or 2x140mm on the top, 3x120mm on the side, and 1x120mm or 1x140mm at the rear. The bottom offers a choice between a 3.5" HDD or a 120mm fan, while the PSU shroud can house 2x120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.
Radiators:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
Fans:
Top: 3x120mm / 2x140mm
Side: 3x120mm
Rear: 1x120mm / 1x140mm
Bottom: 1x120mm (3.5" HDD / 120mm Fan: Choose one of two)
PSU Shroud: 2x120mm

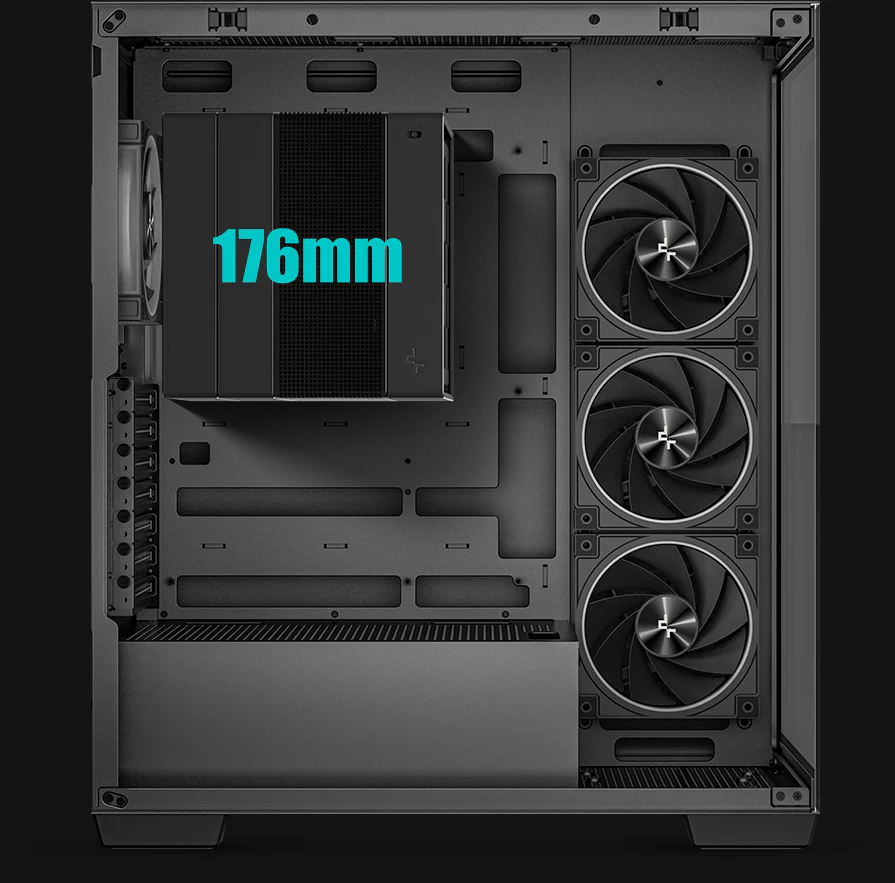

CPU Cooler:
176mm
QUALITY OF LIFE FEATURES

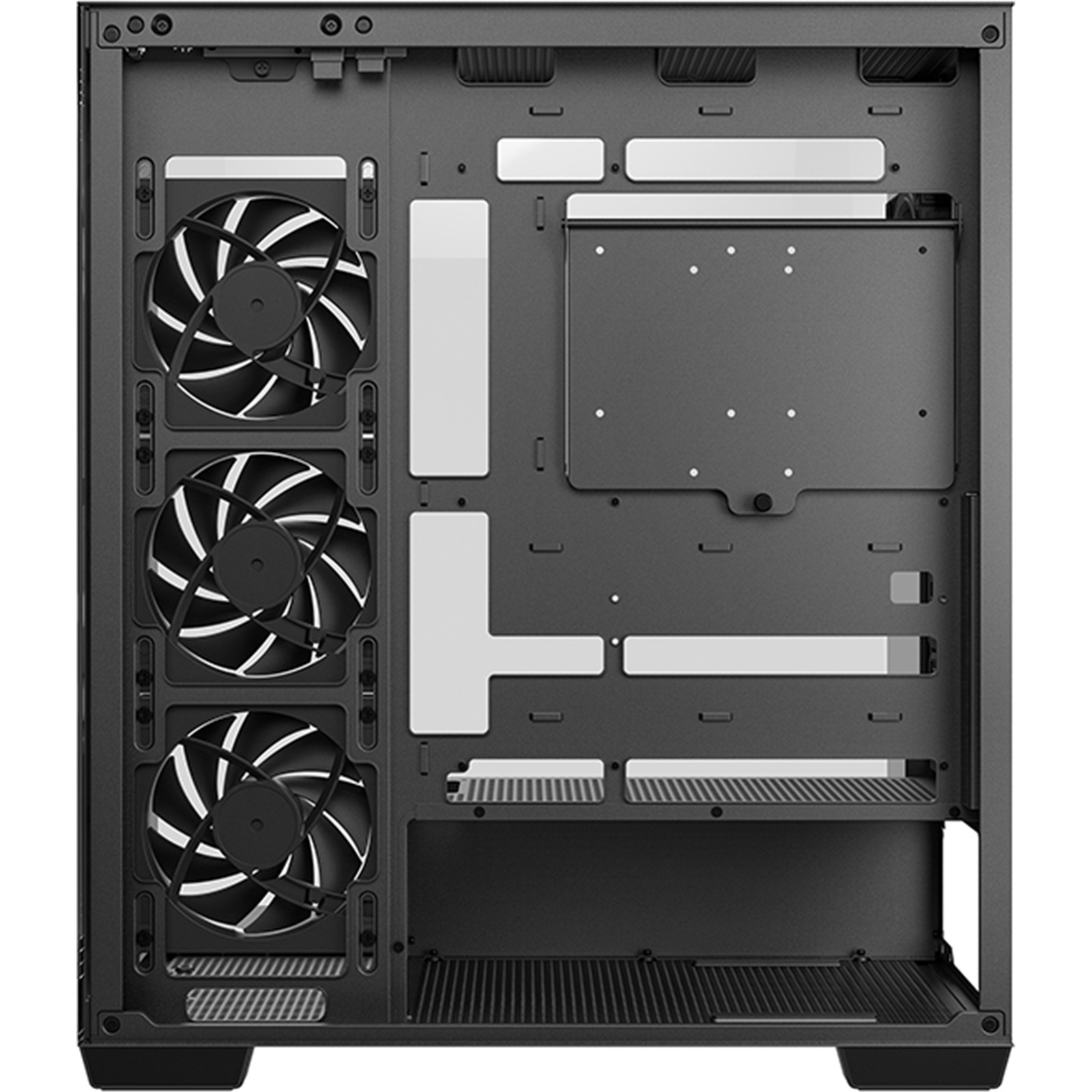

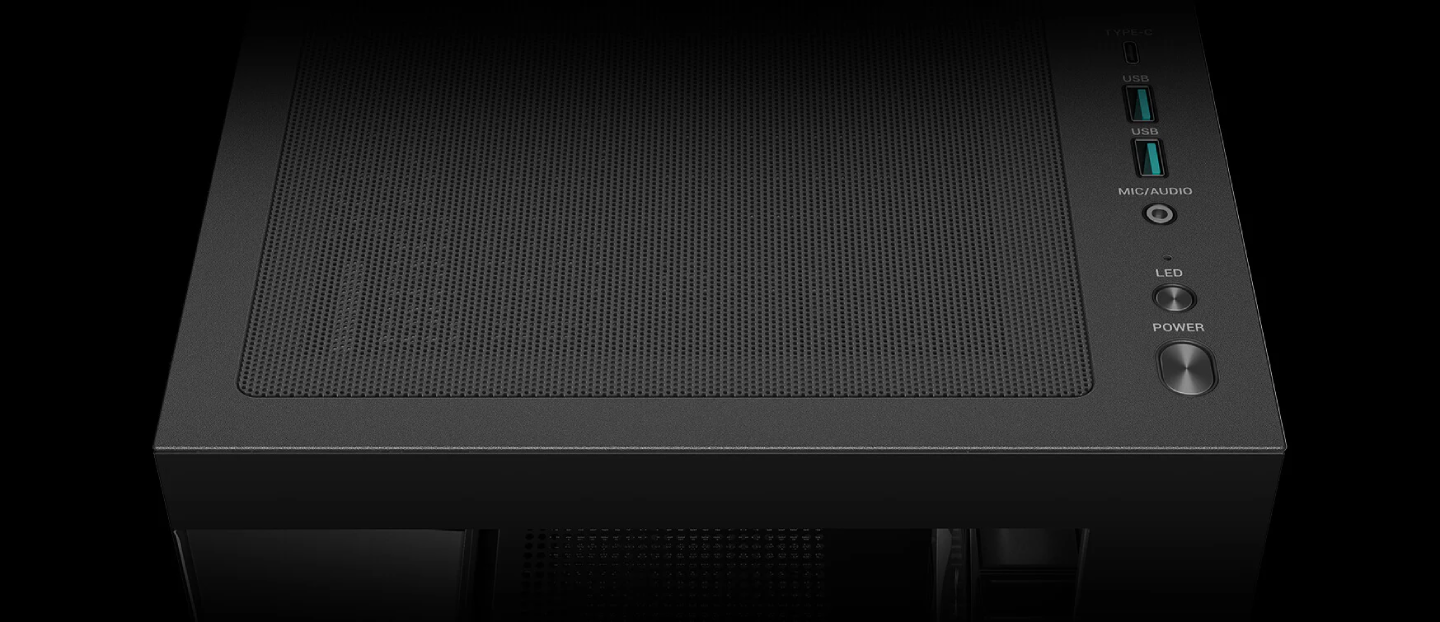

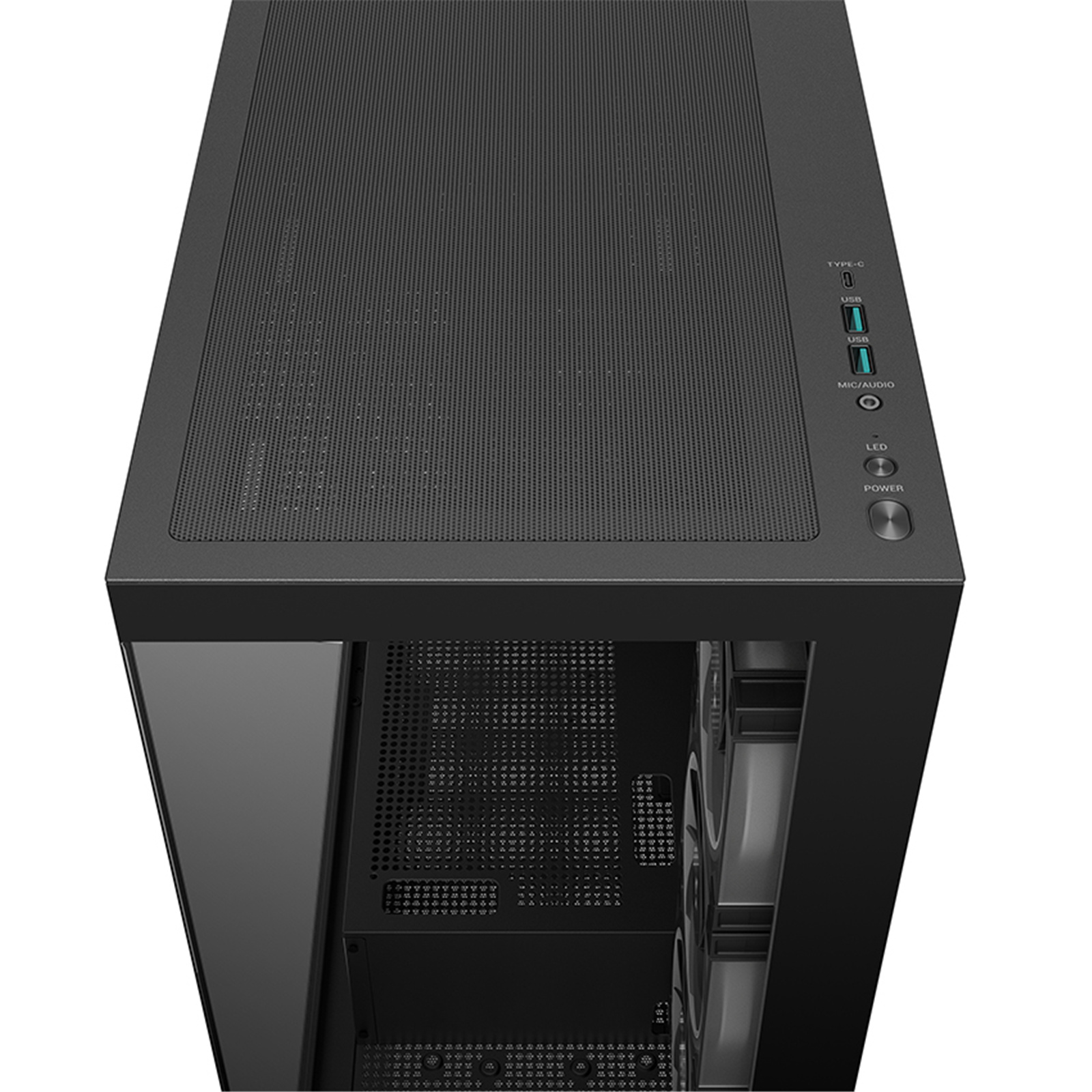

With two USB 3.0 ports, one TYPE-C port and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. Wire management is also facilitated with a 33mm backplane. The magnetic filters on the top, bottom and side keep dust out and makes cleaning a little easier.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Mid Tower Cases
DEEPCOOL CG530 Black ATX Mid Tower Tempered Glass, with 4x 120mm...
DEEPCOOL CG530 White ATX Mid Tower Tempered Glass, with 4x 120mm...
DEEPCOOL CC560 V2 ATX Mid Tower Tempered Glass, Support Mini-ITX ...
Lian Li Vector V100 RGB Black ATX MidTower Gaming Case Tempered...
OKINOS Cypress 7 Walnut Wood Edition MidTower ATX Gaming Case...
_20250910222933.webp)
DEEPCOOL CG580 Black V2 ATX Mid Tower Tempered Glass, with 4x 120mm ARGB Fans Pre-installed, CPU Cooler Support Upto 176mm, GPU Support Upto 410mm, 7x PCI Slot, 360mm Ratiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio
- Brand: DEEPCOOL
- MPN: R-CG580-BKADA4-G-2
- Part #: CHADPC2077
Product URL: https://www.pbtech.co.nz/product/CHADPC2077/DEEPCOOL-CG580-Black-V2-ATX-Mid-Tower-Tempered-Gla
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 30+ | |
| Auckland - East Tamaki Warehouse | 30+ | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
CG580 4F V2 - STUNNING PANORAMIC SHOWCASE
The CG580 4F V2 is a picturesque single-chamber case crafted to elegantly display the most commonly used components. Equipped with 4 ARGB fans, support for 360mm radiators, and multiple fan configurations, it combines style with exceptional functionality. The design features a no A-pillar construction, along with glass side and front panels offering a 270°view, allowing builders to fully appreciate their hardware.
SCENIC VIEW
The lack of an A pillar between the front and side tempered glass panels removes the main obstruction to a clear and uninterrupted view of your incredible build. Your system will look more streamlined and cleaner thanks to the motherboard tray that can support mainstream motherboards models with back connectors from ASUS and MSI.
INNOVATIVE COOLING PLUS VISUAL EXPERIENCE
The CG580 4F V2 stands out with a pre-installed cooling setup, featuring three PWM ARGB reverse flow fans on the side and one standard PWM ARGB fan at the rear. This configuration creates a streamlined airflow path that enhances thermal efficiency. Coordinated ARGB lighting across the fan frames and rings supports motherboard sync for a unified and dynamic visual effect.
LED BUTTON OPERATION INSTRUCTIONS
Switching Lighting Effect
Short press the LED button to cycle through 16 pre-set lighting effects.
When Connected to Motherboard Sync Cable
Long press the LED button (about 2-3 seconds) until a white flash: Enter motherboard synchronization mode. The lighting effects will now be controlled by the motherboard.
During Motherboard Sync Mode
Long press the LED button for 2 seconds: Exit the motherboard sync mode and return to lighting control by the case lighting control board.
THE SUPPORT YOU NEED
The CG580 4F V2 is designed to support a wide range of components, ensuring flexibility for any build. It supports a 210mm PSU and a 410mm GPU, with the option to fit a 262mm GPU when a radiator is vertically installed on the side of the motherboard. The case is compatible with ATX motherboards and features 7 expansion slots, along with 2 x 3.5" drive bays and 2 x 2.5" drive bays, providing ample space for storage and expansion.
EXCEPTIONAL COOLING CAPACITY
The CG580 4F V2 is designed for maximum cooling efficiency, supporting a variety of radiator configurations, including up to 360mm on the top, 360mm on the side, and 140mm at the rear. It accommodates multiple fan setups, with options for 3x120mm or 2x140mm on the top, 3x120mm on the side, and 1x120mm or 1x140mm at the rear. The bottom offers a choice between a 3.5" HDD or a 120mm fan, while the PSU shroud can house 2x120mm fans. Additionally, the case supports CPU coolers up to 176mm, ensuring your system stays cool under the most demanding conditions.
Radiators:
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
Fans:
Top: 3x120mm / 2x140mm
Side: 3x120mm
Rear: 1x120mm / 1x140mm
Bottom: 1x120mm (3.5" HDD / 120mm Fan: Choose one of two)
PSU Shroud: 2x120mm
CPU Cooler:
176mm
QUALITY OF LIFE FEATURES
With two USB 3.0 ports, one TYPE-C port and a hybrid audio port that can be accessed from the top I/O panel, connecting temporary devices is a breeze. Wire management is also facilitated with a 33mm backplane. The magnetic filters on the top, bottom and side keep dust out and makes cleaning a little easier.
Specifications
Product Dimensions
437×235×501mm (L×W×H)
Net Weight
8.8Kg
Materials
ABS+SGCC+Tempered Glass
Motherboard Support
ITX/Micro-ATX/ATX
ATX (Rear Connector) / Micro-ATX (Rear Connector)
Front I/O Ports
USB3.0×2 / Gen2 Type-C×1 / Audio&Mic×1
3.5" Drive Bays
2
2.5" Drive Bays
2
Expansion Slots
7 Slots
Pre-Installed Fans
Side: 3×120mm (PWM+ARGB Reverse Blade)
Rear: 1×120mm (PWM+ARGB)
Fan Support
Front: NA
Top: 3×120mm / 2x140mm
Side: 3x120mm
Rear: 1×120mm / 1x140mm
Bottom: 1×120mm (3.5 HDD/120FAN: Choose one of two)
PSU Shrouded: 2×120mm
Radiator Support
Front: NA
Top: 120/140/240/280/360mm
Side: 120/240/360mm
Rear: 120/140mm
CPU Cooler Height Limit
176mm
GPU Length Limit
410mm (limited to 262mm if a 360mm radiator and fan set are mounted on the side)
Power Supply Type
ATX PS2 (maximum length: 210mm)
P/N
R-CG580-BKADA4-G-2
