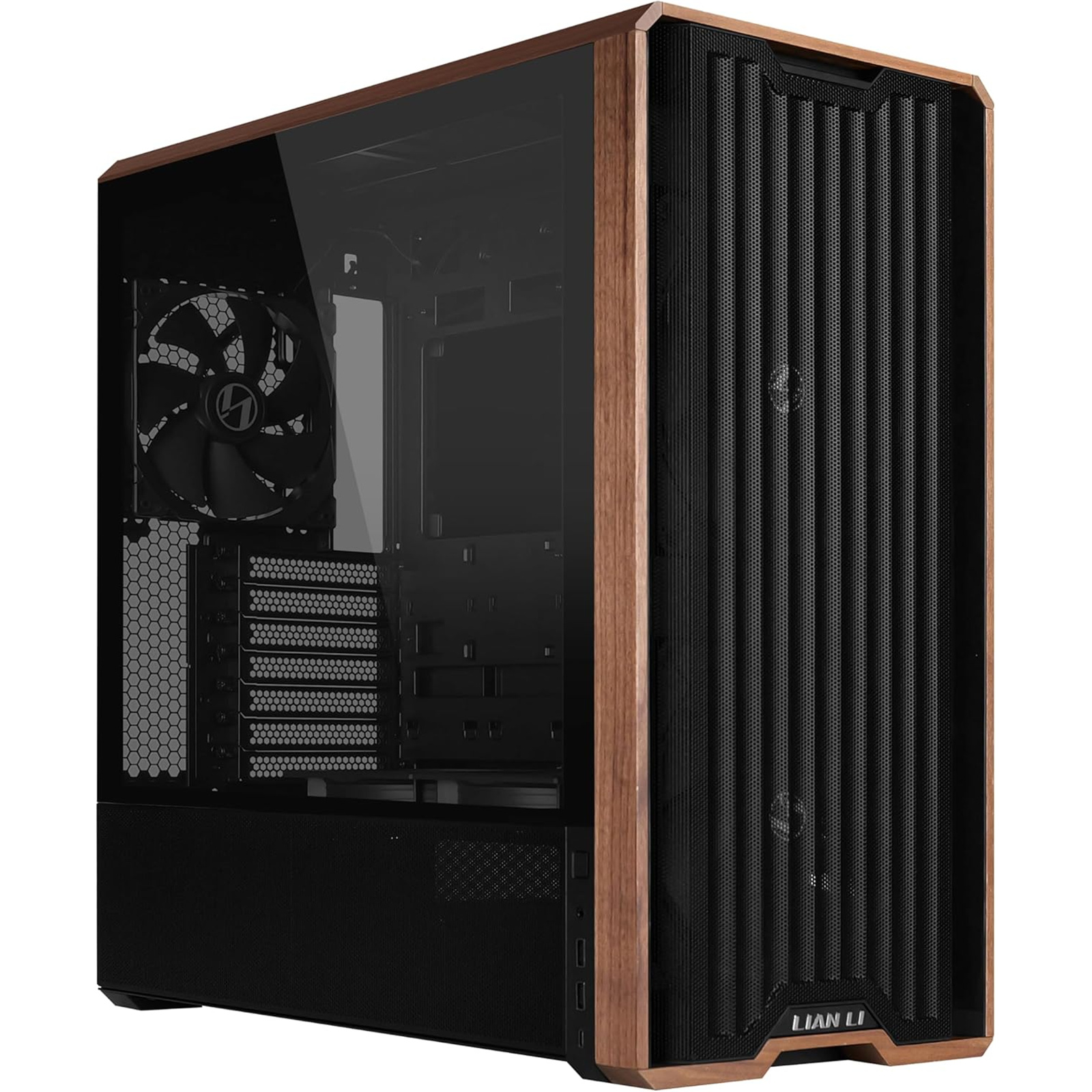

Lian Li Lancool 217 Black Wood ATX MidTower Gaming Case Tempered Glass, CPU Cooler Support Upto 180mm, GPU Support Upto 380mm, 7x PCI Slot, 360mm Radiator Supported, Front I/O: 2x USB, 1x Type C, HD Audio

Lancool 217 - Timeless Elegance, Endless Performance

The LANCOOL 217 is a mid-tower case that combines innovative cooling design with real wood accents. It comes pre-installed with five fans, delivering optimized airflow right out of the box. A flexible PSU mounting design makes cable management easier. Available in Black with dark wood accents or White with light wood, it blends natural beauty with high-performance capability.

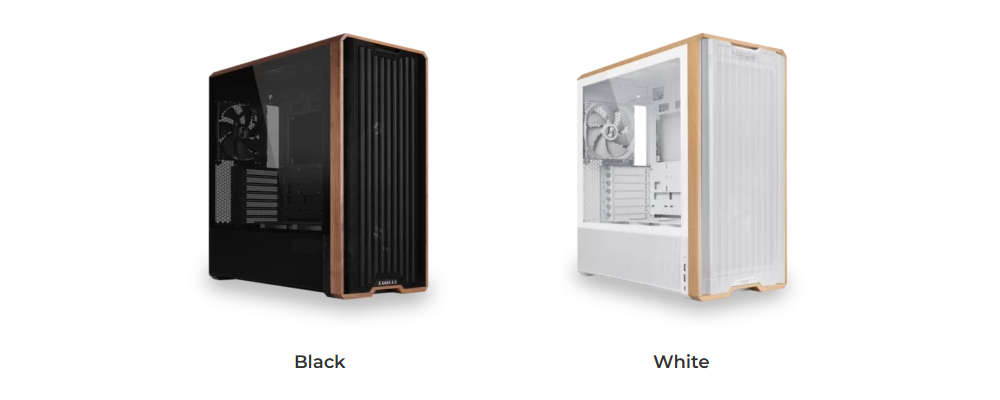

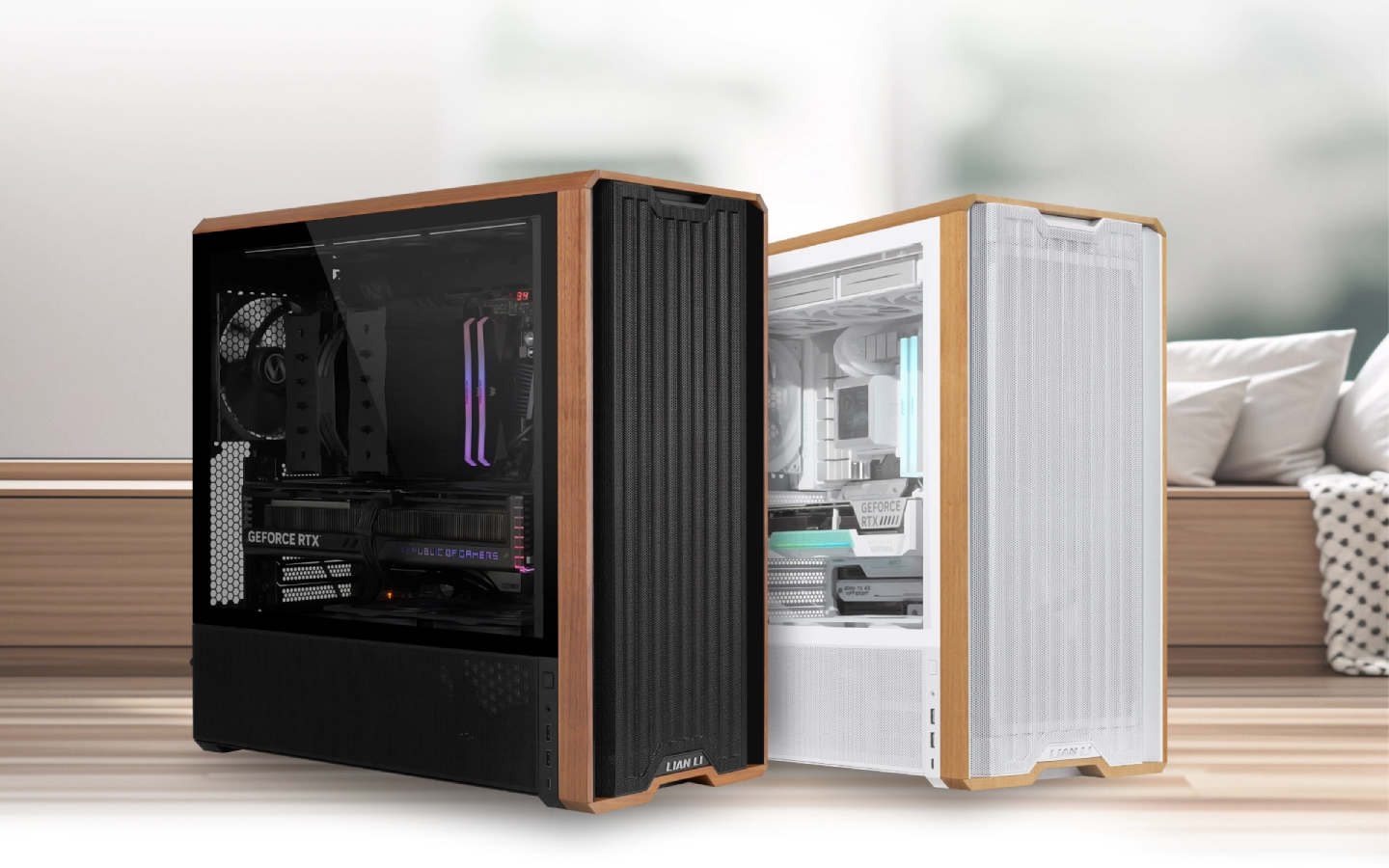

AVAILABLE IN TWO COLORS

The LANCOOL 217 is available in both black and white, offering a perfect match for any build style.

WHERE WOOD MEETS AIRFLOW

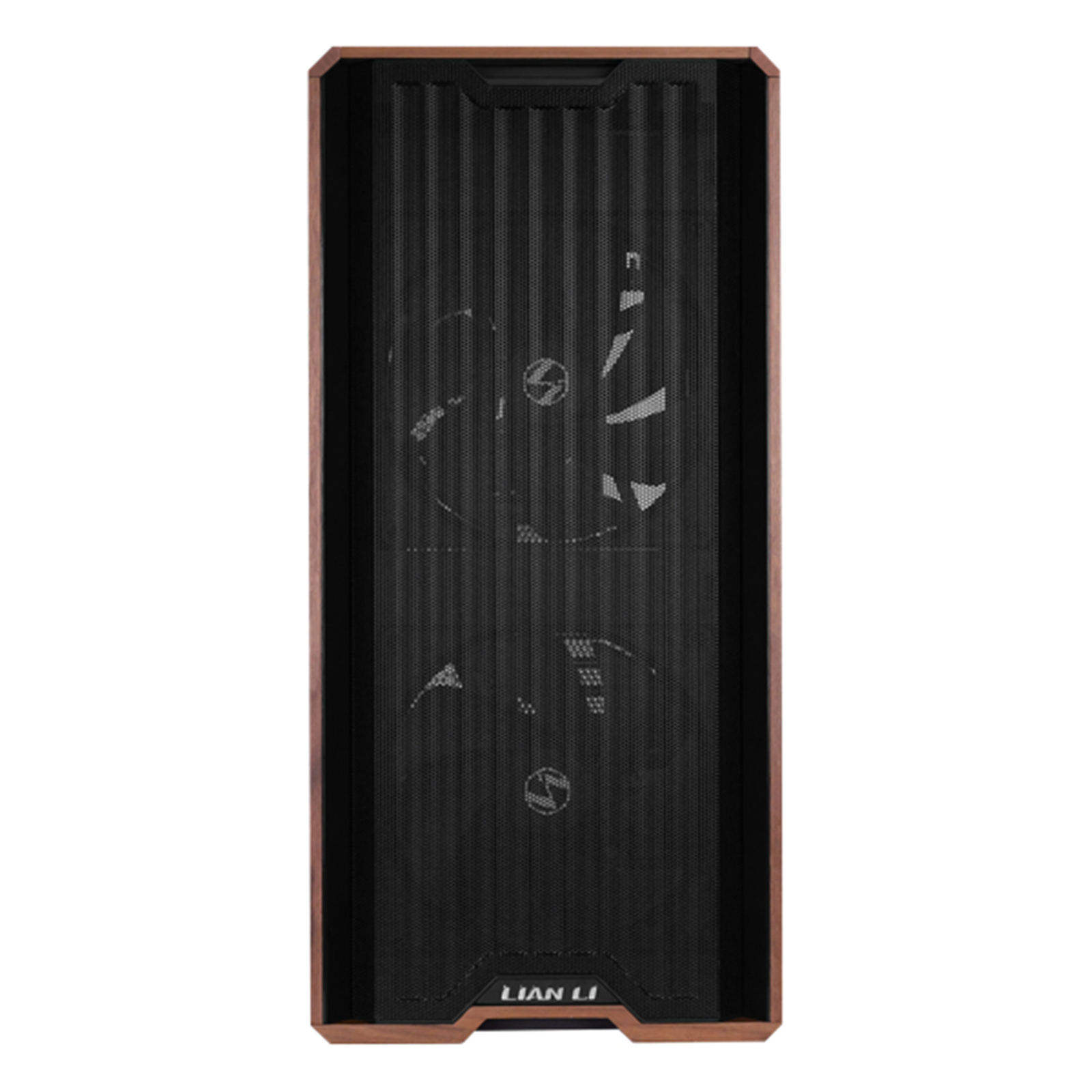

The LANCOOL 217 is thoughtfully engineered to blend natural wooden aesthetics with high-performance airflow. It features a front panel that pairs finely perforated mesh with a wooden frame to maintain an organic look while allowing for unrestricted airflow.

The black version is accented with rich walnut wood, delivering a bold and contemporary feel. The white version incorporates light birch wood, offering a sleek, minimalist aesthetic ideal for modern tech setups.

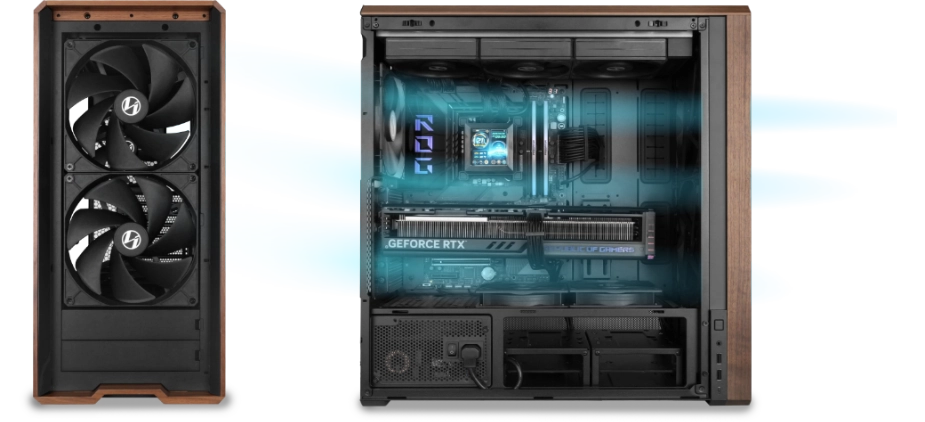

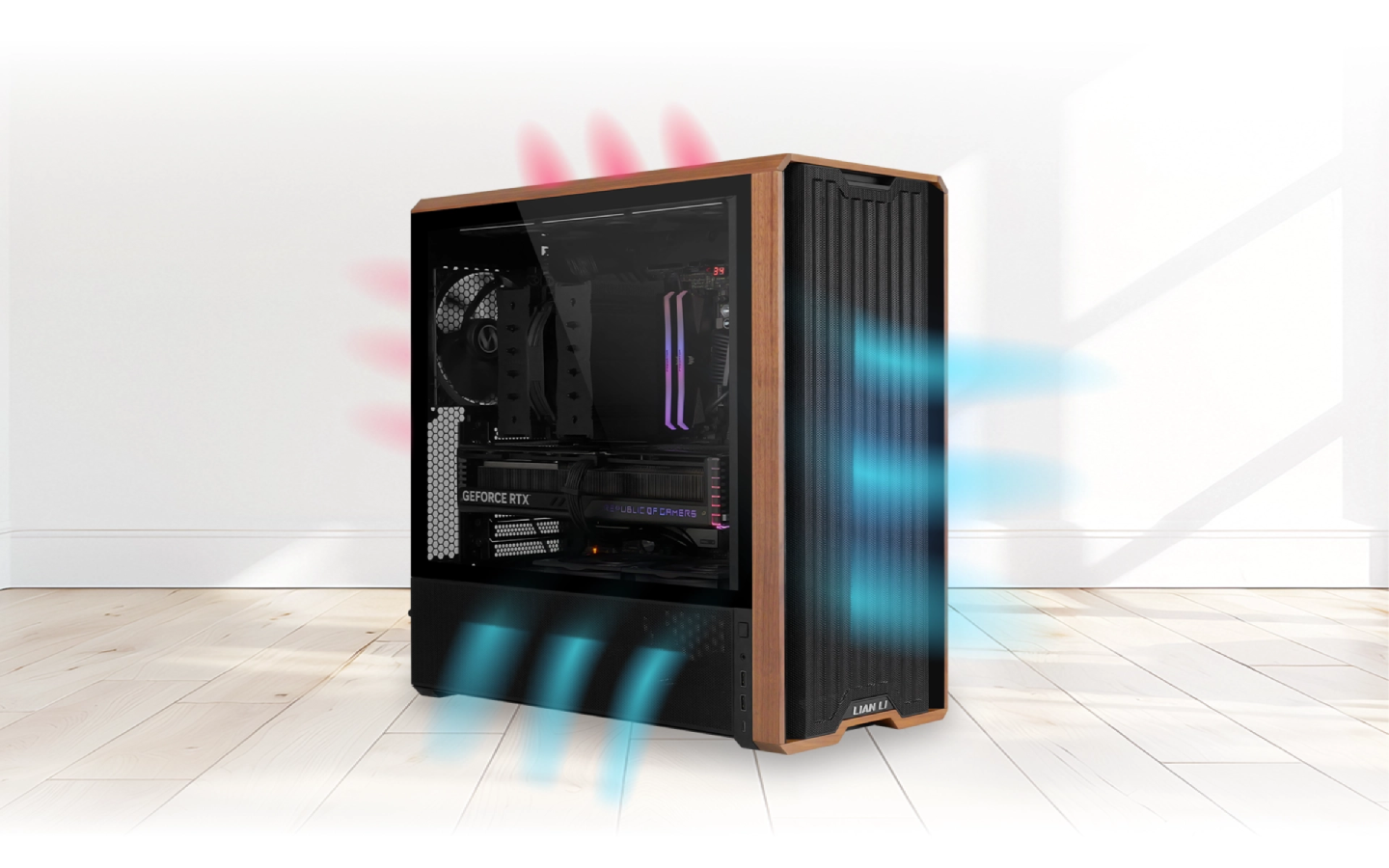

READY-TO-GO COOLING WITH 5 PRE-INSTALLED FANS

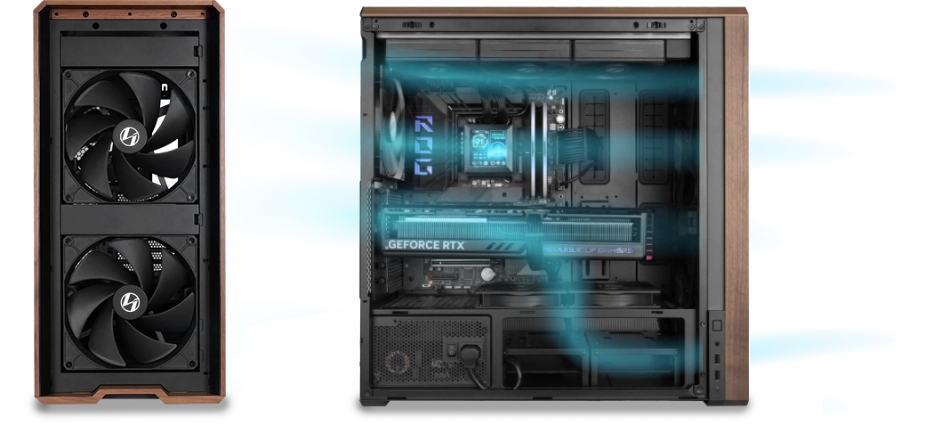

The LANCOOL 217 chassis comes equipped with high-performance fans at the front, rear, and bottom, providing powerful airflow to keep internal components running smoothly and reliably.

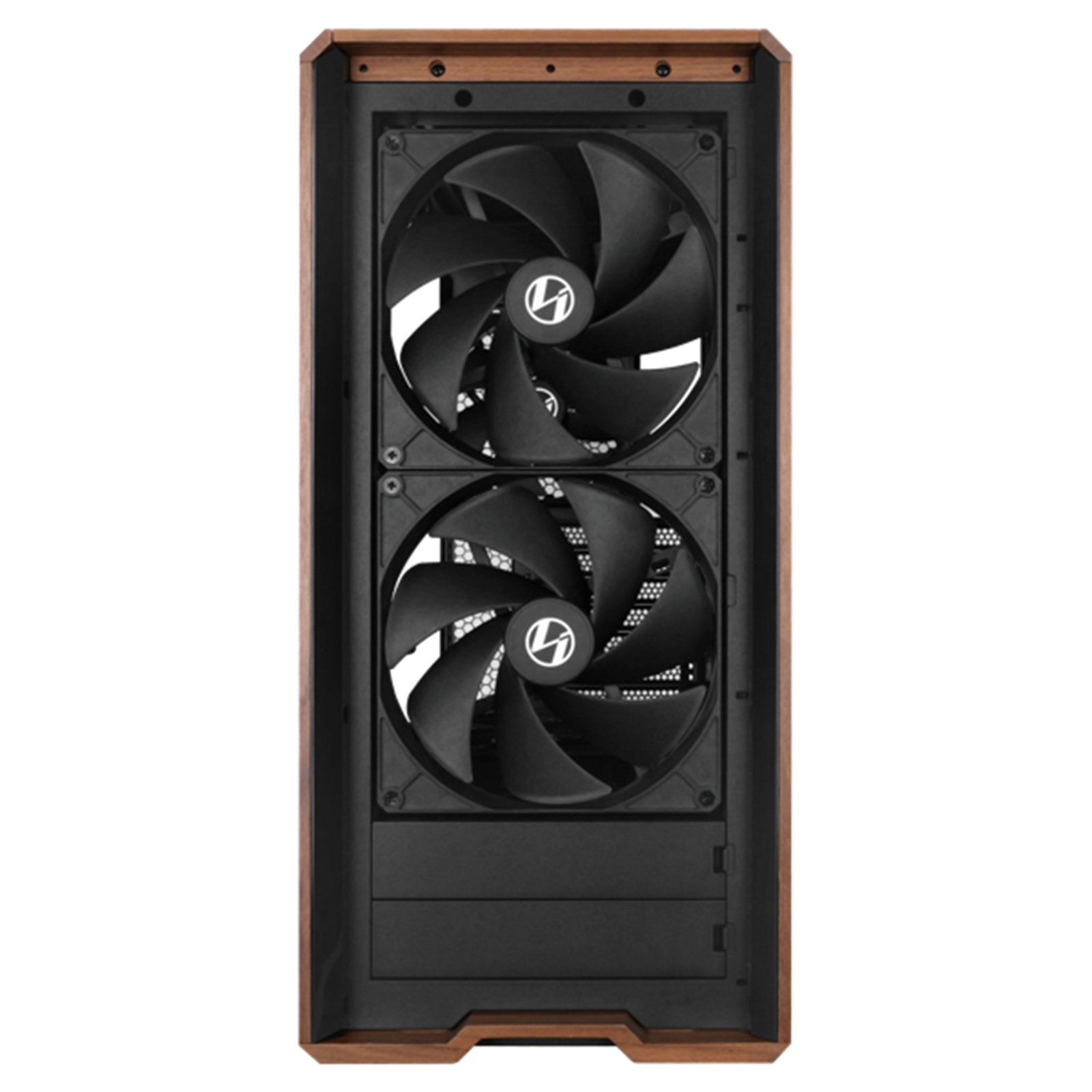

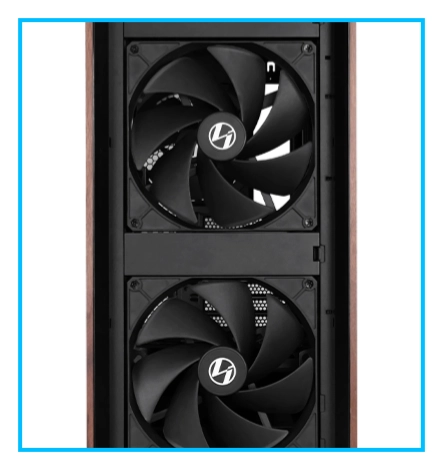

The front fans utilize FDB bearing for quieter operation and extended lifespan. Designed for performance, they deliver powerful airflow and can be repositioned to better target the CPU or GPU.

Size: 170 x 170 x 30 mm
Speed: 1550 RPM
Airflow: 142.56 CFM
Static Pressure: 3.34 mmH2O
Noise Level: 34.3 dBA

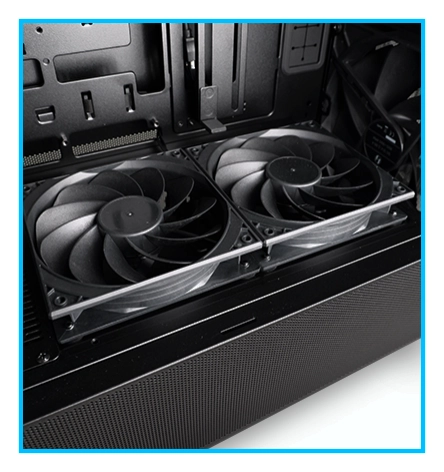

Above the PSU shroud, the bottom fans are specifically positioned to direct cool air toward the GPU, helping to effectively manage its temperature.

Size: 120 x 120 x 25 mm
Speed: 1900 RPM
Airflow: 66.9 CFM
Static Pressure: 1.6 mmH2O
Noise Level: 33.2 dBA

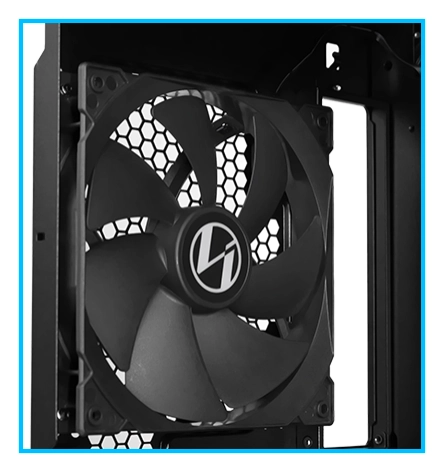

At the rear, a 140mm fan effectively removes warm air, helping to maintain balanced airflow throughout the system.

Size: 140 x 140 x 25 mm
Speed: 1800 RPM
Airflow: 81.3 CFM
Static Pressure: 2.4 mmH2O
Noise Level: 34.2 dBA

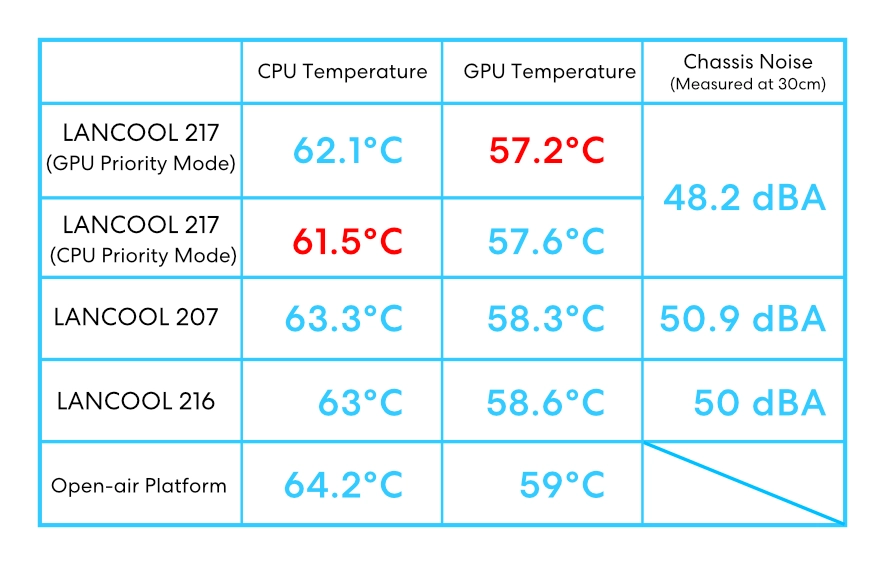

Independent testing at the PPLP Lab confirmed that the LANCOOL 217 delivers top-tier thermal performance, placing it among the highest-ranked cases in its class. Its efficient airflow design and strong out-of-the-box cooling earned it the prestigious S-Tier Case Performance Award, highlighting its exceptional capabilities in thermal management.

Thermal Test (Tested with Air Cooler):

Test Platform:
CPU: Intel i9-13900K (Power limit set to 230W)
GPU: ASUS ROG Strix RTX 3080 12G (Max load TGP: 390W)
Test Software: AIDA64 FPU (15 minutes)

CPU Mode / GPU Mode- Quick Test Guide

CPU Mode

- Best for CPU temperature
- Use tower air coolers for thermal test
- When using tower air coolers, you don't need to install additional fans on top of the case
- Keep the hard-drive cage uninstalled to have best optimal cooling for GPU cooling

GPU Mode

- Balanced cooling between GPU and CPU
- Use tower air coolers for thermal test
- When using tower air coolers, you don't need to install additional fans on top of the case
- Better for AIO tests
- Keep the hard-drive cage uninstalled to have best optimal cooling for GPU cooling

FLEXIBLE INSTALLATION, TOOL-LESS DESIGN

The LANCOOL 217 uses a tool-less fan mounting system with rubber pads on the front and bottom fans, allowing users to easily shift between CPU-focused and GPU-focused cooling modes.

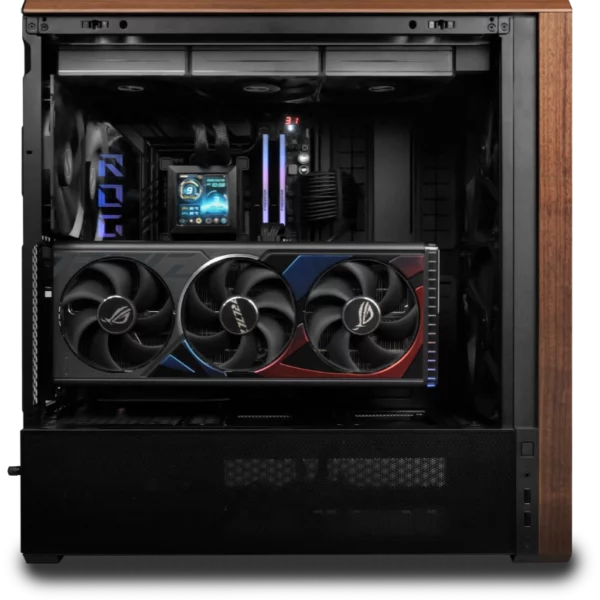

GPU Priority Mode
(Balanced cooling for CPU and GPU)

CPU Priority Mode
(Front fans raised to enhance CPU cooling)

Note:
The bottom fan can be installed in the lower area for a cleaner look, or users can remove the bracket screws to install different fans based on their setup needs.

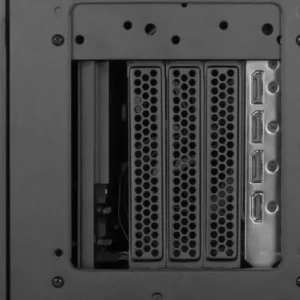

The PCIe slot bracket can be turned 90 degrees to support vertical GPU mounting. In this setup, the bottom fan can be moved under the PSU shroud for a hidden look, giving users more flexibility when building their system.

Note:
The bottom fan can be installed in the lower area for a cleaner look, or users can remove the bracket screws to install different fans based on their setup needs.

FLEXIBLE AND EASY INSTALLATION

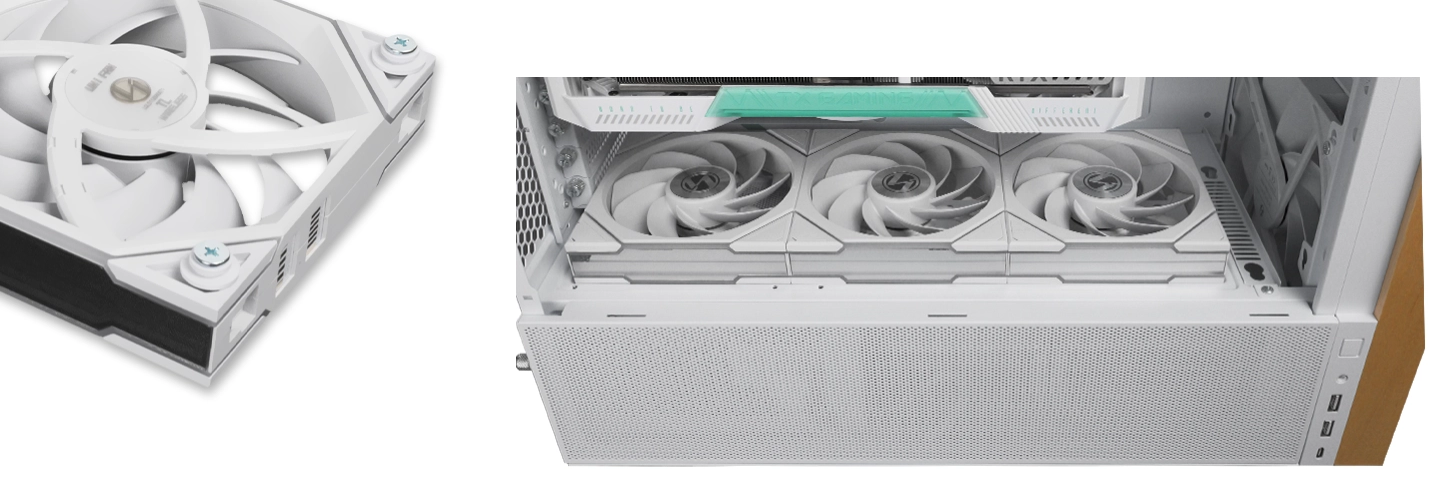

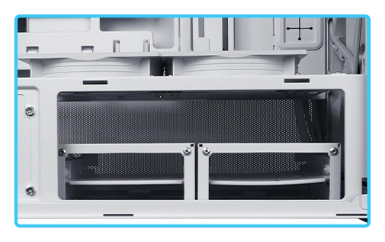

The LANCOOL 217 comes with screws and washers for installing 120mm fans. Users can take out the screws on the two bottom fans to swap them for different ones. The PSU shroud cover can also be removed, making room for up to three 120mm fans.

DUAL PSU MOUNTING, FLEXIBLE BUILDS

The LANCOOL 217 supports two PSU mounting ways, giving the users more options based on the PSU size, cable routing, and overall build layout. This flexible design makes it easier to set up the system, enhancing convenience and compatibility.

(Standard Mode)

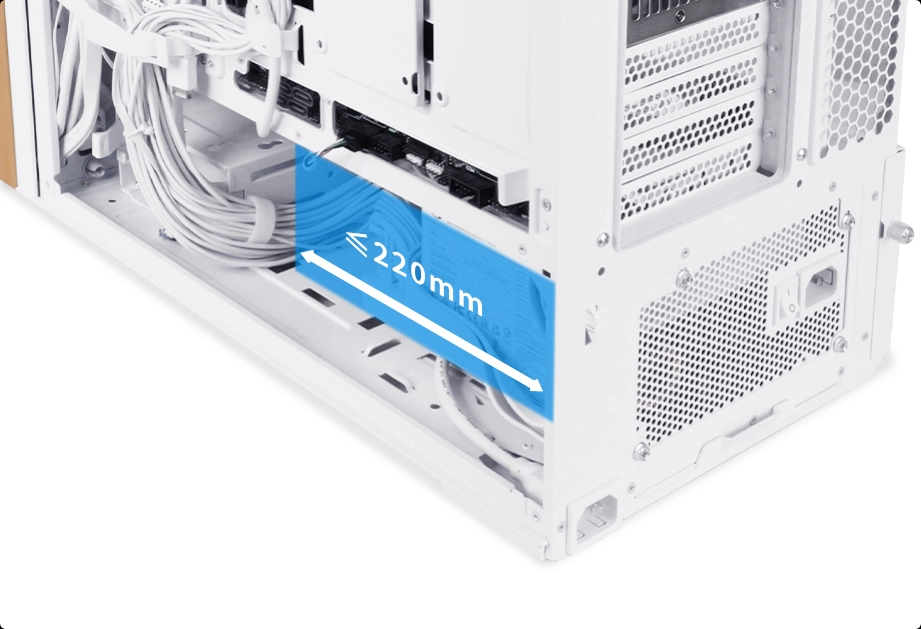

When the PSU connectors face the front, it supports ATX PSU up to 220mm long, which is suitable for most standard installs.

Note: Standard mode only supports one HDD cage. If users want to install two HDD cages, please switch to rotated mode.

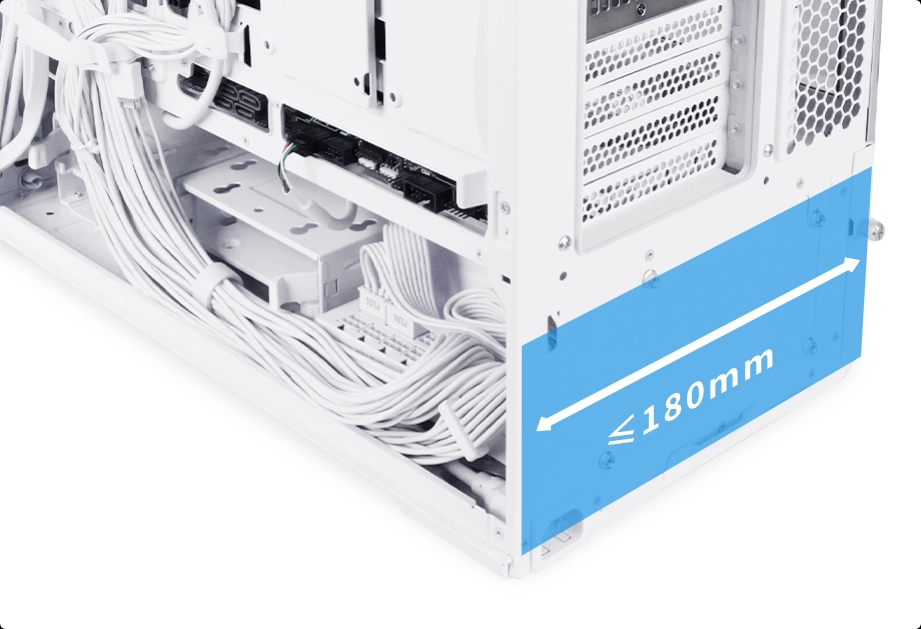

(Rotated Mode)
When the PSU is turned 90° with the connectors facing the right side, it supports compact PSU up to 180mm. This optimizes cable routing space and allows the fan to directly cool the PSU for improved cooling efficiency. Users can also move the two included bottom fans under the bracket for a hidden look, making the build cleaner and more organized.

MOTHERBOARD COMPATIBILITY

Supports motherboard sizes:
EEB (width <330mm) / E-ATX (width <280mm)
ATX/ Micro-ATX/ Mini-ITX.
Back-connect motherboard support: ATX, Micro-ATX.

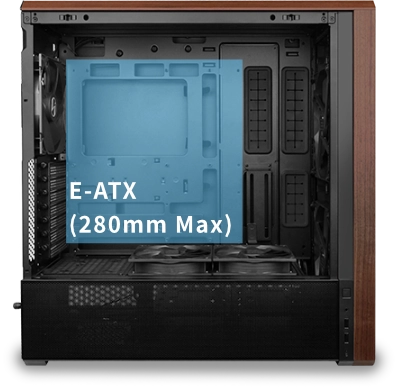

E-ATX Mode

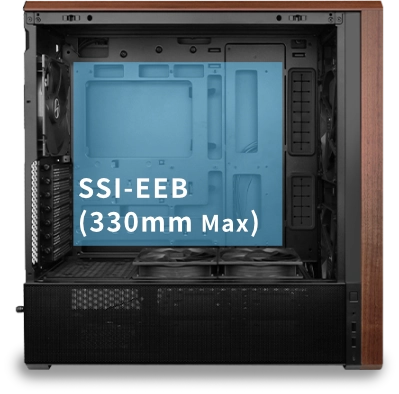

EEB Mode

Note: For using the E-ATX motherboards, the right-side bracket needs to be flipped, and as for using EEB motherboards, the users need to remove the shielding plate on the right-side bracket and the rubber grommets for cable routing.

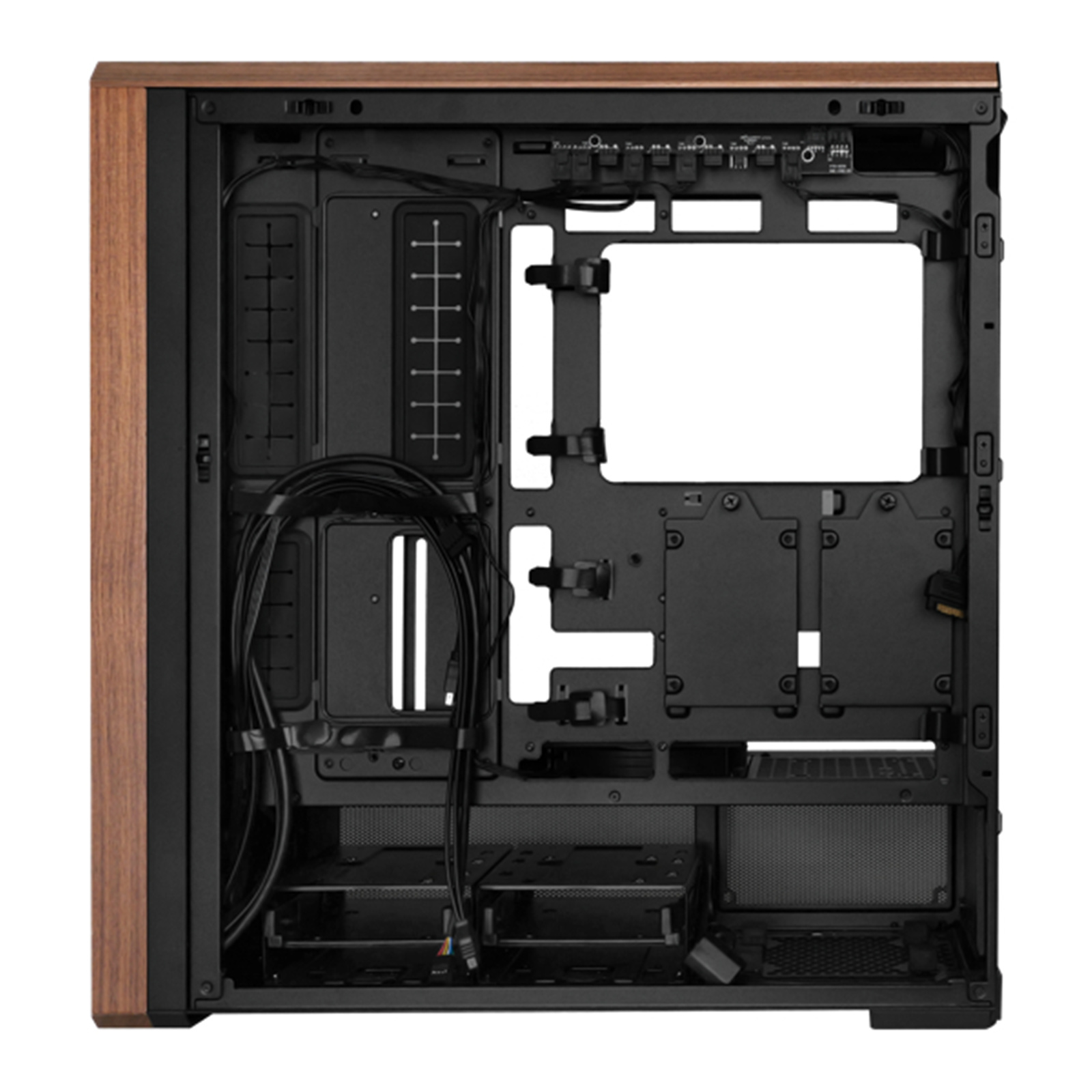

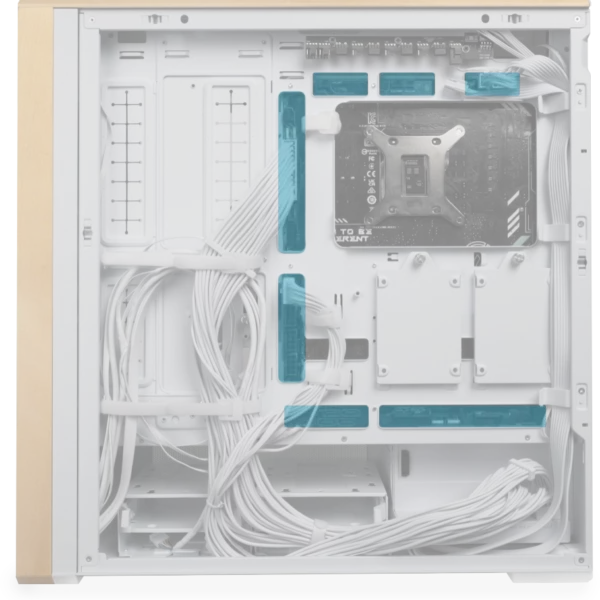

Compared to the LANCOOL 216, the LANCOOL 217 now supports back-connect motherboards. By removing the HDD cage behind the motherboard tray, it can accommodate M-ATX back-connect motherboards.

DRIVE SUPPORT

Behind motherboard tray: 2 x 2.5? SSDs or 1 x 2.5? SSD
(when using a rear-mounted Micro-ATX motherboard)

HDD cage: 2 x 3.5? HDD + 2 x 2.5? SSD+(2 x 3.5? HDD or 2 x 2.5? SSD)

PSU shroud cover: 1 x 2.5? SSD

Note:
To install a second HDD cage, the PSU must be rotated to the rotated mode. Installing two HDD cages in standard mode will cause interference with the PSU.

LARGE GPU, EXCEPTIONAL COMPATIBILITY

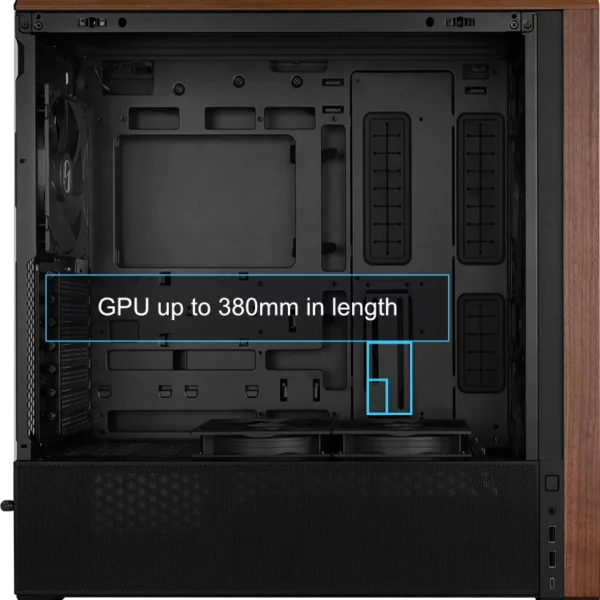

The LANCOOL 217 supports GPU up to 380mm in length and features an adjustable anti-sag bracket, ensuring a perfect and secure fit for GPU.

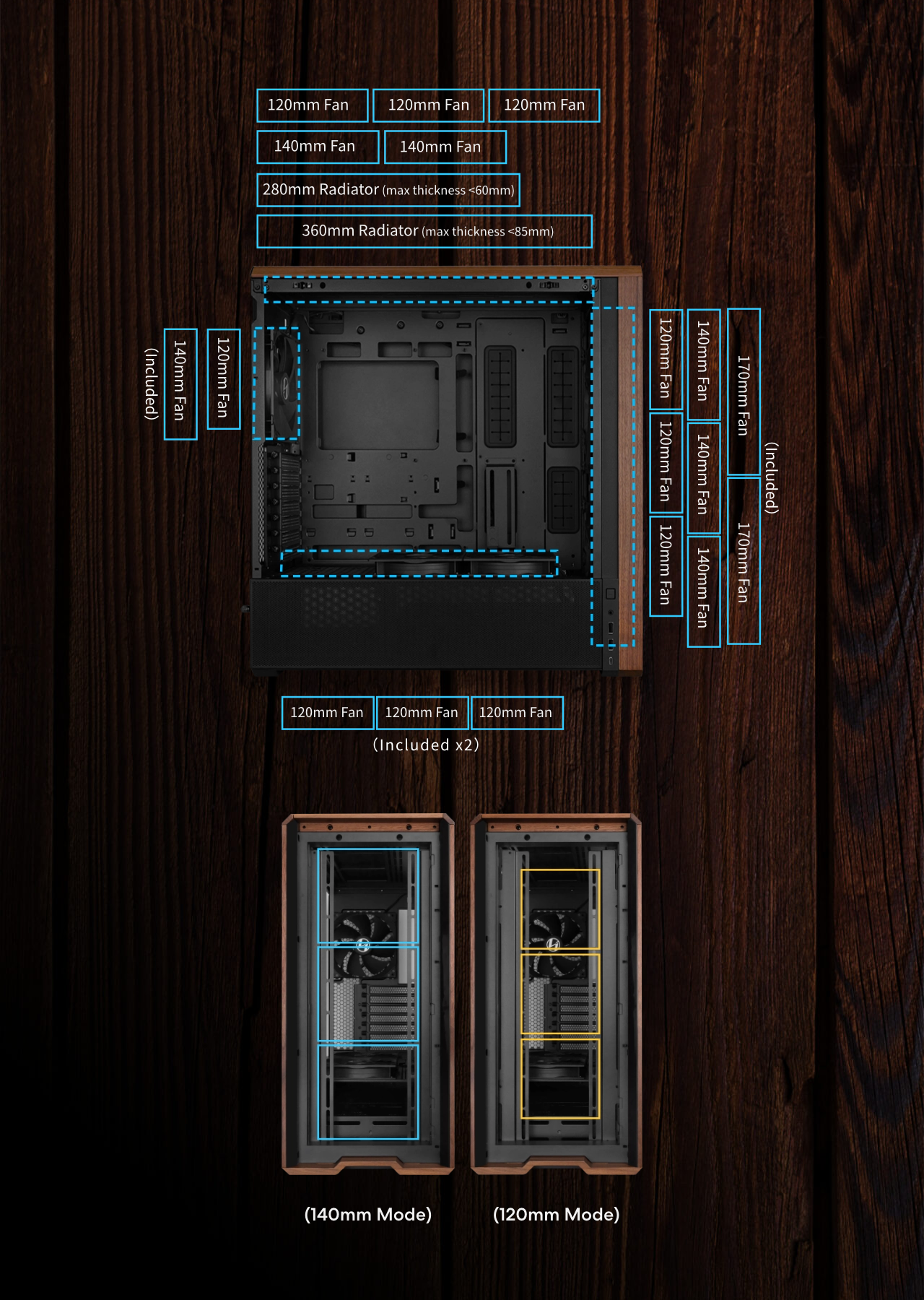

COMPREHENSIVE FAN/RADIATOR SUPPORT

The LANCOOL 217 offers extensive compatibility, supporting both 120mm and 140mm fans.

Note:
To install 120mm or 140mm fans at the front, the included fan bracket from the accessory box must be installed first.

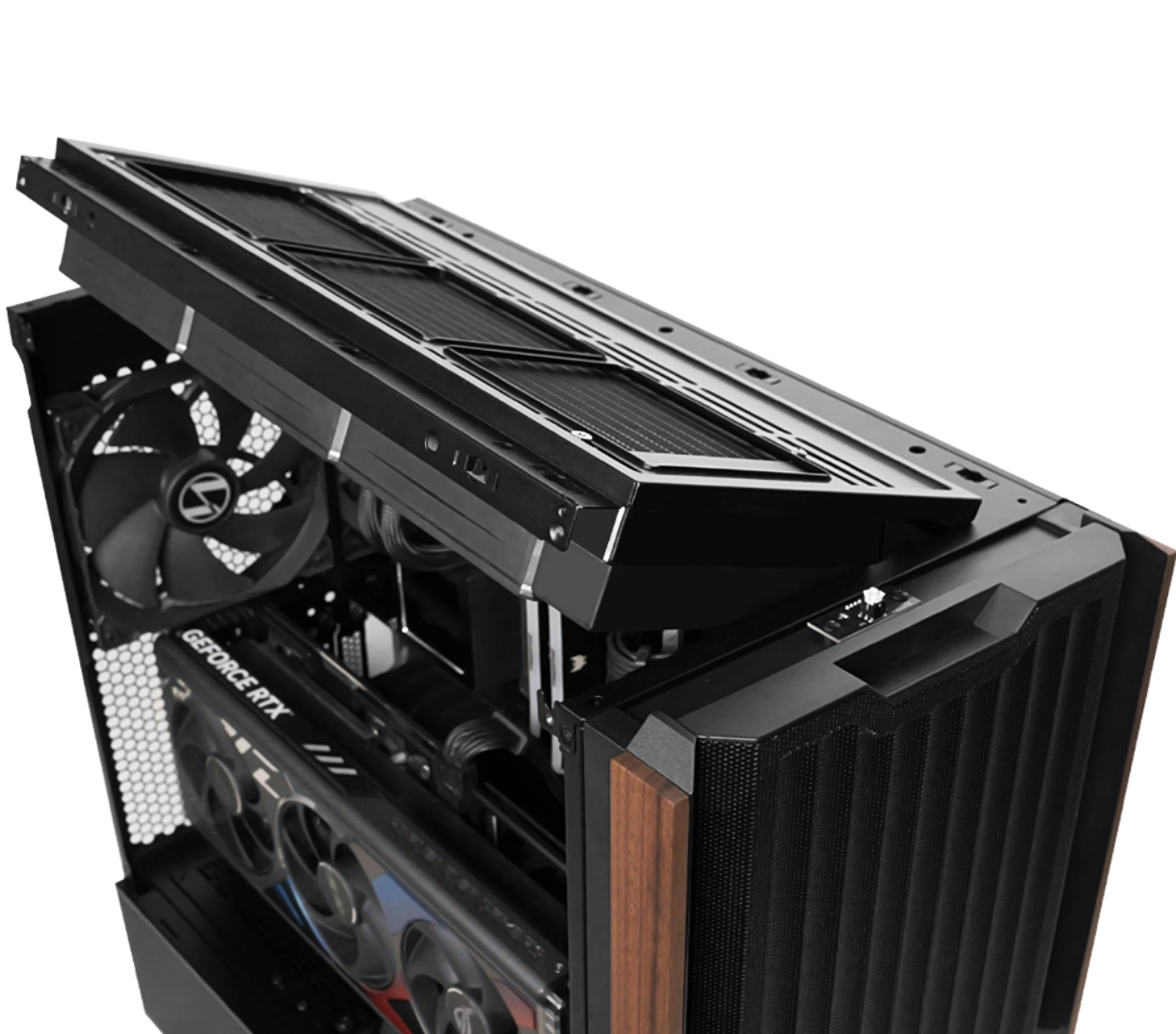

BRACKET FOR FAST AND EASY INSTALLATION

The top radiator bracket can be fully removed from the chassis, allowing users to install hardware more conveniently. When removing the bracket, the left-side frame bar is removed along with it, creating more available space for installation.

USER-FRIENDLY DESIGN

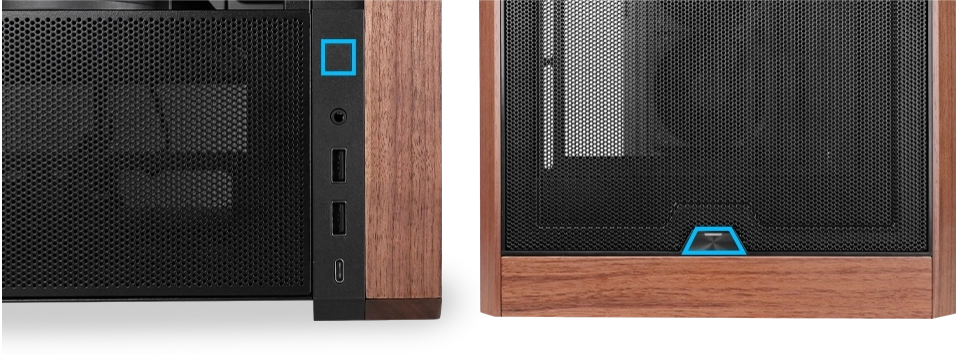

The LANCOOL 217 features two power buttons suitable for different usage. The top power button is easy to reach when the case is on the floor, and the front button works best if the case is on the desk.

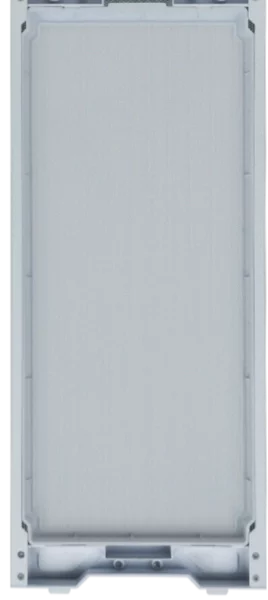

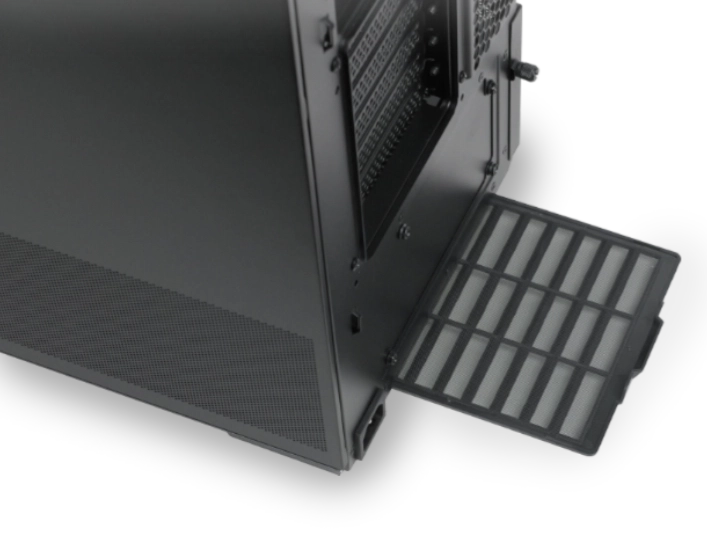

Both the front and bottom include removable magnetic dust filters, effectively preventing dust buildup and extending hardware lifespan.

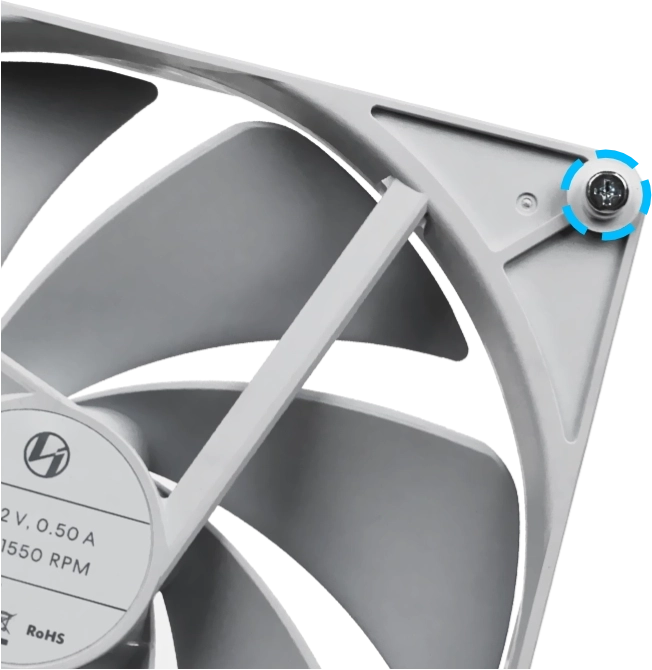

All fans come with rubber anti-vibration mounts combined with low-noise optimized design, keeping operation noise levels as low as 33.2 dBA for a quiet and comfortable environment.
