Features

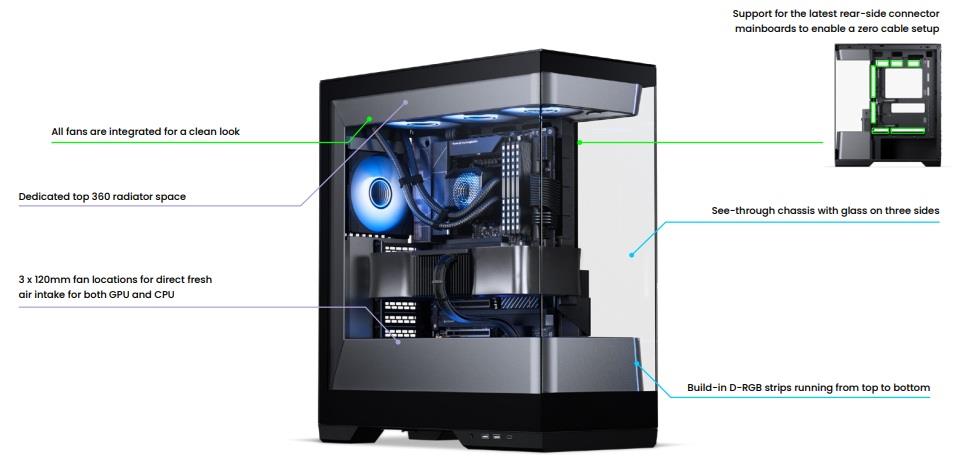

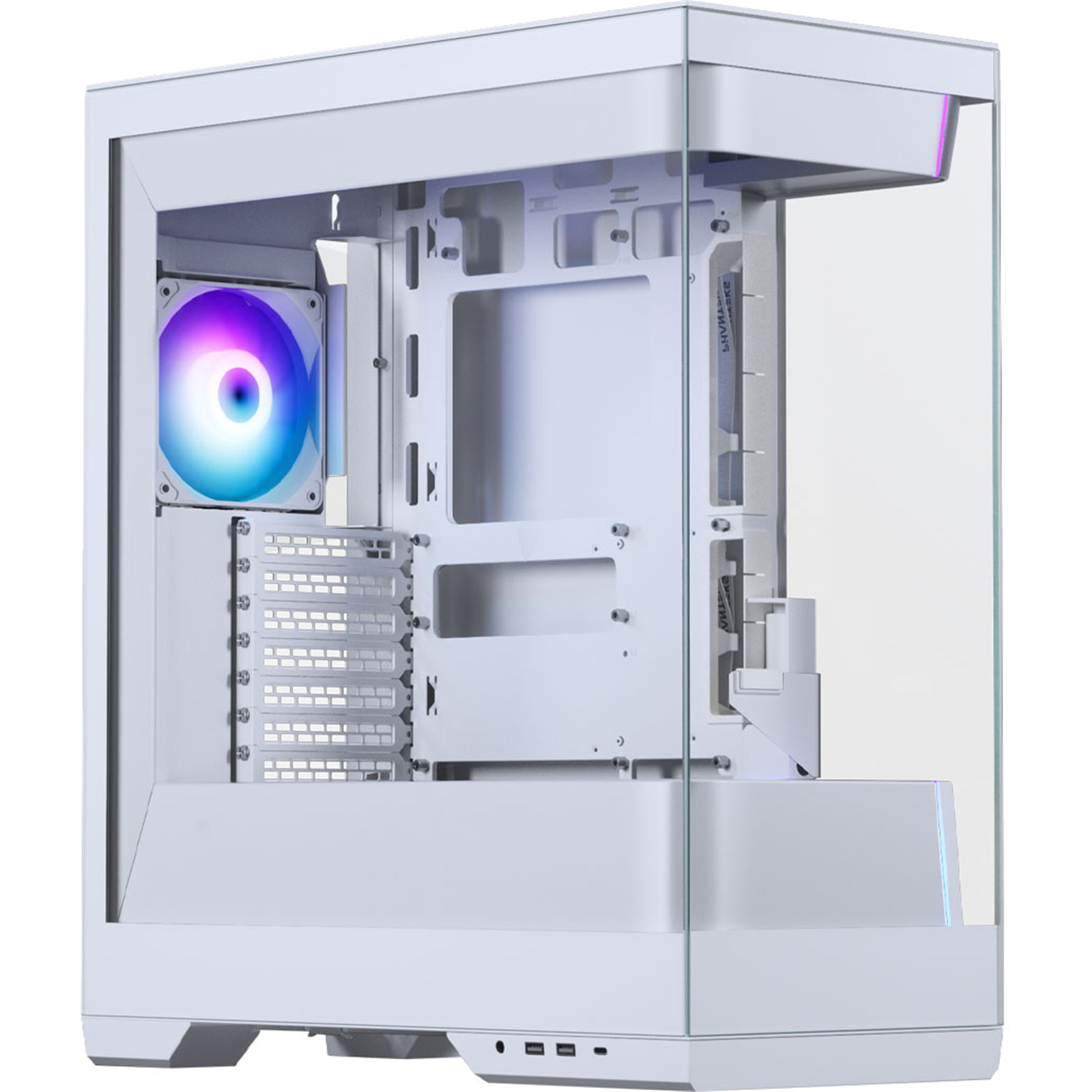

Evolv S2 - See-Through Tempered Glass Chassis
A unique see-through ATX chassis design makes the Evolv S2 stand out from the crowd. It feels spacious and highlights the main system components with a compact footprint making it look perfect on any desk.
The interior of the Evolv S2 blends with the hardware components for a fully integrated look with all cooling components sitting flush into the top and base. Having a vertical cooling system with triple intake fans in the bottom that directly cool the GPU and a dedicated top 360 radiator area makes the Evolv S2 perform in any condition.
- Unique see-through tempered glass chassis design
- Integrated D-RGB Lighting throughout the chassis
- Support for ATX rear-connect mainboards
- Four high airflow M25-120 mm D-RGB fans included and built-in
- All fans and radiators fully integrate into the chassis for a clean look

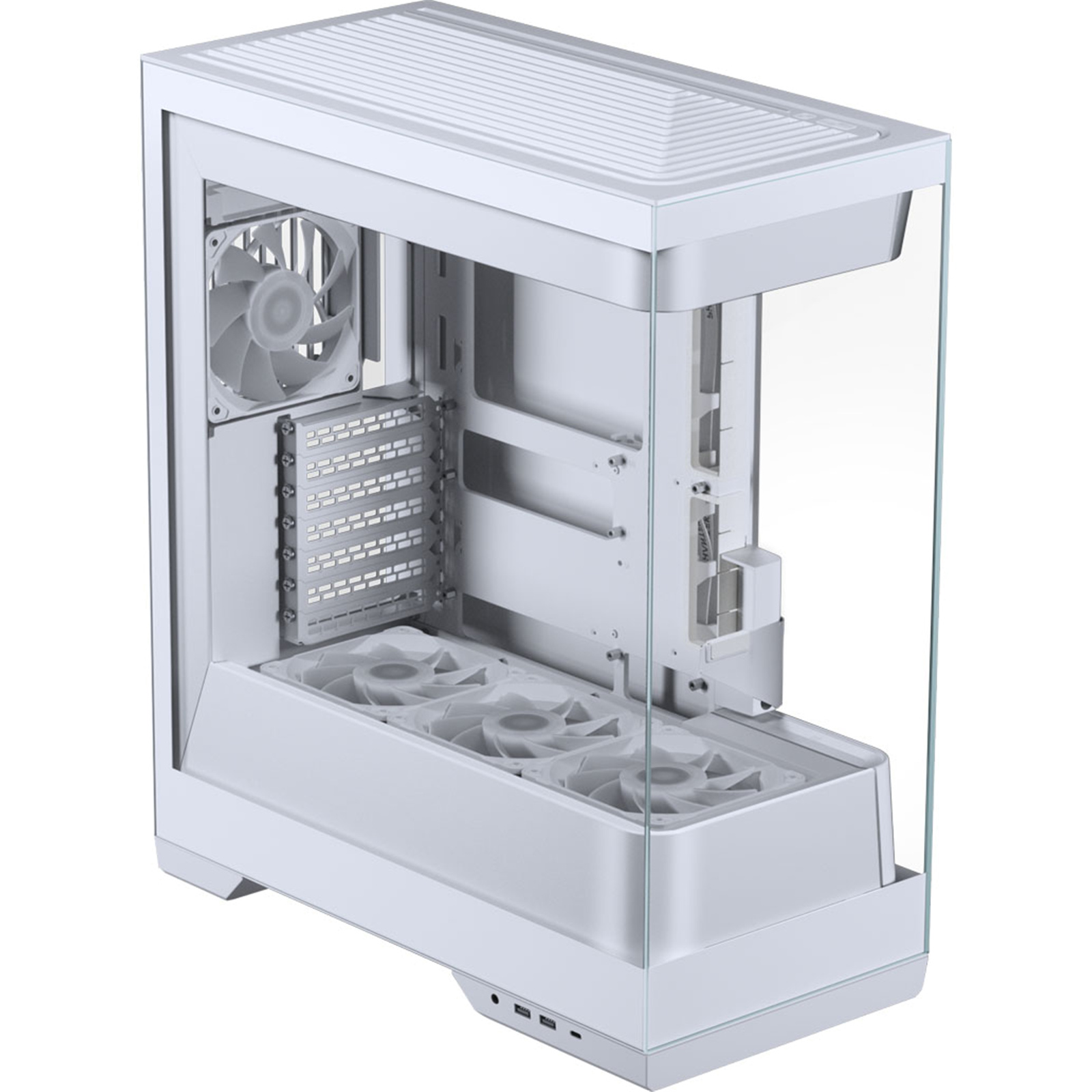

- Triple 120mm fan positions in the bottom for air intake and direct GPU cooling
- Triple 120mm fan positions in the top with dedicated 360 radiator clearance for exhaust
- Rear 120mm fan position for a total of 7x 120mm fan positions
Ultra Clean Look
One of the main features that sets the Evolv S2 apart from other cases is the extremely clean look. All screws are covered by panels, all cables are hidden behind silkprint on the left glass panel and the support for rear-side connectors enables a zero cable setup.
Good Cooling Performance

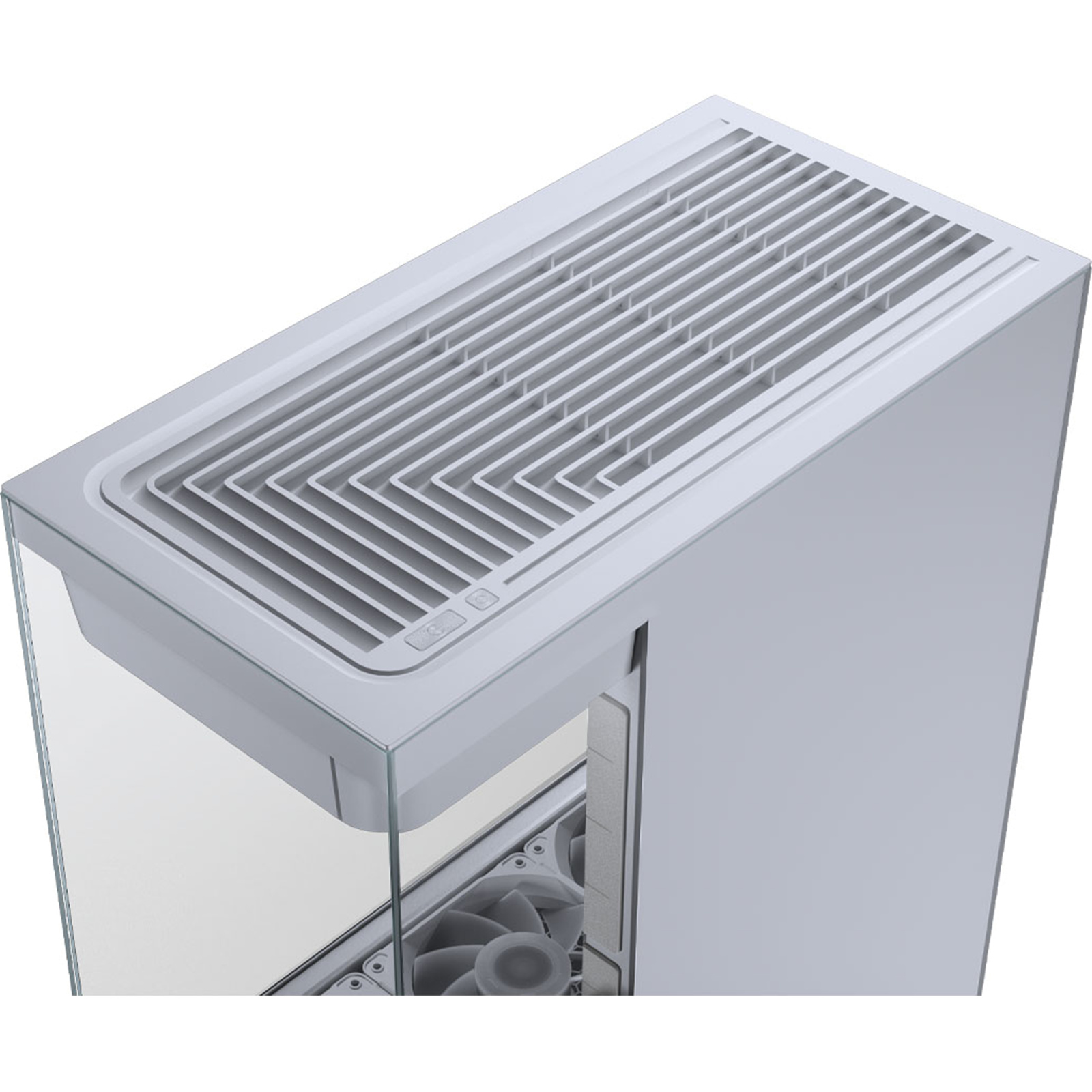

The Evolv S2 has good cooling performance with its bottom air intake and top exhaust. The top features dedicated space for a 360 radiator.
Premium Aesthetics

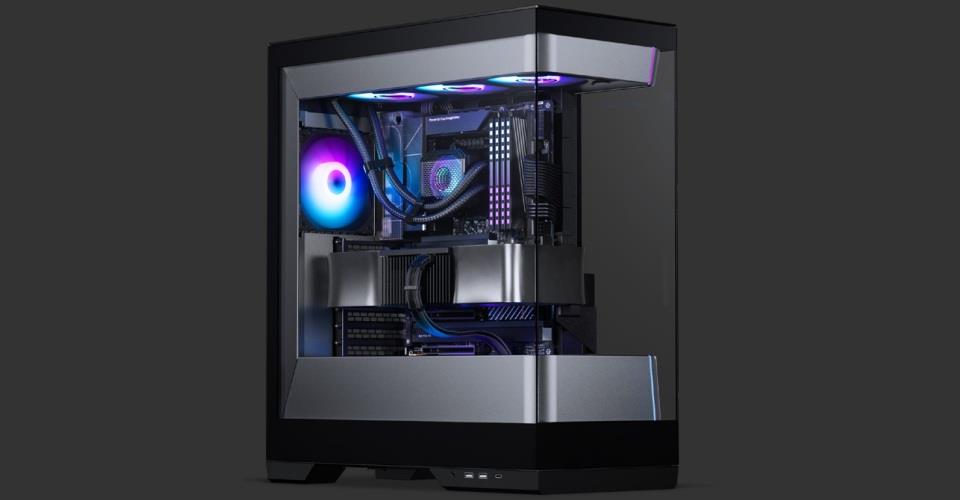

The Evolv S2 has a unique design with its see through chassis and integrated D-RGB running from the top to the bottom.
Specifications
Model Number
PH-ES524S2_DWT01
Colour
White
Product Dimension (D x W x H)
455 x 230 x 525 mm
Form Factor
Mid Tower
Mainboard Support
ATX, Micro-ATX, Mini-ITX, E-ATX (up to 280mm wide)

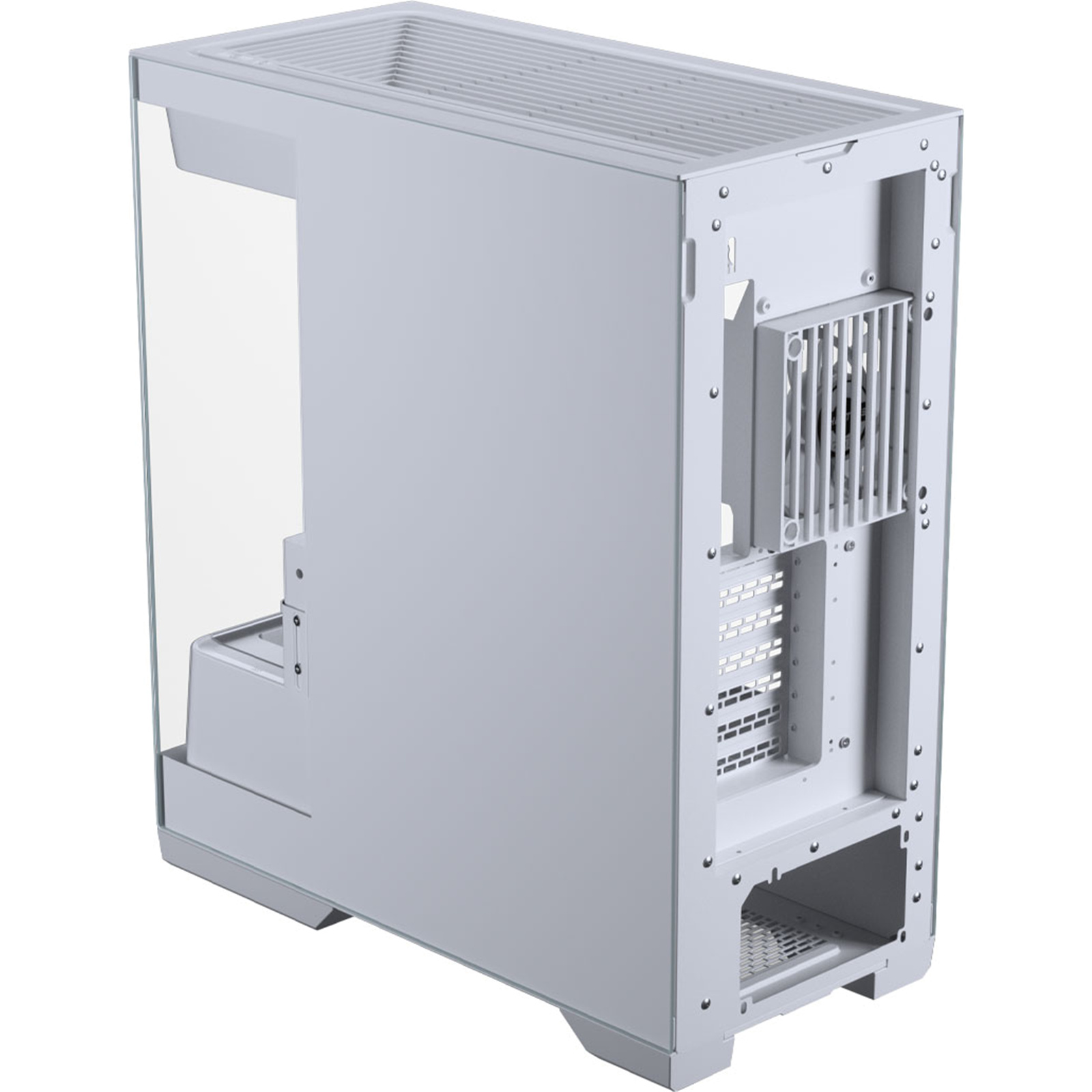

Rear-Sided Mainboard Support
Yes, ATX
Integrated Fans Look
Yes
Cable Management Cover
Silkscreen on tempered glass
Integrated D-RGB Lightstrip
Yes
Materials
Steel Chassis, Tempered Glass, ABS plastic covers
Front IO
1x USB-C 3.2 Gen2x2 + 2x USB 3.0
Microphone/Headphone combo
Reset Button
Power Button
Connectors
Power Switch
Reset Switch
HD-audio
USB 3.0
USB-C Type-E
Weight
9.90 kg
What's Included
1x Evolv S2 chassis
1x M25-120 mm Regular D-RGB fan
3x M25-120 mm Reverse D-RGB fan

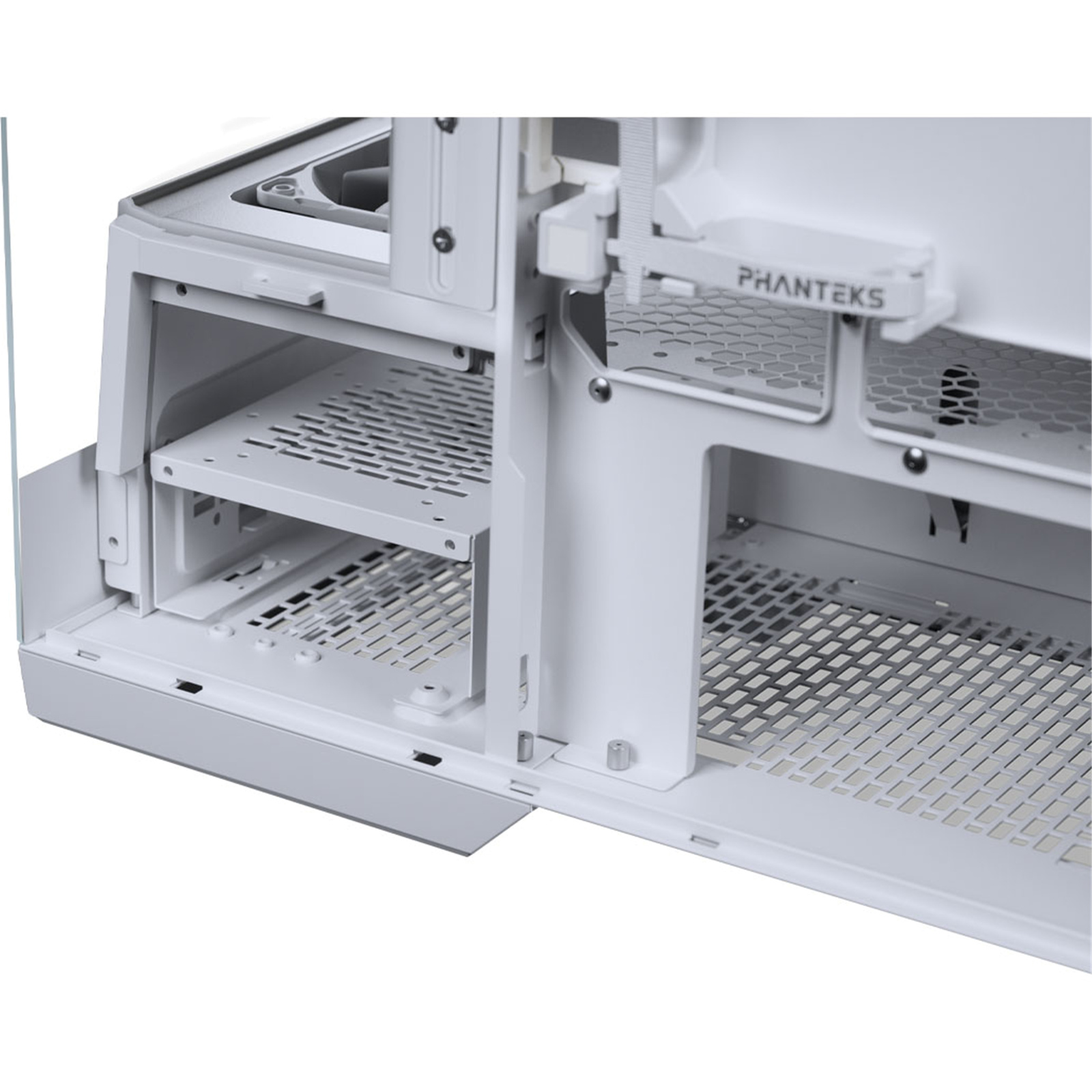

1x Storage Bracket (2x HDD / 2x SSD)
1x Accessory box with necessary screws
Expansion
PCI Slots
7
Internal 3.5" Bay
2 (1x if 2x SSD installed)
Internal 2.5" Bay
2 (0x if 2x HDD installed)
Vertical GPU Support
Yes, with optional bracket: PH-VGPUKT4.0_03R or PH-PGPUKT4.0_01
Fans & Radiators
Top Fan
3 x 120 mm
Bottom Fan
3 x 120 mm (3x included)
Rear Fan
1 x 120 mm (1x included)
Top Radiator
Up to 360
Clearances
GPU Length
395 mm
GPU Width
175 mm
CPU Cooler Height
175 mm
Power Supply
210 mm
Top 360 Radiator
410 x 125 x 55 mm
