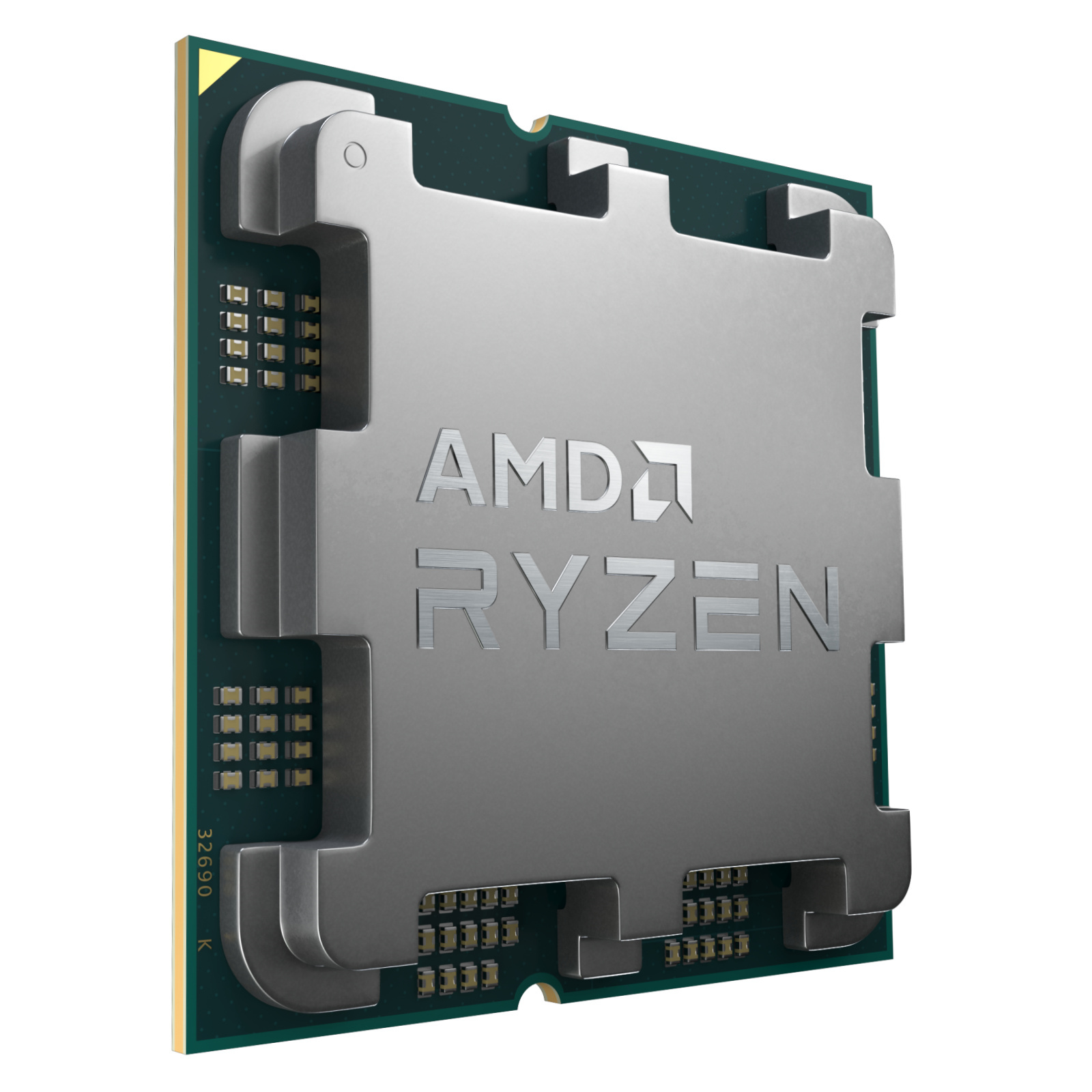

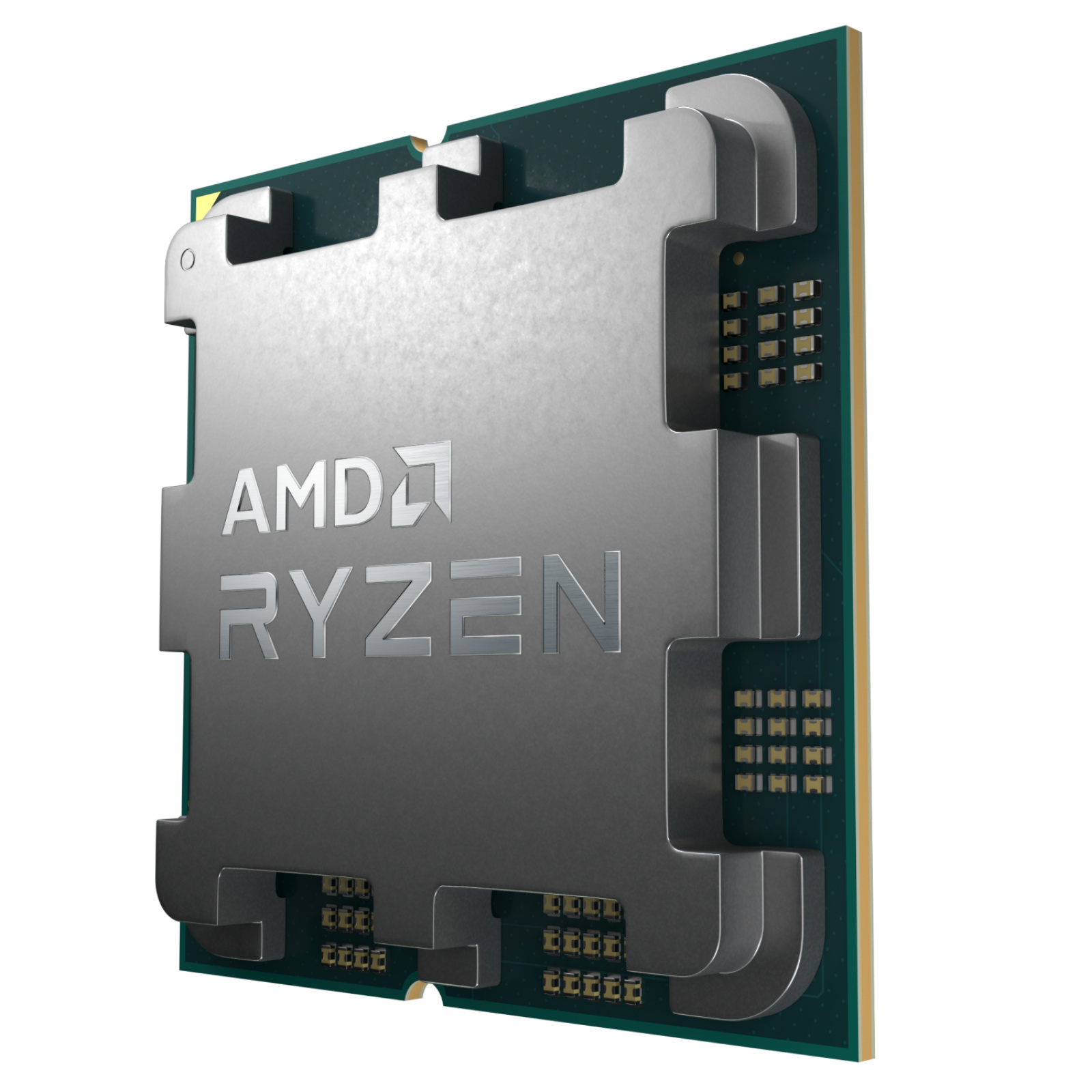

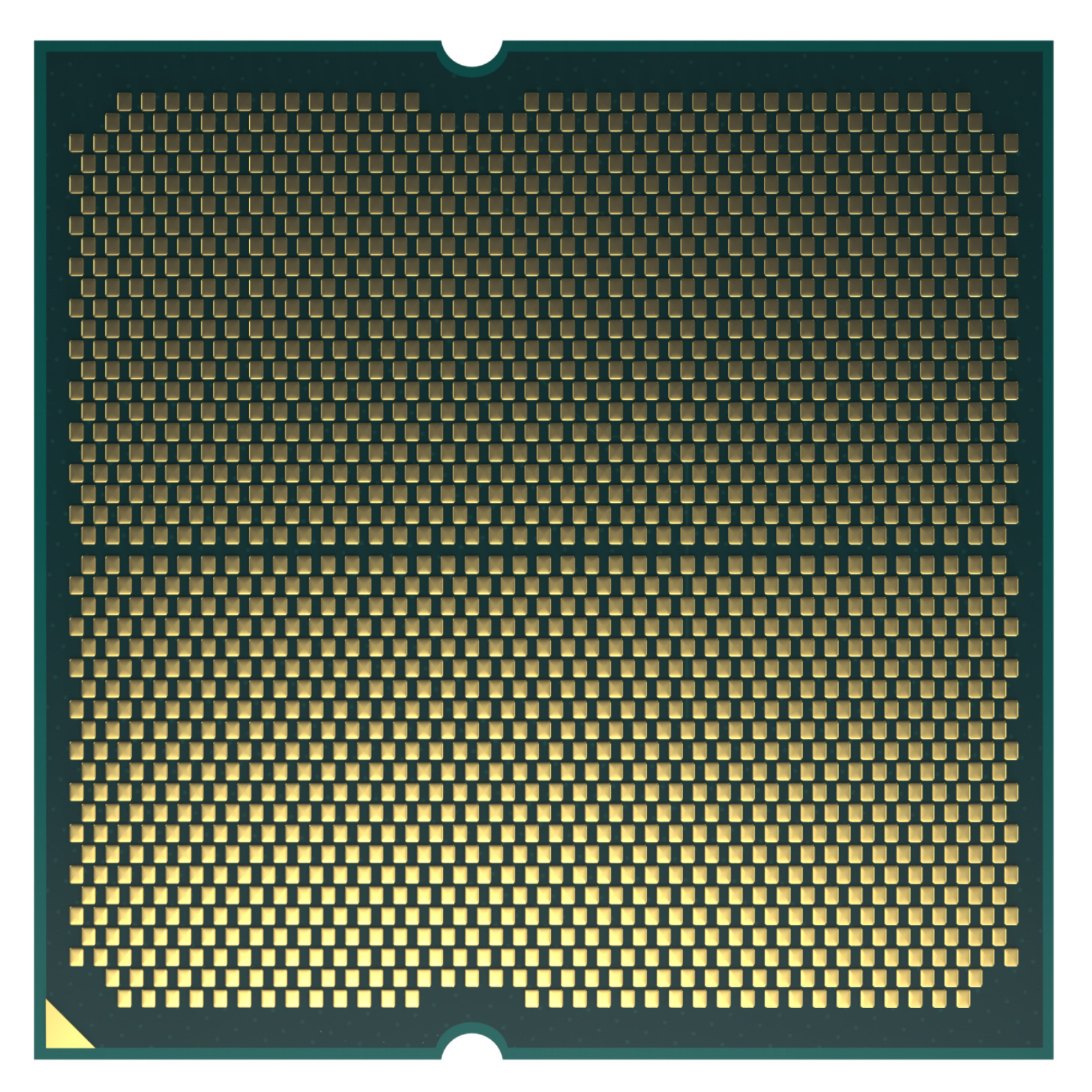

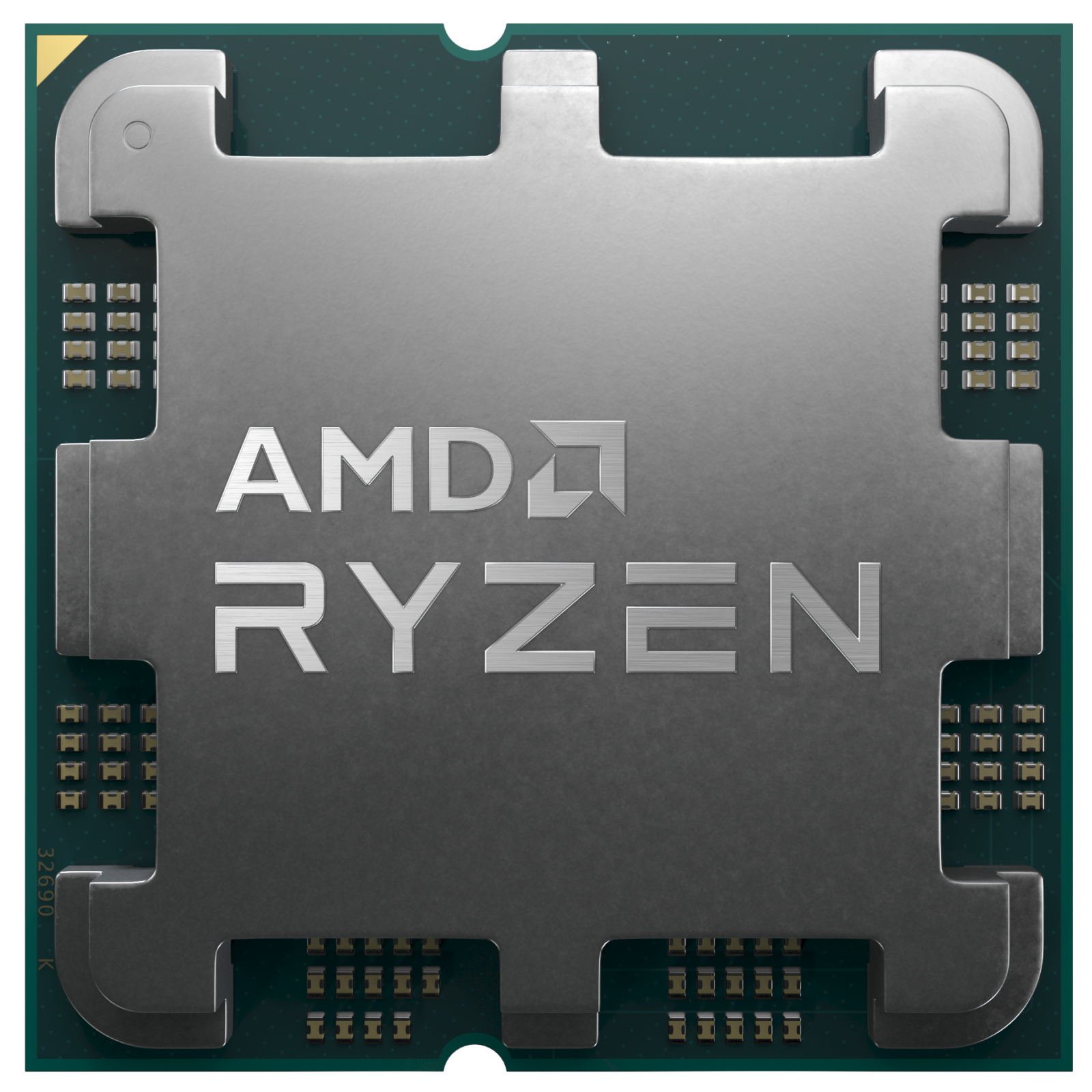

AMD Ryzen 7 7800X3D CPU

8 Core / 16 Thread - Max boost 5.0Ghz - 104MB Total Cache - AM5 Socket - 120W TDP - Integrated Radeon Graphics - Heatsink Not Included

PB Tech price
PB Tech price
$ 642 .61
 +GST
$ 739 .00
 inc GST
$642.61  +GST
$739.00  inc GST

AMD Ryzen 7 7800X3D CPU

8 Core / 16 Thread - Max boost 5.0Ghz - 104MB Total Cache - AM5 Socket - 120W TDP - Integrated Radeon Graphics - Heatsink Not Included

Latest from AMD!
  • Brand: AMD
  • MPN: 100-100000910WOF
  • Part #: CPUAMD07800X3D
  • UPC: 730143314930
19
PB Tech price
$ 642 .61 $ 739 .00
 +GST  inc GST
Tax free price $681.17


Click & Collect: Available from 17 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$642.61  +GST
$739.00  inc GST

Six easy payments of $126.86 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $189.37 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

Finance from $7.33 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $15.27 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. At end of interest free period, Q Mastercard Expired Promotional Rate or Q Card Standard Interest Rate of 27.99% p.a. applies (see Ts&Cs for Q Mastercard Standard Interest Rate). $55 Establishment Fee or $35 Advance Fee applies. Approved applicants only. The indicative monthly repayment is the purchase amount and Establishment Fee divided by the number of weeks in the Start-up Interest Period. The indicative repayments assume there are no additional purchases, cash withdrawals, fees or charges. The indicative repayments are only an estimate and figures should be used as an indication only. They do not represent either a quote, pre-qualification or approval. To repay the purchase amount by the expiry of the Start-up Interest Free Period, the indicative monthly repayments stated would need to be made by the due date for each statement period.

*See here for full T&C

  • Brand: AMD
  • MPN: 100-100000910WOF
  • Part #: CPUAMD07800X3D
  • UPC: 730143314930

CPU Family

AMD Ryzen 7

CPU Socket

AMD AM5

Base Clock Speed

4.2GHz

Turbo Boost Clock Speed

5.0GHz

Number of Cores

8

CPU Cooler Included

No

Integrated Graphics

Yes

TDP

120W

What PB Tech customers are saying about this product...

See More Reviews

"The hype around this CPU is real!

If you can budget for a ...view more"

A
By: AaronD53 01/12/23

"Installed this cpu into an msi motherboard just yesterday. I ...view more"

H
By: HarrisonH76 26/11/23

"Best gaming cpu ever low power draw and stays very cool even at 100% load at 5050Mhz light years ahead of intels chips"

G
By: GeertM 06/11/23
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the AMD Ryzen 7 7800X3D CPU 8 Core / 16 Thread - Max boost 5.0Ghz - 104MB...
AMD Ryzen 7 7800X3D CPU 8 Core / 16 Thread - Max boost 5.0Ghz - 104MB Total Cache - AM5 Socket - 120W TDP - Integrated Radeon Graphics - Heatsink Not Included
Total:
$ 1,441 .43
 +GST
$ 1,657 .64
 inc GST
Buy together and save $34.16 $39.28
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste Made With 99.9% Pure Silver
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste Made With 99.9% Pure Silver
$18.21 $20.94

$16.35  +GST

$18.80  inc GST

Save $1.86 $2.14
Samsung 980 Pro 1TB M.2 NVMe Internal SSD PCIe 4.0 - Up to 7000MB/s Read - Up to 5000MB/s Write - 5 Years Warranty
Samsung 980 Pro 1TB M.2 NVMe Internal SSD PCIe 4.0 - Up to 7000MB/s Read - Up to 5000MB/s Write - 5 Years Warranty
$146.95 $168.99

$138.26  +GST

$159.00  inc GST

Save $8.69 $9.99
G.SKILL Trident Z5 NEO RGB 32GB DDR5 Desktop RAM Kit 2x 16GB - 6000MT/s - CL32 - 1.35V - 32-38-38-96 AMD EXPO Optimized
G.SKILL Trident Z5 NEO RGB 32GB DDR5 Desktop RAM Kit 2x 16GB - 6000MT/s - CL32 - 1.35V - 32-38-38-96 AMD EXPO Optimized
$233.91 $269.00

$225.21  +GST

$258.99  inc GST

Save $8.70 $10.00
Gigabyte B650 AORUS ELITE AX ATX Motherboard For AMD Ryzen 7000 Series CPUs - AMD B650 Chipset - 3x M.2 - PCIe 4.0 - 1x Internal USB 3.2 Header - 2x Internal USB 2.0 Header -  1x Internal Type C Header - 1x 2.5 GbE - Wifi AX+BT
Gigabyte B650 AORUS ELITE AX ATX Motherboard For AMD Ryzen 7000 Series CPUs - AMD B650 Chipset - 3x M.2 - PCIe 4.0 - 1x Internal USB 3.2 Header - 2x Internal USB 2.0 Header -  1x Internal Type C Header - 1x 2.5 GbE - Wifi AX+BT
$433.91 $499.00

$419.00  +GST

$481.85  inc GST

Save $14.91 $17.15

Features

This Changes Everything

The most advanced PC processor for gamers and creators.



Introducing New Models with AMD 3D V-Cache™ Technology for the Ultimate Game Performance

All rise for the undeniable king of gaming. Three new AMD Ryzen 7000 Series processors with AMD 3D V-Cache™ technology for a massive gaming performance boost. With the introduction of the new Ryzen 9 7950X3D and Ryzen 9 7900X3D, AMD combines its top-end processors with up to 144MB of on-chip memory. This means that enthusiasts can harness the power of the ultimate gaming and creator performance in one chip. No workload is off limits with the AMD Ryzen 7000 series and 3D V-Cache™ technology.





The Ultimate Processor for Gaming

When your PC has the world's most advanced desktop processor for gamers, you can focus on what really matters: being victorious on the digital battlefield. Whether you're playing the latest titles or revisiting a classic, the AMD Ryzen™ 7000 Series processors are a gaming powerhouse with high-performance "Zen 4" cores. With up to 16 cores, 32 threads, boost clocks of up to 5.7GHz and up to 144MB of on-chip memory, AMD Ryzen 7000 Series processors deliver game changing performance.



Technology That Saves You Time

Whether you are 3D rendering a high poly scene, exporting massive video files, or visualizing an architectural dream, AMD Ryzen™ 7000 Series processors are built to beat the clock. With time-saving connectivity like PCIe® 5.0 storage support, ultra-fast WiFi® 6E, AMD EXPO™ technology, up to 32 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen 7000 Series processors.



Easy Overclocking, Game On

Accelerate your gaming with AMD EXPO™ technology. Higher memory frequencies and more aggressive settings can unlock higher and smoother frame rates in your favorite games.



Exclusive AMD 3D V-Cache™ Technology - The Ultimate Gaming Hardware

AMD's 3D V-Cache™ technology delivers a huge game performance advantage with up to 144MB of on-chip memory, coming soon to three new AMD Ryzen 7000 Series processors.



Leadership Efficiency - With Eco-Mode and New Low-Power Models

AMD Ryzen™ 7000 series processors can deliver up to 49% more performance at the same power as last gen. Use even less power with AMD's exclusive Eco-Mode, or choose one of the new low-power 65W models in the lineup.



Unlocked for Overclocking - Control your processing power

Tweak and tune your AMD Ryzen processor for personalized performance easily with one-click Precision Boost Overdrive, or do it manually with the robust AMD Ryzen Master utility.



Upgradable for Years to Come - Invest in a platform that grows with your needs over time.

Your PC platform can be an investment, or a liability. AMD is the only processor manufacturer that has committed to years of future support for the new Socket AM5 platform, so you will be able to upgrade to processors with new technologies we haven't even announced yet. It's packed with state-of-the-art technologies including high-speed DDR5 memory, PCIe® 5.0 support, AMD EXPO™ one-touch memory overclocking, and hyper-efficient 5nm manufacturing. Put an AMD Socket AM5 motherboard at the heart of your rig to dominate the games you love today and tomorrow. If your PC needs the latest and greatest capabilities now and in the future, insist on AMD Ryzen™ processors.

Specifications

General Specifications

Platform

Desktop

Market Segment

Enthusiast Desktop

Product Family

AMD Ryzen™ Processors

Product Line

AMD Ryzen™ 7 Processors

AMD PRO Technologies

No

Former Codename

"Raphael AM5"

Architecture

"Zen 4"

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 5.0GHz

Base Clock

4.2GHz

L1 Cache

512KB

L2 Cache

8MB

L3 Cache

96MB

Default TDP

120W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

2

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

X670E
X670
B650E
B650

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Max. Operating Temperature (Tjmax)

89°C

*OS Support

Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support

Yes

Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 3.2 Gen 1 (5Gbps) Ports

0

Native USB 2.0 (480Mbps) Ports

1

Native SATA Ports

0

PCI Express® Version

PCIe® 5.0

Native PCIe® Lanes (Total/Usable)

28/24

Additional Usable PCIe Lanes from Motherboard

AMD X670E: 12x Gen4
AMD X670: 12x Gen4
AMD B650E: 8x Gen4
AMD B650: 8x Gen4

NVMe Support

Boot, RAID0, RAID1, RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

128GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R: DDR5-5200
2x2R: DDR5-5200
4x1R: DDR5-3600
4x2R: DDR5-3600

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics

Yes

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

GPU Base

400 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes

Key Features

Supported Technologies

AMD EXPO™ Technology
AMD Ryzen™ Technologies

Manufacturer Part No:
100-100000910WOF
Brand:
AMD
Product Type:
CPU
UPC
730143314930
Product Family:
Ryzen 7
Shipping Weight:
0.1 kg
PB Part No:
CPUAMD07800X3D
Product Model:
7800X3D
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.8 out of 5 Stars Based on 19 Reviews
5 Stars
16
4 Stars
2
3 Stars
1
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Fastest out of box gaming CPU

Recommend updating the BIOS ASAP especially if you get an ASUS motherboard to prevent overvoltage issues.

Fastest gaming CPU out of the box and easy to cool.
Install, set EXPO and maybe a negative offset and you're good to go.

Most of the early issues have now been resolved and everything is running without issue.
Sure you can get the 13900K to run faster but this requires insane amount of tweaking and in some cases cooling.

Highly recommended for gaming focused individuals.

P
By: PhilM86 05/05/23
Verified Owner
4 out of 4 users found this review helpful
Did you find it helpful?

Fantastic CPU

After upgrading from an i5 8400, this is a significant step up. Tasks that would usually use 80-100% of my CPUs resources are lucky to exceed 9-10% on the 7800X3D. Temps are great, running a 240mm AIO and at idle the CPU is around 35c. Can't wait to buy a new GPU to pair with it.

J
By: JoshB929 22/04/23
3 out of 3 users found this review helpful
Did you find it helpful?

My first X3d cpu

I said to myself not to upgrade till next gen, but after seeing ddr5 price drop. I just could not resist upgrading. So I pickup this cpu and gigabyte b650 elite ax mobo. I am very Impressed with how efficient this chip runs and is alot faster than my old 5800x.

W
By: WayneH97 19/10/23
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

If you're gaming, it's the best.

I replaced my 7900X with this and I definitely notice the performance gains at 4k. It's up to around 10% while paired with a 4090.

The additional benefits are that it runs cooler and uses much less power. I don't want my CPU to run at 90° and use 400W. I want it to run at 69° while gaming and 80° while under full load. And I want it to use up to 50w while gaming. This does all of those while being the best gaming CPU in the market.

H
By: HughM424 30/05/23
Verified Owner
2 out of 4 users found this review helpful
Did you find it helpful?

Current best gaming CPU

The hype around this CPU is real!

If you can budget for a 7800x3d, then do so!
Idles around 35-40c and maybe hits 70c & 70w+ if you can push it far enough

Don't forget to update your BIOS before installing

Replaced my old delidded and 5ghz OCd 7700k

A
By: AaronD53 01/12/23
0 out of 0 users found this review helpful
Did you find it helpful?

Excellent cpu

Installed this cpu into an msi motherboard just yesterday. I’ve had the same computer for about 6 years now so I decided to upgrade. I was considering an i7-13700kf but decided to spend a bit more (motherboard included) and get this instead after seeing the reviews.

I went from a ryzen 5 2600 to this and the difference is astounding. I tried as hard as I could but could barely get it to 25% utilisation and it never went above 50W and had a max temp of 60°C when gaming.

I’m still using my old gtx 1070 (soon to change) and it’s made this 7 year old card feel new again. I can’t wait to see the performance i’ll get when I pair the 7800x3d ...view more

H
By: HarrisonH76 26/11/23
0 out of 0 users found this review helpful
Did you find it helpful?

Beats Intel in every way

Best gaming cpu ever low power draw and stays very cool even at 100% load at 5050Mhz light years ahead of intels chips

G
By: GeertM 06/11/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Excellent value for gaming

Works great with all the CPU intensive games I play such as Stellaris & Cities Skylines. Would recommend if you play alot of simulation or strategy games.

C
By: CharlesT185 30/10/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

I am speed

So much gaming performance for such little power. Worth it when on sale.
Not for production work. Just gaming.

J
By: JamesG697 05/10/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Amazing gaming performance with even better power efficiency!

Don't be afraid of the "8 cores at 5GHz" tag, this guy runs quite cool and tops out at around 80 watts under full load. If you're looking for the best gaming performance, the 7800X3D is EASILY the best choice, but you might want to go with a non-3D V-Cache CPU or even switch over to Intel if you're mainly interested in maximising productivity workloads.

M
By: MaxxS6 03/10/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

best CPU out

increased my fps from 80 in some games to 200+ with a rtx 3060

E
By: EthanT96 30/09/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Great CPU

I have been using this CPU for a few weeks now and I am impressed by its performance. The CPU is very fast and stable, and it handles everything I have thrown at it with ease. I mainly use it for gaming, and it runs all the latest titles at high settings and smooth frame rates. I would highly recommend this CPU to anyone who is looking for a great gaming CPU.

J
By: JamesG82 26/09/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed / unopened, with packaging in original condition, and accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase.

Please note, items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

AMD Ryzen 7 7800X3D CPU 8 Core / 16 Thread - Max boost 5.0Ghz - 104MB Total Cache - AM5 Socket - 120W TDP - Integrated Radeon Graphics - Heatsink Not Included

Latest from AMD!
  • Brand: AMD
  • MPN: 100-100000910WOF
  • Part #: CPUAMD07800X3D
  • UPC:730143314930
PB Tech price: $642.61 Excluding GST PB Tech price: $739.00 Including GST

Date Created: 10:45, 06-12-2023
Product URL: https://www.pbtech.co.nz/product/CPUAMD07800X3D/AMD-Ryzen-7-7800X3D-CPU-8-Core--16-Thread---Max-bo
Branch New Stock On Display
Albany 10
Glenfield 15
Queen Street 12
Auckland Uni 2
Newmarket 8
Penrose 15+
Henderson (Express) 8
St Lukes 13
Manukau 8
Hamilton 10
Tauranga 9
New Plymouth 3
Palmerston North 5
Petone 12
Wellington 8
Head Office 15+
Hornby 15+
Christchurch Central 7

Features

This Changes Everything

The most advanced PC processor for gamers and creators.



Introducing New Models with AMD 3D V-Cache™ Technology for the Ultimate Game Performance

All rise for the undeniable king of gaming. Three new AMD Ryzen 7000 Series processors with AMD 3D V-Cache™ technology for a massive gaming performance boost. With the introduction of the new Ryzen 9 7950X3D and Ryzen 9 7900X3D, AMD combines its top-end processors with up to 144MB of on-chip memory. This means that enthusiasts can harness the power of the ultimate gaming and creator performance in one chip. No workload is off limits with the AMD Ryzen 7000 series and 3D V-Cache™ technology.





The Ultimate Processor for Gaming

When your PC has the world's most advanced desktop processor for gamers, you can focus on what really matters: being victorious on the digital battlefield. Whether you're playing the latest titles or revisiting a classic, the AMD Ryzen™ 7000 Series processors are a gaming powerhouse with high-performance "Zen 4" cores. With up to 16 cores, 32 threads, boost clocks of up to 5.7GHz and up to 144MB of on-chip memory, AMD Ryzen 7000 Series processors deliver game changing performance.



Technology That Saves You Time

Whether you are 3D rendering a high poly scene, exporting massive video files, or visualizing an architectural dream, AMD Ryzen™ 7000 Series processors are built to beat the clock. With time-saving connectivity like PCIe® 5.0 storage support, ultra-fast WiFi® 6E, AMD EXPO™ technology, up to 32 processing threads, and dedicated video accelerators, elevate your experience with AMD Ryzen 7000 Series processors.



Easy Overclocking, Game On

Accelerate your gaming with AMD EXPO™ technology. Higher memory frequencies and more aggressive settings can unlock higher and smoother frame rates in your favorite games.



Exclusive AMD 3D V-Cache™ Technology - The Ultimate Gaming Hardware

AMD's 3D V-Cache™ technology delivers a huge game performance advantage with up to 144MB of on-chip memory, coming soon to three new AMD Ryzen 7000 Series processors.



Leadership Efficiency - With Eco-Mode and New Low-Power Models

AMD Ryzen™ 7000 series processors can deliver up to 49% more performance at the same power as last gen. Use even less power with AMD's exclusive Eco-Mode, or choose one of the new low-power 65W models in the lineup.



Unlocked for Overclocking - Control your processing power

Tweak and tune your AMD Ryzen processor for personalized performance easily with one-click Precision Boost Overdrive, or do it manually with the robust AMD Ryzen Master utility.



Upgradable for Years to Come - Invest in a platform that grows with your needs over time.

Your PC platform can be an investment, or a liability. AMD is the only processor manufacturer that has committed to years of future support for the new Socket AM5 platform, so you will be able to upgrade to processors with new technologies we haven't even announced yet. It's packed with state-of-the-art technologies including high-speed DDR5 memory, PCIe® 5.0 support, AMD EXPO™ one-touch memory overclocking, and hyper-efficient 5nm manufacturing. Put an AMD Socket AM5 motherboard at the heart of your rig to dominate the games you love today and tomorrow. If your PC needs the latest and greatest capabilities now and in the future, insist on AMD Ryzen™ processors.

Specifications

General Specifications

Platform

Desktop

Market Segment

Enthusiast Desktop

Product Family

AMD Ryzen™ Processors

Product Line

AMD Ryzen™ 7 Processors

AMD PRO Technologies

No

Former Codename

"Raphael AM5"

Architecture

"Zen 4"

# of CPU Cores

8

Multithreading (SMT)

Yes

# of Threads

16

Max. Boost Clock

Up to 5.0GHz

Base Clock

4.2GHz

L1 Cache

512KB

L2 Cache

8MB

L3 Cache

96MB

Default TDP

120W

Processor Technology for CPU Cores

TSMC 5nm FinFET

Processor Technology for I/O Die

TSMC 6nm FinFET

CPU Compute Die (CCD) Size

71mm²

I/O Die (IOD) Size

122mm²

Package Die Count

2

AMD EXPO™ Memory Overclocking Technology

Yes

Precision Boost Overdrive

Yes

Curve Optimizer Voltage Offsets

Yes

AMD Ryzen™ Master Support

Yes

CPU Socket

AM5

Supporting Chipsets

X670E
X670
B650E
B650

CPU Boost Technology

Precision Boost 2

Instruction Set

x86-64

Supported Extensions

AES, AMD-V, AVX, AVX2, AVX512, FMA3, MMX(+), SHA, SSE, SSE2, SSE3, SSE4.1, SSE4.2, SSE4A, SSSE3, x86-64

Max. Operating Temperature (Tjmax)

89°C

*OS Support

Windows 11 - 64-Bit Edition
Windows 10 - 64-Bit Edition
RHEL x86 64-Bit
Ubuntu x86 64-Bit
*Operating System (OS) support will vary by manufacturer.

Connectivity

USB Type-C® Support

Yes

Native USB 3.2 Gen 2 (10Gbps) Ports

4

Native USB 3.2 Gen 1 (5Gbps) Ports

0

Native USB 2.0 (480Mbps) Ports

1

Native SATA Ports

0

PCI Express® Version

PCIe® 5.0

Native PCIe® Lanes (Total/Usable)

28/24

Additional Usable PCIe Lanes from Motherboard

AMD X670E: 12x Gen4
AMD X670: 12x Gen4
AMD B650E: 8x Gen4
AMD B650: 8x Gen4

NVMe Support

Boot, RAID0, RAID1, RAID10

System Memory Type

DDR5

Memory Channels

2

Max. Memory

128GB

System Memory Subtype

UDIMM

Max Memory Speed

2x1R: DDR5-5200
2x2R: DDR5-5200
4x1R: DDR5-3600
4x2R: DDR5-3600

ECC Support

Yes (Requires mobo support)

Graphics Capabilities

Integrated Graphics

Yes

Graphics Model

AMD Radeon™ Graphics

Graphics Core Count

2

Graphics Frequency

2200 MHz

GPU Base

400 MHz

USB Type-C® DisplayPort™ Alternate Mode

Yes

Key Features

Supported Technologies

AMD EXPO™ Technology
AMD Ryzen™ Technologies

Date Created: 10:45, 06-12-2023
Product URL: https://www.pbtech.co.nz/product/CPUAMD07800X3D/AMD-Ryzen-7-7800X3D-CPU-8-Core--16-Thread---Max-bo
