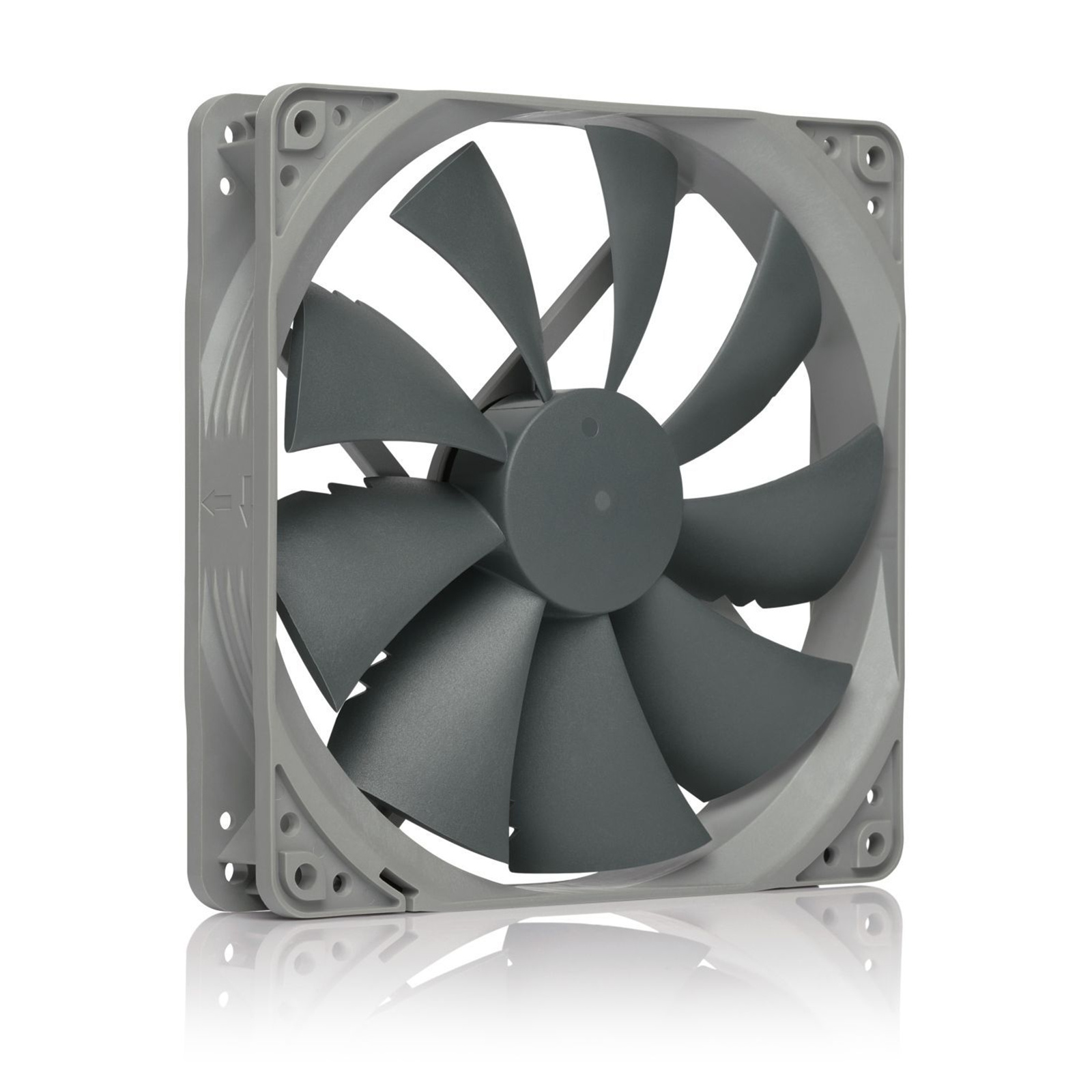

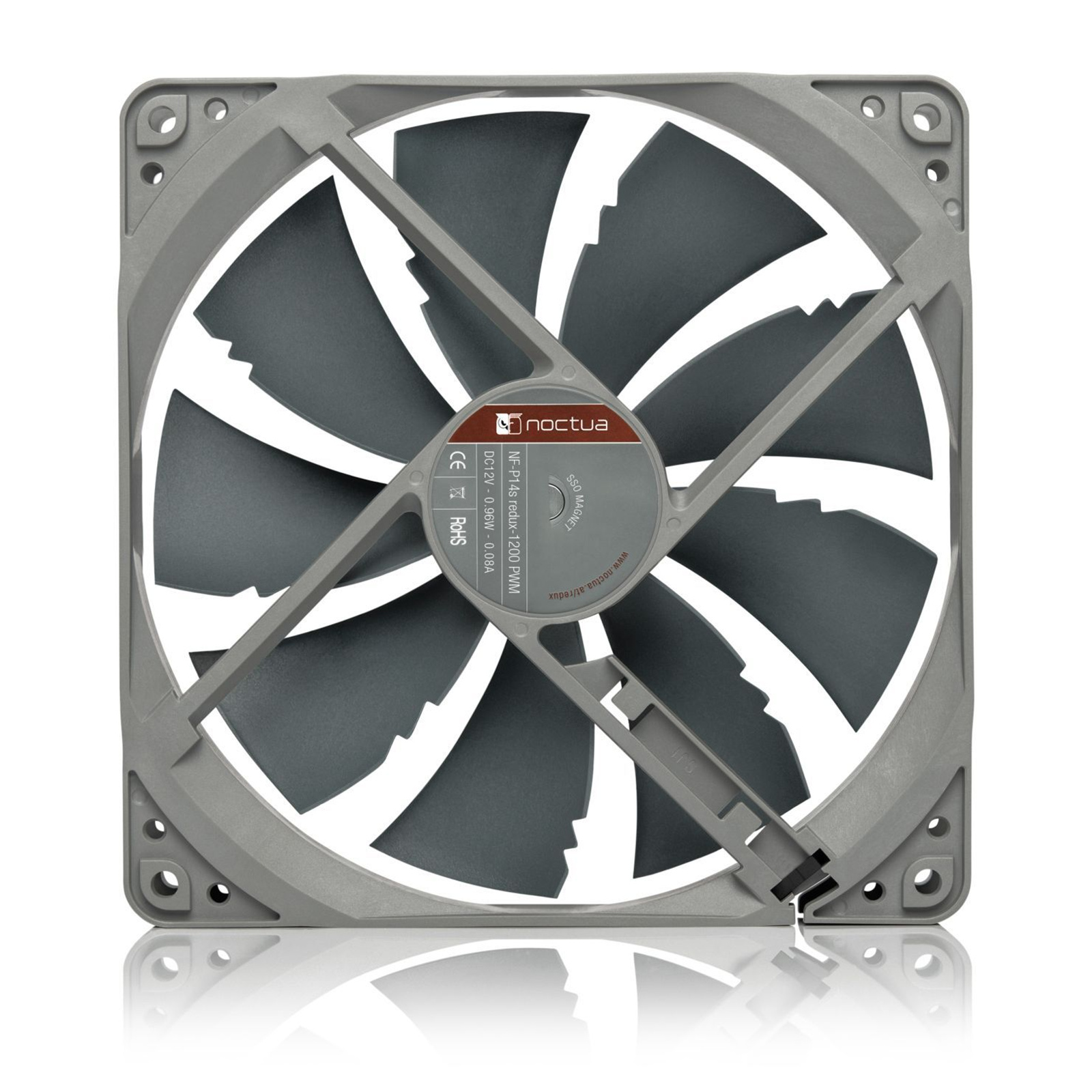

NOCTUA 140mm NF-P14S Redux Edition Square Frame PWM Fan (Max 1200RPM)

NOCTUA 140mm NF-P14S Redux Edition Square Frame PWM Fan (Max 1200RPM)
PB Tech price: PB Tech price:
$30 43  +GST $34 99  inc GST

Generating Print Page
Home PC Parts Cooling Case Fans NOCTUA 140mm NF-P14S Redux Edition...

NOCTUA 140mm NF-P14S Redux Edition Square Frame PWM Fan (Max 1200RPM)

Part #: FANNOC1415
4
PB Tech price: PB Tech price:
$30 43 $34 99
 +GST  inc GST


Click & Collect: Click & Collect unavailable
Delivery: Order now and it ships on 26/01/2022 When will I receive it?

Six easy payments of $6.01 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $7.21 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

  • Brand: NOCTUA
  • MPN: NF-P14S-REDUX-1200-PWM
  • Part #: FANNOC1415
  • UPC: 842431012326
  • Bearing Type Variation: Not Specified
  • Fan Size: 140mm
  • LED Colour: N/A
  • Number of Fans: 1
  • Radiator Size: 140mm
  • Sound Level (Roughly): 20dB
  • View more

What PB Tech customers are saying about this product...

See More Reviews

"Doesn't look super fancy but works and is quiet. I replaced three aging 120mm exhaust fans with two of these and there's definitely been a noise reduction."

W
By: WanjaL 30/09/21
Verified Owner

"Replaced my noisy fans with these ones and it made such a difference. Only downside is I can now hear my graphics card!"

A
By: AaronD83 26/07/21
Verified Owner

"Probably the best fan case!"

G
By: GuilhermeM8 24/06/21
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the NOCTUA 140mm NF-P14S Redux Edition Square Frame PWM Fan (Max 1200RPM)
Total:
$46 16
 inc GST
Buy together and save $1.22

This item: NOCTUA 140mm NF-P14S Redux Edition Square Frame PWM Fan (Max 1200RPM)

$34.99 inc GST
StarTech FAN4SPLIT12 12 4Pin PWM Fan Extension Power Y Cable

StarTech FAN4SPLIT12 12 4Pin PWM Fan Extension Power Y Cable

View Product
$10.77 $12.39   $9.71 +GST $11.17 inc GST (Buy together and save $1.06) $1.22)

Features

Now available in a square frame version called NF-P14s (s for square frame) that lends itself to use in case and radiator cooling, the classic NF-P14 is a long-standing favourite among enthusiast users around the world and helped to found Noctua's reputation as a top-tier manufacturer of premium quality quiet cooling components. The new redux edition reissues this award-winning model in a streamlined, accessibly priced package that has been reduced to the essential core: the NF-P14 premium fan. Its industry grade SSO-Bearing bearing, over 150.000 hours MTTF rating and full 6 years manufacturer's warranty make the NF-P14 redux a proven premium choice that provides trusted Noctua quality at an attractive price point. The 1200rpm PWM version features Noctua's proprietary NE-FD1 for automatic speed control, which allows to strike a perfect balance between high cooling capacity and low noise operation in each given situation.


Proven NF-P14 design

Tens of thousands of quiet cooling enthusiasts around the globe swear by Noctua's classic NF-P14. Thanks to its impressive quietness, excellent performance and impeccable quality, the NF-P14 has become an established reference for quiet 140mm fans.


Streamlined redux edition

The redux product line reissues some of Noctua's most popular, award-winning models by presenting them in streamlined, accessibly priced packages. All redux edition products are industry proven, time-tested models that helped to found Noctua's reputation as a first-tier supplier of premium grade low noise cooling equipment.


Square 140mm frame

The square 140mm frame of the NF-P14s features standard 140mm mounting holes (124.5mm spacing), which makes it a premium grade replacement for common 140mm case fans and perfect for use on 140mm water cooling radiators, where its square shape will ensure full coverage and best pressure performance.


Pressure-optimised Nine-Blade Design

Specifically developed for high-impedance applications such as CPU coolers, water-cooling radiators or cases with tight fan grills, the NF-P14's nine-blade impeller provides outstanding pressure and airflow performance.


Vortex-Control Notches

Noctua's signature Vortex-Control Notches split up trailing edge vortices and thus spread the fan's noise emission over a wider range of frequencies. This measure makes the fan sound more pleasant to the human ear.


Custom-designed PWM IC with SCD

Supporting fully automatic speed control via PWM, the fan uses Noctua's custom-designed NE-FD1 PWM IC that integrates Smooth Commutation Drive (SCD) technology. By providing smoother torque impulses, SCD suppresses PWM switching noises and thus makes the fan quieter at lower speeds.


Stops at 0% PWM

When the fan is set to 0% PWM duty cycle by the motherboard or PWM fan controller, it will stop. This makes it ideal for creating setups with semi-passive cooling that automatically turn the fans off and thus run completely silent at idle if thermals allow.


SSO-Bearing

Combining the proven concept of hydrodynamic bearings with an additional magnet that supports the self-stabilisation of the rotor axis, Noctua's time-tested SSO-Bearing technology has become synonymous with supremely quiet operation and exceptional long-term stability.


Optional accessories

Users can choose from Noctua's wide range of optional accessories such as anti-vibration mounts, Low-Noise-Adaptors, y-cables, 3:4 pin adaptors or extension cables to upgrade redux edition fans according to their individual needs.


Colour-customisable with NA-SAVP1 anti-vibration pads

The fan's frame can be outfitted with Noctua's chromax line NA-SAVP1 anti-vibration pads. Available in black, red, blue, white, green and yellow, these pads not only damp minute vibrations but also allow the fan to be colour-customised in order to coordinate it with popular build colour schemes!

Specifications

Size

140x140x25 mm

Mounting hole spacing

124,5x124,5 mm

Connector & pin-configuration

4-pin PWM

Cable length

40cm

Bearing

SSO-Bearing

Rotational speed (+/- 10%)

1200 RPM

Min. rotational speed (PWM, +/-20%)

350 RPM

Airflow

110,3 m³/h

Acoustical noise

19,6 dB(A)

Static pressure

1,29 mm H2O

Max. input power

0,96 W

Max. input current

0,08 A

Operating voltage

12 V

MTTF

> 150.000 h

Scope of delivery

Fan
4 Fan Screws

Manufacturer Part No:
NF-P14S-REDUX-1200-PWM
Brand:
Product Type:
-
UPC
842431012326
Product Family:
-
Shipping Weight:
0.3 kg
PB Part No:
FANNOC1415
Product Model:
-
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
