Samsung 990 Pro 2TB M.2 NVMe Internal SSD

PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1400K/1550K IOPS - 5 Years Warranty or 1200 TBW

Special price
Special price
$ 288 .33
 +GST
$ 331 .58
 inc GST
$288.33  +GST
$331.58  inc GST

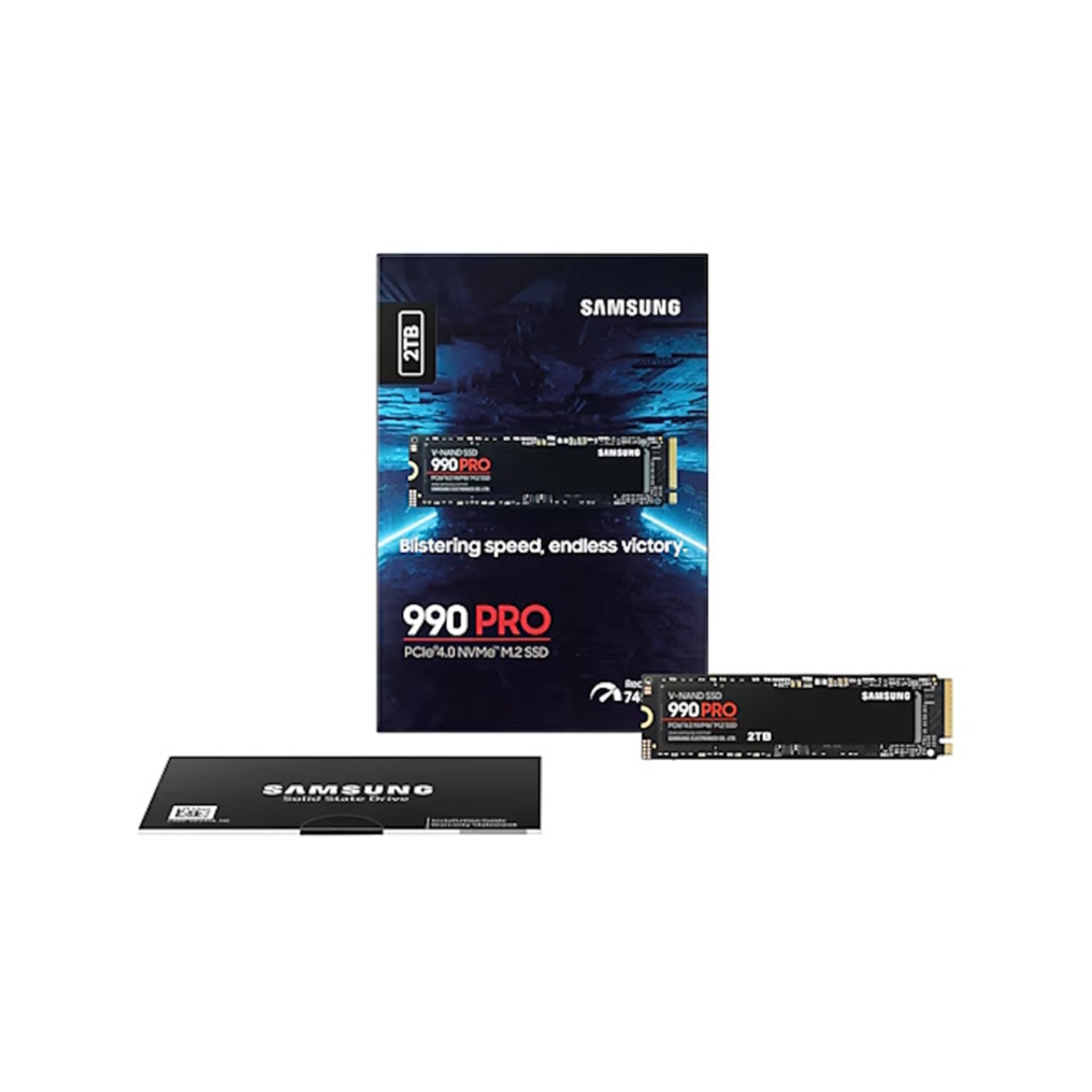

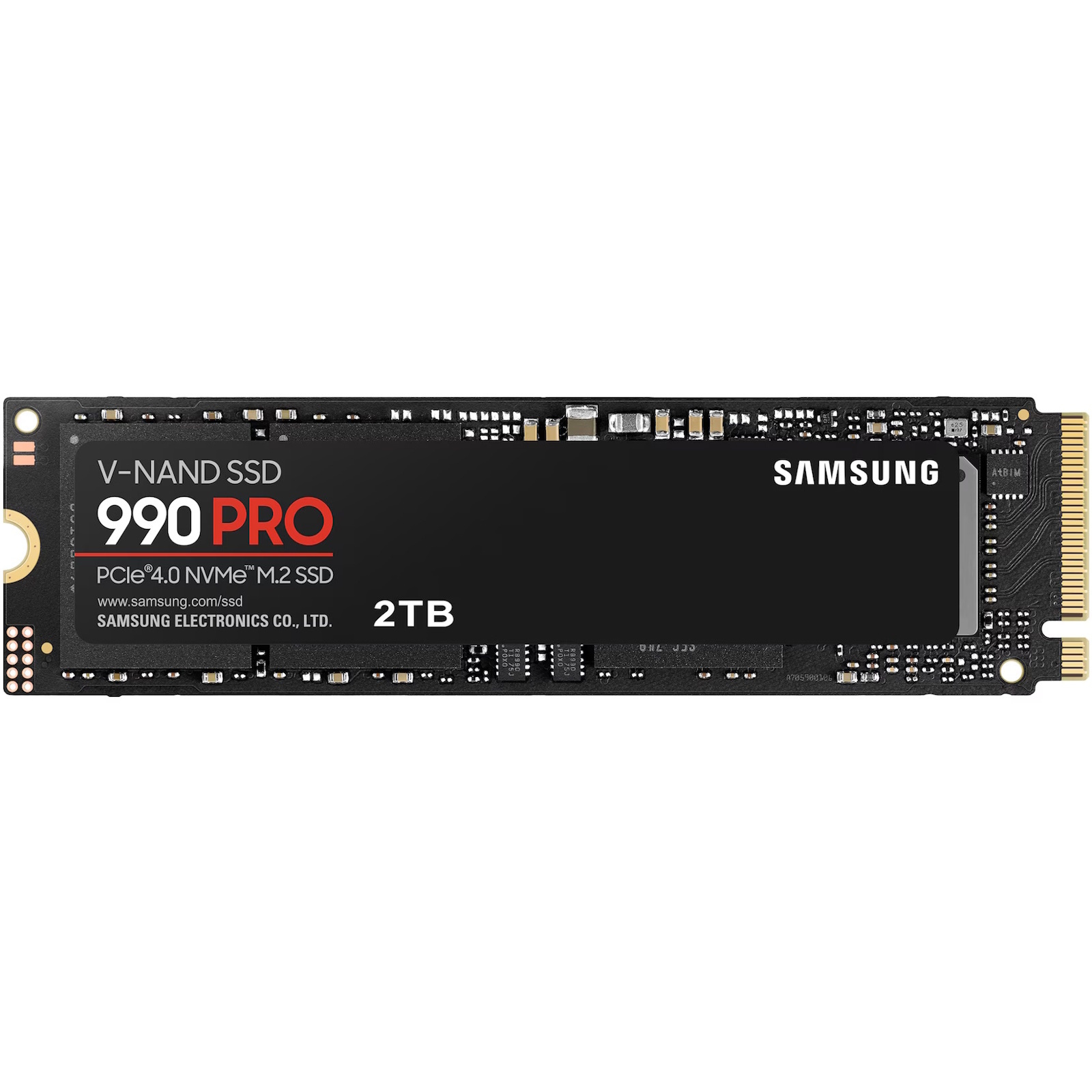

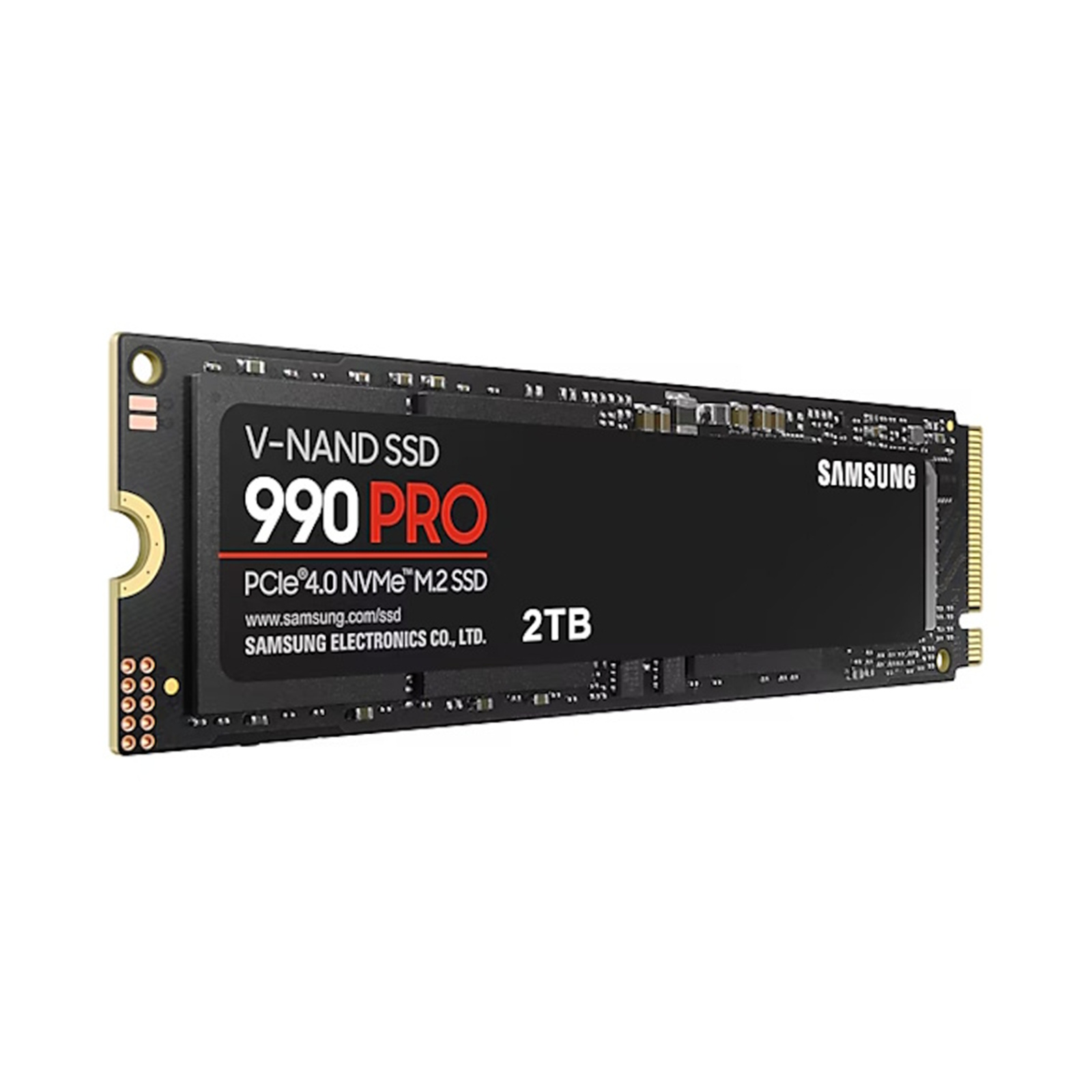

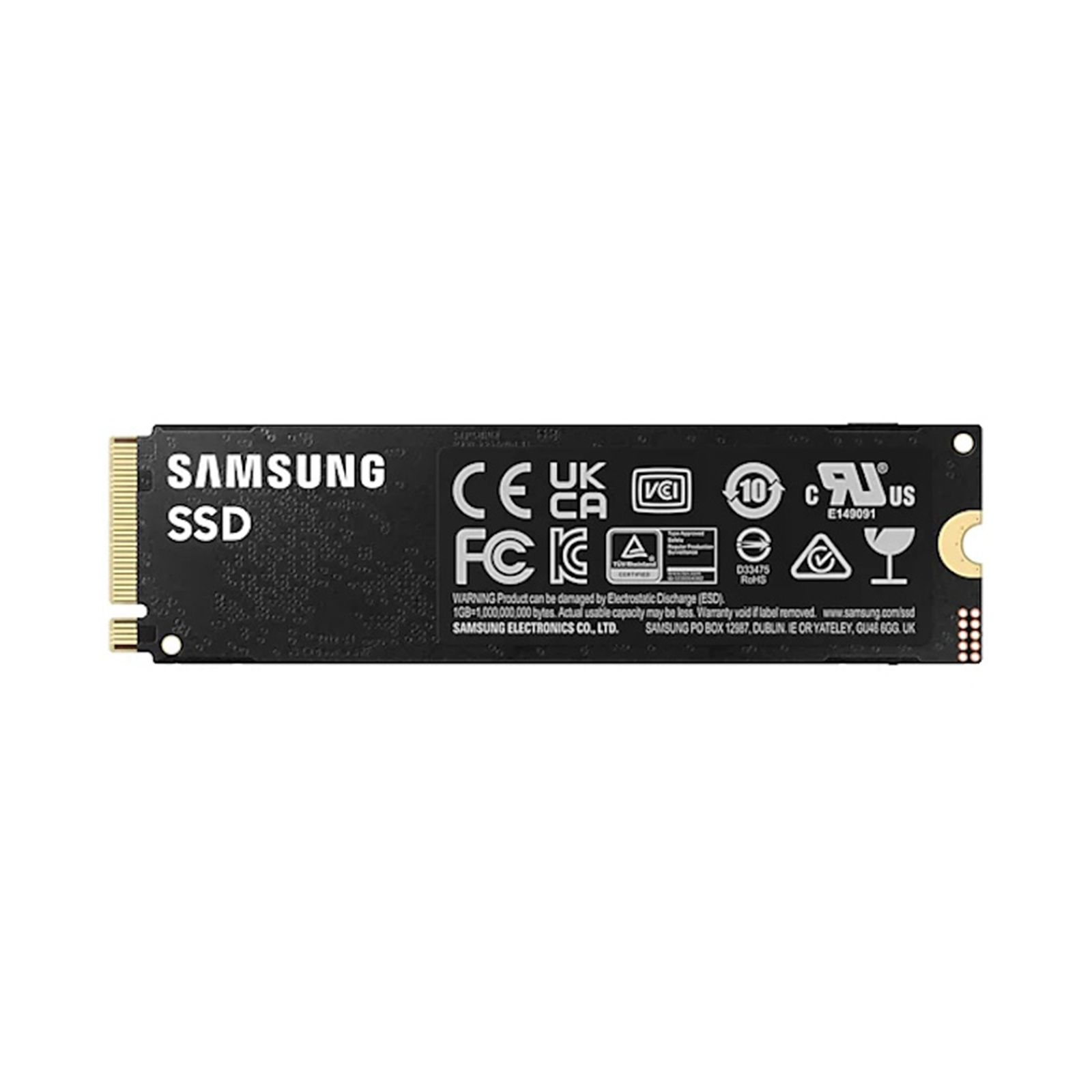

Samsung 990 Pro 2TB M.2 NVMe Internal SSD

PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1400K/1550K IOPS - 5 Years Warranty or 1200 TBW

Superior performance and reliability
  • Brand: Samsung
  • MPN: MZ-V9P2T0BW
  • Part #: HDDSAM990200
  • UPC: 887276638348
19
Special price
$ 288 .33 $ 331 .58
 +GST  inc GST
Tax free price $305.63

Part of Tech Frenzy!
Ends in --, while stocks last!


Click & Collect: Available from 18 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$288.33  +GST
$331.58  inc GST

Six easy payments of $56.92 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $84.97 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

Finance from $3.84 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $7.43 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate of 28.50% p.a. applies to outstanding balance at the end of LTF Interest-Free Period (see Ts&Cs for Q Mastercard Standard Interest Rate). Approved applicants only. The indicative monthly repayment is the purchase amount and Establishment Fee divided by the number of weeks in the Start-up interest Period. The indicative repayments assume there are no additional purchases, cash withdrawals, fees or charges. The indicative repayments are only an estimate and figures should be used as an indication only. They do not represent either a quote. pre-qualification or approval. To repay the purchase amount by the expiry of the Start-up interest Free Period, the indicative monthly repayments stated would need to be made by the due date for each statement period.

*See here for full T&C

  • Brand: Samsung
  • MPN: MZ-V9P2T0BW
  • Part #: HDDSAM990200
  • UPC: 887276638348

SSD Capacity

2TB

Read Speed

7450 MBps

Write Speed

6900 MBps

Form Factor

M.2

Interface

PCIe NVMe 4.0 x4

What PB Tech customers are saying about this product...

See More Reviews

"Prob one of the best ssd out there but pricy but worth the premium if u want the fast speed of downloading"

LC
By: LeoC767 13/01/24
Verified Owner

"It's fast, but also expensive."

AW
By: ArthurW9 09/12/23
Verified Owner

"awesome, really pleased & great help at the start of Black Friday madness"

G
By: Guest 01/12/23

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Samsung 990 Pro 2TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s...
Samsung 990 Pro 2TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1400K/1550K IOPS - 5 Years Warranty or 1200 TBW
Total:
$ 881 .84
 +GST
$ 1,014 .12
 inc GST
Buy together and save $6.47 $7.44
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste Made With 99.9% Pure Silver
Arctic Silver 5 High-Density Silver AS5-3.5G Thermal Compound 3.5-Gram Tube thermal grease paste Made With 99.9% Pure Silver
$18.82 $21.64

$16.35  +GST

$18.80  inc GST

You save 13% You save 13%
Microsoft Windows 11 Home 64bit OEM Eng Intl 1PK DSP OEI DVD
Microsoft Windows 11 Home 64bit OEM Eng Intl 1PK DSP OEI DVD
$189.00 $217.35

$185.00  +GST

$212.75  inc GST

G.SKILL Trident Z5 NEO RGB 32GB DDR5 Desktop RAM Kit 2x 16GB - 6000MT/s - CL32 - 1.35V - 32-38-38-96 AMD EXPO Optimized
G.SKILL Trident Z5 NEO RGB 32GB DDR5 Desktop RAM Kit 2x 16GB - 6000MT/s - CL32 - 1.35V - 32-38-38-96 AMD EXPO Optimized

$207.83  +GST

$239.00  inc GST

Corsair RM850e 850W ATX 3.0 Power Supply 80 Plus Gold - Fully Modular - PCIe 5.0 12VHPWR GPU Cable Included for use with Modern Graphics Cards such as the NVIDIA GeForce RTX 40 Series
Corsair RM850e 850W ATX 3.0 Power Supply 80 Plus Gold - Fully Modular - PCIe 5.0 12VHPWR GPU Cable Included for use with Modern Graphics Cards such as the NVIDIA GeForce RTX 40 Series

$184.33  +GST

$211.98  inc GST

Features

The Ultimate SSD

Reach max performance of PCIe® 4.0. Experience longer-lasting, opponent-blasting speed. The in-house controller's smart heat control delivers supreme power efficiency while maintaining ferocious speed and performance, to always keep you at the top of your game.

PCIe 4.0's best theoretical sequential read is 8,000 MB/s - 990 PRO reaches 7,450 MB/s as of Q3, 2022.



PCIe 4.0 speed maximised

Huge speed boost. 40% and 55% faster random read/write speeds than 980 PRO - up to 1,400K/1,550K IOPS, while sequential read/write speeds up to 7,450/6,900 MB/s reach near max performance of PCIe® 4.0. Fly high in gaming, video and 3D editing, data analysis, and more.

Sequential and random write performance was measured with Intelligent Turbo Write technology being activated. Intelligent Turbo Write operates only within a specific data transfer size. Performance may vary depending on SSD's firmware, system hardware & configuration and other factors. For detailed information, please contact your local service centre. Test system configuration: AMD Ryzen 7 5800X 8-Core Processor CPU @ 3.80GHz, DDR4 3600MHz 16GBx2 (PC4-25600 Overclock), OS - Windows 10 Pro 64bit, Chipset - ASRock-X570 Taichi To maximise the performance of the 990 PRO, please check whether your system supports PCIe 4.0 at the Intel or AMD website. 4TB to be released in 2023.



Breakthrough power efficiency

More power-efficient performance. Higher performance usually consumes more power. 990 PRO uses less power with up to 50% improved performance per Watt over 980 PRO. This low-power design makes max PCIe® 4.0 performance possible with optimal power efficiency.

980 PRO Sequential Read/Write - 1,129/877 MB/Watt, 990 PRO Sequential Read/Write - 1,380/1,319 MB/Watt based on internal test result of 1TB capacity model.



Smart thermal solution

Speed beyond the heat. The nickel-coated controller and cutting-edge thermal control algorithm manage heat for unwavering performance. The heat spreader label controls NAND chip heat, while Dynamic Thermal Guard keeps temperatures optimal.



The champion maker

The best gameplay experience. A more than 55% improvement in random performance enables faster loads for ultimate gaming realism on PS5 and DirectStorage PC games.

DirectStorage technology from Microsoft loads games faster than before by leveraging the multiple GB/sec speed of modern NVMe SSDs. Results are based on a comparison with Samsung 980 PRO



Samsung Magician software

Unlock the full power of 990 PRO. Samsung Magician software's user-friendly suite of optimisation tools always gets you the best SSD performance. Protect data, get updates, and monitor drive health. Your personal SSD toolkit.

Magician software provides a toolkit to manage the 990 PRO for best performance. This toolkit supports Integrative Drive health checks, performance benchmarks and optimisations, and encrypted drive and firmware updates.



World's No. 1 Flash Memory

Experience superior performance and reliability you only get from the world's No.1 flash memory brand since 2003. All components and firmware are produced in-house, including Samsung's world-renowned DRAM and NAND, for integrated start-to-finish quality you can trust.

Source: 2003-Q4.2021 OMDIA data: NAND suppliers' revenue market share


PB Tech is an Authorised Samsung Service Centre

Samsung Authorised Repair Centre

Specifications

General Feature

Application

Client PCs, Game Consoles

Capacity

2,000GB (1GB=1 Billion byte by IDEMA) * Actual usable capacity may be less (due to formatting, partitioning, operating system, applications or otherwise)

Form Factor

M.2 (2280)

Interface

PCIe Gen 4.0 x4, NVMe 2.0

Dimension (Pack: WxHxD)

80 x 22 x 2.3 mm

Weight

Max 9.0g Weight

Storage Memory

Samsung V-NAND 3-bit MLC

Controller

Samsung in-house Controller

Cache Memory

Samsung 2GB Low Power DDR4 SDRAM

Special Feature

TRIM Support

Supported

S.M.A.R.T Support

Supported

GC (Garbage Collection)

Auto Garbage Collection Algorithm

Encryption Support

AES 256-bit Encryption (Class 0)TCG/Opal IEEE1667 (Encrypted drive)

WWN Support

Not supported

Device Sleep Mode Support

Yes

Performance

Sequential Read

Up to 7,450 MB/s * Performance may vary based on system hardware & configuration

Sequential Write

Up to 6,900 MB/s * Performance may vary based on system hardware & configuration

Random Read (4KB, QD32)

Up to 1,400,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD32)

Up to 1,550,000 IOPS * Performance may vary based on system hardware & configuration

Random Read (4KB, QD1)

Up to 22,000 IOPS * Performance may vary based on system hardware & configuration

Random Write (4KB, QD1)

Up to 80,000 IOPS * Performance may vary based on system hardware & configuration

Environment

Average Power Consumption (system level)

*Average: 5.5 W*Maximum: 8.5 W (Burst mode)* Actual power consumption may vary depending on system hardware & configuration

Power consumption (Idle)

Max. 55 mW * Actual power consumption may vary depending on system hardware & configuration

Allowable Voltage

3.3 V ± 5 % Allowable voltage

Reliability (MTBF)

1.5 Million Hours Reliability (MTBF)

Operating Temperature

0 - 70 ? Operating Temperature

Shock

1,500 G & 0.5 ms (Half sine)

Accessories

Installation Kit

Not Available

Software

Management SW

Magician Software for SSD management

Manufacturer Part No:
MZ-V9P2T0BW
Brand:
Product Type:
Internal SSD
UPC
887276638348
Product Family:
990 Pro
Shipping Weight:
0.1 kg
PB Part No:
HDDSAM990200
Product Model:
-
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
