ASUS Z890 AYW GAMING WIFI W ATX Motherboard Support Intel 15th Gen CPU, PCIe 5.0, 4x DDR5, 4x M.2, 2x Internal USB2.0 Header, 2x Internal USB3.2 Header, 1x Internal Type C Header, 1x Internal TB Header

PB Tech price
PB Tech price
$ 529 .00
 +GST
$ 608 .35
 inc GST
$529.00  +GST
$608.35

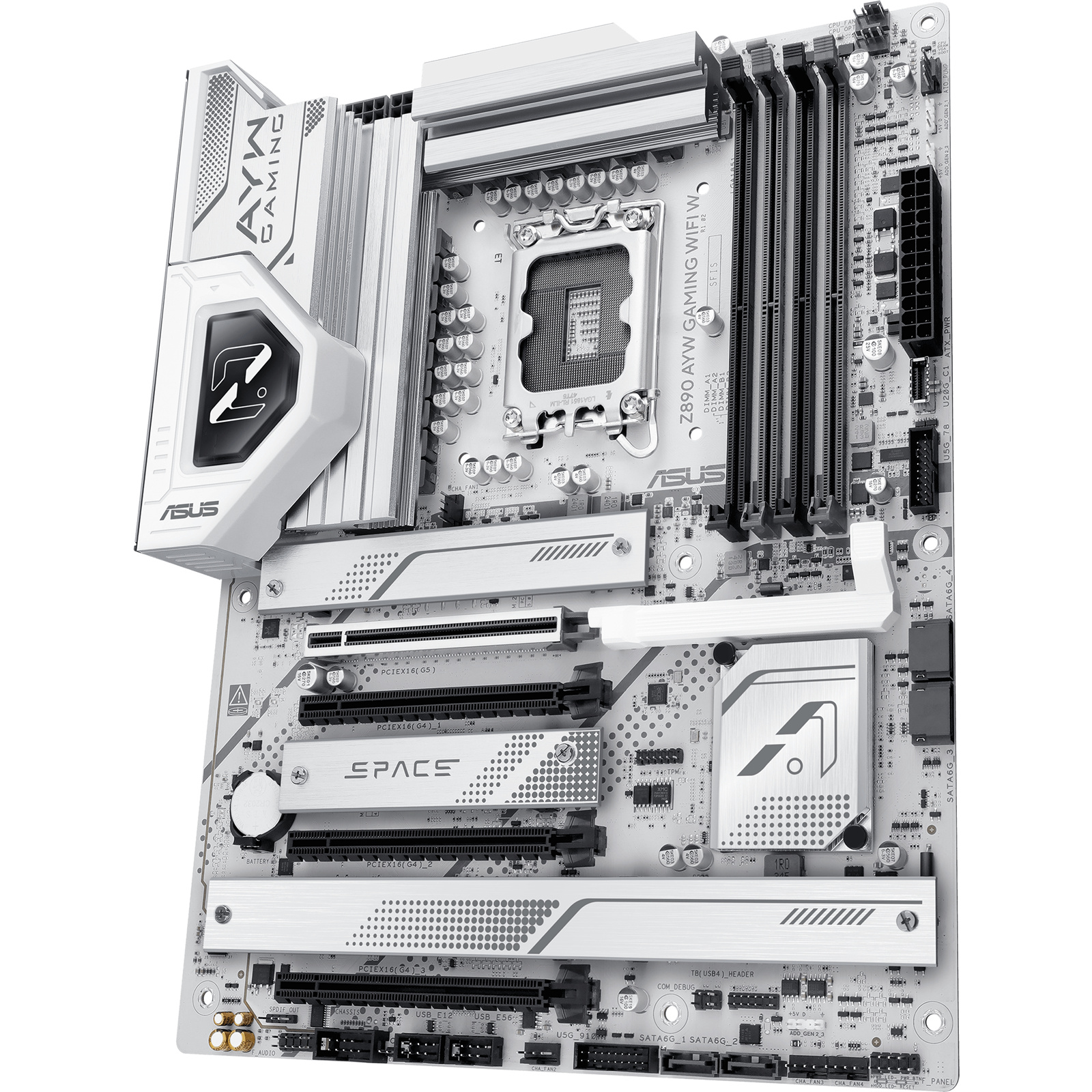

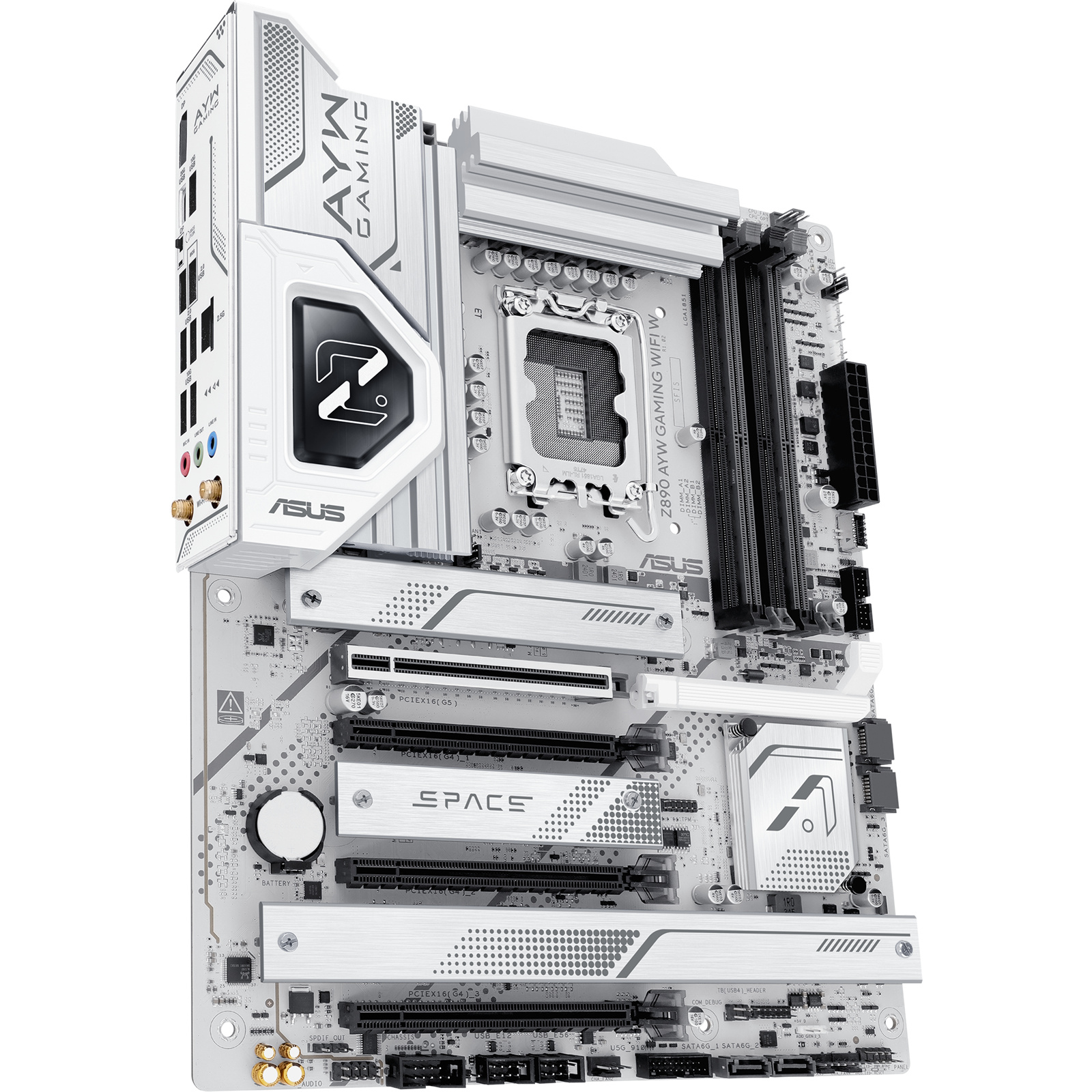

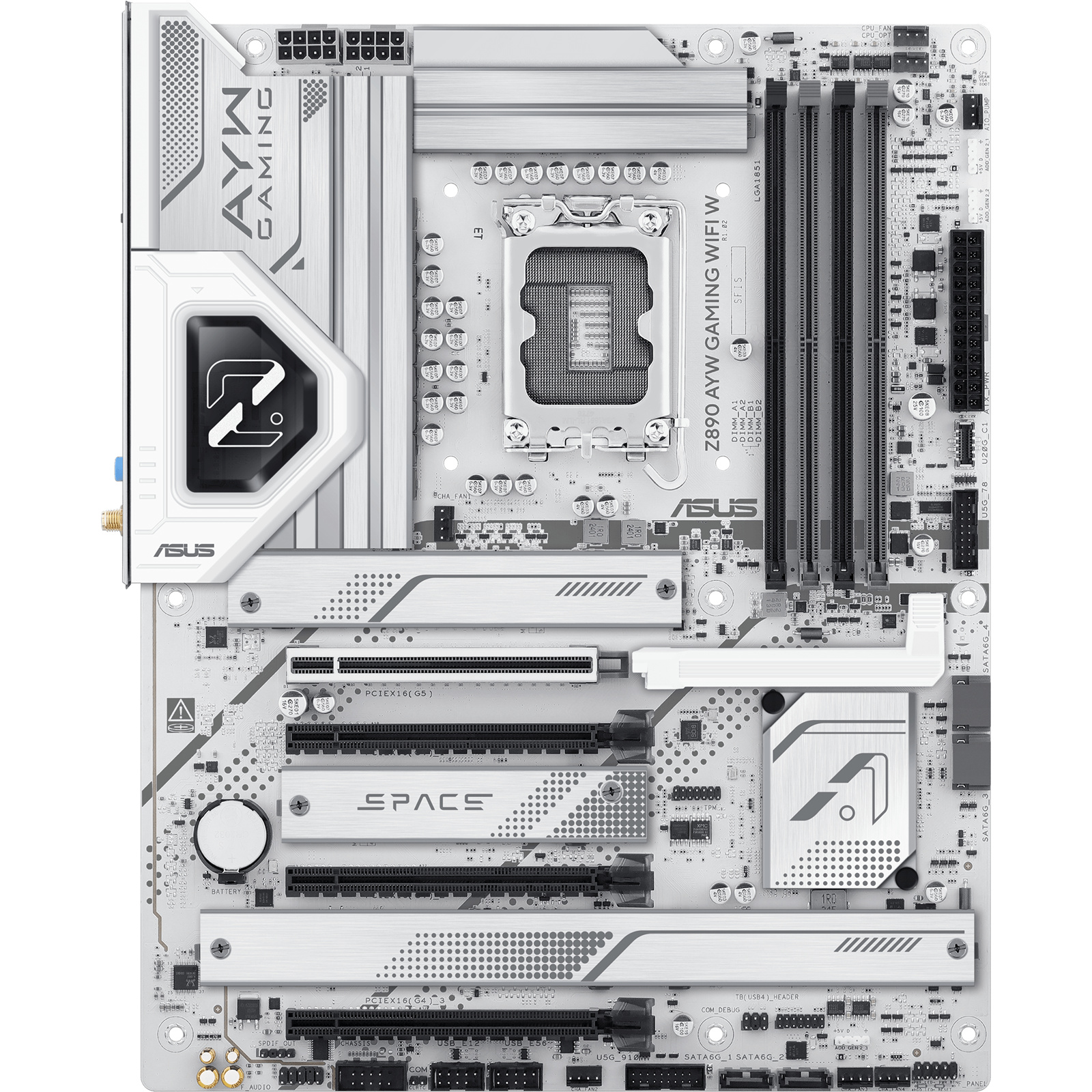

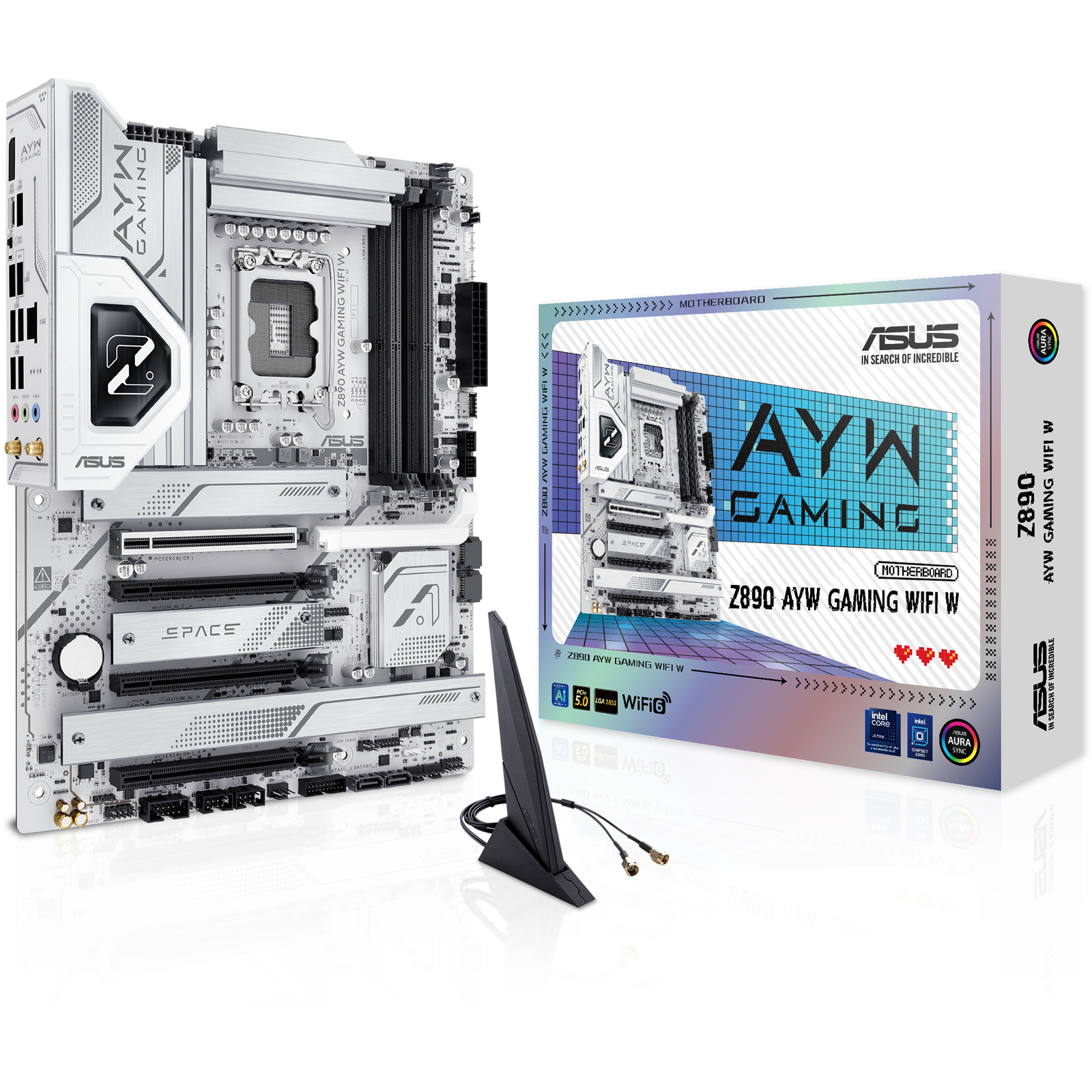

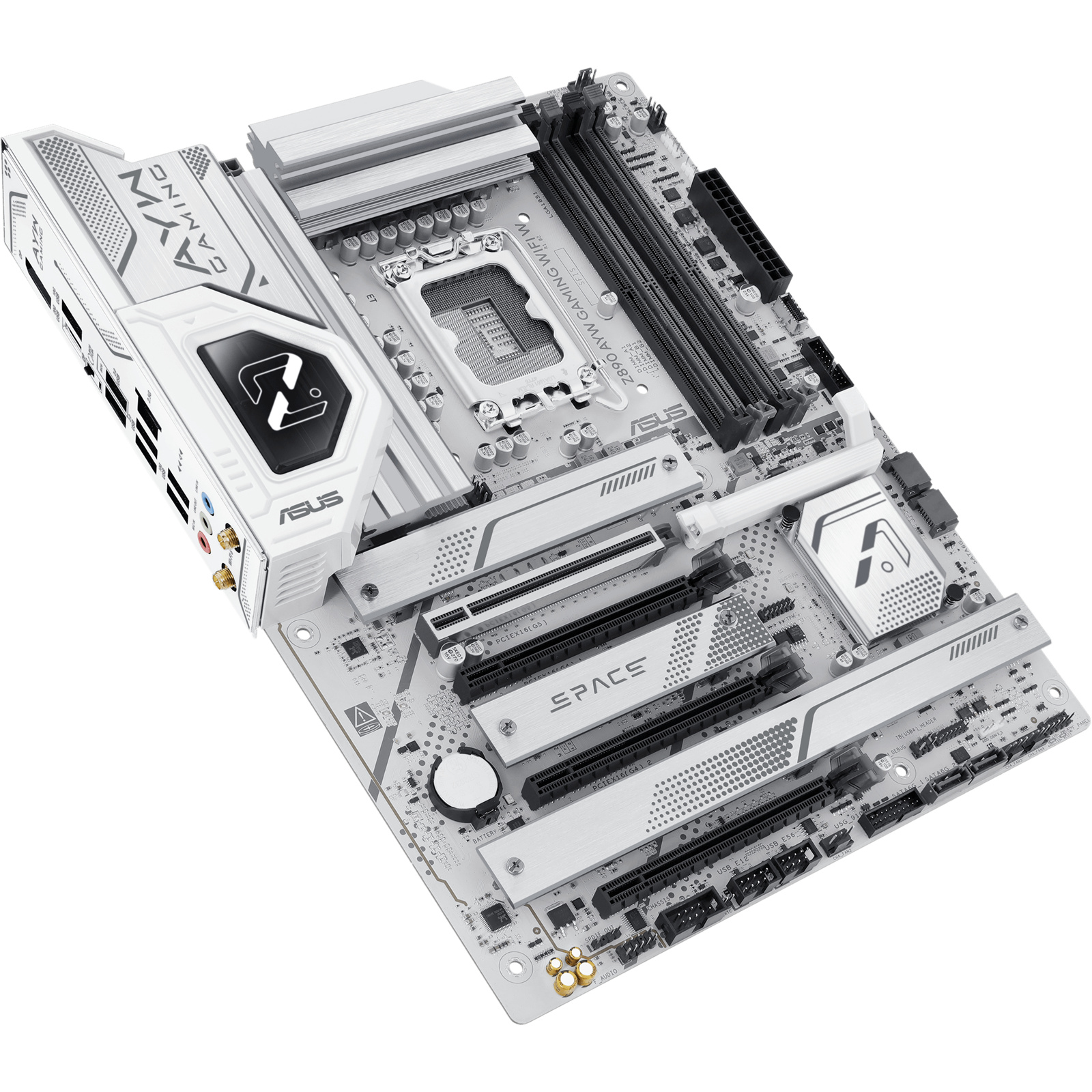

ASUS Z890 AYW GAMING WIFI W ATX Motherboard Support Intel 15th Gen CPU, PCIe 5.0, 4x DDR5, 4x M.2, 2x Internal USB2.0 Header, 2x Internal USB3.2 Header, 1x Internal Type C Header, 1x Internal TB Header

Enhanced stability and overclocking!
  • Brand: ASUS
  • MPN: Z890 AYW GAMING WIFI W
  • Part #: MBDASU62521
  • UPC: 197105752122
PB Tech price
$ 529 .00 $ 608 .35
 +GST  inc GST
Tax free price $560.74*
*Price includes surcharge


Click & Collect: Available from 14 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$529.00  +GST
$608.35

Four payments of $153.61 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

Finance from $6.21 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

12 months interest free from $12.76 per week*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: ASUS
  • MPN: Z890 AYW GAMING WIFI W
  • Part #: MBDASU62521
  • UPC: 197105752122

MB Socket

Intel LGA 1851

Chipset

Z890

Form Factor

ATX

Wireless Connectivity

Wi-Fi 6 (802.11ax) + Bluetooth

Memory Type

DDR5

RAM Slots

4 Slots

PCIE Version

PCIe 5.0

M.2 Connectors

4

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the ASUS Z890 AYW GAMING WIFI W ATX Motherboard Support Intel 15th Gen CPU...
ASUS Z890 AYW GAMING WIFI W ATX Motherboard Support Intel 15th Gen CPU, PCIe 5.0, 4x DDR5, 4x M.2, 2x Internal USB2.0 Header, 2x Internal USB3.2 Header, 1x Internal Type C Header, 1x Internal TB Header
Total:
$ 1,578 .33
 +GST
$ 1,815 .08
Buy together and save $21.21 $24.39
PNY XLR8 Gaming MAKO 32GB DDR5 (2x 16GB ) 6000Mhz RGB DIMM kit For Intel XMP and AMD EXPO
PNY XLR8 Gaming MAKO 32GB DDR5 (2x 16GB ) 6000Mhz RGB DIMM kit For Intel XMP and AMD EXPO
$199.00 $228.85

$189.00  +GST

$217.35

You save $10 You save $11
Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1200K/1550K IOPS - 5 Years Warranty or 600 TBW
Samsung 990 Pro 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 7450MB/s Read - Up to 6900MB/s Write - 1200K/1550K IOPS - 5 Years Warranty or 600 TBW
$192.98 $221.93

$184.20  +GST

$211.83

You save $8 You save $10
Intel Core Ultra 7 265KF CPU 20 Cores / 20 Threads - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included
Intel Core Ultra 7 265KF CPU 20 Cores / 20 Threads - 30MB Cache - LGA 1851 Socket - Intel 800 Series Motherboard Required - No Integrated Graphics - Heatsink Not Included
$659.00 $757.85

$657.00  +GST

$755.55

Features

Z890 AYW GAMING WIFI W

ASUS Z890 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the Z890 AYW GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.



Performance



Cooling



Flexibility



Customization



Performance - AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.

AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.



AI Cooling II
Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.



Performance - NPU Boost

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Performance - Robust power design

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The Z890 AYW GAMING WIFI W is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.

- 12 VCCCORE power (80A, DrMOS)
- 1 VCCGT power (80A, DrMOS)
- 2 VCCSA power (80A, DrMOS)
- 1 VNNAON power (80A, DrMOS)



Six-layer PCB design - Enhanced stability and overclocking.

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.



ProCool connectors - Proprietary 8 + 8 pin connectors improve PSU connection.

Proprietary connectors augment the motherboard's link to the power supply with 8 + 8 pin connectors that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.



Power Saving - Optimize power with CPU, lighting, and fan settings.

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.



Digi+ VRM control - Real-time voltage control.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.



Enhanced Memory & Storage Performance - AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.



DIMM Fit

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.



Four M.2 slots (up to 128Gbps)

The Z890 AYW GAMING WIFI W offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.



Cooling - Cooler by design

The Z890 AYW GAMING WIFI W motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

VRM heatsinks and thermal pads
The massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.



4-Pin PWM/DC fan
Each onboard header supports auto-detection of PWM or DC fans.



AIO pump header
A dedicated PWM/DC header supports self-contained water-cooling setups.



Multiple temperature sources
Each header can dynamically reference four thermal sensors. Fan Xpert 4 lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.



M.2 heatsink
Three M.2 heatsinks take care of the four M.2 slots, preventing throttling that can occur with M.2 storage during extended transfers.



Passive chipset heatsink
An aluminum passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the buildup of dust and debris.



Smart protection
A dedicated integrated circuit protects each fan header from overheating and excess current.



ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.



Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.



Flexibility - Empowering connections

The Z890 AYW GAMING WIFI W motherboard offers a versatile range of connectivity, including support for WiFi 6, the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections which expands compatibility and bandwidth even further.

- WiFi 6
- 2.5Gb Ethernet
- PCIe 5.0
- USB PD 3.0
- PCIe 5.0 slot
- USB 20Gbps

USB 20Gbps Type-C®

The Z890 AYW GAMING WIFI W comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O, this port can also supports external 4K DisplayPort video output; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.

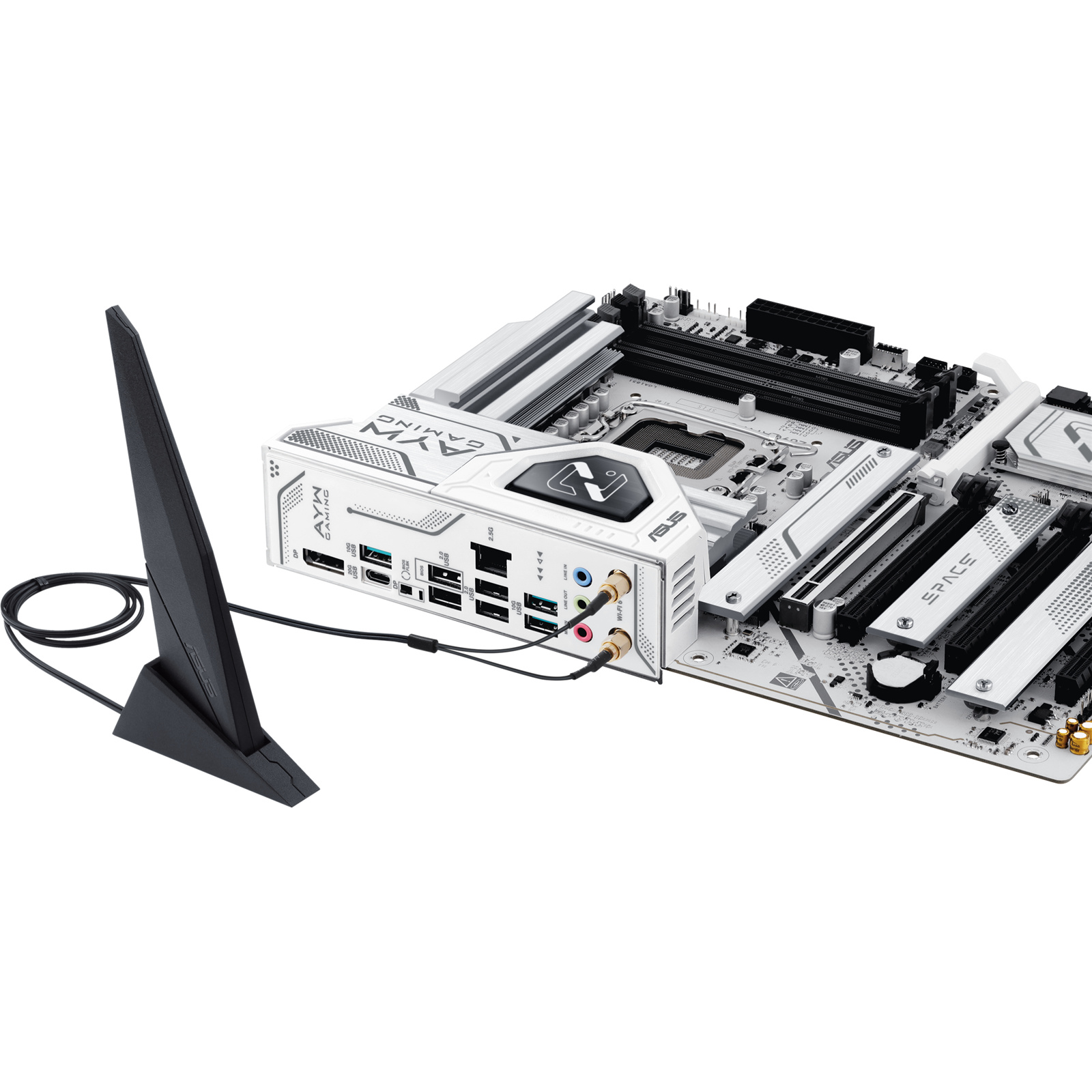

WiFi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.6

PCIe 5.0 slot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Customization - Personalization

The Z890 AYW GAMING WIFI W enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.



TurboV Core

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.



ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.



ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.



Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.



Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.



Addressable Gen2 RGB headers

Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.



Customization - DIY friendly

The Z890 AYW GAMING WIFI W motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new graphics card or other compatible device.



M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.



Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. It can also alert them when memory modules have not been properly installed--even before booting.



Pre-mounted I/O shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.



BIOS FlashBack™

BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button - no CPU or memory needed.



SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Specifications

CPU

Support Intel® Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5
Supports up to 8600+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K @ 60Hz as specified in DisplayPort 1.4.
***Supports max. 4K @ 120Hz as specified in DisplayPort 1.4.
****VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)***
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )**
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports***
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
*** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

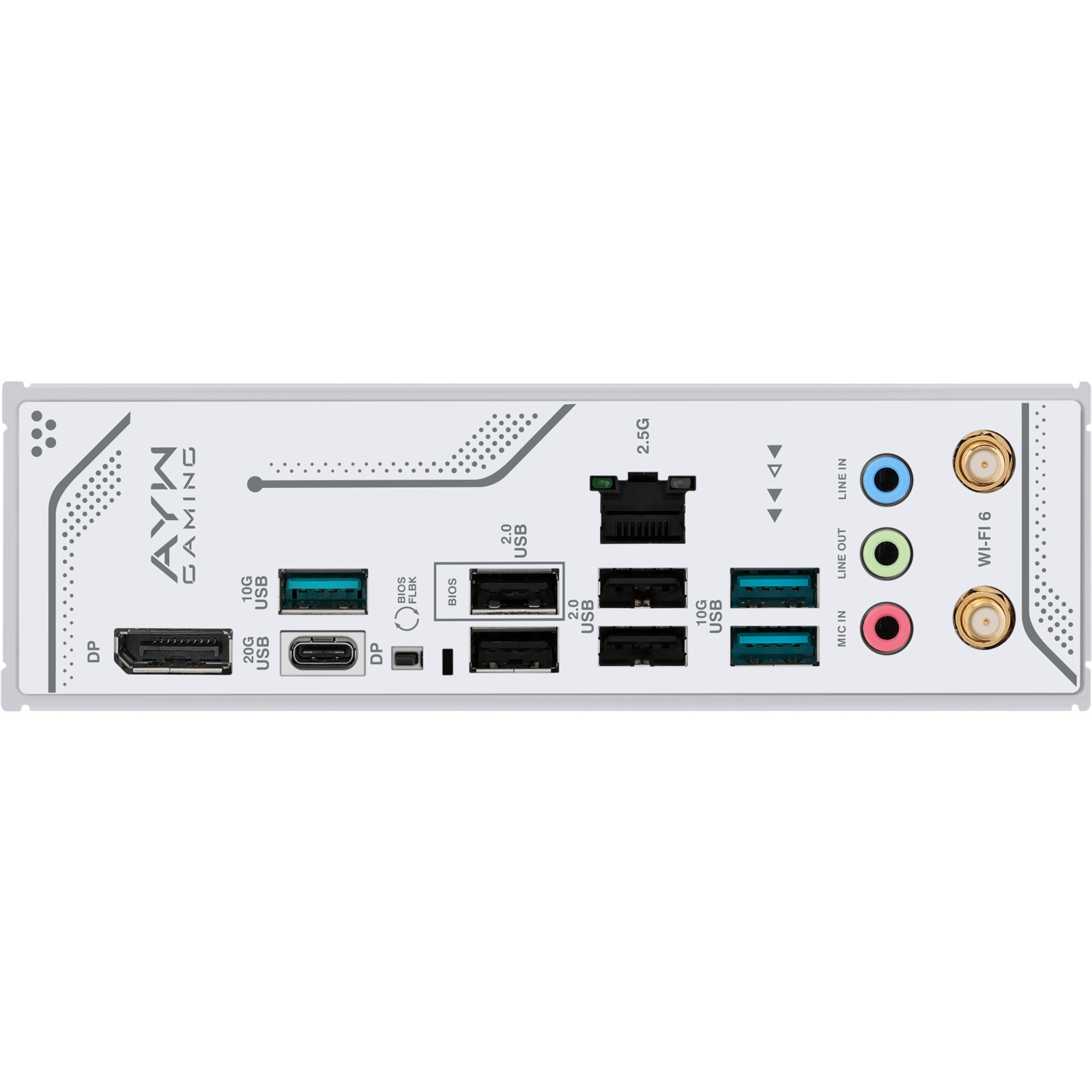

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) Header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsinks design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output:  5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Compatible with PD3.0 and PPS

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256(128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System

Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Manufacturer Part No:
Z890 AYW GAMING WIFI W
Brand:
Product Type:
ATX Motherboard
UPC
197105752122
Product Family:
-
Shipping Weight:
2 kg
PB Part No:
MBDASU62521
Product Model:
Z890 AYW GAMING WIFI W
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Accessories

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

ASUS Z890 AYW GAMING WIFI W ATX Motherboard Support Intel 15th Gen CPU, PCIe 5.0, 4x DDR5, 4x M.2, 2x Internal USB2.0 Header, 2x Internal USB3.2 Header, 1x Internal Type C Header, 1x Internal TB Header

Enhanced stability and overclocking!
  • Brand: ASUS
  • MPN: Z890 AYW GAMING WIFI W
  • Part #: MBDASU62521
  • UPC:197105752122
PB Tech price $529.00 Excluding GST PB Tech price $608.35 Including GST

Date Created: 11:55, 19-02-2025
Product URL: https://www.pbtech.co.nz/product/MBDASU62521/ASUS-Z890-AYW-GAMING-WIFI-W-ATX-Motherboard-Suppor
Branch New Stock On Display
Albany 1
Glenfield 2
Queen Street 1
Auckland Uni 0
Newmarket 2
Westgate 5
Penrose 4
Henderson (Express) 2
St Lukes 2
Manukau 0
Hamilton 2
Tauranga 1
New Plymouth 0
Palmerston North 1
Petone 1
Wellington 1
Head Office 4
Hornby 3
Christchurch Central 0

Features

Z890 AYW GAMING WIFI W

ASUS Z890 series motherboards are expertly engineered to unleash the full potential of the latest Intel® Core™ Ultra Processors (Series 2). Boasting a robust power design, comprehensive cooling solutions and intelligent tuning options, the Z890 AYW GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It's designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.



Performance



Cooling



Flexibility



Customization



Performance - AI Solutions

ASUS AI Solutions include AI Advisor as your technical expert with expertise in PC performance, AI Cooling II for automated temperature control.

AI Advisor
ASUS AI Advisor allows users to explore the functionality and advanced features of ASUS motherboards in a simple and straightforward way.



AI Cooling II
Optimized thermals and reduced noise via dynamic adjustment of fan speeds, based on CPU temperatures.



Performance - NPU Boost

The integrated NPU in Intel® Core™ Ultra Processors (Series 2) efficiently accelerates AI workflows - and NPU Boost lets you do more with it. This BIOS feature overclocks the NPU with just one click, increasing performance by up to 24%.

Performance - Robust power design

Stable power is crucial for maximizing the performance of Intel® Core™ Ultra Processors (Series 2). The Z890 AYW GAMING WIFI W is designed to meet the needs of high-core-count CPUs. It features 12(80A) + 1(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80 amperes each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future Intel® processors.

- 12 VCCCORE power (80A, DrMOS)
- 1 VCCGT power (80A, DrMOS)
- 2 VCCSA power (80A, DrMOS)
- 1 VNNAON power (80A, DrMOS)



Six-layer PCB design - Enhanced stability and overclocking.

The multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.



ProCool connectors - Proprietary 8 + 8 pin connectors improve PSU connection.

Proprietary connectors augment the motherboard's link to the power supply with 8 + 8 pin connectors that pass 12 volts of power directly to the processor. Each connector features solid pins that can handle more current than hollow-pin connectors.



Power Saving - Optimize power with CPU, lighting, and fan settings.

The Power Saving function contains several settings to easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting and set the fan profile to a Power Saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.



Digi+ VRM control - Real-time voltage control.

The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings.



Enhanced Memory & Storage Performance - AEMP III for Ultimate DDR5 Performance

ASUS Enhanced Memory Profile III (AEMP III) is an advanced firmware feature that empowers users to achieve unparalleled memory performance with cutting-edge CUDIMM memory. Through a two-phase comprehensive tuning process, AEMP III first optimizes the clock driver and then the memory frequency. This results in the best balance between performance and stability, even at cutting-edge speeds of DDR5-8000 or higher.



DIMM Fit

DIMM Fit is an ASUS-exclusive BIOS feature that precisely analyzes individual memory modules to optimize performance and pinpoint potential issues. This offers peak efficiency, compatibility, and system stability. Whether you are an overclocker seeking ultimate performance, a competitor pursuing the most responsive gameplay, or a content creator prioritizing rock-solid stability, DIMM Fit provides optimizations tailored to your needs and your hardware configuration.



Four M.2 slots (up to 128Gbps)

The Z890 AYW GAMING WIFI W offers a total of four M.2 slots, including one that supports data-transfer speeds of up to 128Gbps via PCIe 5.0, three that support 64Gbps via PCIe 4.0. This enables quicker boot-up and app load times with OS or application drives.



Cooling - Cooler by design

The Z890 AYW GAMING WIFI W motherboard is engineered with multiple onboard heatsinks and an array of hybrid fan headers to help ensure your rig stays cool and stable under intense workloads.

VRM heatsinks and thermal pads
The massive VRM heatsinks and essential thermal pads improve heat transfer from the MOSFETs and chokes for better cooling performance.



4-Pin PWM/DC fan
Each onboard header supports auto-detection of PWM or DC fans.



AIO pump header
A dedicated PWM/DC header supports self-contained water-cooling setups.



Multiple temperature sources
Each header can dynamically reference four thermal sensors. Fan Xpert 4 lets you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.



M.2 heatsink
Three M.2 heatsinks take care of the four M.2 slots, preventing throttling that can occur with M.2 storage during extended transfers.



Passive chipset heatsink
An aluminum passive chipset heatsink ensures optimal cooling and stable performance. It is more durable and longer-lasting than heatsinks with fans, which can be vulnerable to the buildup of dust and debris.



Smart protection
A dedicated integrated circuit protects each fan header from overheating and excess current.



ASUS Fan Xpert 4

ASUS Fan Xpert 4 software offers comprehensive control over fans and AIO coolers. Auto-Tuning mode configures settings with one click, while Extreme Quiet mode reduces fan speeds for silent operation during light tasks. Controls are also available via the UEFI BIOS.



Cooler compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new motherboards, empowering you to build your dream gaming rig.



Flexibility - Empowering connections

The Z890 AYW GAMING WIFI W motherboard offers a versatile range of connectivity, including support for WiFi 6, the latest version of PCI Express, while an arsenal of USB ports includes Type-C connections which expands compatibility and bandwidth even further.

- WiFi 6
- 2.5Gb Ethernet
- PCIe 5.0
- USB PD 3.0
- PCIe 5.0 slot
- USB 20Gbps

USB 20Gbps Type-C®

The Z890 AYW GAMING WIFI W comes loaded with two USB 20Gbps Type-C® connectors for speedy data transfers up to 20 Gbps. One is a port on the rear I/O, this port can also supports external 4K DisplayPort video output; the other can be attached to the chassis front panel and it also features Power Delivery (PD) 3.0 technology to quickly charge devices up to 30W.



WiFi 6

The WiFi 6 module is compatible with the 802.11ax standard and pushes theoretical peak bandwidth up to an incredible 1.2Gbps. Perhaps more importantly for power users, it's optimized for more efficient operation on crowded networks with a lot of competing traffic. Pair your motherboard with ASUS WiFi 6 routers to fully experience the networking potential of WiFi 6.6

PCIe 5.0 slot

The latest processors introduce PCIe 5.0 support, doubling data transfer speeds compared to PCIe 4.0, enhancing signal integrity, and providing backward-compatible CEM connectors and support for previous PCIe versions.

Customization - Personalization

The Z890 AYW GAMING WIFI W enhances the user experience across the board, from simplifying BIOS setting adjustments to offering customizable RGB lighting controls for a uniquely personal system aesthetic.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.



TurboV Core

Intuitive overclocking within Windows. No BIOS interface, no reboots. Simple and swift performance tuning at your fingertips.



ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via wired or wireless connections, supporting multiple platforms.



ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.



Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.



Aura Sync

Complete RGB lighting control for enthusiast systems, ensuring seamless synchronization with compatible hardware.



Addressable Gen2 RGB headers

Three Addressable Gen2 headers detect LED counts on compatible RGB devices, automatically adjusting lighting effects accordingly.



Customization - DIY friendly

The Z890 AYW GAMING WIFI W motherboard features EZ PC DIY innovations that simplify and speed up the PC building process, making DIY easy and convenient.

PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot's security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it's time to upgrade to a new graphics card or other compatible device.



M.2 Q-Latch

The innovative ASUS Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools or screws. This design employs a simple locking mechanism to secure the drive and neatly detach it with one tap.



Q-LED

The on-board Q-LED troubleshooting lights give PC builders a quick indicator to confirm that key components - CPU, RAM, graphics card, storage devices - are functioning normally during startup. It can also alert them when memory modules have not been properly installed--even before booting.



Pre-mounted I/O shield

Our pre-installed I/O shield safeguards ports, simplifies the build process, increases functionality and enhances aesthetics for PC DIY enthusiasts.



BIOS FlashBack™

BIOS FlashBack™ simplifies BIOS updates. Just load the BIOS file onto a FAT32 USB stick, insert it into the BIOS FlashBack™ port, and press a button - no CPU or memory needed.



SafeSlot

PCIe 5.0 is twice as fast as PCIe 4.0. ASUS has adapted our SMT manufacturing for the faster SafeSlot, a reinforced metal sheath that ensures secure card installation and faster data speeds.

Specifications

CPU

Support Intel® Core™ Ultra Processors(Series 2), LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5
Supports up to 8600+MT/s (OC),  Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Adjustments will be made based on the specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

Graphics

1 x DisplayPort**
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K @ 60Hz as specified in DisplayPort 1.4.
***Supports max. 4K @ 120Hz as specified in DisplayPort 1.4.
****VGA resolution support depends on processors' or graphic cards' resolution.

Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of supported peripherals.

Storage

Total supports 4 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel® Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot from CPU only supports RAID 0/1/5.

Ethernet

1 x Realtek 2.5Gb Ethernet
ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USB

Rear USB (Total 8 ports)
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)***
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )**
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports***
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
*** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth. USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Back Panel I/O Ports

1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button

Internal I/O Connectors

Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) Header

Special Features

ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with DrMOS)
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsinks
- VRM heatsinks design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
Aura Sync
- Addressable Gen2 headers
Front Panel USB 20Gbps with PD Fast Charge Support
- Support: up to 30W fast charging and USB Wattage Watcher
- Output:  5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
- Compatible with PD3.0 and PPS

Software Features

ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 4 (with AI Cooling II)
- Power Saving
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
USB Wattage Watcher
TurboV Core
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey

BIOS

256(128+128) Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
2 x M.2 rubber packages
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide

Operating System

Windows 11(22H2 & later), Windows 10 64-bit(21H2 & later)

Form Factor

ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Date Created: 11:55, 19-02-2025
Product URL: https://www.pbtech.co.nz/product/MBDASU62521/ASUS-Z890-AYW-GAMING-WIFI-W-ATX-Motherboard-Suppor
