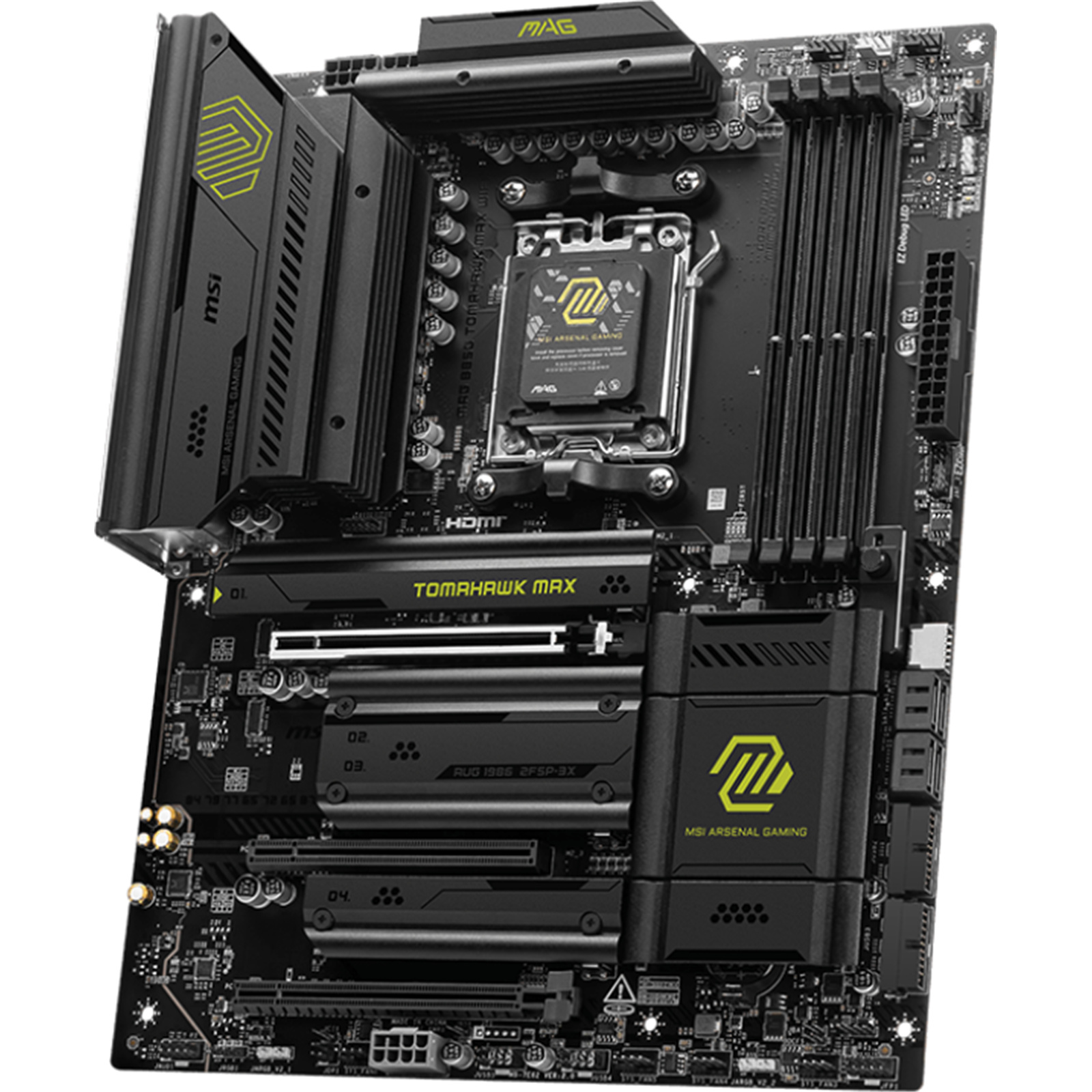

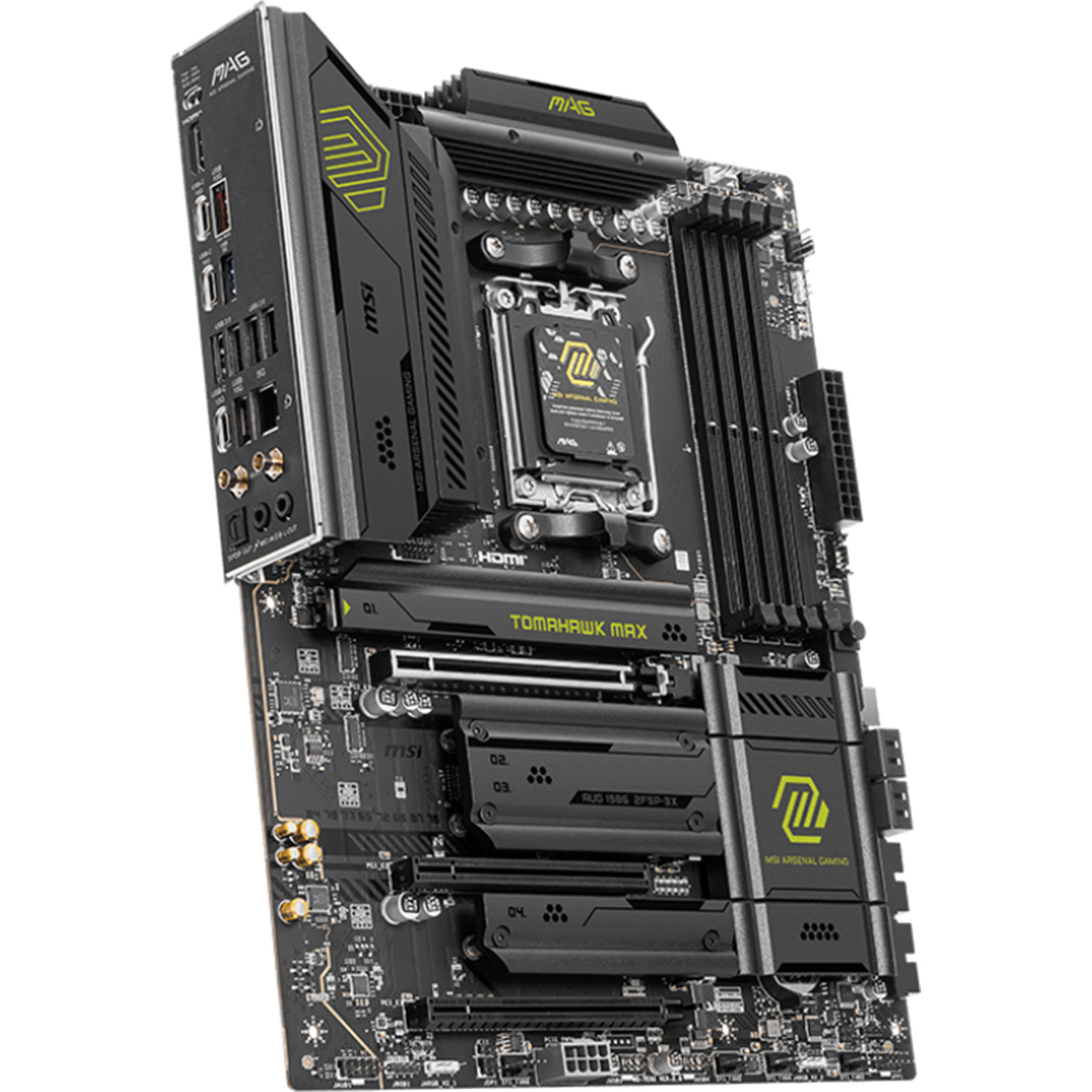

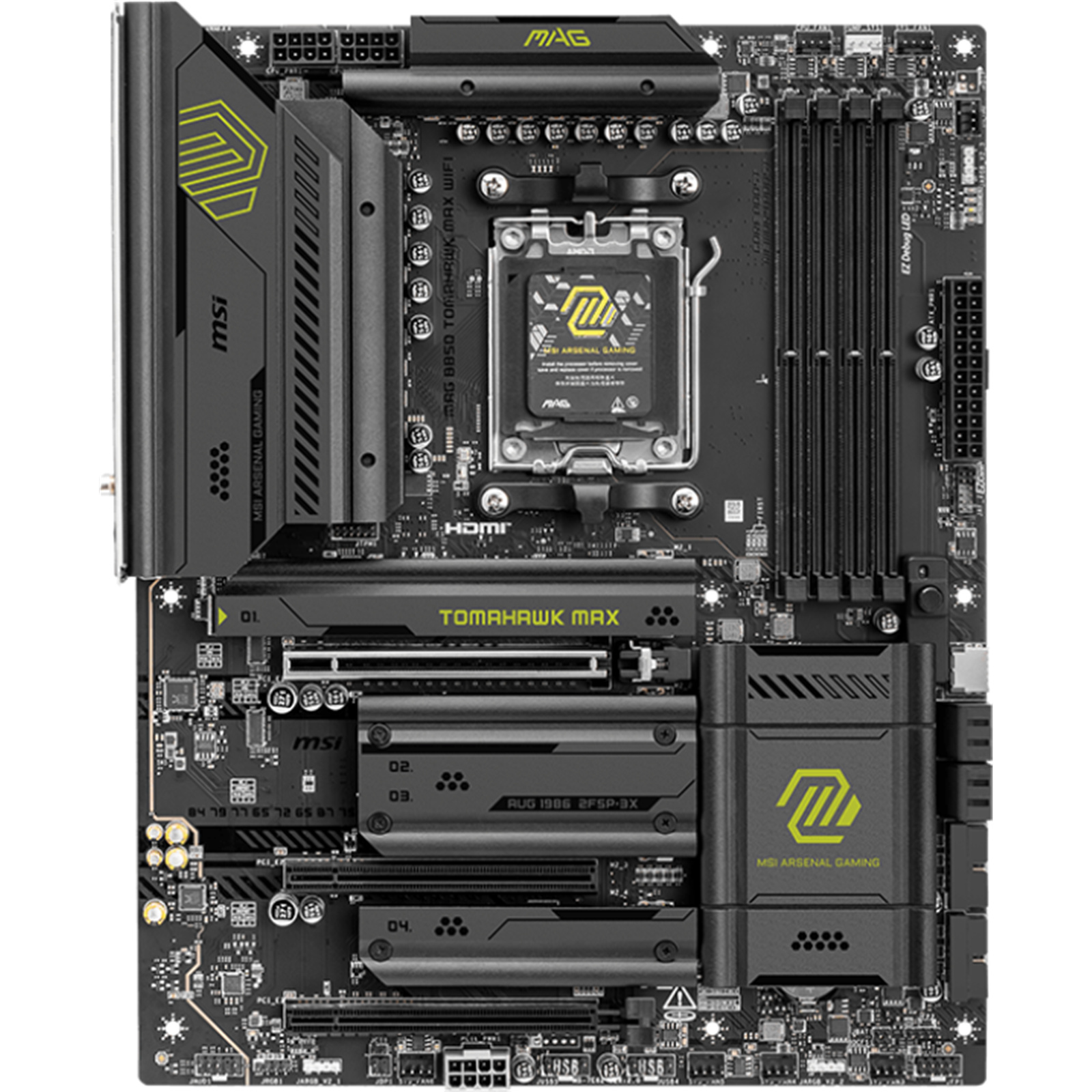

MSI MAG B850 TOMAHAWK MAX WIFI ATX Motherboard For AMD Socket AM5 - B850 Chipset, Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor, PCIE 5.0, 4xM.2, 4x DDR5, 2x Internal USB 2.0 Header, 2x Internal USB 3.2 Header, 1x Internal Type C H

  • Brand: MSI
  • MPN: MAG B850 TOMAHAWK MAX WIFI
  • Part #: MBDMSI37507
  • UPC: 824142395356
NEW ARRIVAL
PB Tech price
$ 433 .91 $ 499 .00
 +GST  inc GST


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$433.91  +GST
$499.00

Finance from $5.37 per week*

Get what you want at a price you can afford. Choose a finance term below to see the weekly repayment amount and apply online during checkout or in-store.

Choose a Finance Term

*Weekly payments are indicative only and based on a retail price of over a loan term of months at an interest rate of % p.a. and include a monthly service fee and a establishment fee (excludes optional Payment Protection Insurance).The total amount payable over the term of the loan is . Details of finance (including weekly payments, the total amount repayable over the term of the loan, interest rate and any applicable fees) can be confirmed with a detailed quote. Full disclosure of all of the terms of your finance will also be provided to you in the Finance Now disclosure statement for your consideration prior to confirmation of your purchase. All finance is subject to Finance Now terms and conditions and approval criteria.

Learn more about Finance Now

18 months interest FREE available*

Q Card / Mastercard is your perfect shopping partner, combining the benefits of a credit card with the added ability to access a range of interest-free deals and payment holidays.

Learn more about Q Mastercard, apply online for one now, or email [email protected] to chat with our team.

*12 Months No Payments & No Interest (“Payment Holiday”) is available on Long Term Finance (LTF) for in-store & online purchases. Min Spend $200. Lending criteria, $50 annual Account Fee, fees, Ts&Cs apply. $55 Establishment Fee applies to your first LTF transaction, $35 Advance Fee applies to subsequent LTF transactions. Standard Interest Rate currently 28.95% p.a. applies at the end of LTF Interest Free Period. Rates and fees correct as at date of publication, subject to change. Other interest rates and fees may apply. See qcard.co.nz for full details. Credit provided by Columbus Financial Services Limited. Excludes vouchers, gift cards, software licenses, game activation codes, pre-orders, Customized-to-Order (CTO) Apple Mac, and backorders.

*See here for full T&C

  • Brand: MSI
  • MPN: MAG B850 TOMAHAWK MAX WIFI
  • Part #: MBDMSI37507
  • UPC: 824142395356

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the MSI MAG B850 TOMAHAWK MAX WIFI ATX Motherboard For AMD Socket AM5 -...
MSI MAG B850 TOMAHAWK MAX WIFI ATX Motherboard For AMD Socket AM5 - B850 Chipset, Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor, PCIE 5.0, 4xM.2, 4x DDR5, 2x Internal USB 2.0 Header, 2x Internal USB 3.2 Header, 1x Internal Type C H
Total:
$ 1,187 .77
 +GST
$ 1,365 .94
Buy together and save $18.14 $20.86
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write - Backward Compatible with Gen 3 - 3 Years Warranty
$109.00 $125.35

$105.00  +GST

$120.75

You save $4 You save $4
DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
DEEPCOOL AG620 V2 Black CPU Cooler 2 x 120mm ARGB Fan, Support Intel LGA 1851/ 1700 / 1200 / 1151 / 1150 / 1155, AMD AM5 / AM4
$79.00 $90.85

$69.00  +GST

$79.35

You save 12% You save 12%
ADATA XPG Lancer RGB 32GB DDR5 Desktop RAM Kit - Black 2 x 16GB - 6000Mhz - 1.35v -CL36 Supports Intel XMP and AMD EXPO
ADATA XPG Lancer RGB 32GB DDR5 Desktop RAM Kit - Black 2 x 16GB - 6000Mhz - 1.35v -CL36 Supports Intel XMP and AMD EXPO
$185.00 $212.75

$180.86  +GST

$207.99

Features

MAG B850 TOMAHAWK WIFI

- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

MAG B850 TOMAHAWK MAX WIFI

MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.



MAG - MSI Arsenal Gaming

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.



EXCLUSIVE FEATURES



THERMAL SOLUTION



CONNECTIVITY



Ready for Ai PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.



EZ M.2 INSTALLATION

MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed.  The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.

EZ M.2 CLIP II REMOVER

MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed.  The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.



EZ PCIe Release

An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

EZ BUTTON

FLASH BIOS BUTTON
Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.



CLEAR CMOS BUTTON
Restore the BIOS to the default settings - helpful in 99% of the cases to successfully boot again.

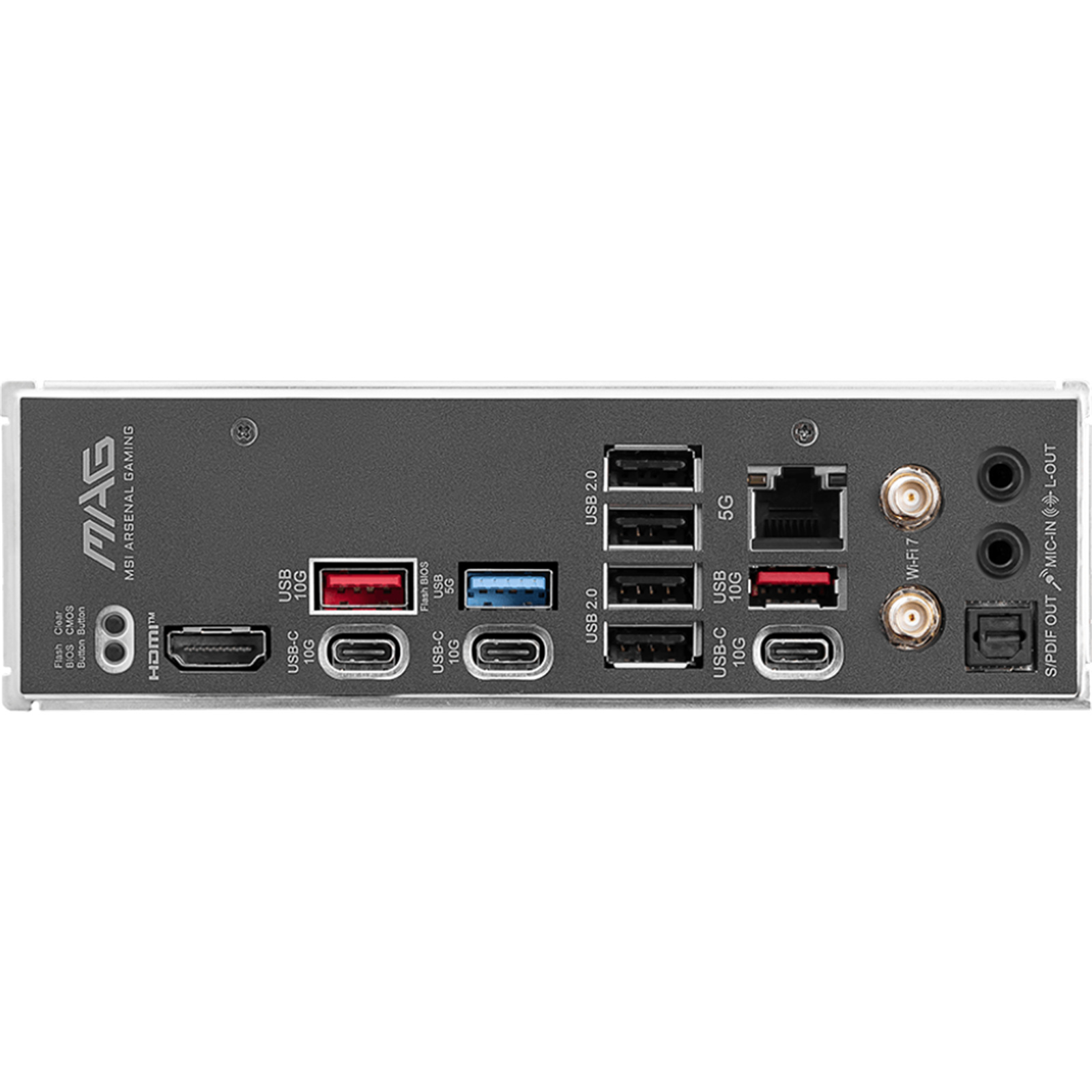

PRE-INSTALLED I/O SHIELD

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.



EZ MOUNTING

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.



EZ ANTENNA

MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.



EZ Conn header (JAF_2)

MSI's EZ Conn header(JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don't have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device.



MSI EZ SERIES FAN

This cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately.



DRIVER UTILITY INSTALLER

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more

*Please ensure to connect the internet, or the Driver Utility Installer won't launch automatically.
*MSI Driver Utility Installer will be ready in Windows 11 build 22H2.



EZ DEBUG

EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.



EZ MEMORY DETECTION LED
This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.



EZ IDENTIFY

HEADER WITH DIFFERENT COLOR
To better differentiate between pin headers for different purposes, mark the pump sys header and ARGB headers in white, PCIe 8-pin header in gray, and designate the pin headers for JAF_2 in white (for users who need to use JAF_1), enabling users to manage cables more efficiently.



IDENTIFY M.2 SIGNAL SOURCE
The motherboard has a detailed M.2 signal source list printed on it, allowing you to easily identify them.



IDENTIFY USB SPEED
Change the way USB speeds are described to numbers (rather than the confusing names like USB 3.2 Gen 2x2) for better understanding



EZ OVERCLOCKING

While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.

GAME BOOST
One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.

AI BOOST
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower.
*Enabled with compatible processors.

EXPO / A-XMP
Choose from preset EXPO and A-XMP profiles to automatically overclock compatible DDR memory for optimal performance.



EZ OPTIMIZATION

A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.



14+2+1 Duet Rail Power System

Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG B850 TOMAHAWK MAX WIFI is ready for the challenge of high-end processors.

- 14 PHASE Vcore POWER SPS 80A
- 2 PHASE SOC POWER
- 1 PHASE MISC POWER



OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

- 8 PCB layers
- 2oz Thickened Copper



EZ OC TUNING

PERFORMANCE PRESET
MSI exclusive Performance Preset is a more intuitive way to boost  performance by setting the power limitation as your preference. There are two level setting - PBO Auto  PBO Enable.



PERFORMANCE SWITCH
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI's own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.



PBO THERMAL POINT
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI's own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.



CONFIG TDP
Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don't need to modify settings manually for each TDP.



MORE FOR PERFORMANCE

1-SECOND OVERCLOCKING
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.



LOAD-LINE CALIBRATION
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.



OVERVOLTAGE PROTECTION
Prevents potential short-circuit damage to the CPU and other critical components.



DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B850 TOMAHAWK MAX WIFI is ready to deliver the world-class memory performance.

- EXPO / A-XMP SUPPORT
- MEMORY BOOST
- SMT PROCESS



HIGH-EFFICIENCY MODE

The High-Efficiency Mode is designed to optimize memory performance byincreasing memory bandwidth and reducing latency. With the four sets of RAM timing settings, it allows users to find out the optimal configuration based on the quality of their memory modules.



LATENCY KILLER

MSI BIOS has introduced the latest Latency Killer feature on all AM5 socket motherboards. Users can enable Latency Killer in the BIOS to reduce memory latency by up to 12% when running at high frequencies. Importantly, it is compatible with a wide range of memory overclocking features, including Memory Try It!!, EXPO, A-XMP, and High-Efficiency Mode, etc.

- UP TO 12% Memory latency Reduction

*Supports BIOS versions after AGESA 1.2.0.2b.



Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.



SOLID PIN DESIGN

The 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

Advantages of Solid Pin Power connector
1. Improved stability : Larger contact area enhances stability during power delivery.
2. Low impedance : Solid pins offer low impedance, enabling efficient power flow.
3. Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
4. Suitable for high-current applications.



Anti-corrosive Stainless Steel IO Shield

An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.



Over Current Protection

MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

- CPU / PWM IC
- DDR memory Slots
- Rear & Front USB ports

The Grounding Structure of Power Phases

The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.



Cooling Overview

1 - Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2 - M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

3 - Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

4 - 7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

5 - Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.



DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.



Combo Fan Header

The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive gray color ensuring easy identification



COOLING WIZARD

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

Multiple Profiles
Save up to 5 profiles for multiple occasions

Smart Fan & Manual Fan
- Smart Fan - Allows users to change the temperature curve with the 4 dots provided
- Manual Fan - Allow users to manual change the temperature at a set percentage

User Scenario
- Follow MSI Center Mode - Adjust fan settings according to the mode selected in User Scenario
- BIOS Mode - Adjust Fan setings in BIOS
- Customize by User - Customize fan settings by the users



FROZR AI COOLING

Frozr AI Cooling targets CPU and GPU temperatures. The AI system detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to ensure optimal performance.



AUTO DETECT FAN

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.



HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

- 5G LAN
- Wi-Fi 7



THE NEXT GEN WI-FI SOLUTION - WI-FI 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

*Windows 11 compatibility only

AI LAN Manager

MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI AI LAN MANAGER
- Automatically prioritizes games above other applications
- Allows to change applications' traffic priority
- Allows to customize bandwidth for each application
- Analysis Wi-Fi signals to select the best source.



FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.



LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR II

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Steel Armor II
Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.



PCIe supplemental power

The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.



AUDIO BOOST 5

HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR



HIGH QUALITY AUDIO CAPACITORS



HIGH QUALITY AUDIO JACKS WITH S/PDIF



DEDICATED HEADPHONE AMPLIFIER



ISOLATED AUDIO SIGNAL



DE-POP PROTECTION



The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure - Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

* The image above is an illustrative reference. Please refer to specification pages for more details.



GLOW YOUR PC

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

A-RAINBOW V2
Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
*Gen2 device only supports 7 RGB themes



RGB
Supports 12V RGB devices.



AMBIENT LINK
Synchronize lighting theme with compatible lighting devices.



CLICK BIOS X

MSI's newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.



BIOS KEY FEATURES

Game Boost
Easily boost your CPU performance with the press of a single button for instant overclocking.

AI Boost
Easily enhance your NPU performance with a click, unlocking the full potential of AI processing.

EXPO / A-XMP
Easily apply optimized memory overclocking profiles through a simple one-click activation.

Hardware Monitor
Instantly access real-time critical hardware information, including temperature, memory capacity, clock speed, and voltage.

M-Flash
Easily flash or update the BIOS in just a few minutes directly from the CMOS Setup Utility.

U-Key
Enables secure system access by requiring a specific USB drive for booting, adding an extra layer of security to your PC.

Profile
Save and switch between multiple custom system configurations, allowing for quick adjustments tailored to different tasks for performance needs.

Favorites
Bookmark frequently accessed settings, providing quick and easy access to essential configurations without the need to navigate through the entire menu.

Search
Quickly locate specific settings or options by typing keywords, streamlining navigation and making system adjustments more efficient.



MSI Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

AI Engine
MSI AI Engine eliminates the need to tweak settings manually and saving you time and effort.

Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

True Color
Optimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.

User Scenario
One click for setting your computer, even customize own profile as your preference.

Hardware Monitoring
Get immediate access to your critical hardware information in real-time.

AI LAN Manager
MSI AI LAN Manager prioritizes latency-sensitive apps, ensuring the best low-latency online gaming experience.

Cooling Wizard
Cooling Wizard is a comprehensive tool for managing fan settings across MSI products, offering one-click optimization

System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.



Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.



Opt-in to Cyber Safety with Norton 360 Deluxe

Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

- Up to 50 GB PC cloud backup
- Real time Threat protection and Smart Firewall
- Password manager
- PC SafeCam

*The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to NortonLifeLock License and Services Agreement. NortonLifeLock Product and Service Privacy Notices.

Specifications

Chipset

AMD B850

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket

AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support

DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
- The DIMM slots on this motherboard have double-sided latches.
- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot:
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.

Audio

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output

Storage

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot:
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot:
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.
** Please refer to the manual for M.2 SSD heatsink restrictions

RAID

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
3x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN

Realtek® 8126VB 5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A

OPERATING SYSTEM

Support for Windows® 11 64-bit

PCB Info

ATX
243.84mmx304.8mm

Manufacturer Part No:
MAG B850 TOMAHAWK MAX WIFI
Brand:
MSI
Product Type:
ATX Motherboard
UPC
824142395356
Product Family:
MAG
Shipping Weight:
1.95 kg
PB Part No:
MBDMSI37507
Product Model:
B850 TOMAHAWK MAX WIFI
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

There are currently no reviews for this product

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Accessories

Delivery & Pick-up

Potential courier delays: Please note that due to the high volumes currently within the NZ courier network there is potential for some deliveries to be delayed.

Delivery Estimates

The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.

Next Day Delivery

Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.

Same Day Delivery

Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.

Shipping Costs

Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.

To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.

Shipping Security & Insurance

All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.

1 Hour Store Pick-up / Click & Collect

You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.

Overseas Shipments

PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com

Returns & Warranty

7 day right of exchange

If you change your mind after making a purchase, or realise you have ordered the incorrect item, you can enjoy the peace of mind that we offer a 7 day exchange policy.

To exchange a product, goods must be sealed and unopened, with packaging in original condition, accompanied by a valid receipt dated no more than 7 calendar days from when you request an exchange. A 20% restocking fee may be applied where goods are not returned in sealed, original packaging condition.

If there is not a suitable product that can be exchanged for your returned item you will be offered a credit on your account or gift card based on the value paid at the time of purchase. Items purchased on finance cannot be exchanged for a gift card.



Hassle free warranty service

If your product develops a fault within the manufacturer warranty period, you can either contact the manufacturer directly (some manufacturers provide a high level of warranty service - including free pickup or in some cases onsite repair), or return to one of our services centres / stores. Where the product has been directly imported by PB Tech, you need to contact us directly or present the product at any one of our service centres / stores together with your proof of purchase.

If your product develops a fault outside of the manufacturer warranty or PB Tech warranty period, we offer a full repair service and are an authorised repair agent for leading brands such as Samsung, HP, Toshiba, Lenovo and more.



Returning a product / making a warranty claim

To contact the manufacturer directly to troubleshoot your product or to request a warranty repair, please view the list of manufacturer / brand warranty contacts (for products imported directly by PB Tech please return to us directly by completing our request a return form).

To return a product to PB Tech directly, please complete our request a return form.

Or view our returns policy for more information.

MSI MAG B850 TOMAHAWK MAX WIFI ATX Motherboard For AMD Socket AM5 - B850 Chipset, Supports AMD Ryzen 9000 / 8000 / 7000 Series Processor, PCIE 5.0, 4xM.2, 4x DDR5, 2x Internal USB 2.0 Header, 2x Internal USB 3.2 Header, 1x Internal Type C H

  • Brand: MSI
  • MPN: MAG B850 TOMAHAWK MAX WIFI
  • Part #: MBDMSI37507
  • UPC:824142395356
PB Tech price $433.91 Excluding GST PB Tech price $499.00 Including GST

Date Created: 13:52, 08-10-2025
Product URL: https://www.pbtech.co.nz/product/MBDMSI37507/MSI-MAG-B850-TOMAHAWK-MAX-WIFI-ATX-Motherboard-For
Branch New Stock On Display
Auckland - Albany 0
Auckland - Glenfield 0
Auckland - Queen Street 0
Auckland - Auckland Uni 0
Auckland - Newmarket 0
Auckland - Westgate 4
Auckland - Penrose 0
Auckland - Henderson (Express) 0
Auckland - St Lukes 0
Auckland - Manukau 0
Hamilton 0
Tauranga 0
New Plymouth 0
Palmerston North 0
Petone 0
Wellington 0
Auckland - Head Office 25
Auckland - East Tamaki Warehouse 0
Christchurch - Hornby 0
Christchurch - Christchurch Central 0
Dunedin 0

Features

MAG B850 TOMAHAWK WIFI

- Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Desktop Processors
- Supports DDR5 Memory, Dual Channel DDR5 8400+ MT/s (OC)
- Ultra Performance: 14+2+1 Duet Rail Power System, dual 8-pin CPU power connectors, Core Boost, Memory Boost, 8-layer PCB made by 2oz thickened copper and server-grade level material
- Frozr Guard: Extended Heatsink, MOSFET thermal pads rated for 7W/mK, additional choke thermal pads and EZ M.2 Shield Frozr II are built for high performance system and non-stop experience
- EZ DIY: EZ M.2 Shield Frozr II, EZ M.2 Clip II, EZ PCIe Release and EZ Antenna
- Lightning Fast Game experience: PCIe 5.0 slot, Lightning Gen 5 x4 M.2, Front USB Type-C
- 5G LAN with Wi-Fi 7 Solution: the latest solution for professional and multimedia use, delivering secure, stable, and high-speed networking and data transmission
- Audio Boost 5: Reward your ears with studio-grade sound quality for the most immersive gaming experience

MAG B850 TOMAHAWK MAX WIFI

MAG B850 TOMAHAWK MAX WIFI is designed for gamers with a stable, durable and DIY friendly foundation for their PC builds. Coming up with true Wi-Fi 7 solution, 5G LAN, USB 20Gbps, PCIe 5.0 solutions, Supplemental PCIe Power, and exclusive EZ DIY features, it's ready for the battlefield of AMD Ryzen™ 9000 series processors.



MAG - MSI Arsenal Gaming

MSI's mainstream MAG series epitomizes stability and durability and is built to withstand the most intense gaming sessions. The entire lineup features robust construction with metallic-like hardness and excellent heat dissipation, ensuring stability for all critical gaming components.



EXCLUSIVE FEATURES



THERMAL SOLUTION



CONNECTIVITY



Ready for Ai PC

MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.

AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.

AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.

Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.

AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.



EZ M.2 INSTALLATION

MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed.  The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.

EZ M.2 CLIP II REMOVER

MSI's exclusive EZ M.2 Shield Frozr II and EZ M.2 CLIP II make M.2 installation seamless. Insert the SSD card into the slot and press it down to lock it in place with the clip. As fasten the SSD, flick the clip outwards and then the SSD is removed.  The process is smooth, and you don't need to use your tools like before. One finger can give you perfect DIY experience.



EZ PCIe Release

An easy-to-access physical button release mechanism that can help remove any PCIe card with a single tap, making it much easier to upgrade to a new GPU or other compatible device, streamlining the entire process and enhancing user experience.

EZ BUTTON

FLASH BIOS BUTTON
Flash the BIOS with only a connected power supply by following a few steps. CPU and memory not required.



CLEAR CMOS BUTTON
Restore the BIOS to the default settings - helpful in 99% of the cases to successfully boot again.



PRE-INSTALLED I/O SHIELD

The Pre-Installed I/O Shield offers a streamlined and hassle-free installation experience by eliminating the need to manually fit the I/O shield during motherboard setup. With its built-in design, it ensures proper alignment and a secure fit, providing both protection and convenience while enhancing the overall durability of your build.



EZ MOUNTING

MSI motherboards circuitry ensure the case standoff keep out zones are pure and clean. Moreover, the protective paint is printed around each screw hole to prevent parts from being scratched or damaged to the motherboard.



EZ ANTENNA

MSI EZ Antenna makes the process effortless by simply attaching fasteners to the motherboard without rotation.



EZ Conn header (JAF_2)

MSI's EZ Conn header(JAF_2) allows users to easily connect MSI EZ series fans (7 pin) or MSI liquid cooling (11 pin). If you don't have the above products, we also provide a 1 to 3 EZ Conn-Cable, enabling you to connect ARGB light, system fan and USB device.



MSI EZ SERIES FAN

This cable takes care of the tedious part of the build process, makes motherboard front panel connections quickly and accurately.



DRIVER UTILITY INSTALLER

Once connected to the internet, MSI Driver Utility Installer will detect and present suitable drivers and utilities automatically, you can download and install with just a few clicks. Learn more

*Please ensure to connect the internet, or the Driver Utility Installer won't launch automatically.
*MSI Driver Utility Installer will be ready in Windows 11 build 22H2.



EZ DEBUG

EZ DEBUG LED
Onboard LEDs will indicate the source of the problem so you know exactly where to look to get up and running again.



EZ MEMORY DETECTION LED
This LED lights up when it detects faulty memory in slots, eliminating guesswork from troubleshooting.



EZ IDENTIFY

HEADER WITH DIFFERENT COLOR
To better differentiate between pin headers for different purposes, mark the pump sys header and ARGB headers in white, PCIe 8-pin header in gray, and designate the pin headers for JAF_2 in white (for users who need to use JAF_1), enabling users to manage cables more efficiently.



IDENTIFY M.2 SIGNAL SOURCE
The motherboard has a detailed M.2 signal source list printed on it, allowing you to easily identify them.



IDENTIFY USB SPEED
Change the way USB speeds are described to numbers (rather than the confusing names like USB 3.2 Gen 2x2) for better understanding



EZ OVERCLOCKING

While overclocking can be overly complex for some, MSI Click BIOS X made it more accessible with multiple one-click overclock features for both processor and memory, allowing users to easily enhance system performance without delving into intricate settings.

GAME BOOST
One-click CPU overclock automatically optimizes your CPU performance, instantly tuning it to the best possible level.

AI BOOST
An intelligent algorithm boosts NPU performance to get the best possible AI performance when you need additional horsepower.
*Enabled with compatible processors.

EXPO / A-XMP
Choose from preset EXPO and A-XMP profiles to automatically overclock compatible DDR memory for optimal performance.



EZ OPTIMIZATION

A host of features inject artificial intelligence into key aspects of your computing experience to make smarter, real-time optimizations. The MSI Center offers a clean, minimal interface to customize and manage your PC settings. The AI Engine, for example, automatically adjusts settings based on the applications you're using, ensuring seamless performance.



14+2+1 Duet Rail Power System

Unleash and sustain maximum performance with a flagship VRM design built with a total of 14+2+1 digital power phases. Combining dual power connectors and 80A Smart Power Stage, MAG B850 TOMAHAWK MAX WIFI is ready for the challenge of high-end processors.

- 14 PHASE Vcore POWER SPS 80A
- 2 PHASE SOC POWER
- 1 PHASE MISC POWER



OPTIMIZED PCB SOLUTION

The PCB design has been optimized for higher bandwidth and faster transfer speeds, which is also beneficial for reliable circuit transmission.

- 8 PCB layers
- 2oz Thickened Copper



EZ OC TUNING

PERFORMANCE PRESET
MSI exclusive Performance Preset is a more intuitive way to boost  performance by setting the power limitation as your preference. There are two level setting - PBO Auto  PBO Enable.



PERFORMANCE SWITCH
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI's own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.



PBO THERMAL POINT
Performance Switch combines the benefits of AMD default PBO(Precision Boost Overdrive) and MSI's own OC settings, provides higher CPU performance in both status of single-core and multi-core. This is for users who dare for the maximum performance.



CONFIG TDP
Config TDP is designed to provide ECO Mode (65W) or different TDP (PPT/TDC/EDC) settings for advanced users. By offering several profiles for different TDP settings in Click BIOS 5, Config TDP makes setting TDP profiles easier and don't need to modify settings manually for each TDP.



MORE FOR PERFORMANCE

1-SECOND OVERCLOCKING
MSI Game Boost enables one-second overclocking, giving you the performance boost you need to get more FPS.



LOAD-LINE CALIBRATION
What you set, is what you get. LLC makes sure your CPU voltage remains 100% stable under any load. This greatly improves stability when demanding more CPU performance.



OVERVOLTAGE PROTECTION
Prevents potential short-circuit damage to the CPU and other critical components.



DDR5 MEMORY SUPPORT WITH HIGH PERFORMANCE

A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, MAG B850 TOMAHAWK MAX WIFI is ready to deliver the world-class memory performance.

- EXPO / A-XMP SUPPORT
- MEMORY BOOST
- SMT PROCESS



HIGH-EFFICIENCY MODE

The High-Efficiency Mode is designed to optimize memory performance byincreasing memory bandwidth and reducing latency. With the four sets of RAM timing settings, it allows users to find out the optimal configuration based on the quality of their memory modules.



LATENCY KILLER

MSI BIOS has introduced the latest Latency Killer feature on all AM5 socket motherboards. Users can enable Latency Killer in the BIOS to reduce memory latency by up to 12% when running at high frequencies. Importantly, it is compatible with a wide range of memory overclocking features, including Memory Try It!!, EXPO, A-XMP, and High-Efficiency Mode, etc.

- UP TO 12% Memory latency Reduction

*Supports BIOS versions after AGESA 1.2.0.2b.



Transient Voltage Suppressors (TVS)

Transient Voltage Suppressors (TVS) are safety devices used to protect against excessive voltage. All motherboard models of MSI are equipped with TVS. When the voltage abnormally rises, the TVS switches from a high-resistance state to a low-resistance state, diverting the excessive voltage to ground. This helps prevent circuit damage caused by high voltage.



SOLID PIN DESIGN

The 8-pin, and 24-pin power connectors of MSI motherboards are all designed with solid pins. The solid pin design allows for a more stable transmission of 12V power to the CPU, even when handling high current loads.

Advantages of Solid Pin Power connector
1. Improved stability : Larger contact area enhances stability during power delivery.
2. Low impedance : Solid pins offer low impedance, enabling efficient power flow.
3. Strong durability : The solid pin design ensures strong durability, capable of withstanding demanding conditions.
4. Suitable for high-current applications.



Anti-corrosive Stainless Steel IO Shield

An extra layer of sponge materials along with corrosive resistance IO Shield to help improve static electricity and reduce electromagnetic radiation noise from the system as well as much more durable compare to traditional IO Shields.



Over Current Protection

MSI motherboards prioritize safety with the embedded Overcurrent Protection (OCP), ensuring crucial components such as the USB ports, DDR memory, PWM IC, and CPU are shielded from excessive current. This proactive defense mechanism curtails the risk of damage or malfunction due to power surges, promoting long-term system stability. This commitment to safeguarding your hardware underscores MSI's dedication to producing motherboards that prioritize durability and stability.

- CPU / PWM IC
- DDR memory Slots
- Rear & Front USB ports

The Grounding Structure of Power Phases

The grounding structure of power phases is the MSI's exclusive design. This patented design enables to suppress the electromagnetic interference (EMI) generated by the power phases and helps to efficiently conduct heat to the copper plane with grounding properties.



Cooling Overview

1 - Extended Heatsink
Extended Heatsink enlarges the surface of heat dissipation and maintain the performance at heavy loads.

2 - M.2 Shield Frozr
Strengthened M.2 thermal solution helps keep M.2 SSD safe and ensures incredible performance.

3 - Heavy Plated VRM Heatsink
The VRM heatsink covers the upper MOS and helps dissipate the heat.

4 - 7W/mK Thermal Pad & Additional Choke Pad
High-quality 7W/mK MOSFET thermal pads and additional choke thermal pads ensure stable performance when all cores are runnging at high speed.

5 - Enlarged Chipset Heatsink
The enlarged heatsink is designed to reduce dust and noise and capable of maintaining high efficiency of heat dissipation.



DIY 2.0 - INTEGRATING WITH THE SYSTEM ENVIRONMENT

Connect and synchronize with MSI coolers and cases with strategically positioned pin-header locations including a dedicated pump-fan header.



Combo Fan Header

The MSI Combo Fan Header is a versatile component, functioning as both a pump and or fan header. The header will automatically detects whether it is either pump or PWM/DC fan, with it's distinctive gray color ensuring easy identification



COOLING WIZARD

Cooling Wizard serves as a comprehensive solution for managing fan settings across all MSI products. It ensures superior cooling performance and noise reduction for your gaming PC, offering compatibility with PWM/DC fans and pumps, customizable options, and intuitive temperature monitoring for optimal operation with one click.

Multiple Profiles
Save up to 5 profiles for multiple occasions

Smart Fan & Manual Fan
- Smart Fan - Allows users to change the temperature curve with the 4 dots provided
- Manual Fan - Allow users to manual change the temperature at a set percentage

User Scenario
- Follow MSI Center Mode - Adjust fan settings according to the mode selected in User Scenario
- BIOS Mode - Adjust Fan setings in BIOS
- Customize by User - Customize fan settings by the users



FROZR AI COOLING

Frozr AI Cooling targets CPU and GPU temperatures. The AI system detects CPU and GPU temperatures and automatically adjusts the fan duty of system fans to ensure optimal performance.



AUTO DETECT FAN

MSI fan headers automatically detect fans running in DC or PWM mode for optimal tuning of fan speeds and silence. Hysteresis also makes your fans spin up fluently to make sure your system stays silent, no matter what.



HIGH-BANDWIDTH AND LOW-LATENCY NETWORK

MSI's premium network solution provides incredible data transfer speed for demanding users.

- 5G LAN
- Wi-Fi 7



THE NEXT GEN WI-FI SOLUTION - WI-FI 7

Wi-Fi 7 is the latest wireless solution that takes a huge leap forward with multiple improvements to meet the traffic demand brought and the growing number of wireless devices.

*Windows 11 compatibility only

AI LAN Manager

MSI AI LAN Manager automatically classifies and prioritizes the latency-sensitive applications for online games, giving you the best online gaming experience with low latency.

MSI AI LAN MANAGER
- Automatically prioritizes games above other applications
- Allows to change applications' traffic priority
- Allows to customize bandwidth for each application
- Analysis Wi-Fi signals to select the best source.



FAST AND FUTURE-READY STORAGE

MSI MAG series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Start games faster, load levels faster and have a real advantage over your enemies.



LIGHTNING GEN 5 PCI-E WITH STEEL ARMOR II

LIGHTNING GEN 5 PCI-E
Doubling over the previous generation, the bandwidth of a x16 interface can reach 128GB/s.

SMT PCIE 5.0 SLOT
The advanced SMT(Surface Mount Technology) PCIE slot diminish interference and electrical noise, fully support the PCI-E 5.0 signal.

Steel Armor II
Compared to the previous generation, Steel Armor II's weight endurance has increased by 21%, ensuring excellent signal transmission quality.



PCIe supplemental power

The exclusive Supplemental PCIe Power connector provides dedicated power for the high-power demands of GPUs used in AI computing and gaming, ensuring stable, efficient, and sustained performance.



AUDIO BOOST 5

HIGH PERFORMANCE ALC4080 AUDIO PROCESSOR



HIGH QUALITY AUDIO CAPACITORS



HIGH QUALITY AUDIO JACKS WITH S/PDIF



DEDICATED HEADPHONE AMPLIFIER



ISOLATED AUDIO SIGNAL



DE-POP PROTECTION



The Isolated Analogy Structure for Audio Connectors

To provide clear voice, MSI develops a unique structure - Isolated Analogy Structure. The external metal framework of the audio connectors is separated from the internal layout, which ensures the sound quality crisp.

* The image above is an illustrative reference. Please refer to specification pages for more details.



GLOW YOUR PC

Splash on some color and vibrant RGB lighting effects using Mystic Light utility of MSI Center, which has million colors and fancy LED effects. Enjoy the full control and creativity of your PC's lighting with one software.

EXTEND YOUR RGB EXPERIENCE WITH EASE

Add more color if you want! Mystic Light Extension pin header provides an intuitive way to control additional RGB strips and other RGB peripherals added to a system, without needing a separate RGB controller.

A-RAINBOW V2
Supports 5V Addressable RGB devices. Compatible with ARGB Gen2 / Gen1 devices.
*Gen2 device only supports 7 RGB themes



RGB
Supports 12V RGB devices.



AMBIENT LINK
Synchronize lighting theme with compatible lighting devices.



CLICK BIOS X

MSI's newly designed CLICK BIOS X offers an aesthetically pleasing and user-friendly experience. The new design ensures that users of all experience levels can quickly access and adjust system configurations with ease.



BIOS KEY FEATURES

Game Boost
Easily boost your CPU performance with the press of a single button for instant overclocking.

AI Boost
Easily enhance your NPU performance with a click, unlocking the full potential of AI processing.

EXPO / A-XMP
Easily apply optimized memory overclocking profiles through a simple one-click activation.

Hardware Monitor
Instantly access real-time critical hardware information, including temperature, memory capacity, clock speed, and voltage.

M-Flash
Easily flash or update the BIOS in just a few minutes directly from the CMOS Setup Utility.

U-Key
Enables secure system access by requiring a specific USB drive for booting, adding an extra layer of security to your PC.

Profile
Save and switch between multiple custom system configurations, allowing for quick adjustments tailored to different tasks for performance needs.

Favorites
Bookmark frequently accessed settings, providing quick and easy access to essential configurations without the need to navigate through the entire menu.

Search
Quickly locate specific settings or options by typing keywords, streamlining navigation and making system adjustments more efficient.



MSI Center

MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralized application. Take control of advanced motherboards features and unleash endless possibilities.

AI Engine
MSI AI Engine eliminates the need to tweak settings manually and saving you time and effort.

Mystic Light
Create your own colorful masterpiece with ease. Splash any color you want with just a few clicks!

True Color
Optimized monitor's brightness and color in several modes for different situation, you can also customize by yourself.

User Scenario
One click for setting your computer, even customize own profile as your preference.

Hardware Monitoring
Get immediate access to your critical hardware information in real-time.

AI LAN Manager
MSI AI LAN Manager prioritizes latency-sensitive apps, ensuring the best low-latency online gaming experience.

Cooling Wizard
Cooling Wizard is a comprehensive tool for managing fan settings across MSI products, offering one-click optimization

System Diagnosis
Restore and backup your MSI storage devices in one click to provide stable system usage, you can even monitor the storage status to prevent system crash or data missing.



Exclusive UI of AIDA64 Extreme

MSI motherboards provide 60 days free trial of AIDA64 Extreme - MSI edition. AIDA64 Extreme is an almighty application for system information, diagnostics and benchmarks. With the application, you can monitor the detailed hardware and software information on PC and save it to file in multiple formats such as CSV and HTML.



Opt-in to Cyber Safety with Norton 360 Deluxe

Multiple layers of protection for your devices, online privacy features including our Secure VPN, plus Dark Web Monitoring - all in a single solution. With MSI motherboards, you can enjoy a 60-day free trial of Norton 360 Deluxe.

- Up to 50 GB PC cloud backup
- Real time Threat protection and Smart Firewall
- Password manager
- PC SafeCam

*The MSI trial offer is not available for existing Norton customers. If you have an active Norton subscription, you will need to opt-out of the existing subscription to be eligible for this offer. For Important Subscription, Pricing and Offer Details, please refer to NortonLifeLock License and Services Agreement. NortonLifeLock Product and Service Privacy Notices.

Specifications

Chipset

AMD B850

CPU

Supports AMD Ryzen™ 9000/ 8000/ 7000 Series Desktop Processors

Socket

AM5

Memory

4x DDR5 UDIMM, Maximum Memory Capacity 256GB

Memory Support

DDR5 8400 - 5600 (OC) MT/s / 5600 - 4800 (JEDEC) MT/s
Ryzen™ 9000 Series Processors max. overclocking frequency:
- 1DPC 1R Max speed up to 8400+ MT/s
- 1DPC 2R Max speed up to 6400+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 6400+ MT/s

Supports AMD POR Speed and JEDEC Speed
Supports Memory Overclocking and AMD EXPO™
Supports Dual-Channel mode
Supports Non-ECC, Un-buffered memory
Supports CUDIMM, Clock Driver bypass mode only*

* CUDIMM support and POR boot frequency may vary by CPU series, with manual overclocking available after boot. Certain CPUs may fail to boot, but future BIOS updates will improve compatibility.
- The DIMM slots on this motherboard have double-sided latches.
- Memory compatibility and supported speeds can vary depending on the CPU and memory configuration. For detailed information, please refer to the Memory Compatibility List available on the product's Support page or visit https://www.msi.com/support/.

Onboard Graphics

1x HDMI™
Support HDMI™ 2.1 FRL, maximum resolution of 8K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.

Slot

3x PCI-E x16 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)

PCI_E1 slot:
- Supports PCIe 5.0 x16 (For Ryzen™ 9000/ 7000 Series processors)
- Supports PCIe 4.0 x8 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports PCIe 4.0 x4 (For Ryzen™ 8500/ 8300 Series processor)

*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.

Audio

Realtek® ALC4080 Codec
7.1-Channel USB High Performance Audio
Supports up to 32-bit/384kHz playback on front panel
Supports S/PDIF output

Storage

4x M.2
M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 22110/2280 devices
M.2_2 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2 , supports 2280/2260 devices
M.2_4 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
4x SATA 6G

M2_1 slot:
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8000 Series processors)

M2_2 slot:
- Supports up to PCIe 5.0 x4 (For Ryzen™ 9000/ 7000 Series processors)
- Supports up to PCIe 4.0 x4 (For Ryzen™ 8700/ 8600/ 8400 Series processors)
- Supports up to PCIe 4.0 x2 (For Ryzen™ 8500/ 8300 Series processors)

*PCI_E3 slot will run at x2 speed when installing device in the M2_3 slot. You can switch PCI_E3 slot to x4 in the BIOS, but this will disable the M2_3 slot.
** Please refer to the manual for M.2 SSD heatsink restrictions

RAID

Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices

USB

4x USB 2.0 (Rear)
4x USB 2.0 (Front)
1x USB 5Gbps Type A (Rear)
4x USB 5Gbps Type A (Front)
2x USB 10Gbps Type A (Rear)
3x USB 10Gbps Type C (Rear)
1x USB 20Gbps Type C (Front)

LAN

Realtek® 8126VB 5G LAN

Internal IO

1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x Power Connector(PCIE_PWR 8pin)
1x CPU Fan
1x Combo Fan (Pump_Sys Fan)
6x System Fan
1x EZ Conn-header (JAF_2)
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
3x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 5Gbps Type A ports
1x USB 20Gbps Type C ports

WIRELESS LAN & BLUETOOTH

Wi-Fi 7 Solution
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
Supports Bluetooth® 5.4**, MLO, 4KQAM
* 6GHz band support may depend on every country's regulations and Wi-Fi 7 will be ready in Windows 11 version 24H2.
** The Bluetooth version may be updated, please refer to the Wi-Fi chipset vendor's website for details. Bluetooth 5.4 will be ready in Windows 11 version 24H2.

LED FEATURE

4x EZ Debug LED
1x EZ Memory Detection LED

BACK PANEL PORTS

Clear CMOS Button
USB 10Gbps Type-A
USB 5Gbps Type-A
USB 2.0
5G LAN
Wi-Fi / Bluetooth
Audio Connectors
Flash BIOS Button
HDMI™
USB 10Gbps Type-C
USB 10Gbps Type-C
USB 10Gbps Type-A

OPERATING SYSTEM

Support for Windows® 11 64-bit

PCB Info

ATX
243.84mmx304.8mm

Date Created: 13:52, 08-10-2025
Product URL: https://www.pbtech.co.nz/product/MBDMSI37507/MSI-MAG-B850-TOMAHAWK-MAX-WIFI-ATX-Motherboard-For
