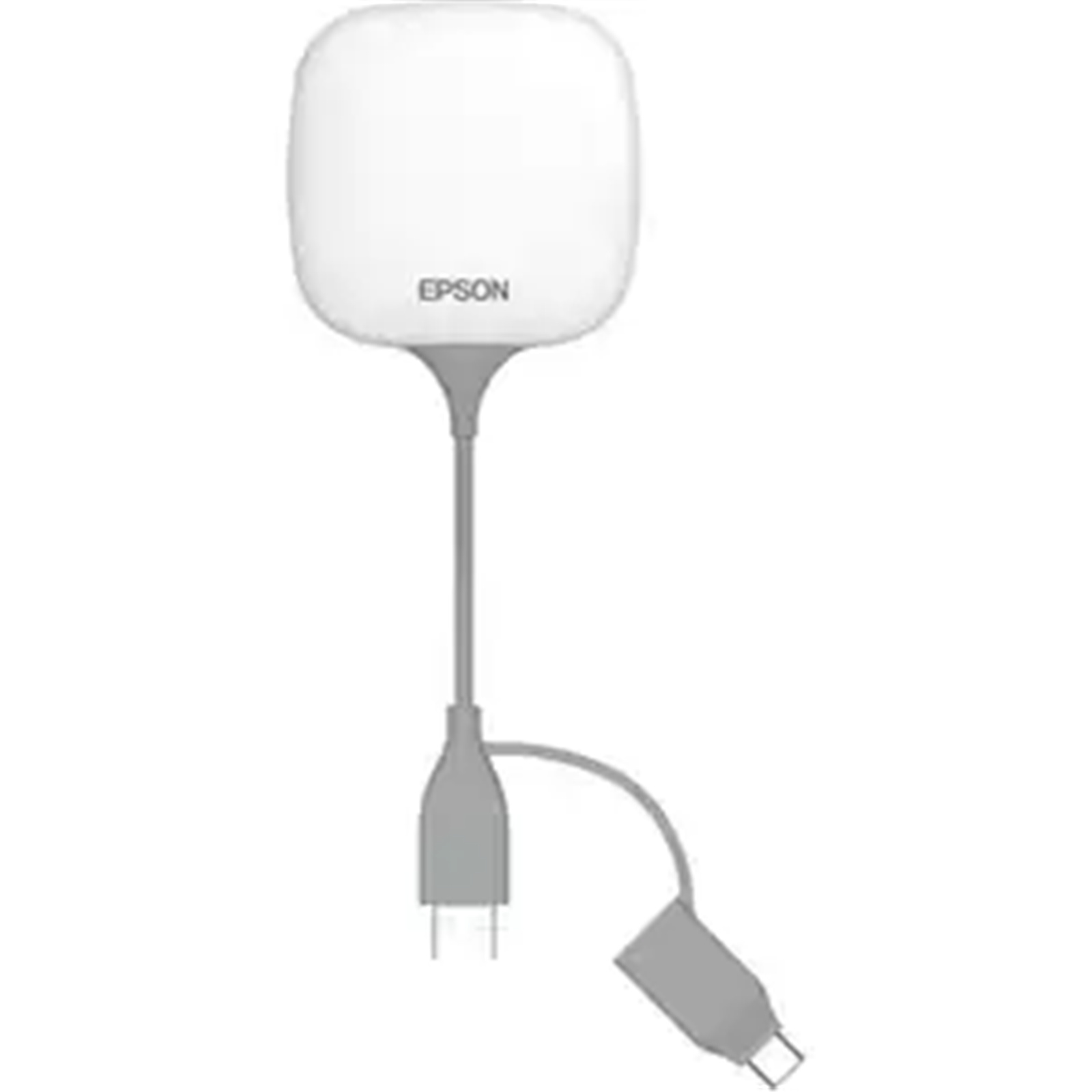

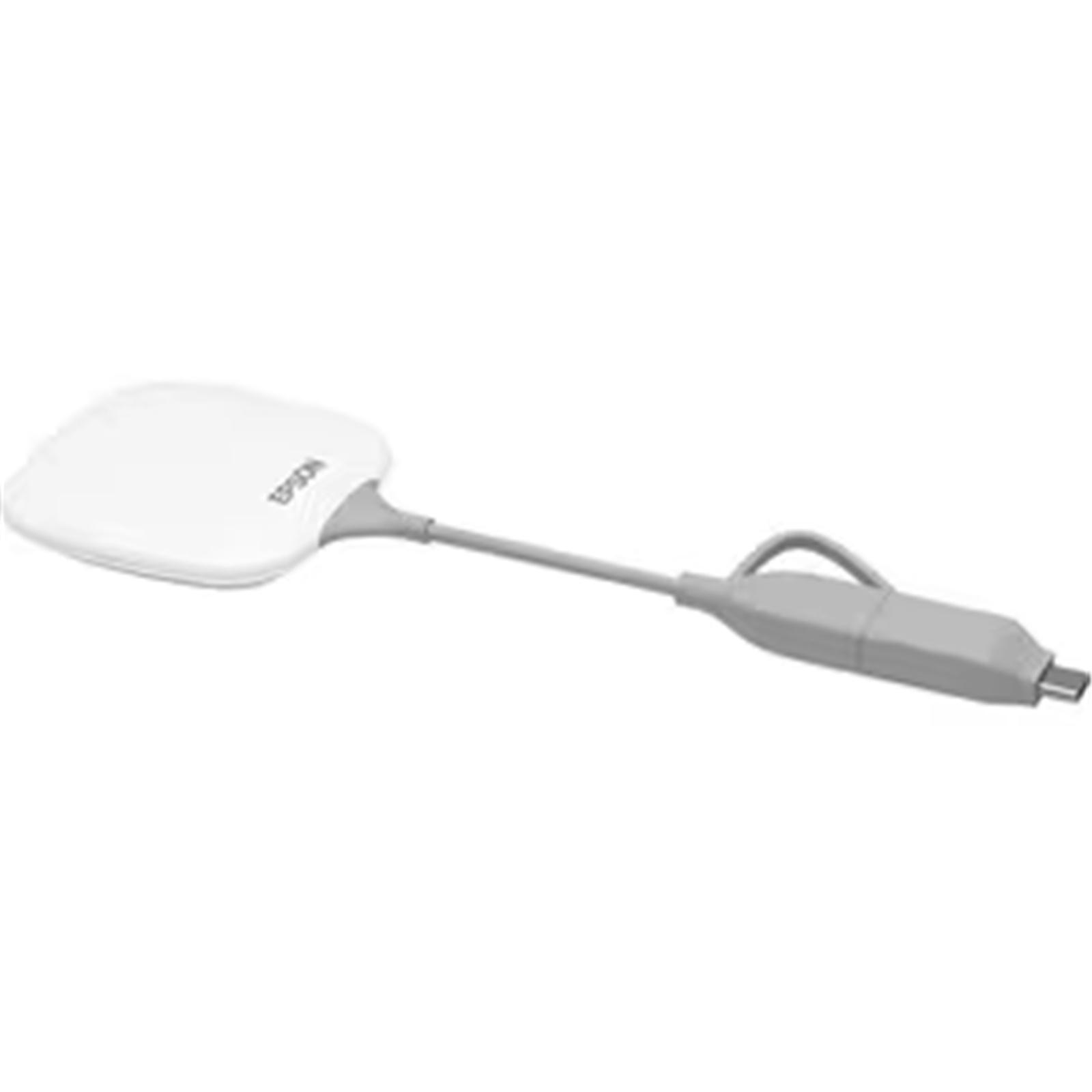

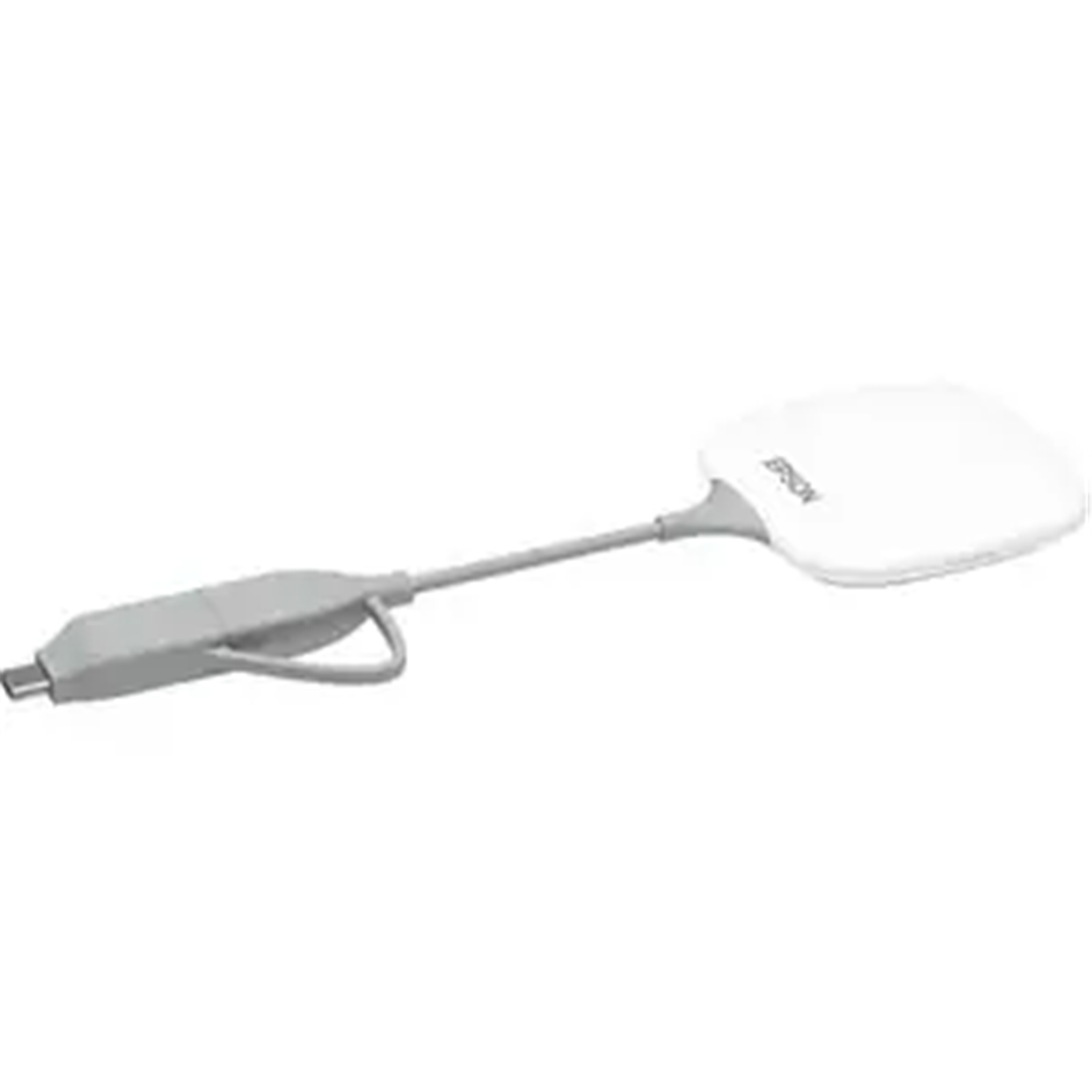

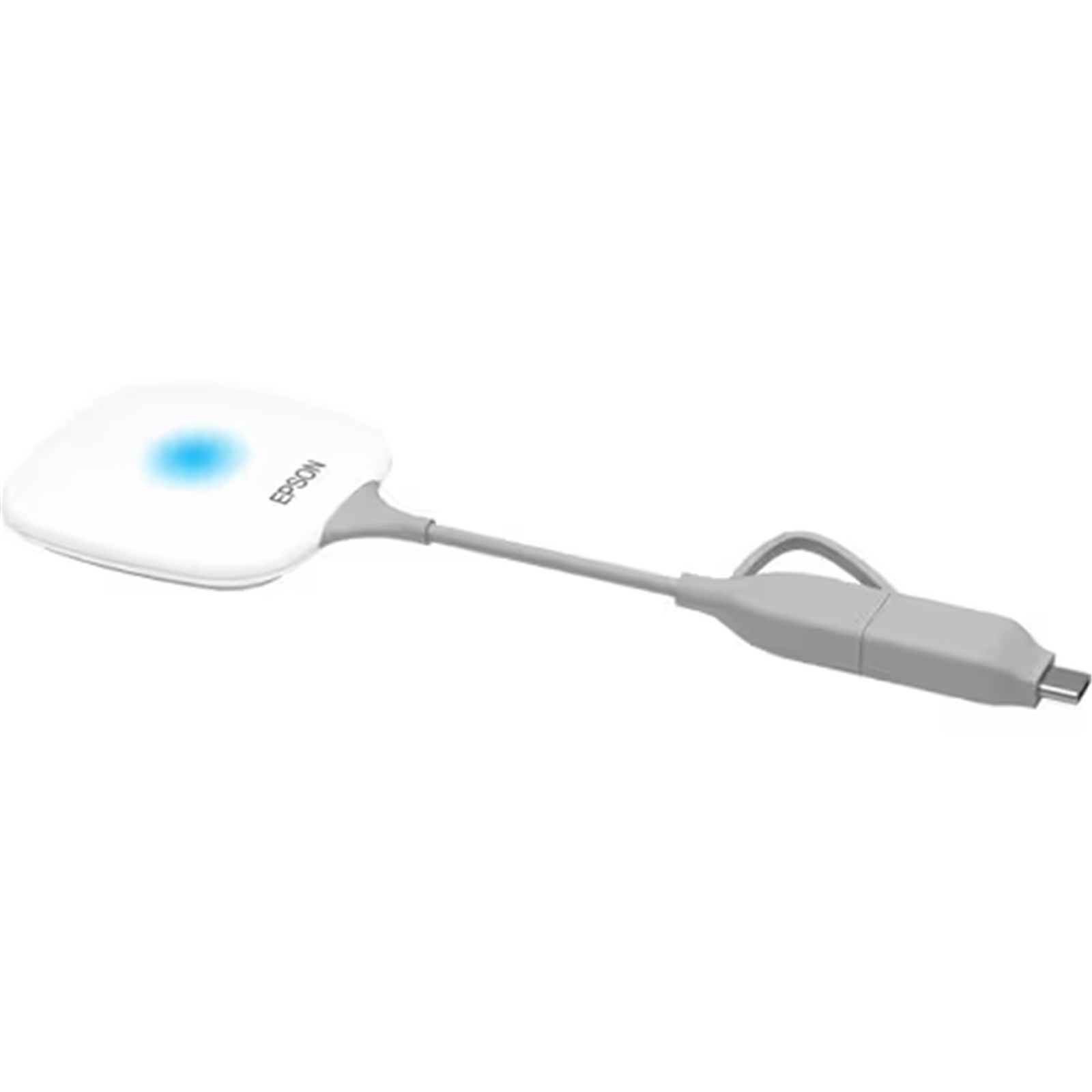

Epson ELPWP10 Wireless Presentation Gateway
Select your store to check availability
- Brand: Epson
- MPN: V12HA41040
- Part #: MOAEPP5273367
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Other Projector Accessories
Epson ELPWP10 Wireless Presentation Gateway
- Brand: Epson
- MPN: V12HA41040
- Part #: MOAEPP5273367
Product URL: https://www.pbtech.co.nz/product/MOAEPP5273367/Epson-ELPWP10-Wireless-Presentation-Gateway
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 1 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
With the ELPWP10, wireless content sharing from any device to select Epson laser displays is made easy in three simple steps - plug, click and share.
Deliver enriched meetings and sessions with this intuitive solution that helps you enhance communication, increase productivity and save time. Launch and share content from any program on your laptop, whether it's an Excel spreadsheet, presentation, e-mail, image or video - the ELPWP10 makes your content sharing easy and impactful.
It's all simple - plug the wireless transmitter into the laptop and click on the built-in app to begin transmitting content to the display. Users of mobile devices can also connect using the Miracast protocol or Epson's free iProjection app.
Up to 4 devices can be displayed simultaneously, enhancing collaboration by sharing content from multiple devices on one big display.
The transmitter connects instantly to a receiver that integrates with the Epson display, rather than requiring a wall or desk-based receiver. This flexibility allows delivery of impactful, easily viewed presentations on large screens far more easily than previously possible.
As there is no physical button on the transmitters they can be sanitised after use, for full hygiene protection.
Accelerate collaboration
A wireless presentation system for maximum ease of use
Four-screen sharing
Display up to four devices simultaneously
Always-on security
Prevent unauthorised data access with AES encryption
Compatibility with major OSs
Works with Windows, Android, iOS and Chromebook
Easy integration
Connects to select Epson display solutions
Specifications
Receiver
Inputs
Miracast (display dependent), iProjection
Compatible with Epson Document Cameras
Yes
Frame Rate
max. 18 fps
Number of sources simultaneously displayed
1 to 4
Max. number of sources simultaneously connected (including transmitters)
6
Number of transmitters supplied
2
Screen sharing (Miracast R2)
Display dependent
Screen sharing (Apple AirPlay)
No
Screen sharing (Google Cast)
No
Auto power on display
Yes (CEC)
Video output
HDMI (HDCP2.3, CEC, 1080p)
Transmitter Cradle included
Yes(capacity: 6)
Transmitters
Max. supported resolution
WUXGA (1920x1200)
Compatible Operating Systems
Windows 8.1 or higher, MacOS 10.13-11.0
Source device ports
USB-A, USB-C
Transmitter application - source
App built in to transmitter
Connection type - transmitter
Peer to peer WiFi
Maximum range
10 m
Wireless transmission protocols
WiFi 5 (802.11a/b/g/n/ac)
User-selectable WiFi channel
Yes
User selectable transmitter bandwisth options
High quality (25Mbps), Standard quality (15Mbps), Low quality (7Mbps)
Pairing methods
Via PC using Configuration Tool or connecting transmitter to reciever
Easy to disinfect
Yes
Epson Wireless Presentation app (Windows & Mac)
Built into the transmitters
Security
Authentication
Simple AP: WPA2-Personal
Infrastructure
WPA2/WPA3-Personal, WPA2/WPA3-Enterprise
Tranmission encryption
RSA AES-128-bit with new public key each session
Transmitter application - requirements - Installation
No (app runs directly from transmitter)
Transmitter application - requirements - Administrator privileges
No
Transmitter security
Transmitter storage is read only
iProjection
Connection type
Either via infrastructure network or simple connection (direct WiFi)
Source device (iProjection) Operating Systems
Windows, MacOS, iOS, Android, Chromebook
Moderator function compatible
Yes
Software
iProjection
Download from Epson website (Windows / Mac) or the relevant app store (iOS, Android & Chomebook)
Epson Wireless Presentation app (Windows & Mac)
Built into the transmitters
Options
Options
ELPWT01 - Wireless Transmitter
