Ubiquiti UniFi U7-PRO-XGS (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE++ 29W) - Black
Ubiquiti UniFi U7-PRO-XGS (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE++ 29W) - Black
- Brand: Ubiquiti
- MPN: U7-Pro-XGS-B
- Part #: NAPUBI7705
- UPC:
- Brand: Ubiquiti
- MPN: U7-Pro-XGS-B
- Part #: NAPUBI7705
- UPC:
Similar in-stock products available at PB Tech right now
Ubiquiti UniFi U7-Pro-Max (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 2.5GbE x1 (PoE+ 25W)
Ubiquiti UniFi U7-PRO-XGS (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE++ 29W)
Features

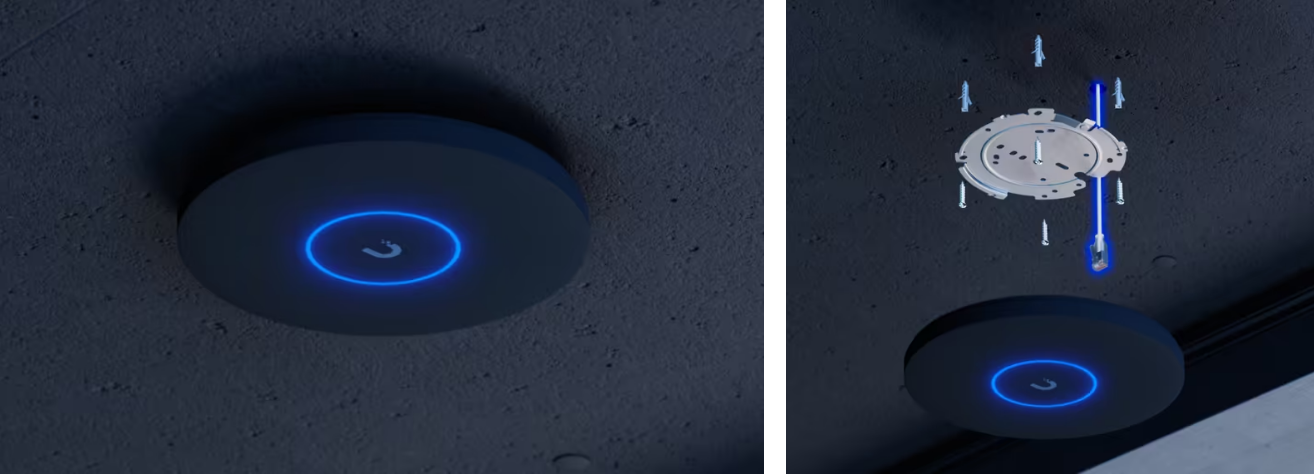

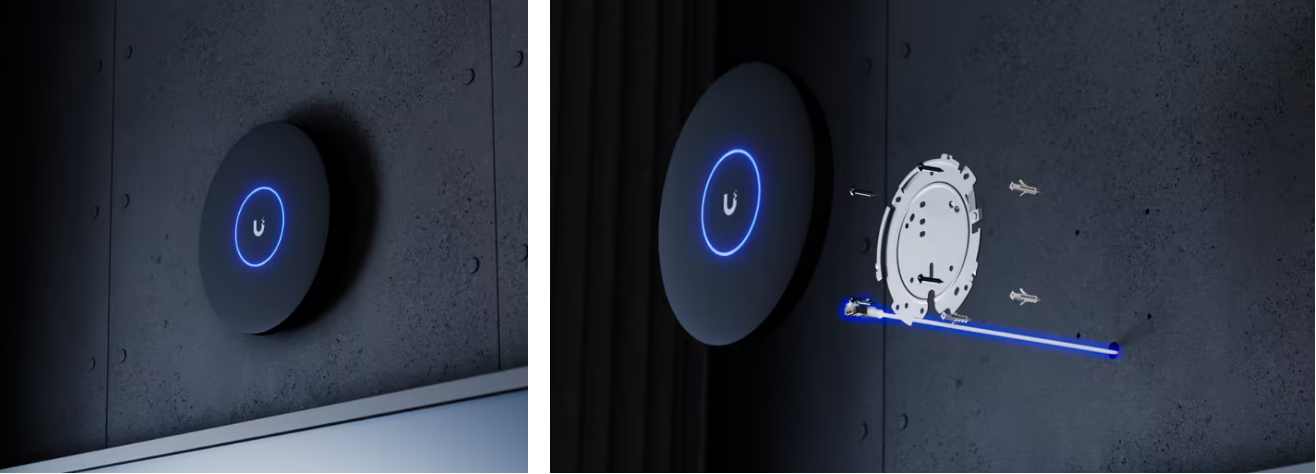

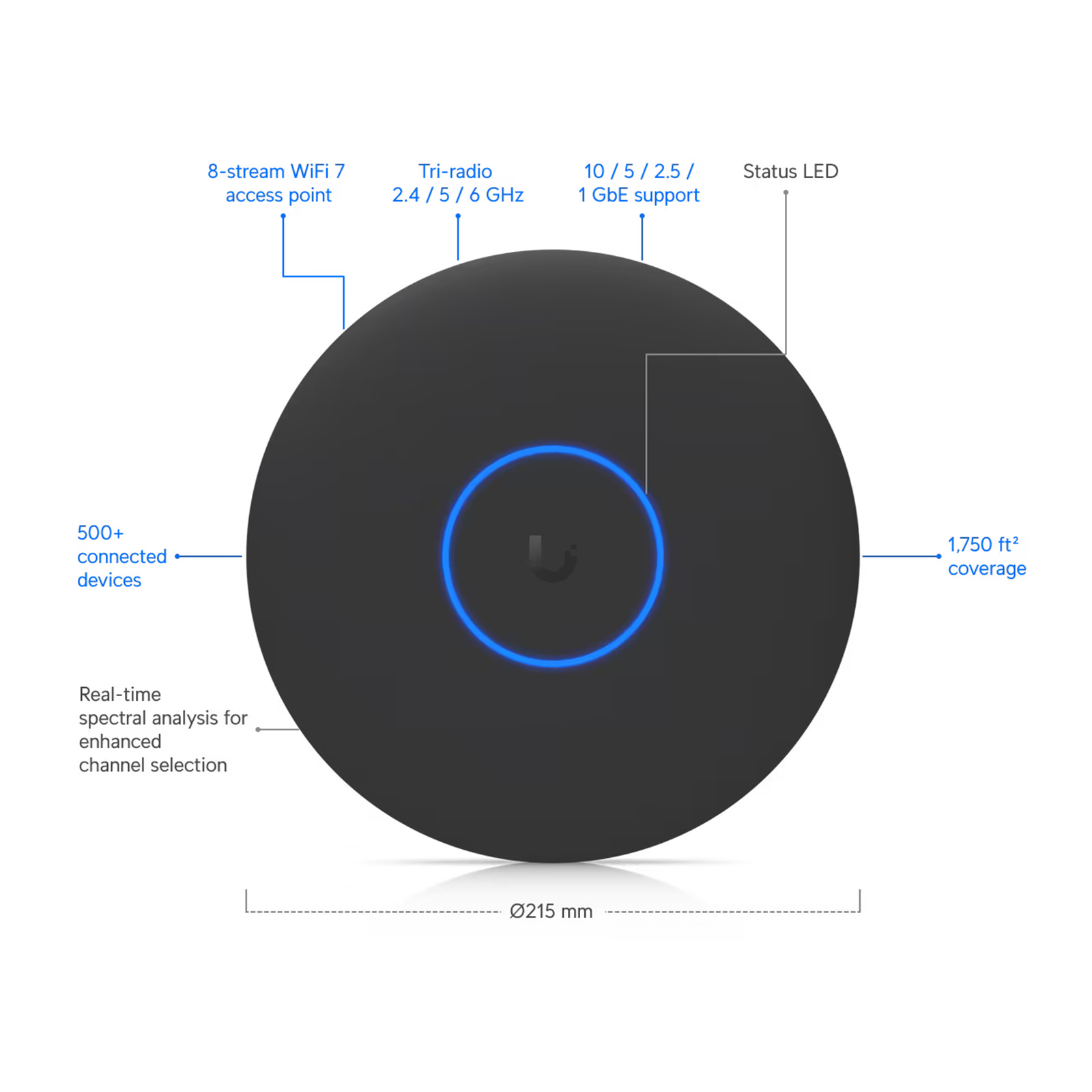

The U7 Pro XGS Black is Ubiquiti's premium, ceiling- or wall-mounted Wi-Fi 7 access point, tailored for high-density enterprise environments such as campuses, hotels, and large offices. It operates on tri-band (2.4 GHz, 5 GHz, 6 GHz) with eight spatial streams (2x2 MIMO on 2.4 GHz and 6 GHz; 4x4 MIMO on 5 GHz), enabling total throughput of up to 8.6 Gbps on 5 GHz, 5.8 Gbps on 6 GHz, and 688 Mbps on 2.4 GHz. The combined aggregate bandwidth reaches approximately 15 Gbps, supporting over 500 simultaneous clients and covering around 160 m² (1,750 ft²).
Distinctively, the U7 Pro XGS features a dedicated spectral scanning radio that performs real-time interference analysis-optimizing channel selection and system performance in crowded wireless environments. Its fanless, flat-metal base design serves as a robust passive heat sink, enhancing reliability and reducing noise compared to earlier UniFi models.
The device includes a single 10 Gigabit Ethernet (10GBASE-T) RJ45 port, backward-compatible with 5 G, 2.5 G, and 1 G speeds, and delivers power over PoE++ (802.3bt). It supports a voltage range of 42.5 - 57 V DC and consumes up to 29 W.
In terms of radio performance, the device offers antenna gain of 6 dBi on both the 5 GHz and 6 GHz bands, and 4 dBi on 2.4 GHz. The maximum transmit powers are rated at 29 dBm (5 GHz), 24 dBm (6 GHz), and 23 dBm (2.4 GHz). It supports up to eight BSSIDs per radio, and wide channel bandwidths-from 20 up to 240 MHz on 5 GHz, and up to 320 MHz on 6 GHz.
This access point integrates a full suite of enterprise software features, including band steering, mesh networking, 802.11k/r/v roaming, Zero-Wait DFS, Passpoint (Hotspot 2.0), spectral analysis, guest portal authentication (voucher, payment, PPSK, RADIUS/TLS, VLAN), client isolation, per-SSID speed limits, and schedule-based control. It requires UniFi Network Controller version 9.1.120 or later.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Ceiling Mounted Access Points
Ubiquiti UniFi U7-Lite (BE5000) Dual-Band 4-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U7-PRO (BE11000) Tri-Band 6-Stream Wi-Fi 7 Access...
Ubiquiti UniFi U6-Pro (AX5400) Dual-Band 6-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6+ (AX3000) Dual-Band 4-Stream Wi-Fi 6 Access...
Ubiquiti UniFi U6-LR (AX3000) Dual-Band 8-Stream Wi-Fi 6 Access...
_20250924132804.webp)
Ubiquiti UniFi U7-PRO-XGS (BE15000) Tri-Band 8-Stream Wi-Fi 7 Access Point with 10GbE x1 (PoE++ 29W) - Black
- Brand: Ubiquiti
- MPN: U7-Pro-XGS-B
- Part #: NAPUBI7705
Product URL: https://www.pbtech.co.nz/product/NAPUBI7705/Ubiquiti-UniFi-U7-PRO-XGS-BE15000-Tri-Band-8-Strea
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
The U7 Pro XGS Black is Ubiquiti's premium, ceiling- or wall-mounted Wi-Fi 7 access point, tailored for high-density enterprise environments such as campuses, hotels, and large offices. It operates on tri-band (2.4 GHz, 5 GHz, 6 GHz) with eight spatial streams (2x2 MIMO on 2.4 GHz and 6 GHz; 4x4 MIMO on 5 GHz), enabling total throughput of up to 8.6 Gbps on 5 GHz, 5.8 Gbps on 6 GHz, and 688 Mbps on 2.4 GHz. The combined aggregate bandwidth reaches approximately 15 Gbps, supporting over 500 simultaneous clients and covering around 160 m² (1,750 ft²).
Distinctively, the U7 Pro XGS features a dedicated spectral scanning radio that performs real-time interference analysis-optimizing channel selection and system performance in crowded wireless environments. Its fanless, flat-metal base design serves as a robust passive heat sink, enhancing reliability and reducing noise compared to earlier UniFi models.

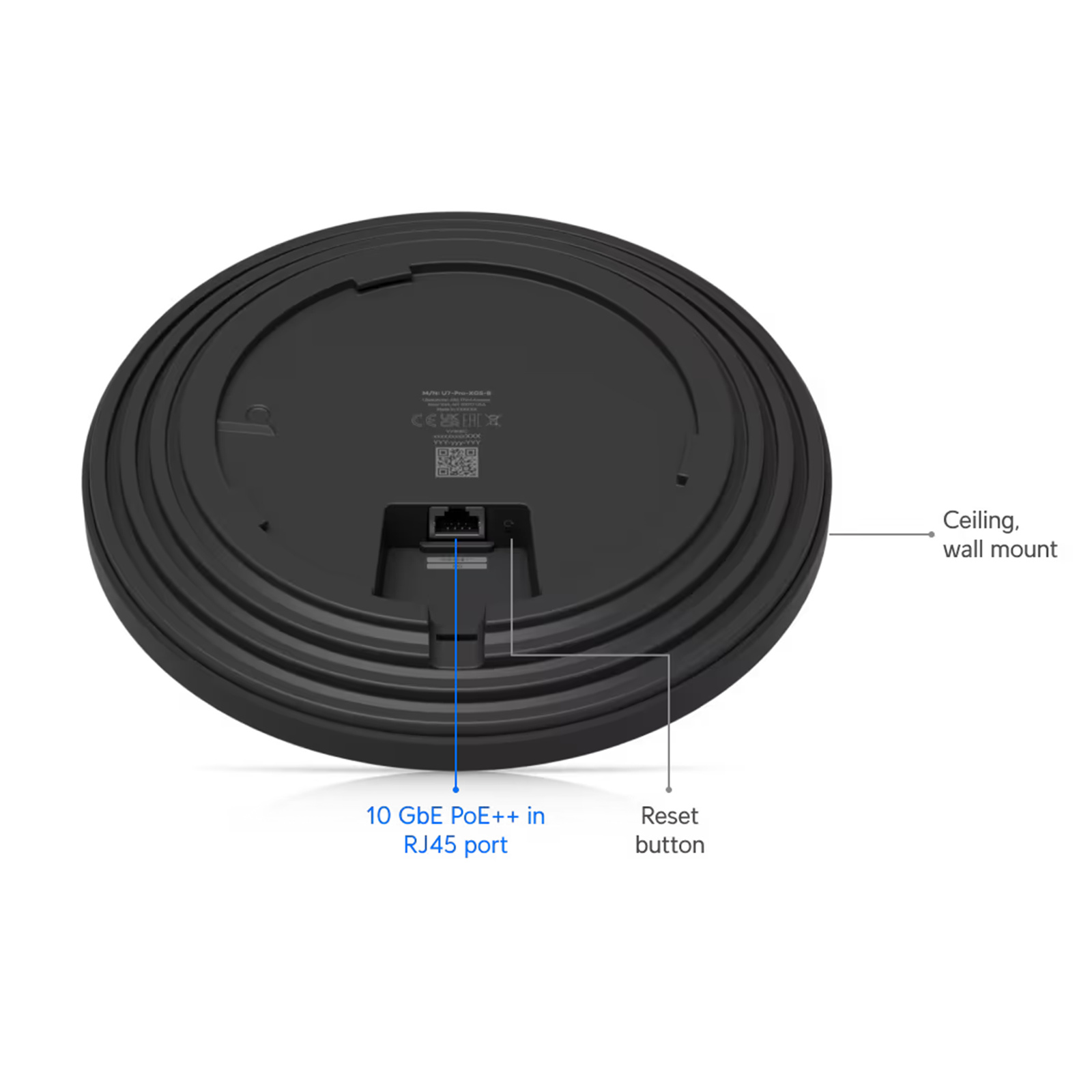

The device includes a single 10 Gigabit Ethernet (10GBASE-T) RJ45 port, backward-compatible with 5 G, 2.5 G, and 1 G speeds, and delivers power over PoE++ (802.3bt). It supports a voltage range of 42.5 - 57 V DC and consumes up to 29 W.
In terms of radio performance, the device offers antenna gain of 6 dBi on both the 5 GHz and 6 GHz bands, and 4 dBi on 2.4 GHz. The maximum transmit powers are rated at 29 dBm (5 GHz), 24 dBm (6 GHz), and 23 dBm (2.4 GHz). It supports up to eight BSSIDs per radio, and wide channel bandwidths-from 20 up to 240 MHz on 5 GHz, and up to 320 MHz on 6 GHz.
This access point integrates a full suite of enterprise software features, including band steering, mesh networking, 802.11k/r/v roaming, Zero-Wait DFS, Passpoint (Hotspot 2.0), spectral analysis, guest portal authentication (voucher, payment, PPSK, RADIUS/TLS, VLAN), client isolation, per-SSID speed limits, and schedule-based control. It requires UniFi Network Controller version 9.1.120 or later.
Specifications
General

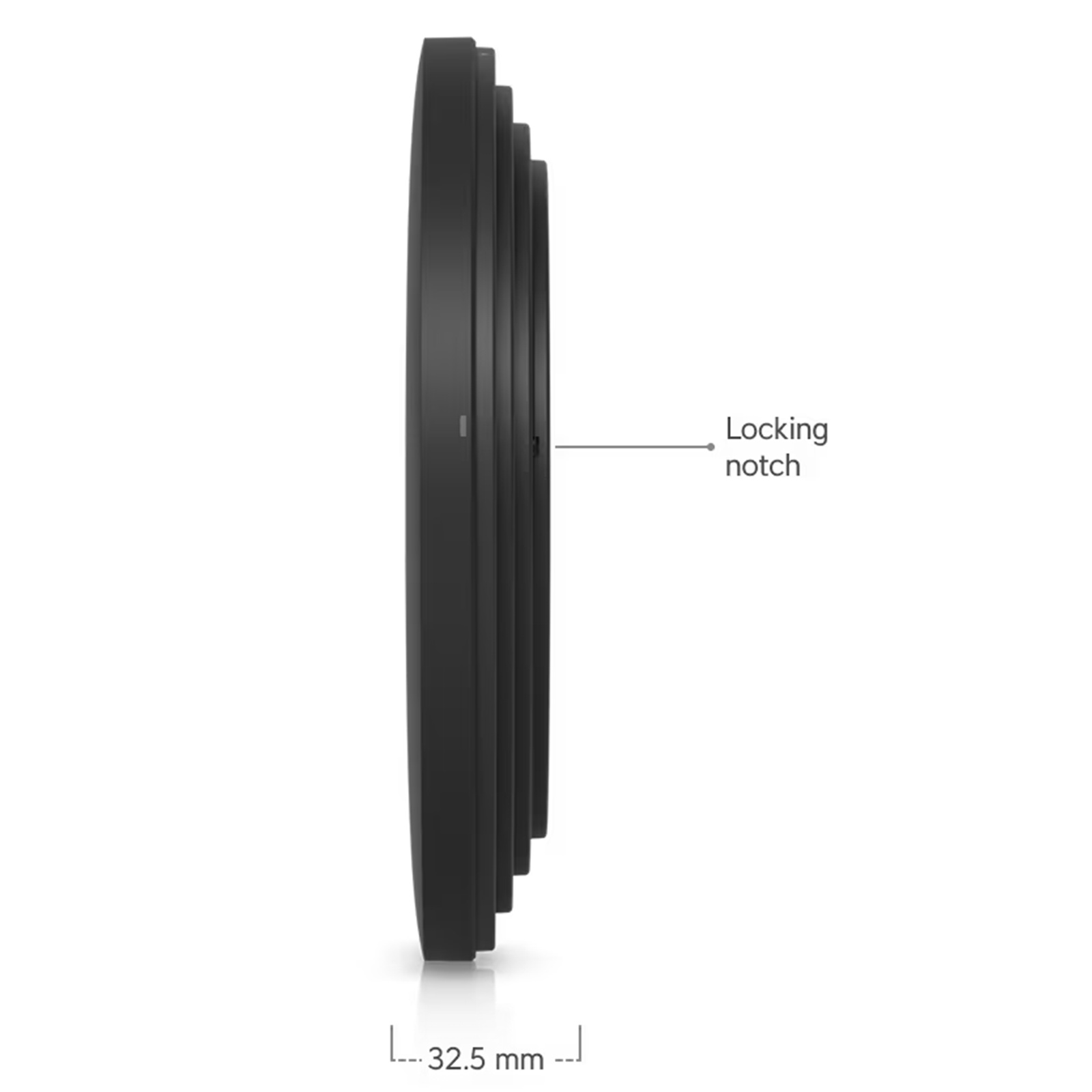

Dimensions
215 (diameter) x 32.5 mm
WiFi Standard
WiFi 7
Spatial Streams
8
Coverage Area
160 m² (1,750 ft²)
Max. Client Count
500+
Uplink
10 GbE
Mounting
Ceiling, Wall (Lite Mount Included)
Power Method
PoE++
Performance
MIMO
6 GHz: 2 x 2 (DL/UL MU-MIMO)
5 GHz: 4 x 4 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)
Max. Data Rate
6 GHz: 5.8 Gbps (BW320)
5 GHz: 8.6 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)
Antenna Gain
6 GHz: 6 dBi
5 GHz: 6 dBi
2.4 GHz: 4 dBi
Max. TX Power
6 GHz: 24 dBm
5 GHz: 29 dBm
2.4 GHz: 23 dBm
Max. BSSIDs
8 per Radio
Supported Data Rates
802.11be (WiFi 7)
6 GHz: 7.3 Mbps to 5.8 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/320)
5 GHz: 7.3 Mbps to 8.6 Gbps (MCS0 - MCS13 NSS1/2/3/4, EHT 20/40/80/160/240)
802.11ax (WiFi 6)
7.3 Mbps to 4.8 Gbps (MCS0 - MCS11 NSS1/2/3/4, HE 20/40/80/160)
802.11ac (WiFi 5)
6.5 Mbps to 3.4 Gbps (MCS0 - MCS9 NSS1/2/3/4, VHT 20/40/80/160)
802.11n
6.5 Mbps to 600 Mbps (MCS0 - MCS31, HT 20/40)
Features
Wireless Meshing
Yes
Band Steering
Yes
802.11v BSS Transition Management
Yes
802.11r Fast Roaming
Yes
802.11k Radio Resource Management (RRM)
Yes
Zero-Wait DFS
Yes
Advanced Radio Management
Yes
Real-Time Spectral Analysis
Yes
Passpoint (Hotspot 2.0)
Yes
Custom Branding Landing Page
Yes
Voucher Authentication
Yes
Payment-Based Authentication
Yes
External Portal Server Support
Yes
Password Authentication
Yes
Guest Network Isolation
Yes
Private Pre-Shared Key (PPSK)
Yes
WiFi Speed Limiting
Yes
Client Device Isolation
Yes
WiFi Schedules
Yes
RADIUS over TLS (RadSec)
Yes
Dynamic RADIUS-assigned VLAN
Yes
Hardware
Max. Power Consumption
29W
Supported Voltage Range
42.5-57V DC
Networking Interface
(1) 10 GbE RJ45 port
Weight
800 g (1.8 lb)
Management
Ethernet
Enclosure Material
UV-stabilized polycarbonate, aluminum alloy
Mount Material
Stainless steel (SUS304), galvanized steel (SGCC)
LEDs
System: White/Blue
Channel Bandwidth
HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240/320 (MHz)
NDAA Compliant
Yes
Certifications
CE, FCC, IC
Ambient Operating Temperature
-30 to 40° C (-22 to 104° F)
Ambient Operating Humidity
5 to 95% noncondensing
Software
Application Requirements
UniFi Network: Version 9.1.120 and later
