Features

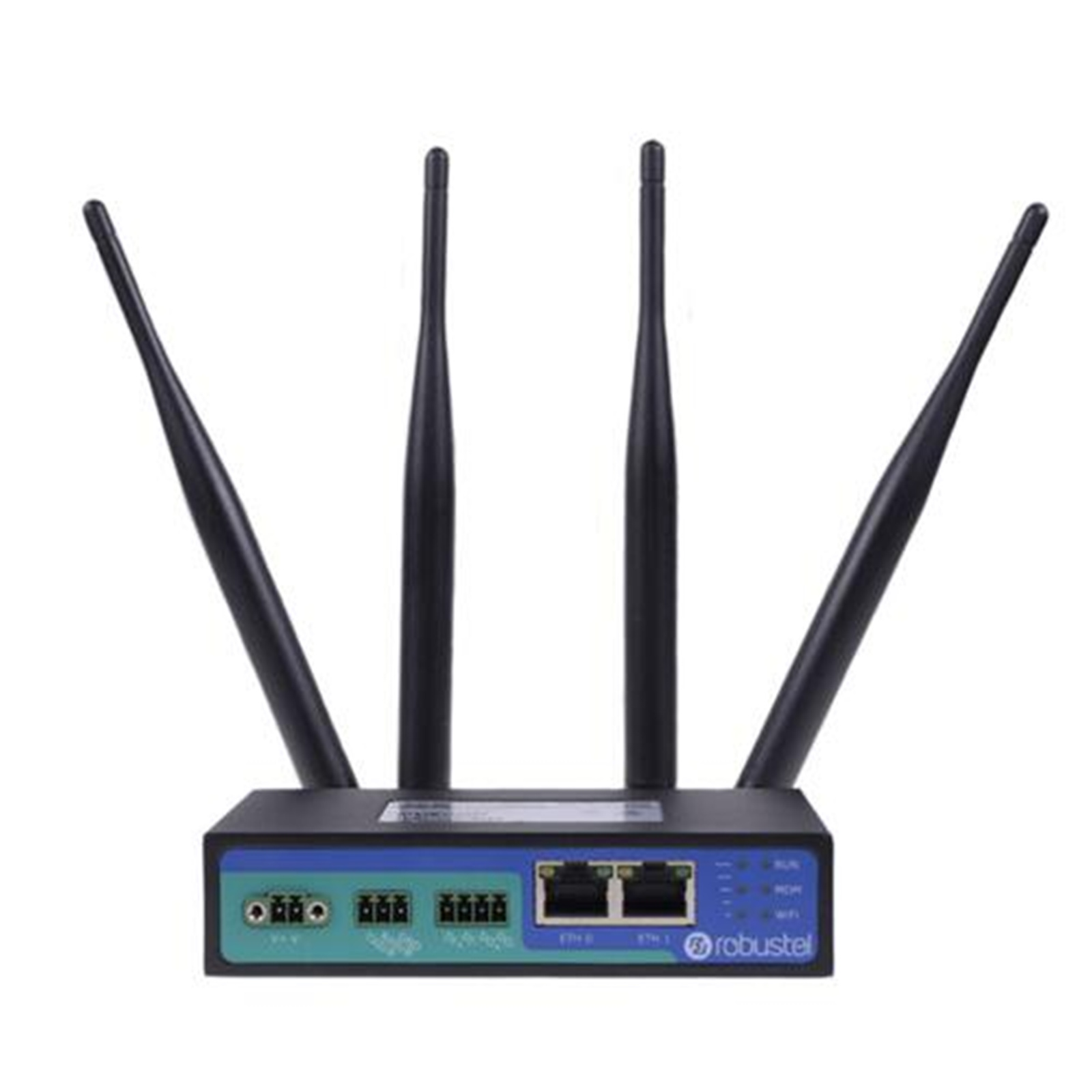

The Robustel R2010 Industrial Cellular Gateway is a rugged, versatile 4G Gateway with dual Ethernet ports, dual SIM single standby capability and a range of advanced functions for mission critical IoT or M2M applications.
The R2010 takes into account the varying budgetary, interface and connectivity requirements of customers to create a simple and cost-competitive networking solution for customers deploying IoT solutions in industrial environments such as water, gas, electricity, factory automation and warehousing.
- SIM redundancy for continuous cellular network connections
- Link Manager supports Cellular WAN, Ethernet WAN, WLAN WAN link backup and ICMP detection
- WAN - Static/DHCP Client
- RobustOS + SDK + Apps
- IPsec/OpenVPN/GRE/Wireguard VPN capabilities
- Management and maintenance via Web/RCMS Cloud
- Auto reboot via SMS/time schedule
- Robust industrial design (9 to 36 V DC, desktop or wall mounting or DIN rail mounting)
The R2010 runs on Robustel's own Linux based Operating System, RobustOS. Developed entirely in-house, this gives way to a very high standard of technical support and high reliability. Robustel offers a Software Development Kit (SDK) to allow additional customization by using C, C++. It also provides rich Apps to meet fragmented IoT market demands such as:
RobustVPN
Highly Flexible hosted VPN service so customers can easily enjoy a "?xed IP Gateway"
Data-Guard
Invaluable failsafe in case of a system failure and runaway data usage
Smart Reboot
SMS tool to push roaming SIMs from a non-working to working state
Smart Roaming
Provides you with device-assisted intelligent network selection for roaming SIMs to improve performance and reduce risk.
Application Example
Example R2010 Use Cases
Industrial PLC Connectivity
Keep production running with reliable remote access to PLCs and HMIs. Diagnose faster, reduce site visits, maintain secure telemetry between plant cells and control rooms.

ATM Connectivity
Protect transactions and cardholder data with encrypted tunnels. Maintain uptime across carriers, allow central monitoring and updates, and meet compliance requirements.

Environmental Monitoring
Connect sensors and PLCs in remote or harsh environments using RS-485, digital I/O, and Modbus, rugged enough for edge deployments in agriculture and utilities

Specifications
Cellular Interface
Number of antennas
2 (MAIN + AUX) or 1 (MAIN)
Connector
SMA-K

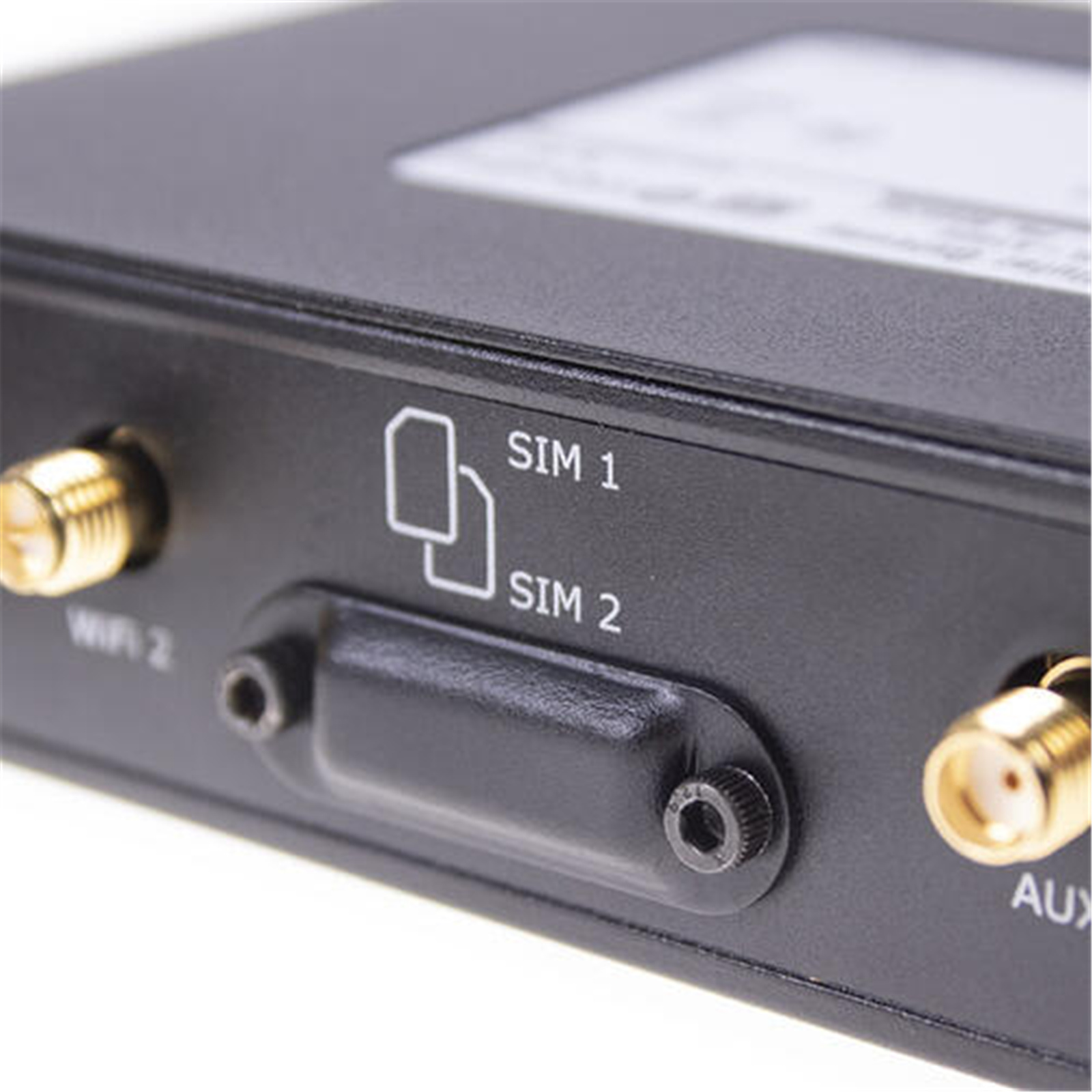

SIM
2 Mini SIMs (2FF)
Ethernet Interface
Number of ports
2 x 10/100 Mbps, 2 x LAN or 1 x LAN + 1 x WAN
WAN port
Supports 802.3at PD feature (optional)
Magnet isolation protection
1.5 KV
Wi-Fi Interface
Number of antennas
2 (Wi-Fi1 + Wi-Fi2)
Connector
RP-SMA-K
Standards
802.11 b/g/n, supporting AP and Client modes
Frequency bands
2.4 GHz
Security
WEP, WPA, WPA2
Encryption
64/128 AES, TKIP
Data speed
2 x 2 MIMO, 300 Mbps
DI/DO
Type
1 x DI, 1 x DO
Connector
1 x 4-pin 3.5 mm female socket
Signal definition
DI+, DI-, DO+, DO-
Serial Interface
Type
RS232 or RS485 (software configurable)
Connector
1 x 3-pin 3.5 mm female socket
Signal definition
RS232: TXD, RXD, GND RS485: A, B
Others
Reset button
1 x RST
LED indicators
1 x RUN, 1 x MDM, 1 x WIFI, 3 x RSSI
Built-in
Watchdog, Timer
Power Supply and Consumption
Connector
2-pin 3.5 mm female socket
Input voltage
9 to 36 V DC
Power consumption
Idle: 200 mA@12 V
Data link: 580 mA (peak)@12 V
Software (Basic features of RobustOS)
Network protocols
PPP, PPPoE, TCP, UDP, DHCP, ICMP, NAT, HTTP, HTTPs, DNS, ARP, BGP, RIP, OSPF, NTP, SMTP, Telnet, VLAN, SSH2, DDNS, etc.
VPN tunnel
IPsec, OpenVPN, GRE, WireGuard
Firewall
DMZ, anti-DoS, Filtering (IP/Domain name/MAC address), Port Mapping, Access Control
Remote management
Web, CLI, SMS
Serial port
Transparent, TCP Client/Server, UDP, Modbus RTU Gateway
SDK
Supported programming language
C, C++
Flash available for SDK
16 MB
RAM available for SDK
64 MB
Physical Characteristics
Ingress protection
IP30
Housing & Weight
Metal, 350 g
Dimensions
127 x 82 x 30 mm
Installations
Desktop, wall mounting and 35 mm DIN rail mounting
Operating temperature
-35 ~ +75°C
Storage temperature
-40 ~ +85°C
Relative humidity
5% ~ 95%
Regulatory and Type Approvals (*In progress)
Environmental
RoHS 2.0
EMI
EN 55032 Conducted Emission class B
EN 55032 Radiated Emission class B
EMS
IEC 61000-4-2 (ESD) Level 4
IEC 61000-4-3 (RS) Level 2
IEC 61000-4-4 (EFT) Level 2
IEC 61000-4-5 (Surge) Level 2
IEC 61000-4-6 (CS) Level 2
IEC 61000-4-11(DIP)
Frequencies supported
4G: LTE FDD: B1/B2/B3/B4/B5/B7/B8/B28, LTE TDD: B40
3G: WCDMA: B1/B2/B5/B8
2G: GSM: B2/B3/B5/B8
