TP-Link PHAROS CPE210 2.4GHz 300Mbps 5km+ 9dBi Outdoor CPE, Support AP/Client/Repeater/AP Router/WISP Mode
TP-Link PHAROS CPE210 2.4GHz 300Mbps 5km+ 9dBi Outdoor CPE, Support AP/Client/Repeater/AP Router/WISP Mode

Six easy payments of $15.28 per week*
Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.
Click the button below or select Laybuy as your payment method during the checkout process.
If you do not have a Laybuy account you will be able to create one at checkout.
*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $18.33 per fortnight*
humm lets you spread the cost of your purchase over 5 or 10 interest free payments.
Click the button below or select humm as your payment method during the checkout process.
If you do not have a humm account you will be able to create one at checkout.
*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm
What PB Tech customers are saying about this product...

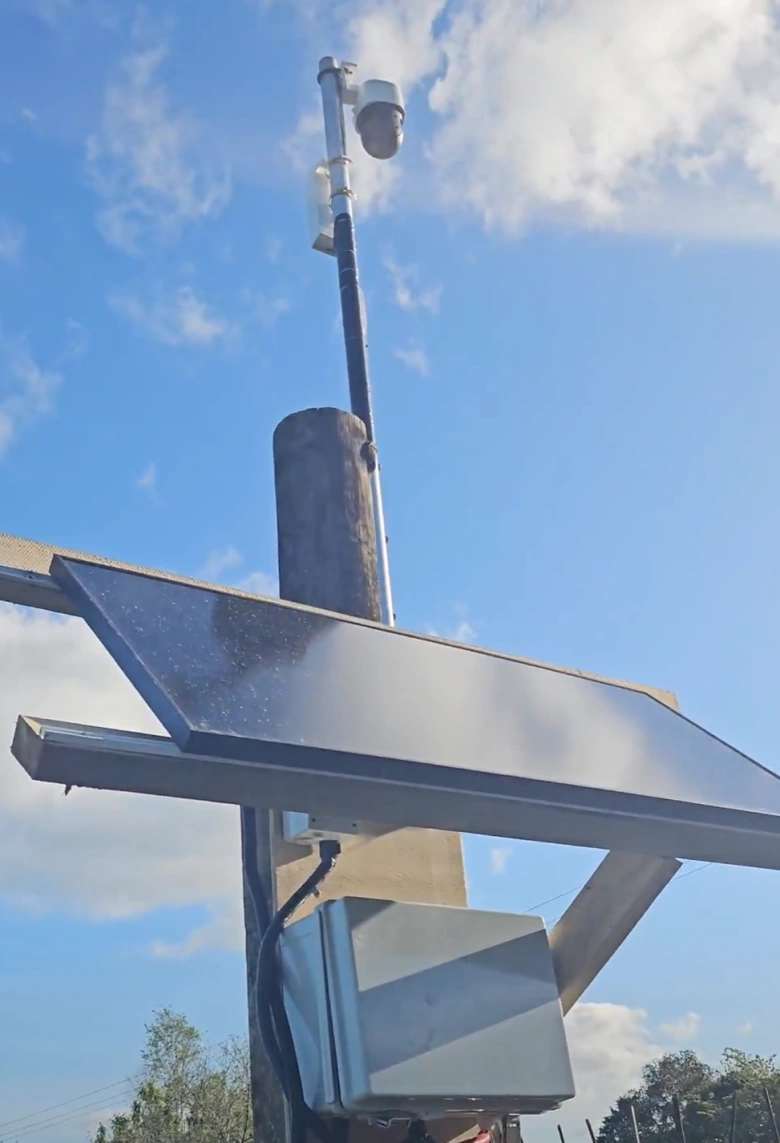

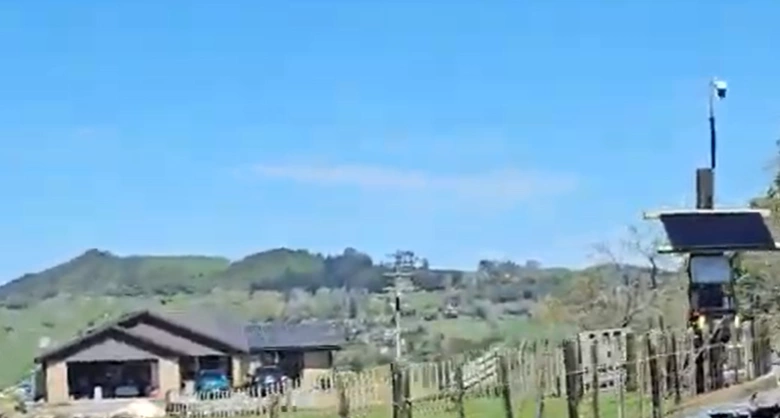

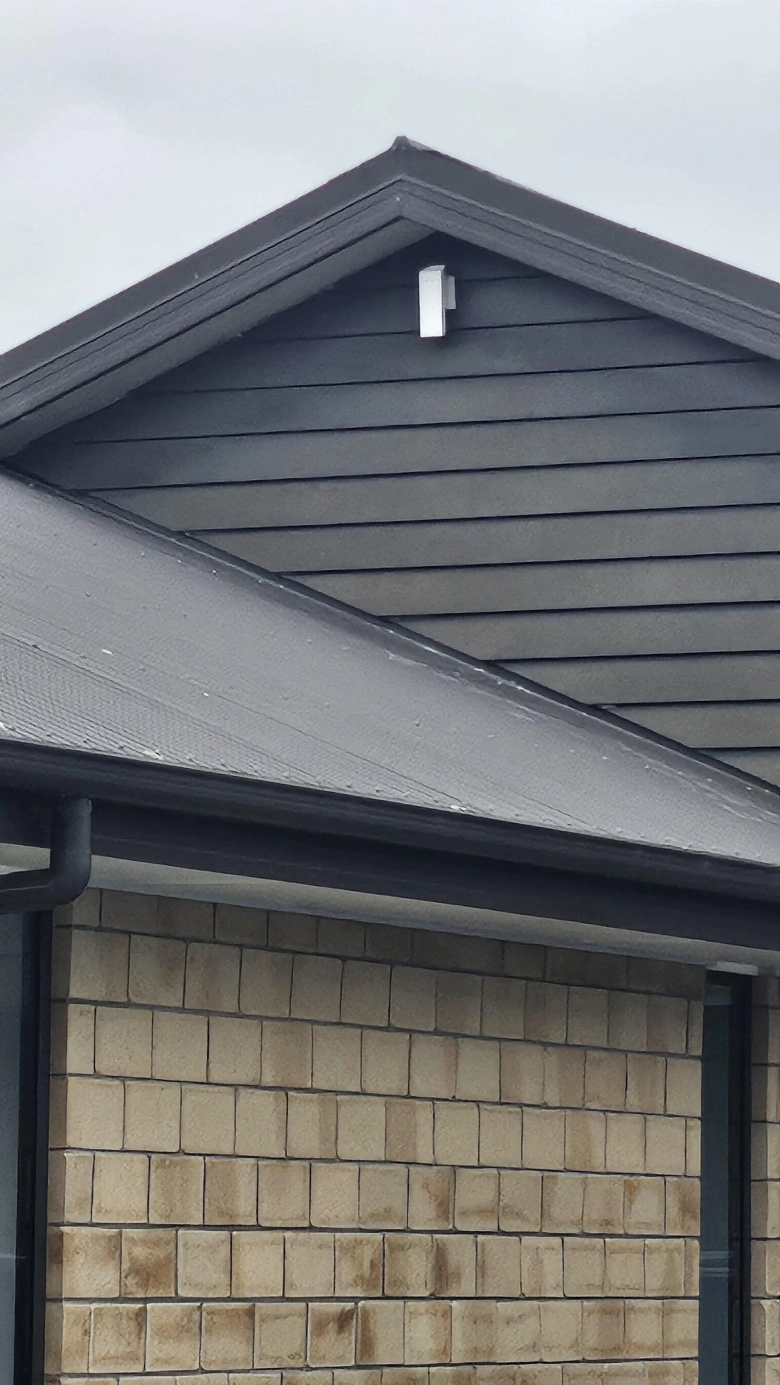

See More Reviews"Great P2P setup used on construction sites with limited internet capability."
"I bought this device in pair . Installed on my clients’s farm to send data one end to other approx 700 meters distance between sender and receiver . Works perfectly fine and with ...view more"
"Using two of these for a point to point rural WiFi extender and it couldn't have been easier. Just over a month in with no issues."
Similar in-stock products available at PB Tech right now
COMBO DEALS: Buy Together and SAVE!
This item: TP-Link PHAROS CPE210 2.4GHz 300Mbps 5km+ 9dBi Outdoor CPE, Support AP/Client/Repeater/AP Router...

Generic OPL-FTP6-10 10 Metre Cat6 FTP Outdoor Shielded Ethernet...
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Related Promotions
Popular CPE





TP-Link PHAROS CPE210 2.4GHz 300Mbps 5km+ 9dBi Outdoor CPE, Support AP/Client/Repeater/AP Router/WISP Mode
- Brand: TP-Link
- MPN: CPE210
- Part #: NETTPL0202

Product URL: https://www.pbtech.co.nz/product/NETTPL0202/TP-Link-PHAROS-CPE210-24GHz-300Mbps-5km-9dBi-Outdo
Branch | New Stock | On Display |
---|---|---|
Albany | 0 | |
Glenfield | 0 | |
Queen Street | 0 | |
Auckland Uni | 0 | |
Penrose | 0 | |
Henderson (Express) | 0 | |
St Lukes | 0 | |
Manukau | 0 | |
Hamilton | 0 | |
Tauranga | 0 | |
New Plymouth | 0 | |
Palmerston North | 0 | |
Petone | 0 | |
Wellington | 0 | |
Head Office | 0 | |
Hornby | 0 | |
Christchurch Central | 0 |
Features
2.4GHz 300Mbps 9dBi Outdoor CPE
-Built-in 9dBi 2x2 dual-polarized directional MIMO antenna
-Adjustable transmission power from 0 to 27dBm/500mw
-System-level optimizations for more than 5km long range wireless transmission
-TP-LINK Pharos MAXtream TDMA (Time-Division-Multiple-Access) technology improves product performance in throughput, capacity and latency performance, ideal for PTMP applications
-Centralized Management System - Pharos Control
-AP / Client / Bridge / Repeater / AP Router / AP Client Router (WISP) operation modes
-Passive PoE Adapter supports up to 60 meter (200 feet) Power over Ethernet deployment and allows the device to be reset remotely
Specifications
Qualcomm Atheros 560MHz CPU, MIPS 74Kc
Memory
64MB DDR2 RAM, 8MB Flash
Interface
1 10/100Mbps Shielded Ethernet Port (LAN0,Passive PoE in)
1 10/100Mbps Shielded Ethernet Port (LAN1, Passive PoE Passthrough)
1 Grounding Terminal
1 Reset Button
Power Supply
Passive Power over Ethernet via LAN0 (+4,5pins; -7,8pins)
Voltage range: 16-27VDC
Dimensions (W X D X H)
224 x 79 x 60 mm
Power Consumption
10.5 Watts Max
Note: When deployed using Passive PoE, the power drawn from the power source will be higher by some amount depending on the length of the connecting cable.
Antenna Type
Built-in 9dBi 2x2 Dual-polarized Directional Antenna
Beam Width: 65° (H-Plane) / 35° (E-Plane)
Note: For more details, please refer to datasheet
Protection
15KV ESD Protection
6KV Lightning Protection
Enclosure
Outdoor ASA stabilized plastic material
IPX5 waterproof Certification
