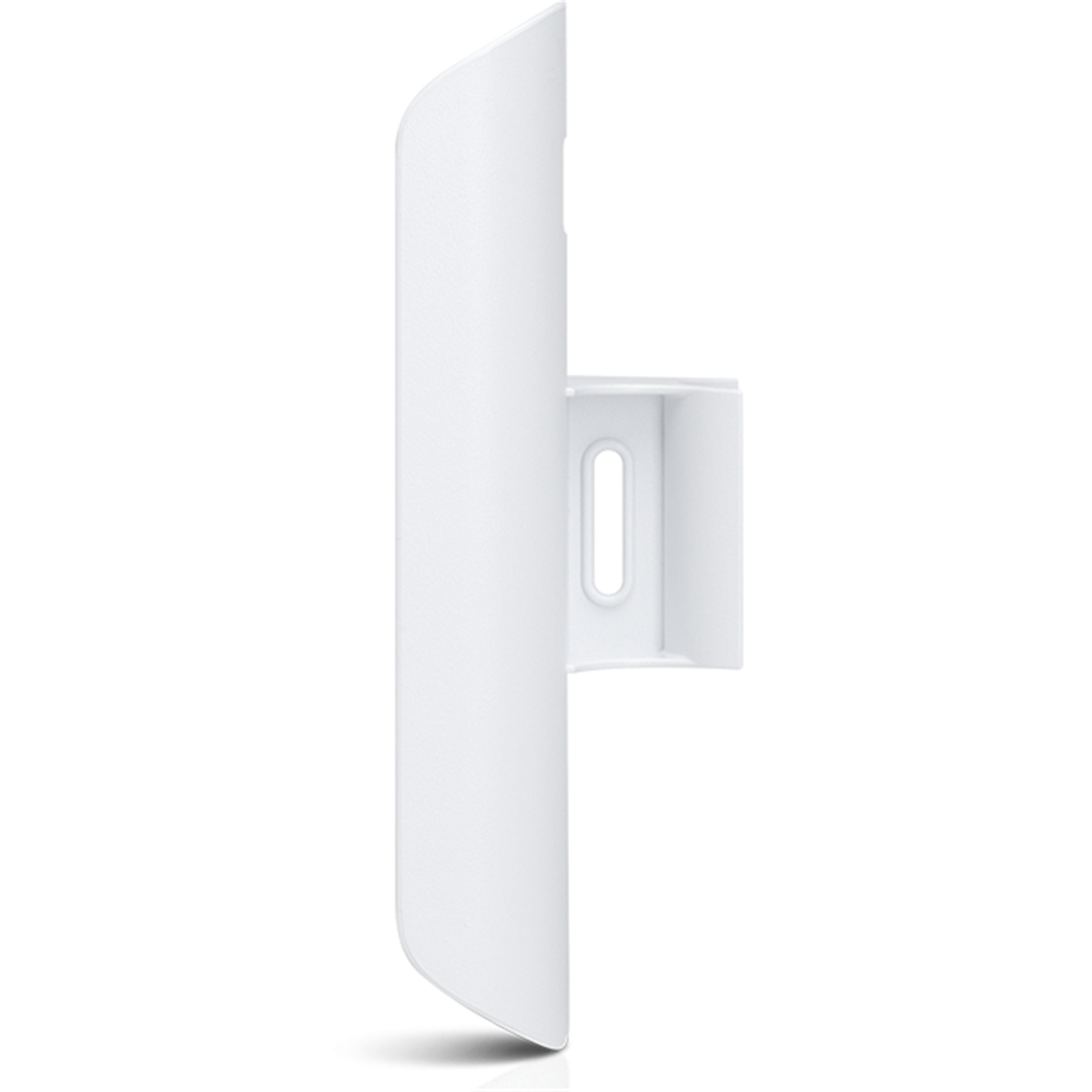

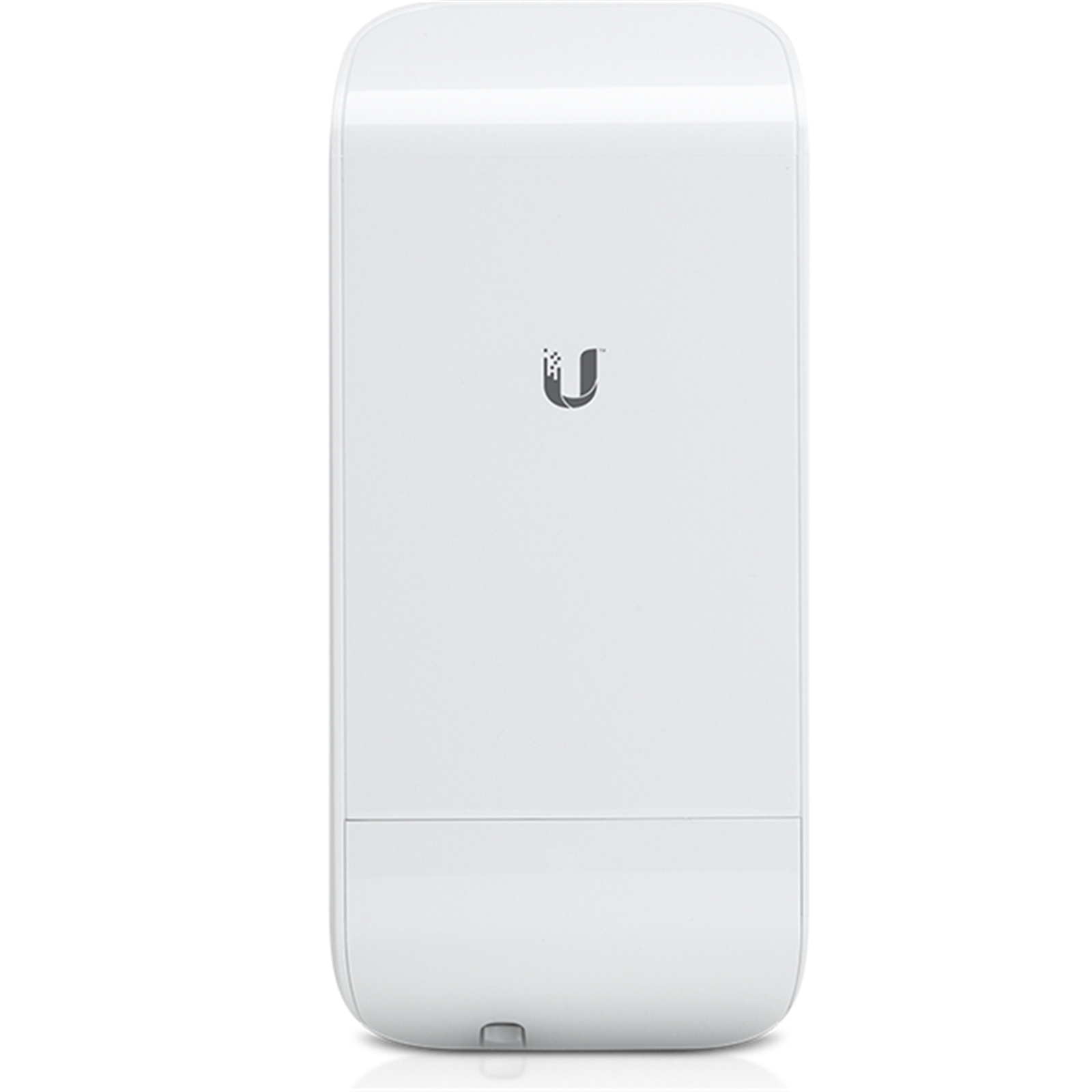

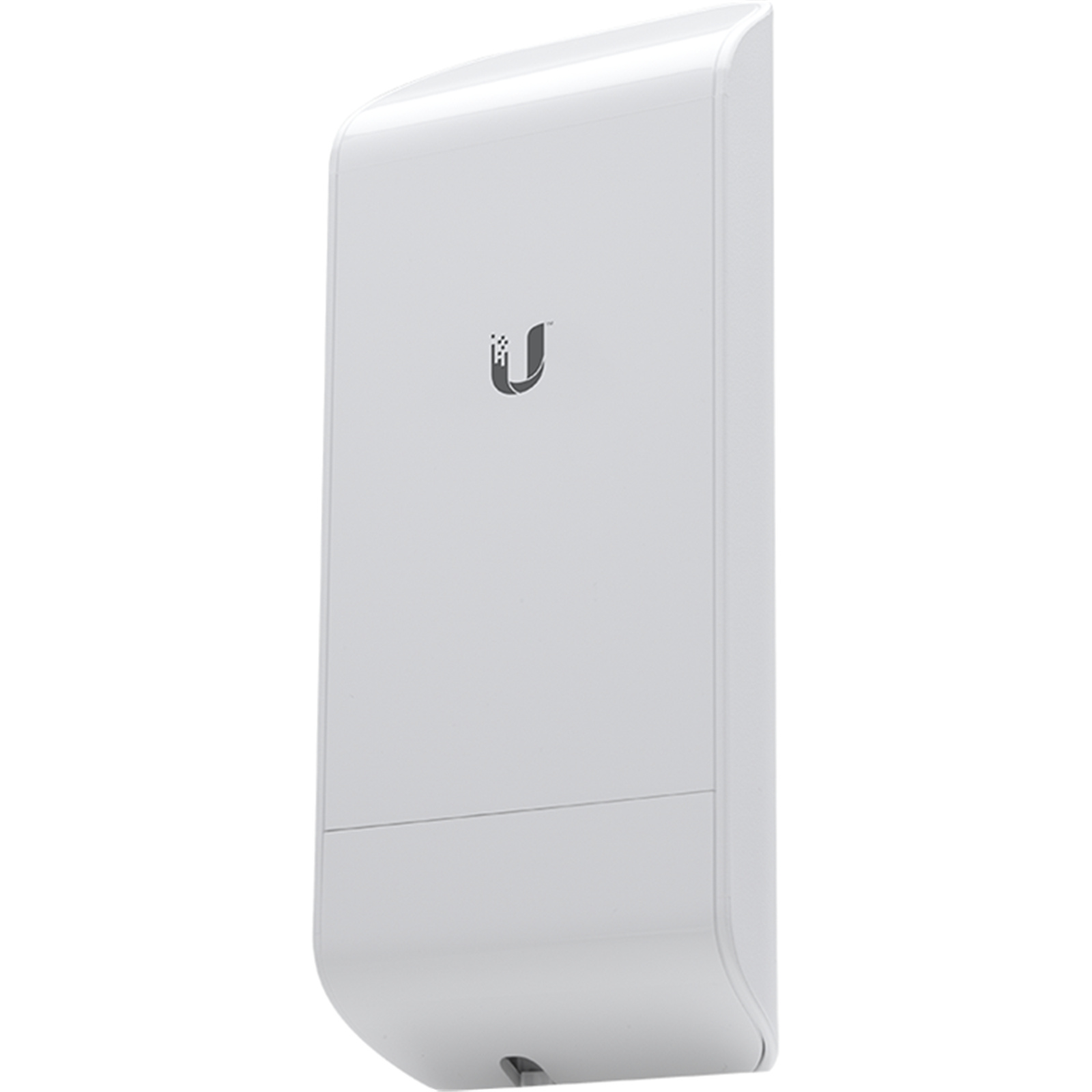

Ubiquiti NanoStation LocoM2 Outdoor airMAX CPE 2.4GHz, 150+ Mbps, 5+ km, 1 x 10/100 Ethernet Ports AP/Bridge

PB Tech price
PB Tech price
$ 98 .21
 +GST
$ 112 .94
 inc GST
$98.21  +GST
$112.94

Ubiquiti NanoStation LocoM2 Outdoor airMAX CPE 2.4GHz, 150+ Mbps, 5+ km, 1 x 10/100 Ethernet Ports AP/Bridge

Experience powerful WiFi! Extend your connection up to 200m with robust signal strength.
  • Brand: Ubiquiti
  • MPN: LocoM2
  • Part #: NETUBI1072
  • UPC: 817882023245
31
PB Tech price
$ 98 .21 $ 112 .94
 +GST  inc GST
Tax free price $104.10*
*Price includes surcharge


Click & Collect: Available from 13 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$98.21  +GST
$112.94

Four payments of $28.52 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Ubiquiti
  • MPN: LocoM2
  • Part #: NETUBI1072
  • UPC: 817882023245

Ethernet Ports

1

WiFi Bands

Single

Wireless Transmission Speed

150Mbps

USB Ports

None

Wireless Technology

N/A

What PB Tech customers are saying about this product...

See More Reviews

Customer Review Summary

"Customers were thrilled with the Ubiquity LocoM2's strong performance, boasting consistent, high-speed connectivity over vast distances, even through obstacles such as trees and ro ...view more"

AI avatar icon
Summarised by AI 05/12/24
AI Bot

"Awesome - had an issue with coverage to outside studio, connected this system (which was simple) and have had trouble free connection to internet, with good speed connection."

KC
By: KirstyC34 10/09/24
Verified Owner

"Works 100 as advertised, unboxed the two units, configured them as described online, put them on 2 metre poles on the roofs of two house 150 metres apart, plugged them in and bing ...view more"

BD
By: BruceD19 14/08/15
Verified Owner

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Ubiquiti NanoStation LocoM2 Outdoor airMAX CPE 2.4GHz, 150+ Mbps, 5+...
Ubiquiti NanoStation LocoM2 Outdoor airMAX CPE 2.4GHz, 150+ Mbps, 5+ km, 1 x 10/100 Ethernet Ports AP/Bridge
Total:
$ 234 .94
 +GST
$ 270 .18
Buy together and save $8.04 $9.25
TP-Link Archer C20 (AC750) Dual-Band WiFi 5 Router
TP-Link Archer C20 (AC750) Dual-Band WiFi 5 Router

TP-Link Archer C20 (AC750) Dual-Band WiFi 5 Router

Collect from 11 stores by 9:23am today
Ships today
$60.00 $69.00

$57.05  +GST

$65.61

You save 4% You save 4%
Cruxtec 5m Cat6 Ethernet Cable -  Black Color
Cruxtec 5m Cat6 Ethernet Cable -  Black Color

Cruxtec 5m Cat6 Ethernet Cable - Black Color

Collect from 18 stores by 9:23am today
Ships today
$9.60 $11.04

$8.00  +GST

$9.20

You save 16% You save 16%
Ubiquiti U-POE-af Passive PoE Injector (Only work with 48V 802.3af PoE devices)
Ubiquiti U-POE-af Passive PoE Injector (Only work with 48V 802.3af PoE devices)

$21.00  +GST

$24.15

TP-Link TL-SF1005P 5-Port 10/100M Unmanaged PoE Switch 4-Port PoE (Max 58W)
TP-Link TL-SF1005P 5-Port 10/100M Unmanaged PoE Switch 4-Port PoE (Max 58W)
$53.91 $62.00

$50.68  +GST

$58.28

You save 5% You save 5%

Features

The Ubiquiti Nanostation LocoM2 is the perfect solution for creating a dedicated Point to Point or Point to Multipoint connection between locations where running an ethernet cable is not a viable option. The Ubiquiti Nanostation LocoM2 can also be used for extending wireless coverage outdoors or to remote buildings to provide direct Wi-Fi access to mobile devices.

Plug and Play Installation

The NanoStation®M requires no tools for assembly; only a single wrench is required for pole-mounting.


Performance Breakthrough

Up to 100Mbps real outdoor throughput and up to 1km+ range. Featuring 2x2 MIMO technology, the new Ubiquiti NanoStation links significantly faster and farther than ever before.

New Leading-Edge Industrial Design

The original NanoStation set the bar for the world's first low-cost and efficiently designed outdoor broadband CPE. The new Ubiquiti NanoStation M and NanoStation Loco M take the same concept to the future with new redesigned sleek and elegant form-factors.

Next-Gen Antenna Design

New Ubiquiti antenna array designs featuring 8dBi dual-polarity gain at 2.4GHz. Optimized cross-polarity isolation and in a compact form-factor.

AirOS V

Ubiquiti's AirOS builds upon the market leading intuitive user-interface loaded with advanced wireless configurations and routing functionality.


What's In The Box


Specifications

Dimensions

161 x 31 x 80 mm

Weight

180 g

Power Supply

(PoE) 24V, 0.5A 24V, 0.5A

Max. Power Consumption

5.5W 5.5W

Power Method

Passive PoE (Pairs 4, 5+; 7, 8 Return)

Operating Frequency

2412-2462 MHz

Gain

8.5 dBi

Networking Interface

(1) 10/100 Ethernet Port

Processor Specs

Atheros MIPS 24Kc, 400 MHz

Memory

32 MB SDRAM, 8 MB Flash

Frequency

2.4 GHz

Cross-pol Isolation

20 dB Minimum

Max. VSWR

1.4:1

Beamwidth

60° (H-pol) / 60° (V-pol) / 60° (Elevation)

Polarization

Dual Linear

Enclosure

Outdoor UV Stabilized Plastic

Mounting

Pole-Mount (Kit Included)

Operating Temperature

-30 to 75° C (-22 to 167° F)

Operating Humidity

5 to 95% Noncondensing

Wireless Approvals

FCC Part 15.247, IC RS210, CE

RoHS Compliance

Yes

Shock & Vibration

ETSI300-019-1.4

What's In the Box

- NanoStation
- Cable Tie
- PoE Adapter (24V, 0.5A) with Mounting Bracket
- Power Cord
- Quick Start Guide

Manufacturer Part No:
LocoM2
Brand:
Product Type:
Outdoor airMAX CPE
UPC
817882023245
Product Family:
NanoStation
Shipping Weight:
0.49 kg
PB Part No:
NETUBI1072
Product Model:
LocoM2
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.6 out of 5 Stars Based on 31 reviews
5 Stars
23
4 Stars
5
3 Stars
3
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Great performance, setup is smooth!

As per comments below following a YouTube video will ensure smooth setup :)
I thought this would need pinpoint accuracy ... but it is incredible how the 2 stations can send/receive - after setting up I took the receiving unit to the shed about 200 metres away and plugged it in and it received the sender signal while inside lying on the bench behind closed doors!
Suffice to say they have a very broad strong signal spread - I have turned the power down to 4 on both send and receive and the transmission strength and quality is great!
Plugged into a wi-fi router and now the shed has wifi with great Speddtest results :)
Highly recommend !!

JW
By: JamieW96 14/01/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Good product but wrong plug

The product is great, works well however it arrived with a US plug instead of NZ which is a pain if you don't have any spares

G
By: Guest 07/11/22
0 out of 0 users found this review helpful
Did you find it helpful?

Really affordable access point

I bought this with the intention to extend the Wi-Fi (e.g. access point or in layman's terms it allows me to use my mobile phone to connect to the internet) into our garden which at it's furthest point would be about 100m from the house - signal strength was still 3 bars on my phone at that range so ideal but could go further. Device works perfectly but not the most straightforward to setup unless you work in IT. To set this up to extend your Wi-Fi signal I recommend watching this video which tells you exactly how to do that.

https://www.youtube.com/watch?v=r1ruM6skrus

NT
By: NeilT97 20/10/22
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

great product

We have a pair linking the house to another house on a rural property , i guess 300m with trees and the box at the far end is inside the house next to the TV on a table and it still streams netflix just fine, been installed for 2.5 years

G
By: Guest 15/06/22
0 out of 0 users found this review helpful
Did you find it helpful?

works incredibly well

Beaming the internet over 300m, works really well, have them mounted on the roof of both buildings. from my experience they did not work just mounting in the ceiling cavity, they had to be outside.
Been using them for about 2 weeks now, through storms and bad weather, never missed a beat, would highly recommend.
found the YouTube video at following link very helpful in the set up process. https://www.youtube.com/watch?v=kQP6QNhNWUo

AW
By: AllyW9 14/06/22
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Great system for spreading your web

Reasonably simple setup if you can configure a router - plenty of YouTube guides also.
Can configure as an access point for wi-fi access or point to point to send your data to an outlying building etc.
Small and light, easy to mount on anything.
Sweet delivery from PB Tech as per usual :)

JW
By: JamieW96 26/05/22
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Great for the price.

Useful for setting up a quick wireless bridge.

PM
By: PaulM34 30/09/21
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

A great Purchase

Great product. Very easy to set up.

PW
By: PeterW422 24/09/21
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

A great purchase for price

Worked well but stopped working after a couple of weeks. PB Tech unable to replace under warranty do to Covid supply issues so offered refund. Good service from PB Tech.
Since purchased another and all working well.

PL
By: PeterL346 16/08/21
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Great Value

Great value works as described

TS
By: TristanS2 10/05/21
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Perfect rural link

Used this product to link two rural buildings about 300m apart through a gap in trees. Worked perfectly.

RG
By: RodG57 28/12/20
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Great purchase

Happy with the product.

TS
By: TvsignalS 06/10/20
0 out of 0 users found this review helpful
Did you find it helpful?
