Raspberry Pi New Model 3 B+ Quad Core 1.4G WIFI Dual band 2.4G 5G POE Ethernet (POE Hat Need Purchase) The Newest Rappberry Pi Mainboard Offical Raspberry Pi Reseller

HOT PRICE

Raspberry Pi New Model 3 B+ Quad Core 1.4G WIFI Dual band 2.4G 5G POE Ethernet (POE Hat Need...

  • Brand: Raspberry Pi
  • MPN: 2842228
  • Part #: SEVRBP0126
  • UPC:713179640259
PB Tech price:PB Tech price:
$5500$6325
 +GST  inc GST

Store Pickup: Select your store to check availability
Delivery: Order now and it ships tomorrow
When will I receive it?

What PB Tech customers are saying about this product...See More Reviews

"Purchased for use with retropie. Fantastic device, no issues in setup. Recommended"
 Laz ~ 07-02-19
"This is a great little board to run octoprint!"
 Guest ~ 26-01-19
"Raspberry Pi is a credit-card sized (but fatter) ARM computer with most of the buzzwords. HDMI, GPIO, USB, Ethernet, WiFi and even Bluetooth on the 3B+. All for only 10-12W.
..."
 Gerard ~ 25-01-19

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Raspberry Pi New Model 3 B+ Quad Core 1.4G WIFI Dual band 2.4G 5G...
Raspberry Pi New Model 3  B+ Quad Core 1.4G   WIFI  Dual band 2.4G 5G POE Ethernet (POE Hat Need Purchase) The Newest Rappberry Pi Mainboard Offical Raspberry Pi ResellerSamsung EVO PLUS 32GB Micro SD with Adapter, up to 95MB/s Read, 20MB/s WriteRaspberry Pi Official White HDMI Cable 2m Male to Male HDMI 2.0 with Ethernet and Audio Return Channel Support 3D, 4K, 2160P/60Hz and X.V.colour
Total:
$8313
 +GST
$9560
 inc GST
Buy together and save $2.39$2.75
This item: Raspberry Pi New Model 3 B+ Quad Core 1.4G WIFI Dual band 2.4G 5G POE Ethernet (POE Hat Need...
$55.00 +GST$63.25 inc GST
Samsung EVO PLUS 32GB Micro SD with Adapter, up to 95MB/s Read, 20MB/s Write  View Product
$16.52$19.00 $15.13 +GST$17.40 inc GST(Buy together and save $1.39$1.60)
Raspberry Pi Official White HDMI Cable 2m Male to Male HDMI 2.0 with Ethernet and Audio Return Channel Support 3D, 4K, 2160P/60Hz and X.V.colour  View Product
$14.00$16.10 $13.00 +GST$14.95 inc GST(Buy together and save $1.00$1.15)

Features

NOTE: There is no click-in and click-out design for card reader on Raspberry Pi 3. You just need to insert your TF Card to bottom of card reader or pull card out directly.






The Raspberry Pi 3 Model B+ is the latest product in the Raspberry Pi 3 range,boasting a 64-bit quad core processor running at 1.4GHz, dual-band 2.4GHz
and 5GHz wireless LAN, Bluetooth 4.2/BLE, faster Ethernet, and PoE capability via a separate PoE HAT.

The dual-band wireless LAN comes with modular compliance certification, allowing the board to be designed into end products with significantly reduced
wireless LAN compliance testing, improving both cost and time to market.

The Raspberry Pi 3 Model B+ maintains the same mechanical footprint as both the Raspberry Pi 2 Model B and the Raspberry Pi 3 Model B.



Obsolescence Statement

The Raspberry Pi 3 Model B+ will remain in production until at least January 2023.

NOTE: You will need to download the latest version of NOOBS / Raspbian for this board to function. Older versions will result with a "Rainbow Screen" along with a "Lightning Bolt" symbol.

The newest version of NOOBS (Offline and network install) is 2.7.0 which was released on 14/03/2018. Download link: HERE.

The newest version of RASPBIAN (Image with desktop based on Debian Stretch) is 4.9 which was released on 13/03/2018. Download link: HERE

Specifications

Product Brief, Mechanical Drawings, And Schematics
Raspberry Pi 3 Model B+ product brief

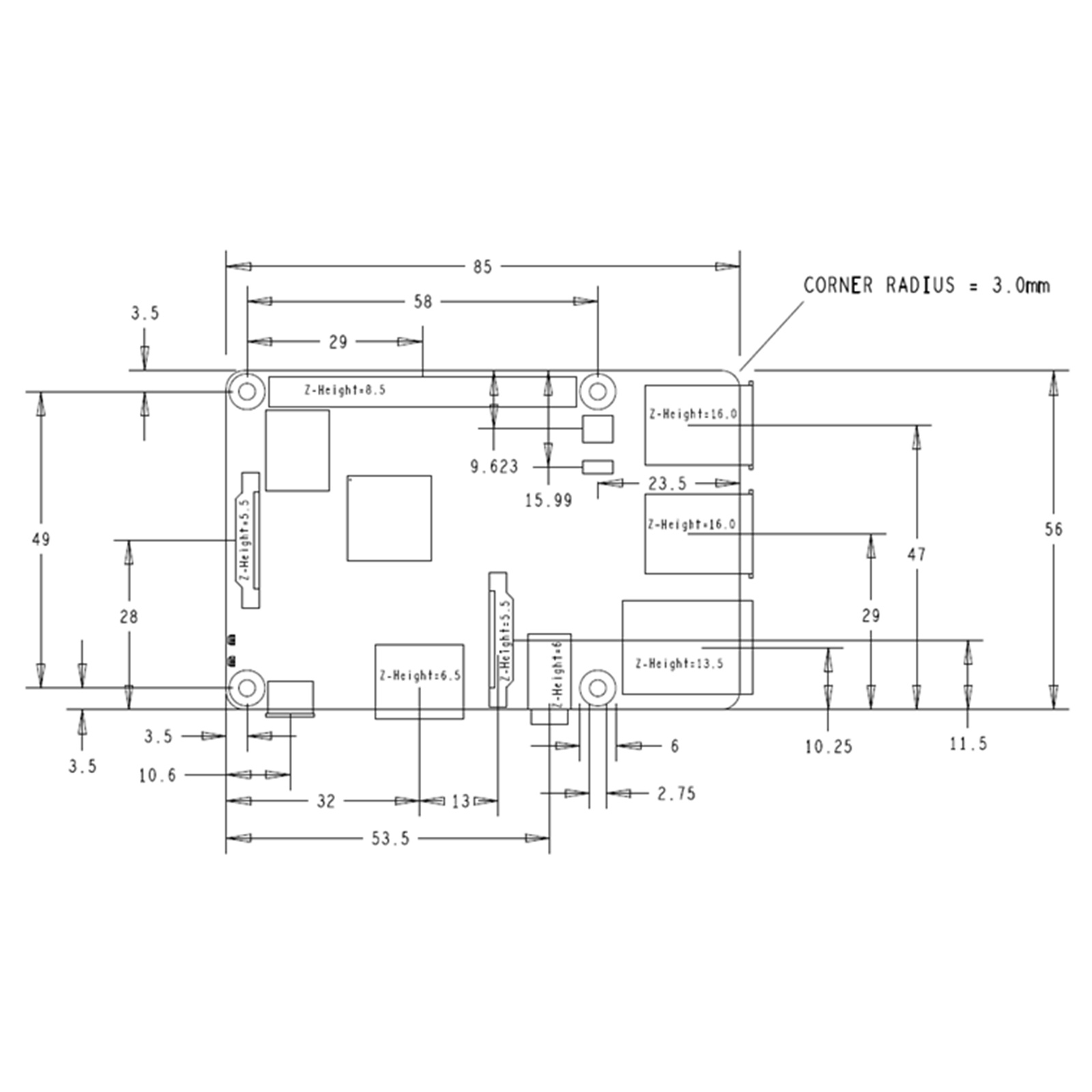

Raspberry Pi 3 Model B+ mechanical drawing
Raspberry Pi 3 Model B+ schematic diagrams

Hardware Specifications
More detailed information on Raspberry Pi hardware is available.

Processor
Broadcom BCM2837B0, Cortex-A53 64-bit SoC @ 1.4GHz

Memory
1GB LPDDR2 SDRAM

Connectivity
- 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
- Gigabit Ethernet over USB 2.0 (maximum throughput 300Mbps)
- 4 × USB 2.0 ports

Access Extended
40-pin GPIO header

Video & sound
- 1 × full size HDMI
- MIPI DSI display port
- MIPI CSI camera port
- 4 pole stereo output and composite video port

Multimedia
H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30); OpenGL ES 1.1, 2.0 graphics

SD card support
Micro SD format for loading operating system and data storage

Input power
- 5V/2.5A DC via micro USB connector
- 5V DC via GPIO header
- Power over Ethernet (PoE)-enabled (requires separate PoE HAT)

Environment Operating temperature
0-50°C

Compliance
For a full list of local and regional product approvals, please visit http://www.raspberrypi.org/products/raspberry-pi-3-model-b+

Manufacturer Part No: 2842228 Brand: Raspberry Pi Product Type: -
UPC 713179640259 Product Family: - Shipping Weight: 0.3 kg
PB Part No: SEVRBP0126 Product Model: New Model 3 B+

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Customer Questions & Answers

Want to know something about this product? Ask a question which other users may be able to answer.
Question:
Does Pi3B+ need heatsinks? Do they come installed?
Asked by: John ONeill on 15 May 2018

Reviews

4.8 out of 5 StarsBased on 25 Reviews

5 Stars
21
4 Stars
4
3 Stars
0
2 Stars
0
1 Star
0

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW
Displaying 1 - 12 of 25 reviews
Mark

Raspberry Pi 3 Model B+

24 July 2018
Great little power house linux server. I had to replace our old Pi3 as a lightning strike fizzed the HDMI interface. Otherwise reliable product.
Did you find it helpful?
1 out of 1 user found this review helpful
Laz

Raspberry Pi Model 3 B+

7 February 2019
Purchased for use with retropie. Fantastic device, no issues in setup. Recommended
Did you find it helpful?
0 out of 0 users found this review helpful
Guest

Excellent

26 January 2019
This is a great little board to run octoprint!
Did you find it helpful?
0 out of 0 users found this review helpful
Gerard

Best Raspberry Pi to date

25 January 2019
Raspberry Pi is a credit-card sized (but fatter) ARM computer with most of the buzzwords. HDMI, GPIO, USB, Ethernet, WiFi and even Bluetooth on the 3B+. All for only 10-12W.
This one is loaded up with Raspbian and is running yet another home automation task in my bookshelf.
Did you find it helpful?
0 out of 0 users found this review helpful
Guest

Good Raspberry Pi

21 January 2019
Good product but remember you need a power adaptor and likely a case. Doesn't run too hot. Just a get a case with a good heatsink, don't get one with a fan.
Did you find it helpful?
0 out of 0 users found this review helpful
Aaron M.
VERIFIED OWNER

Fun wee project!

27 December 2018
Snagged one for emulator purposes, and does a really good job once you locate a couple of how to's :D
Did you find it helpful?
0 out of 0 users found this review helpful
Mr J.
VERIFIED OWNER

RetroPie machine

23 November 2018
Great for RetroPie with Bluetooth Built in use that PS3 controller.
Just be aware to get the right image not all images are compatible with the B+ yet
Did you find it helpful?
0 out of 0 users found this review helpful
Henry S.

love it

15 October 2018
using as a network controller in a Ubiquiti network.
Did you find it helpful?
0 out of 0 users found this review helpful
Jonathan G.
VERIFIED OWNER

pretty cool

22 September 2018
now having higher speed networking is great, just make sure you get proper cooling for it otherwise it will overheat
Did you find it helpful?
0 out of 0 users found this review helpful
Gabor A.

as  expected

17 September 2018
I bought this to run OctoPi/OctoPrint on it for my 3D Printer and it does the job perfectly. Setup is easy and support is readily available on the manufacturer's website.
It's an amazing product.
Did you find it helpful?
0 out of 0 users found this review helpful
Mike

Raspberry Pi New Model 3 B+ Quad Core 1.4G WIFI

13 September 2018
This little unit has great power under the hood to stream HD video over wifi. All I can say is it just works perfectly. I have not come across any cons and it's been working flawlessly since I turned it on two weeks ago.
Did you find it helpful?
0 out of 0 users found this review helpful
Jackson D.

Fantastic product

2 September 2018
Exactly as stated and more!
Did you find it helpful?
0 out of 0 users found this review helpful
