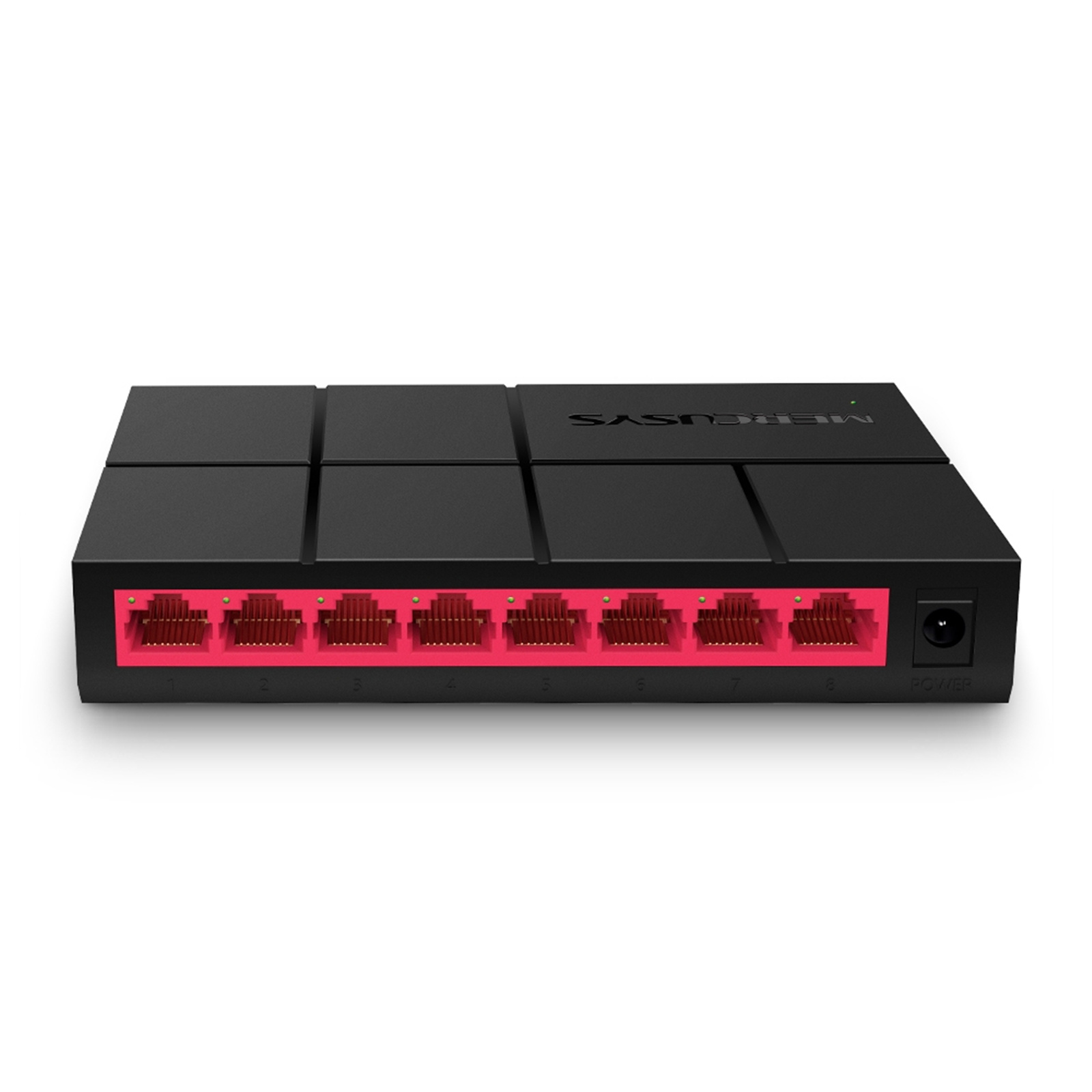

Mercusys MS108G 8-Port Gigabit Desktop Switch
Mercusys MS108G 8-Port Gigabit Desktop Switch
- Brand: Mercusys
- MPN: MS108G
- Part #: SWHMES11080
- UPC:
Select your store to check availability
- Brand: Mercusys
- MPN: MS108G
- Part #: SWHMES11080
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Great price for 1GbE with 8 ports. I don't use the max bandwidth so I haven't been able to stress test it yet."
"Works well and looks kind of slick too."
"Its working fine but I haven't seen Gigabit transfer speeds. Fast enough for home use."
COMBO DEALS: Buy Together and SAVE!
Cruxtec 1m Cat6 Ethernet Cable - Black Color
$2.83 +GST
$3.25
Dynamix A-RJ45-C6N Cat6 Rated RJ45 8C Joiner, 2-Way (2x RJ45 Sockets)
$5.73 +GST
$6.59
Kingston DataTraveler Exodia USB Flash Drive - 64GB USB 3.2
$7.90 +GST
$9.08
The Brute Power Co BPPB4 4 Socket Powerboard with Overload Protection - 1m Cord
$6.64 +GST
$7.64
Features
MS108G
8-Port 10/100/1,000 Mbps Desktop Switch
- Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
- Green Ethernet technology saves power by up to 82%
How to set up Mercusys SOHO Switch-MS108G
MS108G - More Efficient Transmission
8-Port 10/100/1000 Mbps Desktop Switch
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports-10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Specifications
Reviews
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Popular Switches
D-Link DGS-1005A 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port Gigabit Unmanaged Switch Steel housing -...
TP-Link TL-SG1005D 5-Port Gigabit Unmanaged Switch
TP-Link TL-SG108 8-Port Gigabit Unmanaged Switch Steel housing -...
Ubiquiti UniFi Switch US-8-60W 8-Port Gigabit Managed PoE Switch...
_20250106132842.webp)
Mercusys MS108G 8-Port Gigabit Desktop Switch
- Brand: Mercusys
- MPN: MS108G
- Part #: SWHMES11080
Product URL: https://www.pbtech.co.nz/product/SWHMES11080/Mercusys-MS108G-8-Port-Gigabit-Desktop-Switch
| Branch | New Stock | On Display |
|---|---|---|
| Albany | 0 | |
| Glenfield | 1 | |
| Queen Street | 0 | |
| Auckland Uni | 0 | |
| Newmarket | 0 | |
| Westgate | 0 | |
| Penrose | 1 | |
| Henderson (Express) | 1 | |
| St Lukes | 1 | |
| Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Head Office | 1 | |
| Hornby | 0 | |
| Christchurch Central | 0 |
Features
MS108G
8-Port 10/100/1,000 Mbps Desktop Switch
- Eight 10/100/1,000 Mbps auto-negotiation RJ45 ports with auto MDI / MDIX supported
- Easily wired network expansion
- Compact design for flexible arrangement
- Plug and play setup, no configuration required
- Green Ethernet technology saves power by up to 82%
How to set up Mercusys SOHO Switch-MS108G
MS108G - More Efficient Transmission
8-Port 10/100/1000 Mbps Desktop Switch
Expand Ethernet Network with Gigabit Ports
Quickly expand your wired network with eight 10/100/1000 Mbps Ethernet ports-10 times faster than regular 10/100 Mbps Ethernet ports. MS108G is flexible and fully compatible with 4K Ultra HD TVs, computers, printers, IP cameras, game consoles, and more. This makes it perfect for use in home, small office, and even dormitory environments.
Cool, Ultra-Compact Design
A sleek, square build with a cool red and black color combination provides a high-tech look and feel. About the same size as a smartphone, MS108G sits anywhere in your home without taking up too much space.
Plug and Play
Forget about complicated installation. Just connect the switch to your TV or computer via an Ethernet cable to immediately expand your wired network. Absolutely no configuration is required.
Reliable Performance
With Half/Full Duplex and MAC Address Learning Technology, every unit undergoes extensive testing prior to shipment to ensure it will provide reliable, uninterrupted connections for years to come.
Go Green with Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! MS108G features the latest innovative energy-efficient technologies to greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
Specifications
Software
Transfer Method
Store and Forward
Hardware
Dimensions
143.8 x 72.3 x 25 mm
Interfaces
8 10/100/1000Mbps Ports, Auto-Negotiation, Auto-MDI/MDIX
External Power Supply
9V/0.6A
Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3x CSMA/CD
Data Rates
10/100/1000Mbps at Half Duplex
20/200/2000Mbps at Full Duplex
Buffer Capacity
64KB
Jumbo Frame
9 KB
LED
Ethernet (1, 2, 3, 4, 5, 6, 7, 8), Power
Others
Package Contents
- 8-Port 10/100/1000Mbps Desktop Switch (MS108G)
- Power Adapter
- Quick Installation Guide
