Home Networking Switches TP-Link TL-SG105PE 5-Port Gigabit...

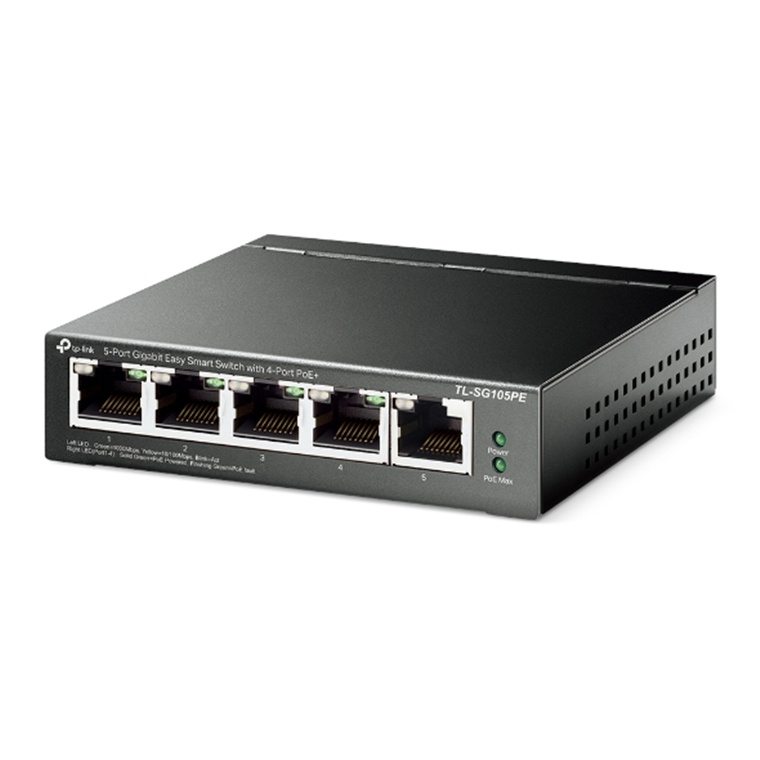

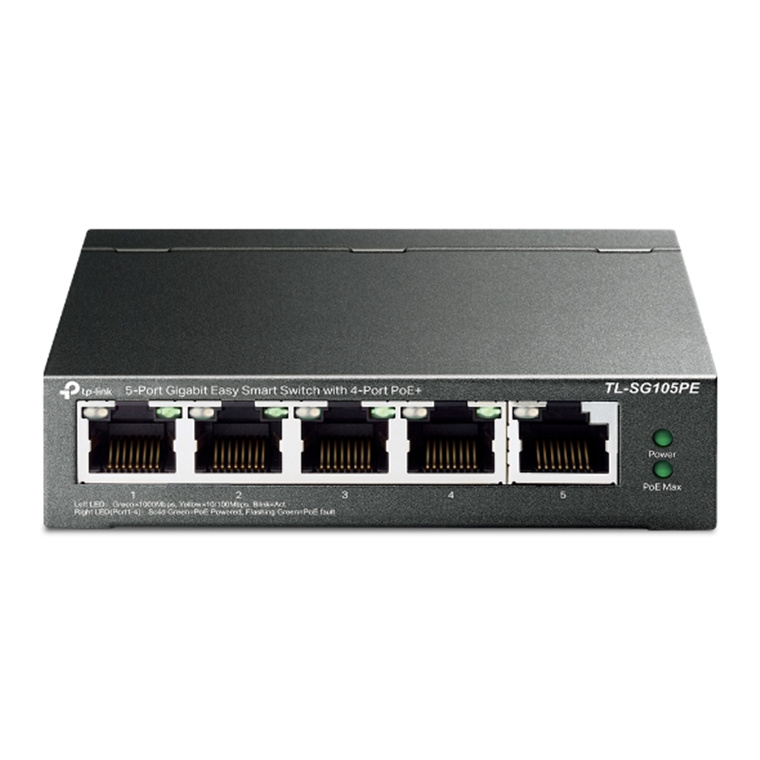

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switchwith 4-Port PoE+ (Max 65W)

PB Tech price: PB Tech price:
$99 13  +GST $114 00  inc GST
$99.13  +GST
$114.00  inc GST

TP-Link TL-SG105PE 5-Port Gigabit Easy Smart Switchwith 4-Port PoE+ (Max 65W)

Part #: SWHTPL0150
1
PB Tech price: PB Tech price:
$99 13 $114 00
 +GST  inc GST
Buy tax free for $104.09


Click & Collect: Available from 1 store.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$99.13  +GST
$114.00  inc GST

Six easy payments of $19.57 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

Five easy payments of $23.62 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free fortnightly payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

  • Brand: TP-Link
  • MPN: TL-SG105PE
  • Part #: SWHTPL0150
  • UPC:
  • 10 Gigabit: No
  • 10 Gigabit Ports: N/A
  • Form Factor: Desktop
  • Management Level: Smart / Web Managed
  • Number of Ports: 5 Ports
  • PoE: Yes
  • PoE Ports: 4 Ports
  • PoE Budget: 65 Watts
  • View more

Features

TL-SG105PE - 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

- Five 10/100/1000Mbps RJ45 ports
- Equipped with four 802.3af/at PoE+ ports with up to 30W for each port, data, and power can be transferred on one single cable
- Supports PoE power up to 65 W for all PoE ports*
- Provides network monitoring, traffic prioritization, VLAN features, and PoE Auto Recovery
- Simple network set-up on top of plug-and-play connectivity
- Web-based user interface and Easy Smart Configuration Utility simplify configuration
- Fanless design lowers energy consumption and eliminates operating noise

Professional 5-Port Gigabit Easy Smart Switch with 4-Port PoE+

Easy to Use, Multi-Purpose PoE Switch with Powerful Performance



Multiple Application Scenarios

The TL-SG105PE is fully compatible with PoE devices, such as IP cameras, access points, and IP phones. It also works with non-PoE wired devices, such as PCs, printers, and IPTV.

- Surveillance: Works with IP Cameras
- Conference Call: Works with IP Phones
- Wi-Fi Coverage: Works with Omada EAPs
- Wired Connections: Works with PCs and Printers

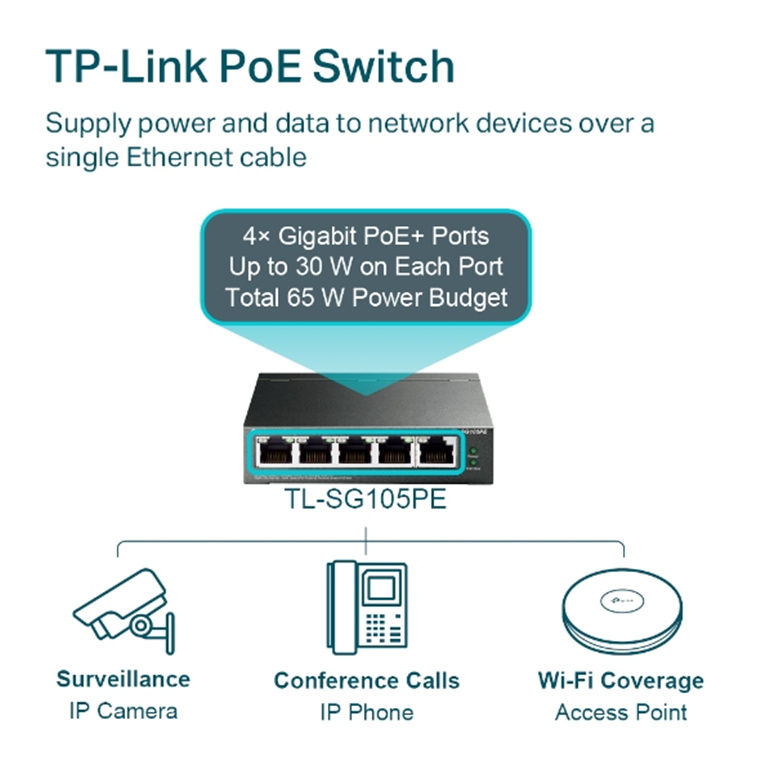

Dedicated 4 PoE+ Ports (65 W Budget) for Numerous Applications

Compliance with the 802.3af/at PoE+ standard supports up to 30 W on each PoE port. The total 65 W PoE power budget* for the 4x gigabit PoE+ ports makes it has wide range of applications, such as surveillance, offices, dormitories, and small businesses. It is fully compatible with IP cameras, access points, IP phones, computers, printers, and etc.

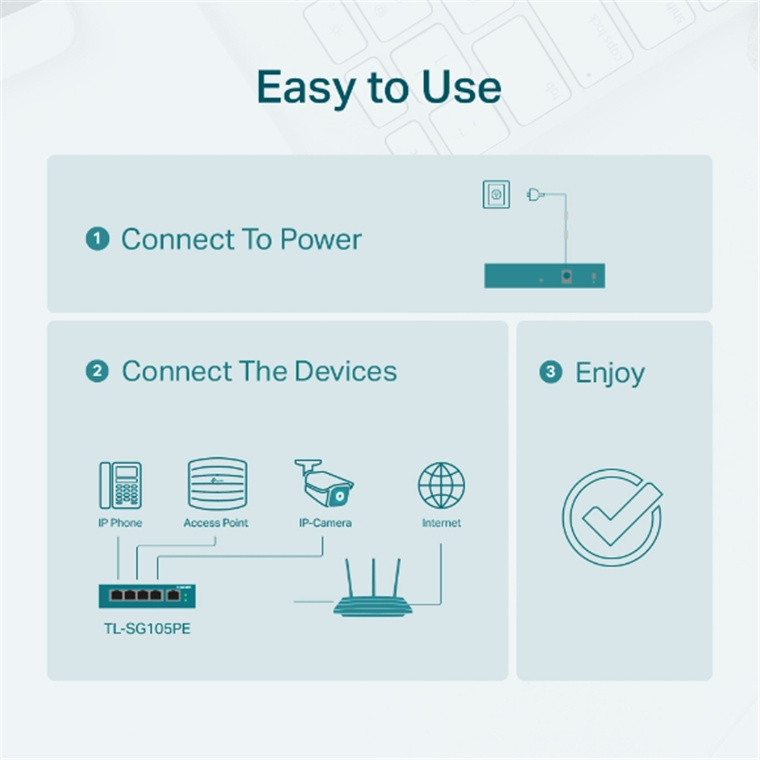

Easy to Use



Value-Added Features Bring Unexpected Experiences

- QoS for a Lag-Free Experience: Ensures smooth traffic for latency-sensitive applications, such as voice and video
- IGMP Snooping for Multicast Optimization: Ensures a better network experience, especially for applications like IPTV, by optimizing multimedia traffic delivery.
- VLAN for Security: Helps to create network with higher security and better overall performance by dividing network into smaller groups



Making Management Easy

TL-SG105PE offers network monitoring for users to observe traffic behavior. Through its web-based user interface and management utility, the TL-SG105PE offers a variety of useful features, including network monitoring, traffic prioritization, and enhanced QoS.

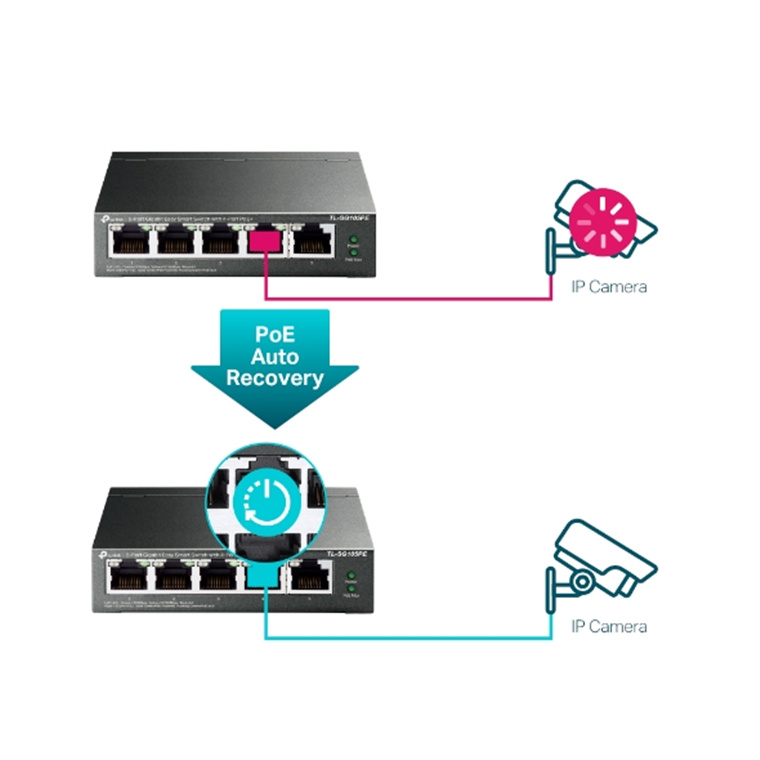

System Self-Healing with PoE Auto Recovery

The switch automatically detects and reboots the PD devices, such as cameras and APs, when they fall offline or go unresponsive, guaranteeing the stable operation of PoE-connected devices, without need for manual monitoring and restart.



Intelligent Power Management to Prevent Power Overload

Automatically cuts lower priority ports' power to ensure high-priority ports' power supply when the total PoE power consumption exceeds 65 W. This protects the device from power overload operation.



Great Compatibility with PD Detection

Automatically detects the required PoE power for your device and protects your non-PoE equipment from being damaged.



Durable Metal Casing

The interior components of TL-SG105PE are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG105PE delivers switching performance you can depend on.



Download data sheet: https://www.tp-link.com/baltic/business-networking/omada-sdn-switch/tl-sg105pe/

Specifications

HARDWARE FEATURES

Standards and Protocols

IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af,
IEEE 802.3x, IEEE 802.1q, IEEE 802.1p, IEEE 802.3at

Interface

Five 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

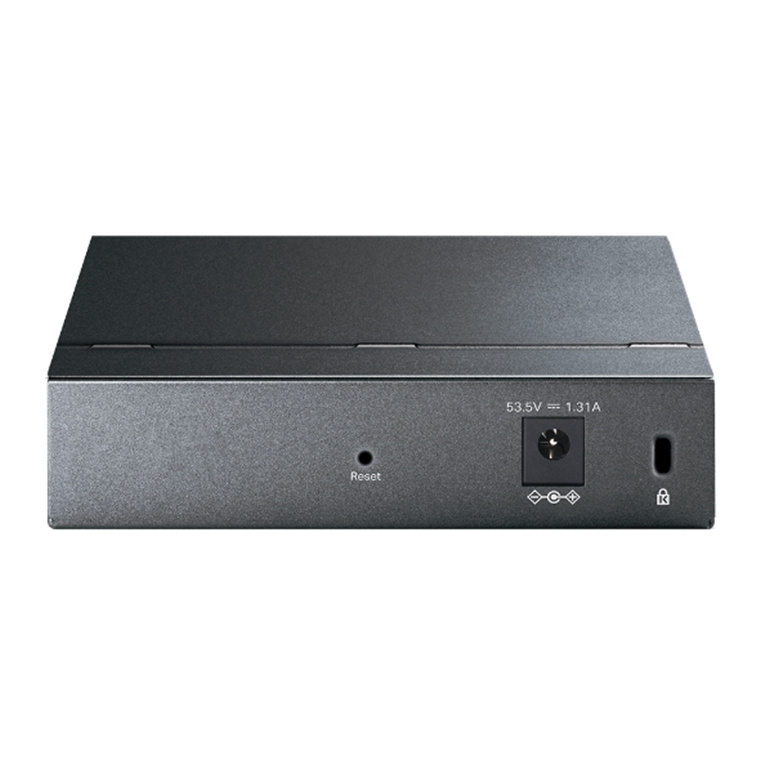

Power Supply

External Power Adapter (Output: 53.5 VDC/1.31 A)

PoE Ports (RJ45)

Standard: 802.3 af/at compliant
PoE Ports: Port 1- Port 4
PoE Power Budget: 65 W

Dimensions ( W x D x H )

3.9 × 3.9 × 1.0 in (99.8 × 98 × 25 mm)

Max Power Consumption

4.52 W (220V/50Hz with no PD connected)
75.16 W (220V/50Hz with 65 W PD connected)

Max Heat Dissipation

15.41 BTU/h (with no PD connected)
256.30 BTU/h (with 65 W PD connected)

PERFORMANCE

Switching Capacity

10 Gbps

Packet Forwarding Rate

7.44 Mpps

MAC Address Table

2 K

Packet Buffer Memory

1.5 Mb

Jumbo Frame

16 KB

SOFTWARE FEATURES

Quality of Service

Support Port-Based/802.1p/DSCP priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features

IGMP Snooping V1/V2/V3
Static Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention
PoE Auto Recovery
Extend Mode

VLAN

Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Management

Web-based GUI
Easy Smart Configuration Utility

Transmission Method

Store-And-Forward

OTHERS

Certification

FCC, CE, RoHS

Package Contents

TL-SG105PE
Power Adapter
Installation Guide
Rubber Feet

System Requirements

Microsoft® Windows® for running Utility

Environment

Operating Temperature: 0~40C(32~104F)
Storage Temperature: -40~70C (-40~158F)
Operating Humidity: 10%~90%RH non-condensing
Storage Humidity: 5%~95%RH non-condensing

Manufacturer Part No:
TL-SG105PE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
0.8 kg
PB Part No:
SWHTPL0150
Product Model:
TL-SG105PE
Warranty: 36 months *
