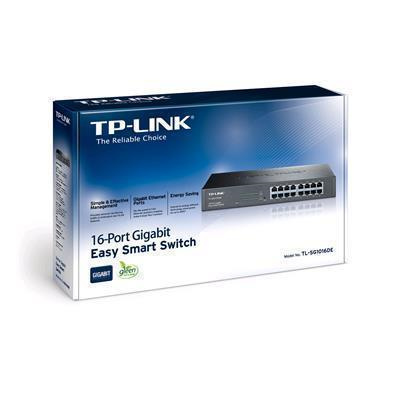

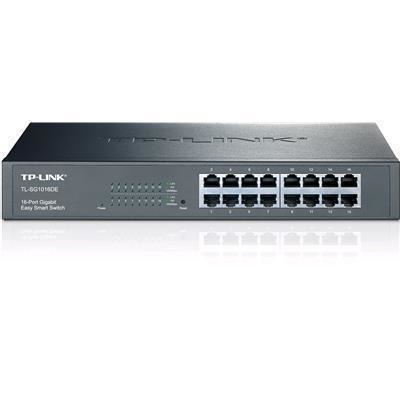

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch, 13-inch Steel Housing, Rackmount Kit Included

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch, 13-inch Steel Housing, Rackmount Kit Included
PB Tech price: PB Tech price:
$120 86  +GST $138 99  inc GST
  • Overview
  • Features
  • Specifications
  • Reviews
  • Q & A

Generating Print Page

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch, 13-inch Steel Housing, Rackmount Kit Included

BEST VALUE

TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch, 13-inch Steel Housing, Rackmount Kit Included

  • Brand: TP-Link
  • MPN: TL-SG1016DE
  • Part #: SWHTPL1014
  • UPC:
  • Form Factor:1U Rackmount
  • 10 Gigabit:No
  • 10 Gigabit Ports:0 Ports
  • Management Level:Smart / Web Managed
  • Number of Ports:16 Ports
  • PoE:No
  • PoE Ports:0 Ports
  • PoE Budget:N/A
  • View more
PB Tech price: PB Tech price:
$120 86 $138 99
 +GST  inc GST

Click & Collect: Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Shop in-store: Check store stock levels

Five easy payments of $28.63 per fortnight*

humm lets you spread the cost of your purchase over 5 or 10 interest free payments.

Click the button below or select humm as your payment method during the checkout process.

If you do not have a humm account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about humm

Six easy payments of $23.86 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.
Learn more about Laybuy

What PB Tech customers are saying about this product...See More Reviews

"I'd had enough of linking two little 8-port dumb switches for my home network, so purchased the TP-Link TL-SG1016DE during a recent sale at PBTech.
...view more"

C
By: CraigH15 07/05/19

"On unpacking, the product had some poor finish to the paint in parts, but it was only cosmetic so not too worried. I was literally up and running 5 minutes later. It's been running...view more"

G
By: Guest 17/04/18

"Does what it says on the box, it switches. Arrived 9am the next morning after buying at 8pm."

G
By: Guest 10/12/15

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch, 13-inch Steel...
TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch, 13-inch Steel Housing, Rackmount Kit IncludedLogitech MK120 Desktop Corded Keyboard and Mouse ComboJackson RAC1200 2RU 12 Outlet Horizontal Power Rail. Surge Protected 1575J 10A Overload Protected. 1.8M Power Cord i Cord included. EMI/RFI Filtering (25mm recessed)Dynamix PLK-C6A-1 1m Cat6 Black UTP Patch  Lead (T568A Specification) 250MHz  Slimline Snaggles MouldingDynamix CAGE-25S 25pc Bag 3 Piece Cage Nut   SILVER (Re-sealable Clip Bag)
Total:
$26476
 +GST
$30447
 inc GST
Buy together and save $5.16$5.93
This item: TP-Link TL-SG1016DE 16-Port Gigabit Easy Smart Switch, 13-inch Steel Housing, Rackmount Kit Included
$120.86 +GST$138.99 inc GST
Logitech MK120 Desktop Corded Keyboard and Mouse Combo  View Product
$36.42$41.88 $34.57 +GST$39.76 inc GST(Buy together and save $1.85$2.13)
Jackson RAC1200 2RU 12 Outlet Horizontal Power Rail. Surge Protected 1575J 10A Overload Protected. 1.8M Power Cord i Cord included. EMI/RFI Filtering (25mm recessed)  View Product
$96.00$110.40 $93.75 +GST$107.81 inc GST(Buy together and save $2.25$2.59)
Dynamix PLK-C6A-1 1m Cat6 Black UTP Patch  Lead (T568A Specification) 250MHz  Slimline Snaggles Moulding  View Product
$3.69$4.24 $3.08 +GST$3.54 inc GST(Buy together and save $0.61$0.70)
Dynamix CAGE-25S 25pc Bag 3 Piece Cage Nut   SILVER (Re-sealable Clip Bag)  View Product
$12.95$14.89 $12.50 +GST$14.38 inc GST(Buy together and save $0.45$0.52)

Features

16-Port Gigabit Easy Smart Switch
TL-SG1016DE


Highlights:

- 16 10/100/1000Mbps RJ45 ports
- Provides network monitoring, traffic prioritization and VLAN features
- Innovative energy-efficient technology reduces power output by up to 40%
- Simple network set-up on top of plug-and-play connectivity
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility


What This Product Does

The TL-SG1016DE 16-Port Gigabit Easy Smart switch is an ideal upgrade from an unmanaged switch, designed for Small and Medium Business networks that require simple network management. Network administrators can effectively monitor traffic via Port Mirroring, Loop Prevention and Cable Diagnostics features. To optimize traffic on your business network, TL-SG1016DE offers both port and tag based QoS to keep latency-sensitive traffic moving smoothly and jitter-free. Additionally, port-based, tag-based and MTU VLAN can improve security and meet more network segmentation requirements. Moreover, with its innovative energy-efficient technology, the TL-SG1016DE can save up to 40% of power consumption, making it an eco-friendly solution for your business network.


Simple & Effective Management

TP-LINK's Gigabit Easy Smart switch, TL-SG1016DE offers network monitoring for users to observe traffic behavior. With Port Mirroring, Loop Prevention and Cable Diagnostics features, TL-SG1016DE can identify and even locate connection problems on your business network. Moreover, administrators can designate the priority of the traffic based on Port Priority and 802.1P Priority, to ensure that voice and video are always clear, smooth and lag-free. Additionally, to improve security and network performance, TL-SG1016DE supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions. TL-SG1016DE is an upgrade from the plug-and-play Unmanaged Switch, delivering great value while empowering your network and similarly delivering great value to the end user.


Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation of TL-SG1016DE 16-Port Gigabit Easy Smart Switch features the latest energy-efficient technologies that can greatly expand your network's capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.


Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG1016DE can automatically detect the link status of each port and reduce the power consumption of ports that are idle.


Power Budget According to Cable Length

Ideally, shorter cables would use less power with less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of whether it is 10 or 50 meters in length. The TL-SG1016DE analyzes the length of the Ethernet cable connected and adjusts the power usage accordingly, rather than keeping the power consumption in a conventional solution.


Ease of Use

TL-SG1016DE is easy to use and manage. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port senses the link speed of a network device (either 10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance. Its compact size makes it ideal for desktops with limited space while also being Rack-mountable, convenient and safe. Dynamic LED lights provide real-time work status display and basic fault diagnosis.

- 16 10/100/1000Mbps ports provide instant large file transfers
- Innovative energy-efficient technology reduces power consumption by up to 40%
- IEEE 802.3x flow control provides reliable data transfers
- 10K Jumbo frame improves performance of large data transfers
- Effective network monitoring via Port Mirroring, Loop Prevention and Cable Diagnostics
- Port and tag-based QoS enable smooth latency-sensitive traffic
- Abundant VLAN features improve network security via traffic segmentation
- IGMP Snooping optimizes multicast applications
- Centrally manage all Easy Smart Switches with Easy Smart Configuration Utility

Specifications

Standards and Protocols
IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.1q, IEEE 802.1p

Interface
16 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Dimensions (W X D X H)
11.6*7.1*1.7 in. (294*180*44 mm)

Fan Quantity
Fanless

Power Consumption
Maximum: 12.55W (220V/50Hz)

Power Supply
100-240VAC, 50/60Hz


PERFORMANCE

Switching Capacity
32Gbps

MAC Address Table
8K

Packet Buffer Memory
512KB

Packet Forwarding Rate
23.8Mpps

Jumbo Frame
10240Bytes


SOFTWARE FEATURES

Quality of Service
Support Port Based/802.1p Based priority
Support 4 priority queues
Rate Limit
Storm Control

L2 Features
IGMP Snooping
Link Aggregation
Port Mirroring
Cable Diagnostics
Loop Prevention

VLAN
Supports up to 32 VLANs simultaneously (out of 4K VLAN IDs)
MTU/Port/Tag VLAN

Transmission Method
Store-And-Forward


OTHERS

Certification
FCC, CE, RoHS

Package Contents
- TL-SG1016DE
- Power Cord
- Installation Guide
- Resource CD
- Rackmount Kit
- Rubber Feet

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.


Environment

Operating Temperature:
0~40C (32~104)

Storage Temperature:
-40~70C (-40~158)

Operating Humidity:
10%~90% non-condensing

Storage Humidity:
5%~90% non-condensing

Manufacturer Part No: TL-SG1016DE Brand: TP-Link Product Type: -
UPC - Product Family: - Shipping Weight: 2.244 kg
PB Part No: SWHTPL1014 Product Model: TL-SG1016DE

Warranty: 36 months local warranty *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.8 out of 5 StarsBased on 8 Reviews

5 Stars
6
4 Stars
2
3 Stars
0
2 Stars
0
1 Star
0

Filter Results

Do you own this product?

Write a review and go into the draw to win great prizes each month! Learn more WRITE A REVIEW
Displaying 1 - 8 of 8 reviews

Great little semi-smart switch

I'd had enough of linking two little 8-port dumb switches for my home network, so purchased the TP-Link TL-SG1016DE during a recent sale at PBTech.
Although I slightly regret not getting the model up (with SNMP support), it was $50 more, which was hard to justify.

It's nice an quiet (doesn't seem to have a fan) and keeps up with the multiple 1-Gigabit devices I have.
It caught me out with it's 192.168.0.1 default IP, but the free tool download was able to quickly reconfigure the IP.

C
By: CraigH15 07/05/19
1 out of 1 user found this review helpful
Did you find it helpful?

Plug and go

On unpacking, the product had some poor finish to the paint in parts, but it was only cosmetic so not too worried. I was literally up and running 5 minutes later. It's been running for a week or so without issue which is what I'd expect. Great quiet, fast small switch with decent features.

G
By: Guest 17/04/18
1 out of 1 user found this review helpful
Did you find it helpful?

Simple & easy to setup, great gigabit switch and simple management interface

S
By: SanoopK 24/07/17
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Excellent product. Plug and play no setting up required if you do not need or want to get into the interface. Quiet with no fan.

B
By: BruceV 08/05/17
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Simple , easy , 2nd one we have purchased

G
By: Guest 27/04/17
0 out of 0 users found this review helpful
Did you find it helpful?

Simple and good

Fast delivery

G
By: Guest 06/04/17
0 out of 0 users found this review helpful
Did you find it helpful?

Does what it says on the box, it switches. Arrived 9am the next morning after buying at 8pm.

G
By: Guest 10/12/15
0 out of 0 users found this review helpful
Did you find it helpful?

Great service, collected within 4 days and perfect for our needs.

G
By: Guest 06/07/15
0 out of 0 users found this review helpful
Did you find it helpful?
