TP-Link TL-SG1008P 8-Port Gigabit Unmanaged PoE Switch, 4-Port PoE (Max 55W)

Special price
Special price
$ 106 .52
 +GST
$ 122 .50
 inc GST
$106.52  +GST
$122.50  inc GST

TP-Link TL-SG1008P 8-Port Gigabit Unmanaged PoE Switch, 4-Port PoE (Max 55W)

  • Brand: TP-Link
  • MPN: TL-SG1008P
  • Part #: SWHTPL1020
  • UPC: 845973021160
FREE SHIPPING
3
Special price
$ 106 .52 $ 122 .50
 +GST  inc GST
Tax free price $112.91


Click & Collect: Available from 2 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
$106.52  +GST
$122.50  inc GST

Six easy payments of $21.03 per week*

Laybuy lets you spread the cost of your purchase over 6, interest-free, weekly payments.

Click the button below or select Laybuy as your payment method during the checkout process.

If you do not have a Laybuy account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Laybuy

Four payments of $31.39 per fortnight*

Klarna lets you spread the cost of your purchase over 4 interest free fortnightly payments.

Click the button below or select Klarna as your payment method during the checkout process.

If you do not have a Klarna account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Klarna

  • Brand: TP-Link
  • MPN: TL-SG1008P
  • Part #: SWHTPL1020
  • UPC: 845973021160

Form Factor

1U Rackmount

10 Gigabit

No

10 Gigabit Ports

0 Ports

Management Level

Unmanaged

Number of Ports

8 Ports

PoE

Yes

PoE Ports

4 Ports

PoE Budget

53 Watts

What PB Tech customers are saying about this product...

See More Reviews

"No Issues with product"

G
By: Guest 18/12/23

"Cheap, affordable and does the job. 55w is a little low but for two to three small cameras its great."

G
By: Guest 24/01/22

"Plug and play. Too easy. Have fibremax and this sends the max speed to all devices wired in. Happy with it."

G
By: Guest 04/09/20

COMBO DEALS: Frequently Bought Together

Create your own combo deal with any of the items below and the TP-Link TL-SG1008P 8-Port Gigabit Unmanaged PoE...
TP-Link TL-SG1008P 8-Port Gigabit Unmanaged PoE Switch, 4-Port PoE (Max 55W)
Total:
$ 110 .42
 +GST
$ 126 .98
 inc GST
DYNAMIX 1m Cat6 Blue UTP Patch Lead (T568A Specification) 250MHz 24AWG Slimline Snagless Moulding. RJ45 Unshielded Connector with 50µ Inch Gold Plate.
DYNAMIX 1m Cat6 Blue UTP Patch Lead (T568A Specification) 250MHz 24AWG Slimline Snagless Moulding. RJ45 Unshielded Connector with 50µ Inch Gold Plate.

$3.90  +GST

$4.48  inc GST

Features

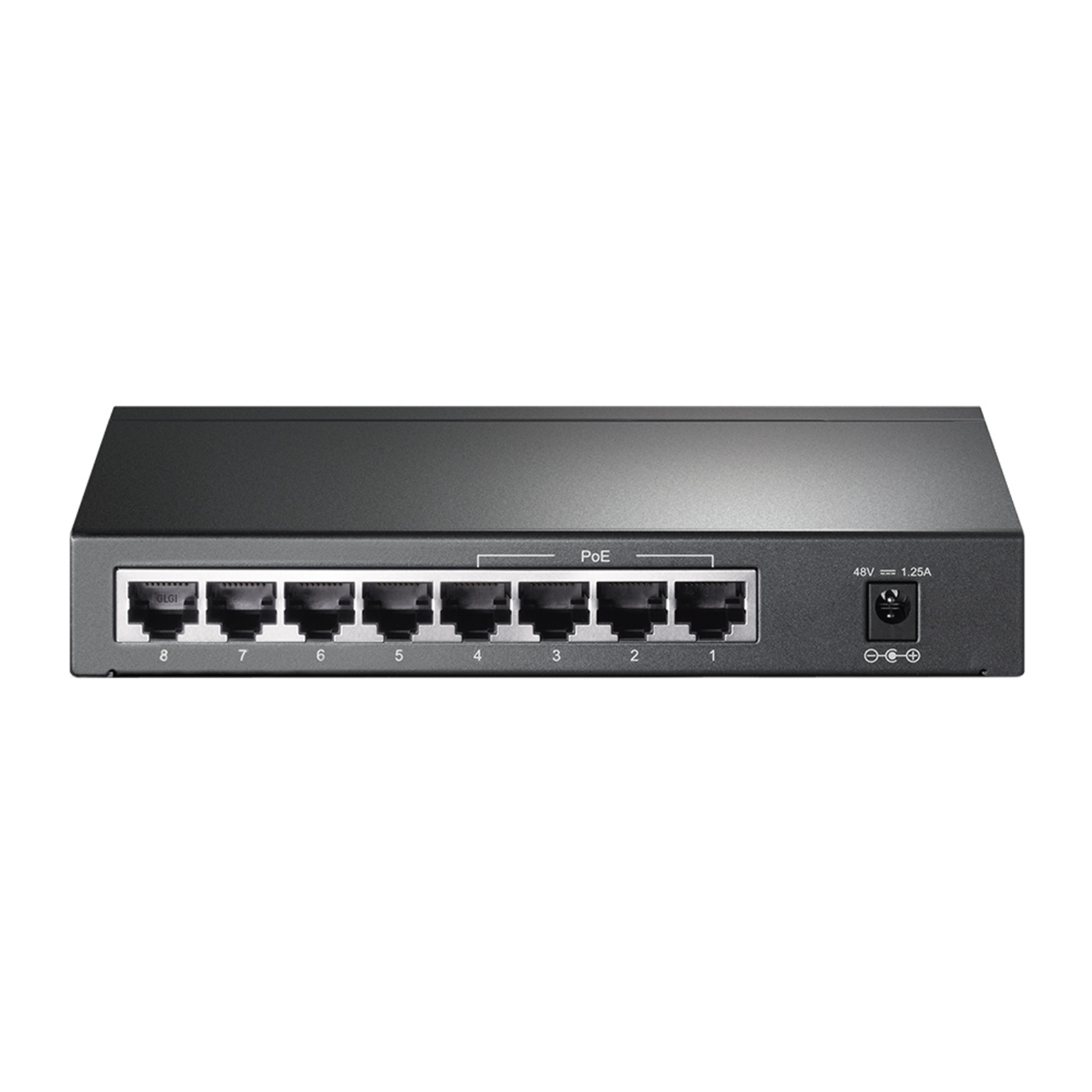

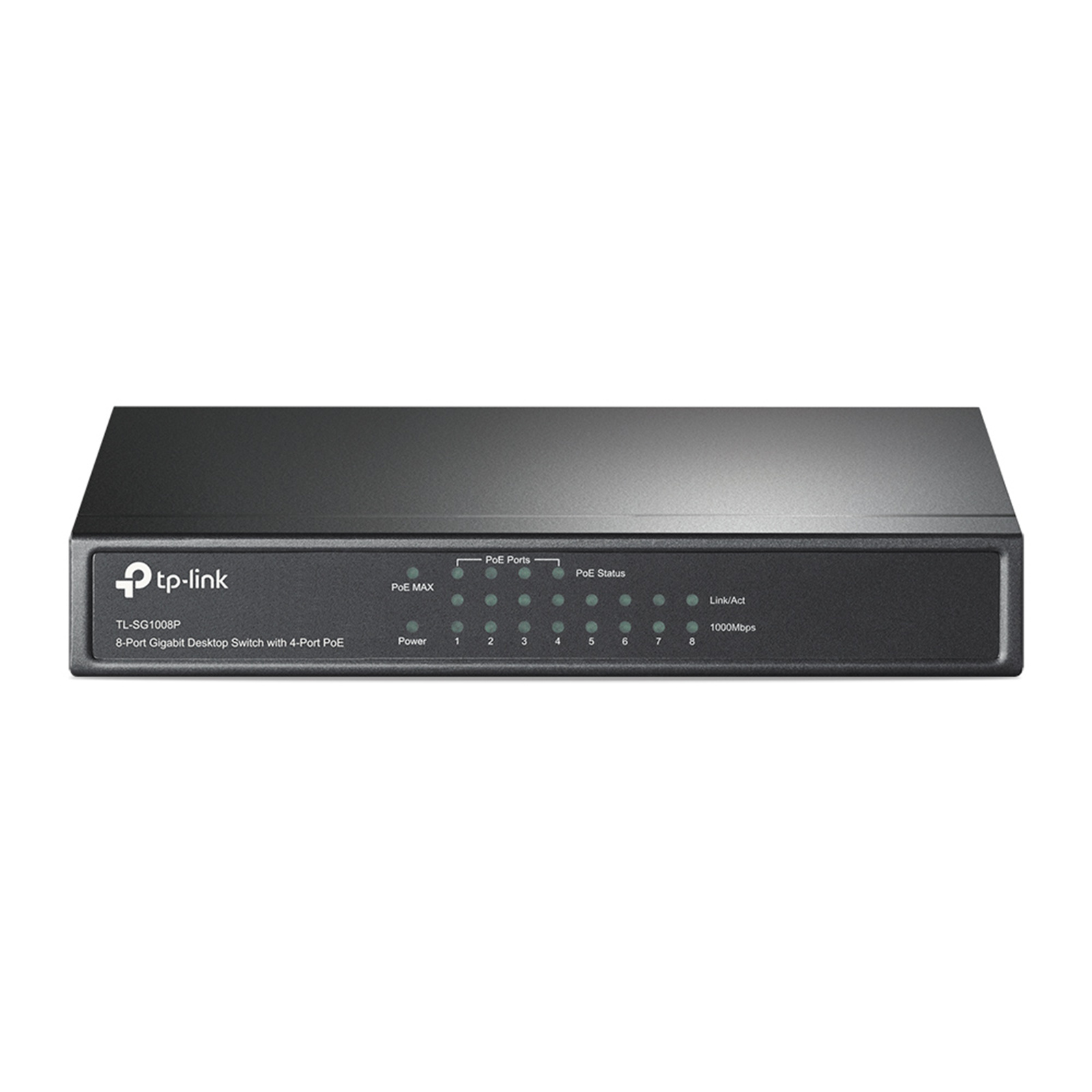

8-Port Gigabit Desktop Switch with 4-Port PoE

- 8 10/100/1000Mbps RJ45 ports
- With four PoE ports, transfers data and power on one single cable
- Working with IEEE 802.3af compliant PDs, expands home and office network
- 802.1p/DSCP QoS enable smooth latency-sensitive traffic
- Supports PoE power up to 15.4W for each PoE port
- Supports PoE power up to 55W for all PoE ports
- Requires no configuration and installation


What This Product Does

8-Port Gigabit Desktop Switch with 4-Port PoE provides the seamless network connection. It integrates 1000Mbps Gigabit Ethernet and 10/100Mbps Fast Ethernet network capabilities.


How This Product Works


4 of the 8 Auto-Negotiation RJ45 ports (port-1 to port-4) of the switch support Power over Ethernet (PoE) function. These PoE ports can automatically detect and supply power with those IEEE 802.3af compliant Powered Devices (PDs). In this situation, the electrical power is transmitted along with data in one single cable allowing you to expand your network where there are no power lines or outlets, where you wish to fix devices such as APs, IP Cameras or IP Phones, etc.


Overload Arrangement


TL-SG1008P has the priority* function which will help protect the system when the system power is overloaded. If all PoE PDs power consumption is >= 55W, a priority will be arranged among the PoE ports, then the system will cut off the power of the lowest-priority port.


Port Priority Function


*Priority (port 1=port 2=port 3>port 4): This function will help protect the system if the system power becomes overloaded. For example, Port 1, 2 and 4 are using 15.4W (maximum power per port is 15.4W), the system power is 46.2W in total. If there is an additional PD inserted to Port 3 with 10W then the system will cut off Port 4 to protect the system, this means Port 1, 2 will use 15.4W, and Port3 will use 10W, and no power will be supplied to Port 4.


Easy To Use


TL-SG1008P is easy to install and use. It requires no configuration and installation. With desktop design, outstanding performance and quality, the TP-LINK TL-SG1008P 8-Port Gigabit Desktop Switch with 4-Port PoE is a great selection for expanding your home or office network.


Code Model Features
Speed Total Ports PoE PoE+ Power Budget Management SFP
SWHTPL1027 TL-SF1005P 100Mbps 5 4 - 58W No N/A
SWHTPL1011 TL-SF1008P 100Mbps 8 4 - 57W No N/A
SWHTPL1028 TL-SG1005P Gigabit 5 4 - 56W No N/A
SWHTPL1020 TL-SG1008P Gigabit 8 4 - 55W No N/A
SWHTPL1001 TL-SG108PE Gigabit 8 4 - 55W Yes N/A
SWHTPL1012 TL-SG1008PE Gigabit 8 - 8 126W No N/A
SWHTPL1021 TL-SG1016PE Gigabit 16 - 8 110W Yes N/A
SWHTPL2210P T1500G-10PS Gigabit 10 8 - 53W Yes 2
SWHTPL1500 T1500G-10MPS Gigabit 10 - 8 116W Yes 2
NETTPL0028 T2500G-10MPS Gigabit 10 - 8 116W Yes 2
SWHTPL2425 T1600G-28PS Gigabit 28 - 24 180W Yes 4
SWHTPL3425 T2600G-28MPS Gigabit 28 - 24 384W Yes 4
SWHTPL1016 T1600G-52PS Gigabit 52 - 48 384W Yes 4

Specifications

HARDWARE FEATURES

Interface

8 10/100/1000Mbps RJ45 Ports
AUTO Negotiation/AUTO MDI/MDIX

Network Media

10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
100BASE-TX: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)
1000BASE-T: UTP category 5, 5e, 6 or above cable (maximum 100m)
EIA/TIA-568 100O STP (maximum 100m)

Fan Quantity

Fanless

Power Consumption

65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected)

External Power Supply

External Power Adapter(Output: 48VDC / 1.25A)

PoE Ports (RJ45)

Standard: 802.3 af compliant
PoE Ports: Port1- Port4
Power Supply: 55W

Backbound Bandwidth

16Gbps

Mac Address Table

4K

Dimensions ( W x D x H )

6.7*3.9*1.1 in. (171*98*27 mm)

SOFTWARE FEATURES

Transmission Method

Store-And-Forward

Advanced Functions

Compatible With IEEE 802.3af Compliant PDs
Priority Function
Mac Address Auto-Learning And Auto-Aging
EEE802.3x Flow Control
802.1p/DSCP QoS

OTHERS

Certification

CE, FCC, RoHS

Package Contents

TL-SG1008P, Power Adapter, Installation Guide

Consumption

65.2W (max. with 55w PoE device connected)
5.5W (max. no PoE device connected)

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)
Storage Temperature: -40°C~70°C (-40°F~158°F)
Operating Humidity: 10% ~ 90% non-condensing

Manufacturer Part No:
TL-SG1008P
Brand:
Product Type:
-
UPC
845973021160
Product Family:
-
Shipping Weight:
1.15 kg
PB Part No:
SWHTPL1020
Product Model:
TL-SG1008P
Warranty: 36 months *
