Microsoft Surface USB 4 Dock
Microsoft Surface USB 4 Dock
- Brand: Microsoft
- MPN: EP2-19855
- Part #: TAAMST101040
- UPC: 196388442799
Cheaper options available
Select your store to check availability
COMBO DEALS: Buy Together and SAVE!
Cruxtec HDMI 2.0 Cable - 2m 18Gbps - 4K/60Hz
$8.24 +GST
$9.48
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo
$42.60 +GST
$48.99
Loctek Eco Mount 10"-30" Dual Monitor Stand - Steel Tube - Black - VESA 75 & 100mm - Max Load 10KG -...
$68.69 +GST
$78.99
Microsoft Surface Pro Keyboard 13-Inch with Pen Storage - ( Sapphire ) for Surface Pro (11th Edition...
$295.18 +GST
$339.46
Features
Microsoft Surface USB4 Dock
- Four times data transfer speed than USB 3.2 with up to 40Gbps1 speed.

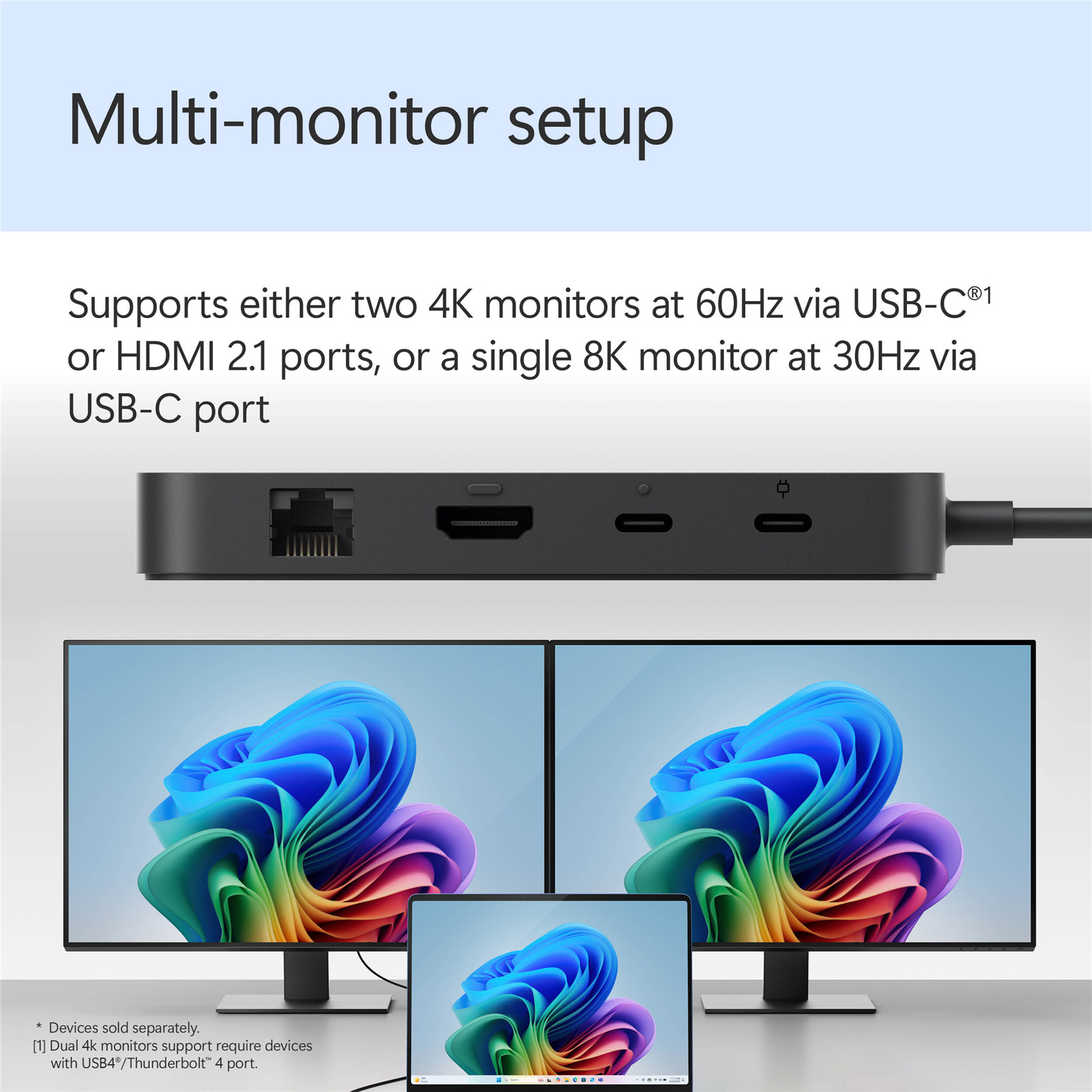

- Supports either two 4K monitors2 at 60Hz via USB-C®2,3 or HDMI 2.1 ports, or a single 8K monitor at 30Hz via USB-C port.
- Supports fast charging with up to 65W power passthrough via USB-C for your device and connected accessories.
- Surface USB4® Dock's sleek and compact design ensures your workspace remains neat and well-organised.

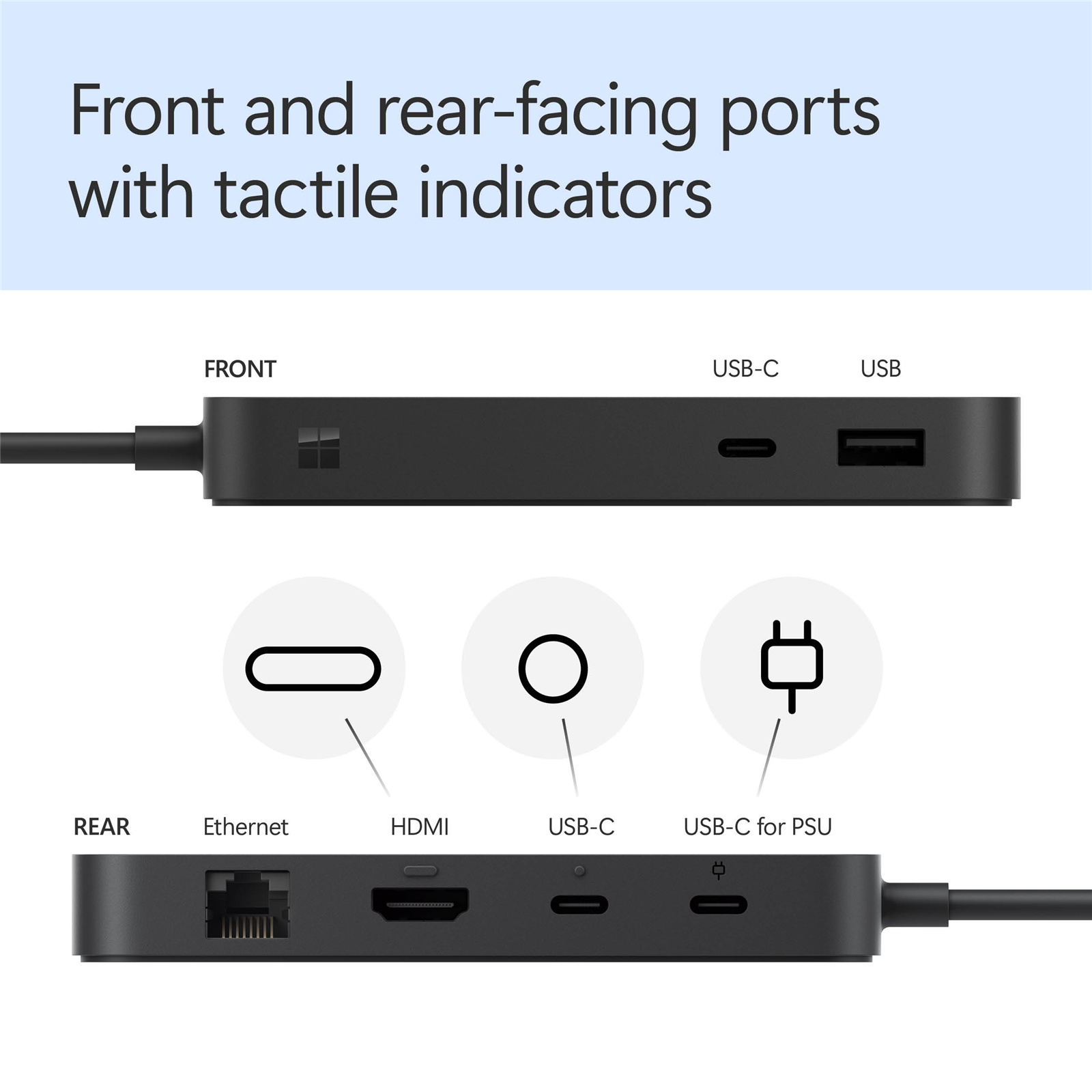

- Front and rear-facing ports have raised tactile indicators helping you find and identify ports with ease.
- Supports Giga Ethernet, ensuring a fast and reliable connection.

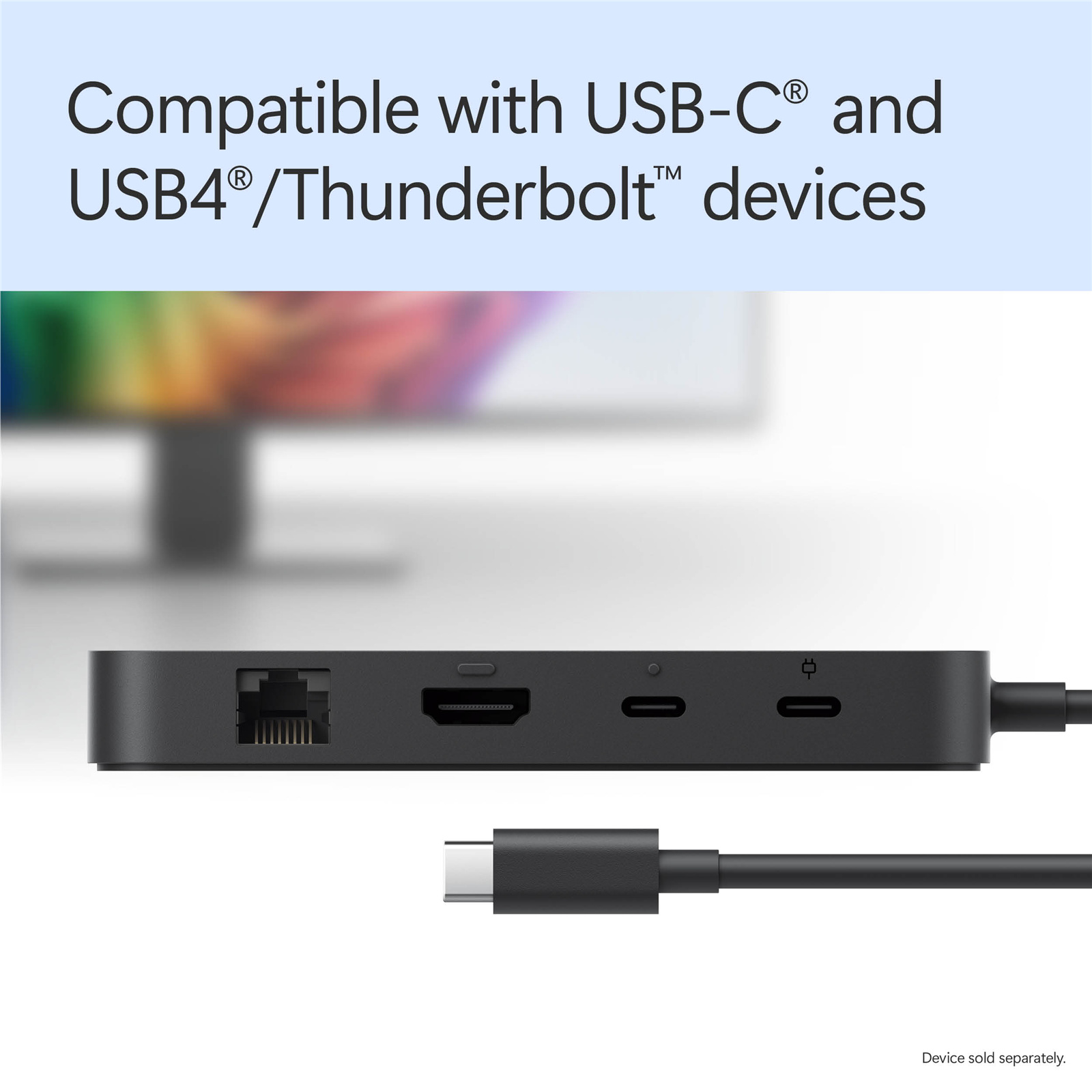

- Designed to work with Surface devices and compatible with USB-C and USB4 /Thunderbolt™ devices.1,4
- Connect the peripherals you need via two USB-C, one USB-A, HDMI and Ethernet ports.
Peak performance with the power of USB4
Compatible with USB-C devices
Expanded port availability
Six ports for your device and peripherals
1. USB-C (USB4 Gen 3, compatible with Thunderbold 4, video display enabled, 7.5W)
2. USB-A (USB 3.2 Gen2, 7.5W)
3. USB-C for PSU only
4. USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5W)
5. HDMI 2.1
6. Ethernet (1Gbit/s)
Inclusive Design
[1] Surface USB4® Dock is compatible with USB-C® devices. However, when connected, it operates at the speeds and capabilities of the USB-C port. USB-C/USB 3.2 connection supports one external display up to 4K at 60Hz (when supported by device and display). Or you can daisy chain more monitors, as described in the section on this page: Connect multiple monitors to devices without USB4/Thunderbolt 4.
https://learn.microsoft.com/surface/surface-dock-whats-new#connect-multiple-monitors-to-devices-without-usb4thunderbolt-4
[2] Requires device with USB4®/Thunderbolt 4 port and a supported device and display.
[3] USB-C® is a registered trademark of USB implementers Forum.
[4] Additional compatibility details can be found at https://aka.ms/SurfaceDockCompatibility.
https://learn.microsoft.com/en-us/surface/surface-thunderbolt4-dock
Specifications
Reviews
Do you own this product?
✅ Microsoft Dock Not Compatible with Snapdragon – Targus Works Perfectly
It was not compatible with Microsoft Snapdragon, as it only allowed one monitor to work at a time while I use two. Thanks to the PbTech team for processing the refund and recommending the Targus dock instead.
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Docking Stations
HP Elite HP USB-C Dock G5 2X USB 2.0,2X DisplayPort,1X HDMI,1X...
Targus DOCK423 USB-C Dual 4K Alt Mode Mobile Hub, support 100w...
Targus DOCK310 USB-C & USB 3.0 Dual 4K DisplayLink Docking...
Kensington SD4850P USB-C Triple 4K Docking Station, with 100w...
Targus DOCK182 USB-C Dual 4K DisplayLink Docking Station with...
Microsoft Surface USB 4 Dock
- Brand: Microsoft
- MPN: EP2-19855
- Part #: TAAMST101040
- UPC:196388442799
Product URL: https://www.pbtech.co.nz/product/TAAMST101040/Microsoft-Surface-USB-4-Dock
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 2 | |
| Auckland - Glenfield | 4 | |
| Auckland - Queen Street | 3 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 4 | |
| Auckland - Westgate | 2 | |
| Auckland - Penrose | 4 | |
| Auckland - Henderson (Express) | 1 | |
| Auckland - St Lukes | 1 | |
| Auckland - Manukau | 3 | |
| Hamilton | 4 | |
| Tauranga | 3 | |
| New Plymouth | 1 | |
| Palmerston North | 0 | |
| Petone | 2 | |
| Wellington | 5+ | |
| Auckland - Head Office | 5+ | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | ||
| Dunedin | 0 |
Features
Microsoft Surface USB4 Dock
- Four times data transfer speed than USB 3.2 with up to 40Gbps1 speed.
- Supports either two 4K monitors2 at 60Hz via USB-C®2,3 or HDMI 2.1 ports, or a single 8K monitor at 30Hz via USB-C port.
- Supports fast charging with up to 65W power passthrough via USB-C for your device and connected accessories.
- Surface USB4® Dock's sleek and compact design ensures your workspace remains neat and well-organised.
- Front and rear-facing ports have raised tactile indicators helping you find and identify ports with ease.
- Supports Giga Ethernet, ensuring a fast and reliable connection.
- Designed to work with Surface devices and compatible with USB-C and USB4 /Thunderbolt™ devices.1,4
- Connect the peripherals you need via two USB-C, one USB-A, HDMI and Ethernet ports.
Peak performance with the power of USB4
Compatible with USB-C devices
Expanded port availability
Six ports for your device and peripherals
1. USB-C (USB4 Gen 3, compatible with Thunderbold 4, video display enabled, 7.5W)
2. USB-A (USB 3.2 Gen2, 7.5W)
3. USB-C for PSU only
4. USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5W)
5. HDMI 2.1
6. Ethernet (1Gbit/s)
Inclusive Design
[1] Surface USB4® Dock is compatible with USB-C® devices. However, when connected, it operates at the speeds and capabilities of the USB-C port. USB-C/USB 3.2 connection supports one external display up to 4K at 60Hz (when supported by device and display). Or you can daisy chain more monitors, as described in the section on this page: Connect multiple monitors to devices without USB4/Thunderbolt 4.
https://learn.microsoft.com/surface/surface-dock-whats-new#connect-multiple-monitors-to-devices-without-usb4thunderbolt-4
[2] Requires device with USB4®/Thunderbolt 4 port and a supported device and display.
[3] USB-C® is a registered trademark of USB implementers Forum.
[4] Additional compatibility details can be found at https://aka.ms/SurfaceDockCompatibility.
https://learn.microsoft.com/en-us/surface/surface-thunderbolt4-dock
Specifications
Compatibility
Surface USB4Footnote® Dock for Business is designed to work with Surface Devices2 and compatible with any USB-C®1,3 and USB4®/Thunderbolt™ 4 device. For more details on USB-C charging compatibility please visit: USB-C and Fast Charging for Surface - Microsoft Support
Surface Pro for Business, Copilot+ PC | Intel
Surface Laptop for Business, Copilot+ PC | Intel
Surface Pro for Business, Copilot+ PC | Snapdragon
Surface Laptop for Business, Copilot+ PC | Snapdragon
Surface Pro 10
Surface Laptop 6
Surface Laptop 5
Surface Pro 8
Surface Pro 9 (Intel/WiFi)
The USB4 supports two 4k external displays up to 60Hz (when supported by device and display).
Compatible with devices with USB-C3 port:
Dimensions
120 mm x 60 mm x 15 mm (4.72" x 2.36" x 0.59")
Weight
206g
Connections
100 W power supply (up to 65 W passthrough). (100 PSU in-box not sold separately)
USB-C /USB4 left-oriented Cable (80 cm) with dual LED indicator lights that confirm your Surface is docked and charging.
USB4 supports: Charging, Dual display, up to 40 Gb/s data transfer.

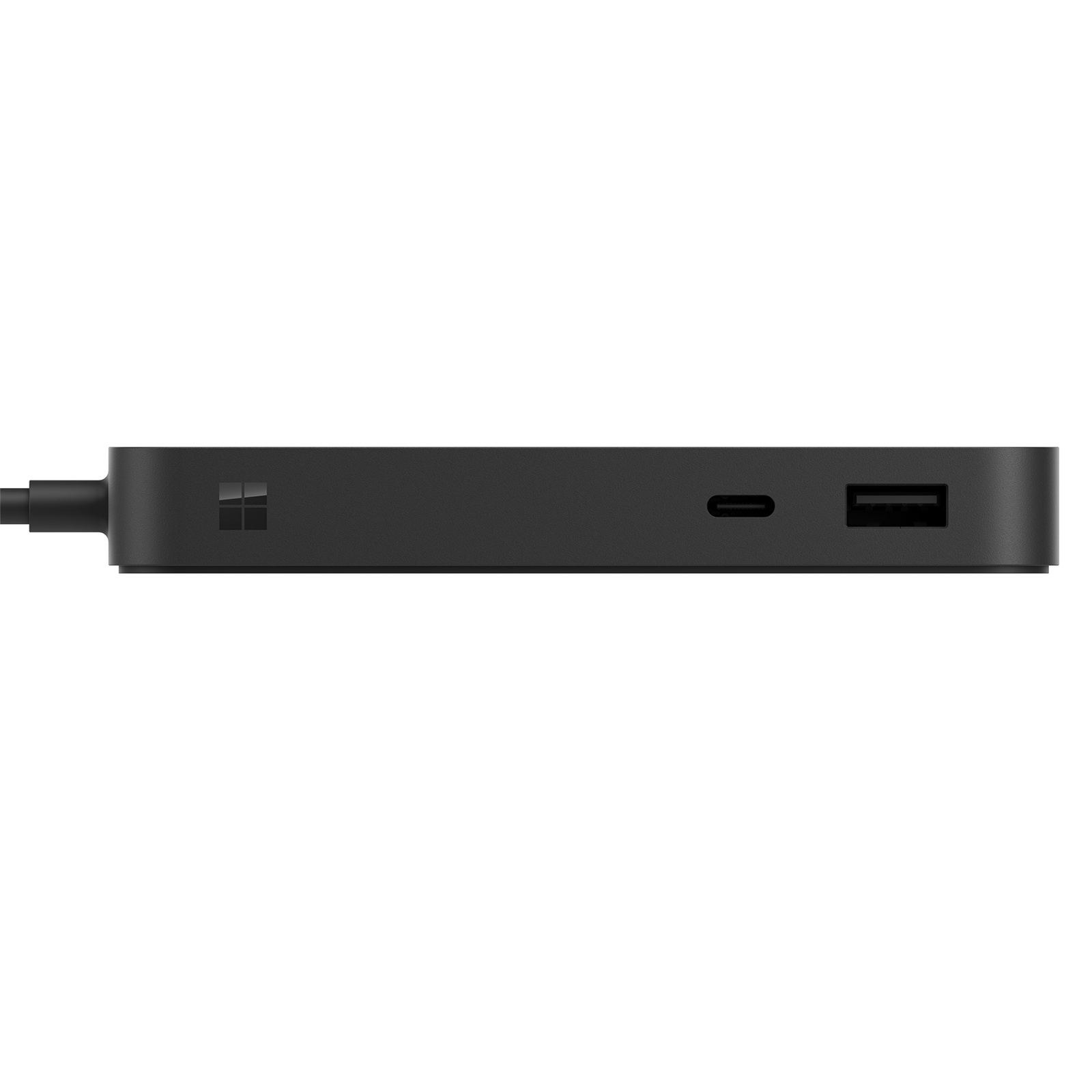

1 front-facing USB-A (USB 3.2 Gen 2, 7.5 W)
1 front-facing USB-CFootnote (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5 W)

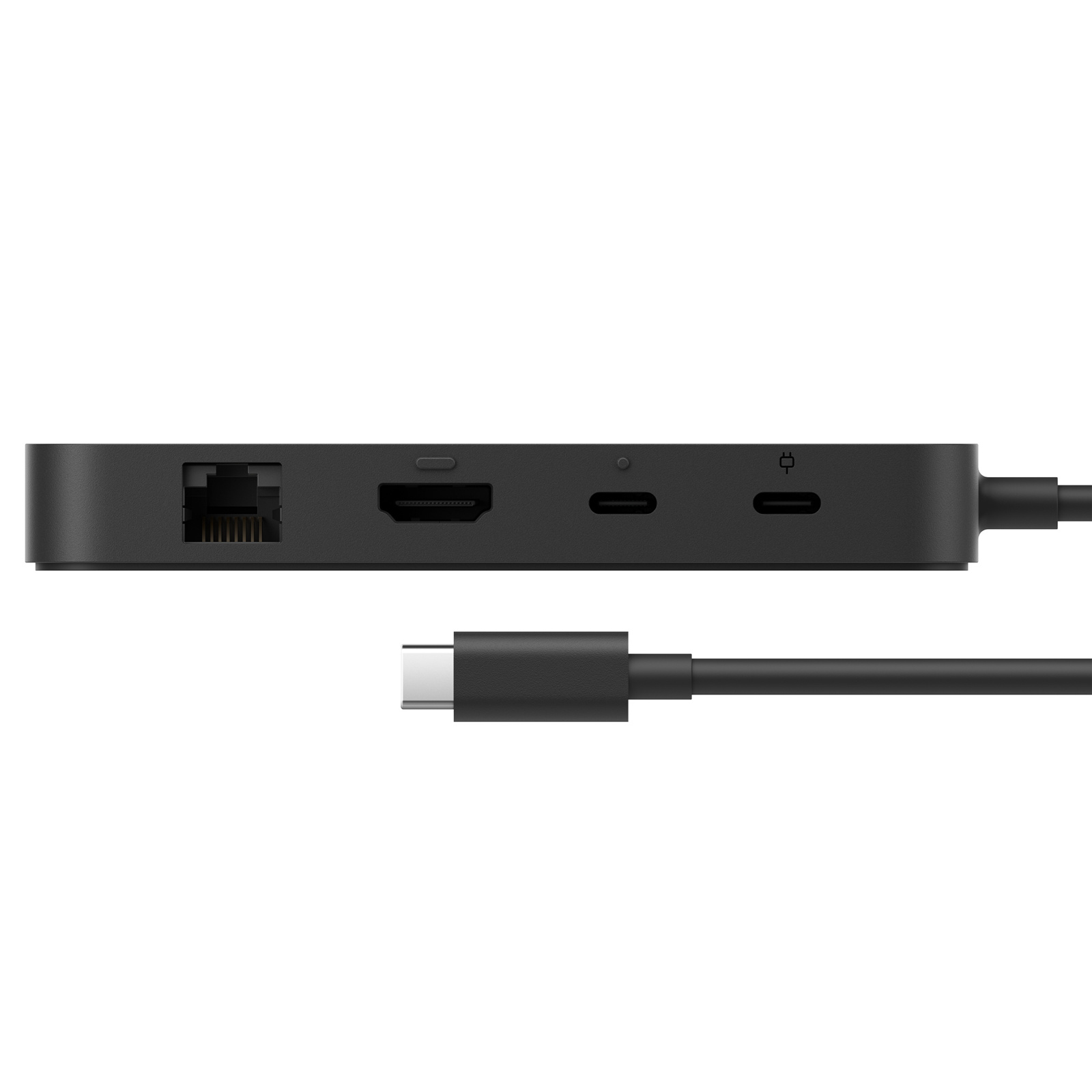

1 rear-facing USB-C (USB4 Gen 3, compatible with Thunderbolt 4, video display enabled, 7.5 W)
1 rear facing HDMI 2.1.
1 rear-facing USB-C for PSU only.
1 Ethernet (1 Gbit/s)
Security lock support4 (Kensington compatible)
What's in the box
Microsoft Surface USB4 Dock for Business
100 W USB-C Power Supply
Manageability
For supported host devices:
Media Access Control (MAC) address passthrough5
Firmware update through Windows Update and Surface app
Wake on LAN from Modern Standby, S4/S5
Accessibility
Tactile indicators for easily identifying the ports
Sustainability
Surface USB4 Dock for Business is designed with sustainability in mind
Sustainability in the supply chain
Our supply chain for devices is shifting to 100% carbon-free electricity for Microsoft-related production
At least 89 key suppliers have already made the transition to carbon-free electricity, with more in progress.
To contribute to Microsoft's goal of 100% carbon-free electricity by 2030, 40% of our key devices suppliers have already transitioned to CFE.
We have transitioned 89 key devices suppliers, expanding CFE use to 392K MWh and avoiding 232K mtC02e in emissions.
More recycled materials
Surface USB4 Dock for Business contains a minimum of 55.2% recycled content.6
Surface USB4 Dock for Business contains more recycled materials than any previous Dock, including recycled tin, recycled gold and recycled plastic.7
Microsoft set a goal to be carbon negative, water positive and achieve zero waste by 2030. Learn more about how we design with sustainability in mind Microsoft Surface Sustainability
Notes
[1] Surface USB4 Dock for Business is compatible with USB-C® devices. However, when connected, it operates at the speeds and capabilities of the USB-C port. USB-C/USB 3.2 connection supports one external display up to 4K at 60Hz (when supported by device and display). Or you can daisy chain more monitors, as described in the section on this page: Connect multiple monitors to devices without USB4/Thunderbolt 4.
[2] Surface USB4 Dock for Business is compatible with Surface devices that support USB-C charging. For more details on USB-C charging compatibility, please visit: USB-C and Fast Charging for Surface - Microsoft Support
[3] Dual 4k monitors support require devices with USB4/Thunderbolt 4 port.
[4] Security lock not included
[5] MAC address passthrough are available on selected host devices and supported operating systems.
[6] Dock (excluding PSU) contains 55.2% recycled content. This includes 11.8% recycled plastics, consisting of a minimum of 50% recycled plastics and 0.3% other recycled metals, consisting of 100% recycled gold in PCB and 100% recycled tin in solder. Based on validation performed by Underwriter Laboratories, Inc. using Environmental Claim Validation Procedure (EVCP) for Recycled Content, UL EVCP-2809-2, Second Edition, dated 20 June 2024. Recycled Content is defined in accordance with ISO 14201.
[7] Dock (excluding PSU) contains 55.2% recycled content. This includes 11.8% recycled plastics, consisting of a minimum of 50% recycled plastics and 0.3% other recycled metals, consisting of 100% recycled gold in PCB and 100% recycled tin in solder. Based on validation performed by Underwriter Laboratories, Inc. using Environmental Claim Validation Procedure (EVCP) for Recycled Content, UL EVCP-2809-2, Second Edition, dated 20 June 2024. Recycled Content is defined in accordance with ISO 14201.
[8] Microsoft's Limited Warranty is in addition to your consumer law rights.
USB Type-C® and USB-C® are registered trademarks of USB Implementers Forum.
