Fenix Work & Outdoor LD30R Lightweight, High-performance Outdoor Flashlight Max 1,700 Lumens, Black, Head 26.5mm, Max 267m, Dual Switches, Build-In Type-C Charging Port, 5 Years Free Repair Warranty (Battery for 1 year)!

Warning:

 - Do NOT place this flashlight in the reach of children!
 - Do NOT shine the flashlight directly into the eyes of anyone!
 - Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
 - Do NOT use the flashlight in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
 - This flashlight will accumulate a significant amount of heat while operating, resulting in a high temperature of the flashlight shell. Pay close attention to avoid burns.
 - Remove the battery from the flashlight to prevent accidental activation when the flashlight is placed in a closed-in and flammable environment such as pockets and backpacks!
 - The LED of this flashlight is not replaceable; so the whole flashlight will need to be replaced when the LED reaches the end of its lifespan.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

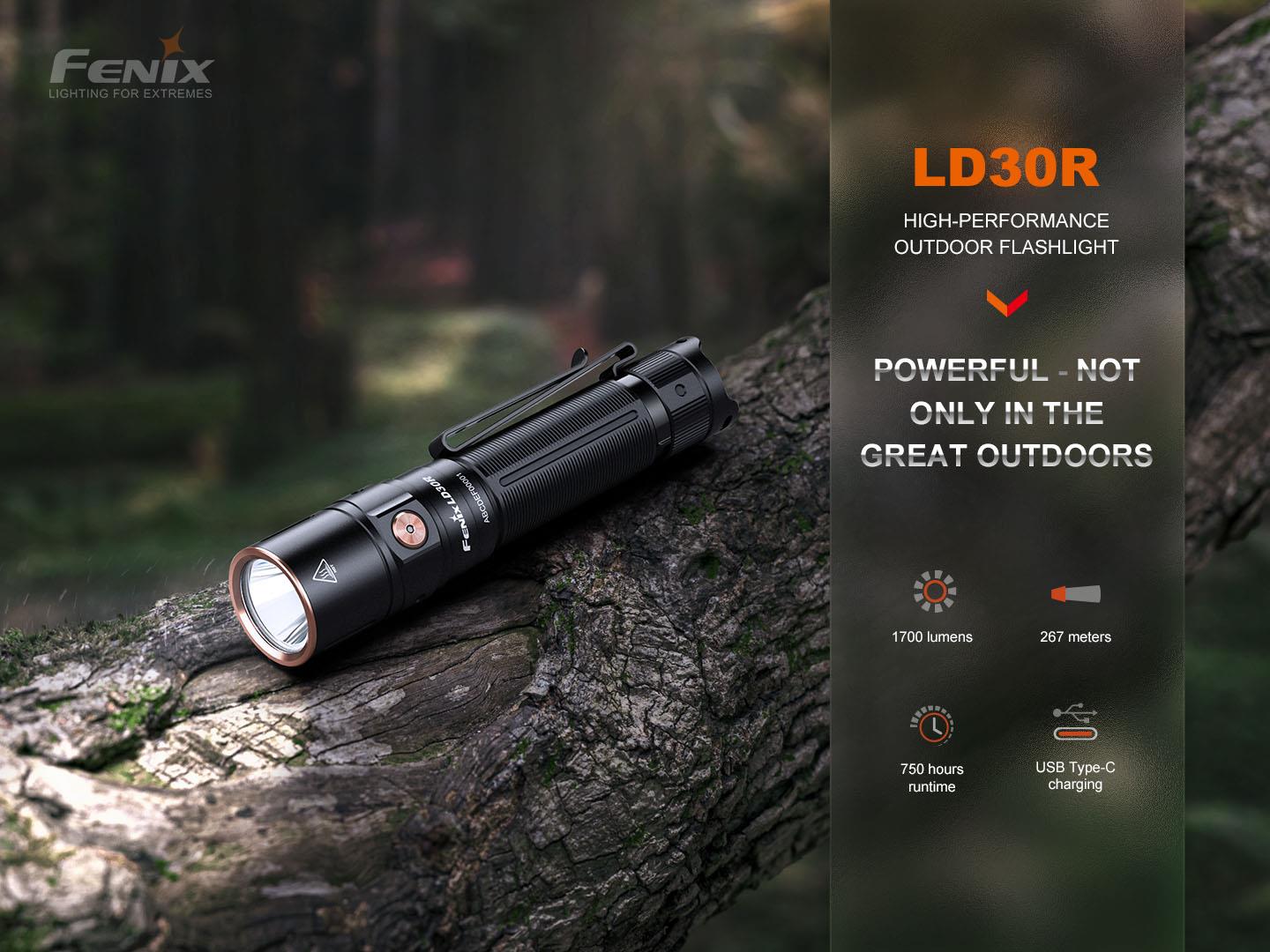

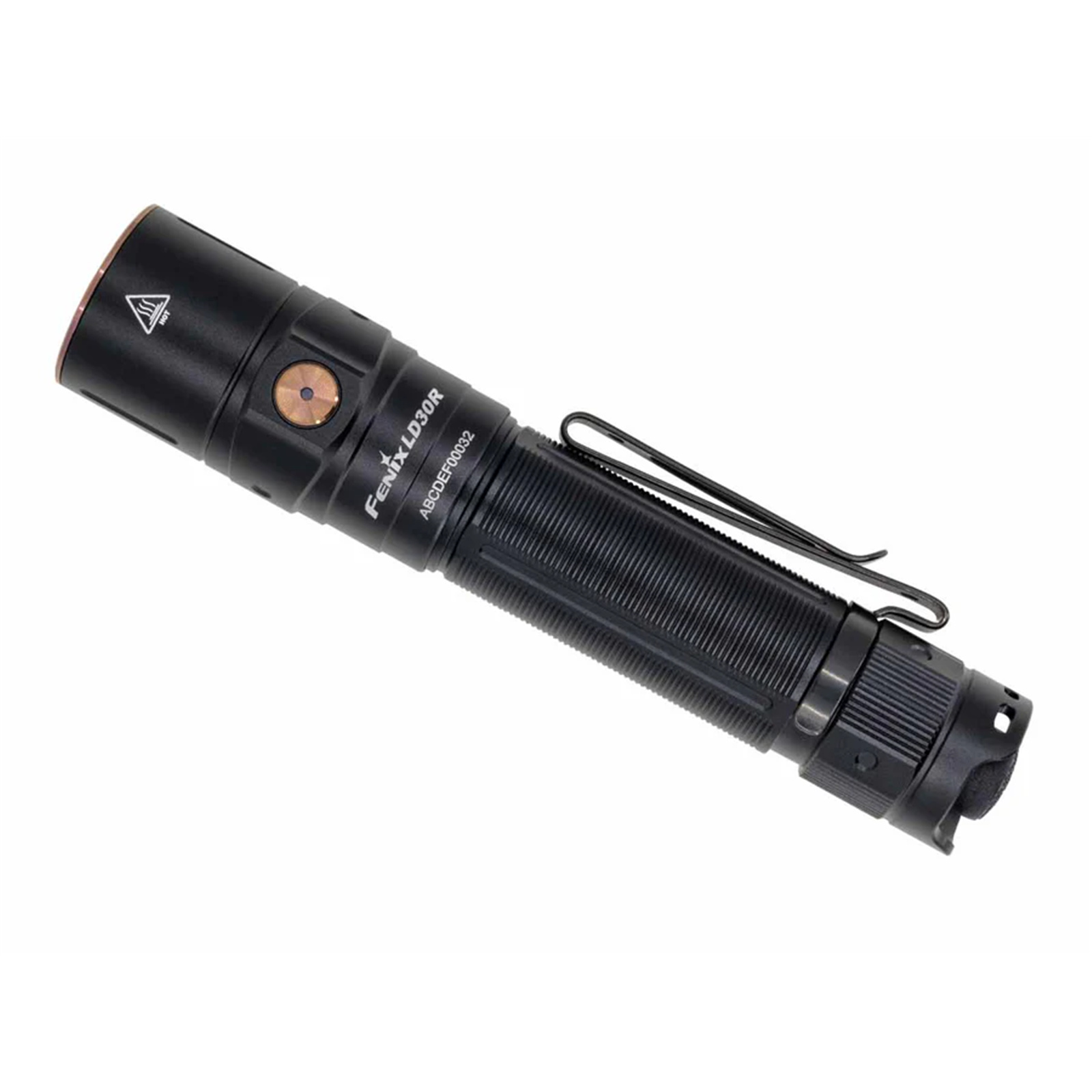

The Fenix LD30R is the perfect lightweight and high-performance outdoor flashlight. Operating on an included 3400mAh rechargeable battery, the flashlight emits a maximum output of 1700 lumens at a distance of 267 meters. Dual switches operation offers exceptional ergonomics and convenience, with the tail switch controlling momentary and constant on/off functions and the neck-mounted side button controlling five brightness levels, SOS mode, and Strobe mode. You can use the two-way body clip to attach the LD30R to a hat or a backpack effortlessly. Additional features include a battery level indicator, IP68-rated protection, and a universal USB Type-C charging port, all of these advantages make the LD30R very suitable for various outdoor activities such as camping, hiking and EDC.

Size: 5.11'' x 1.04'' x 0.89'' / 129.7 x 26.5 x 22.6 mm
Weight: 4.66oz/132g(including battery)
Battery Type: Included one rechargeable 3400mAh battery

Product Features:

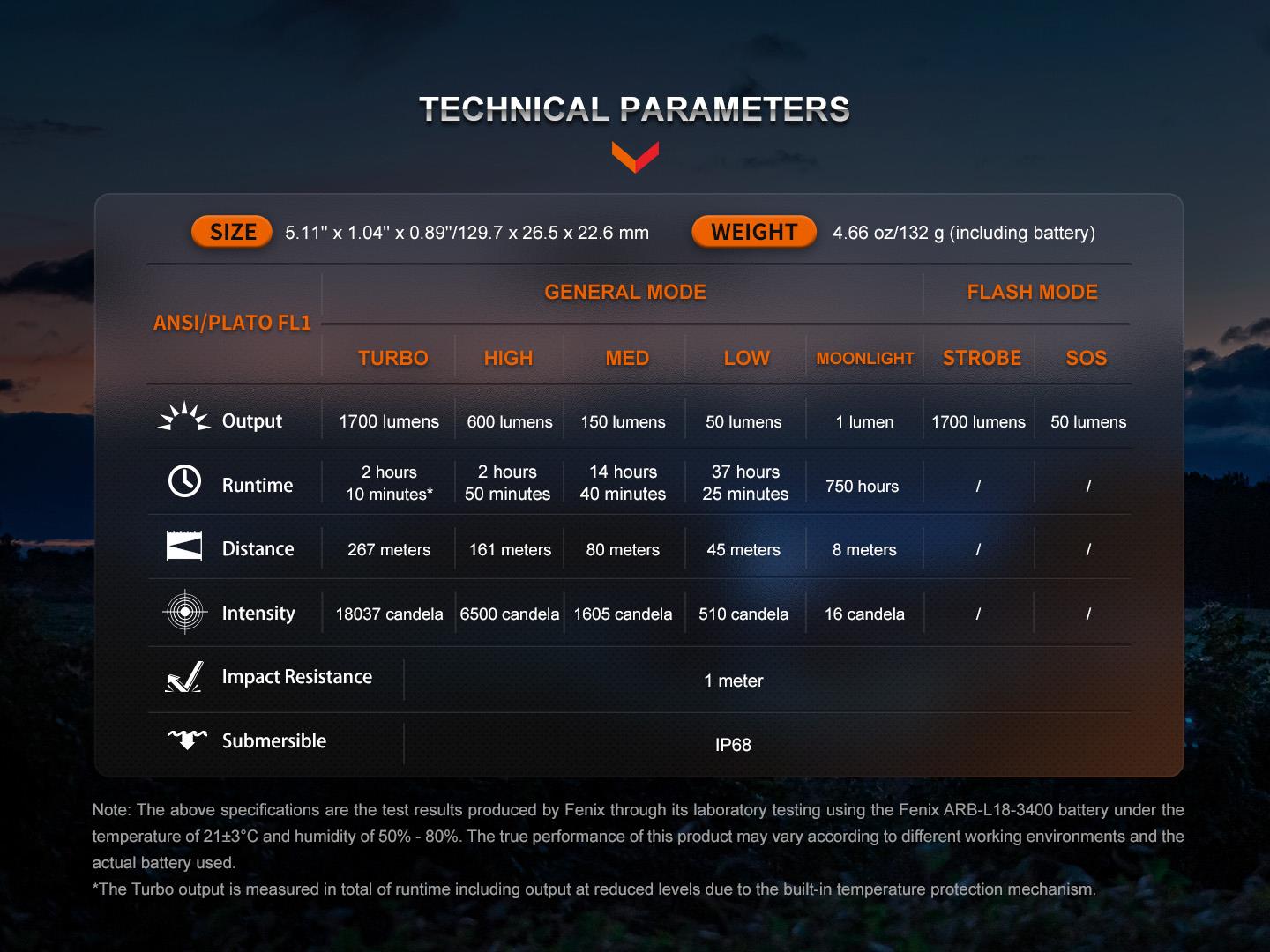

 - 1700 lumens maximum output and 267 meters beam distance.
 - Uses one Luminus SST40 LED with a lifespan of 50,000 hours.
 - Multiple output levels assist lighting needs required in various scenes.
 - The tactical tail switch controls the momentary and constant on/off functions.
 - The neck-mounted side switch controls brightness selection.
 - The SOS mode and Strobe mode can enhance user's safety in outdoor activities.
 - Battery level indication LED and low-voltage warning.
 - Universal USB Type-C charging port.

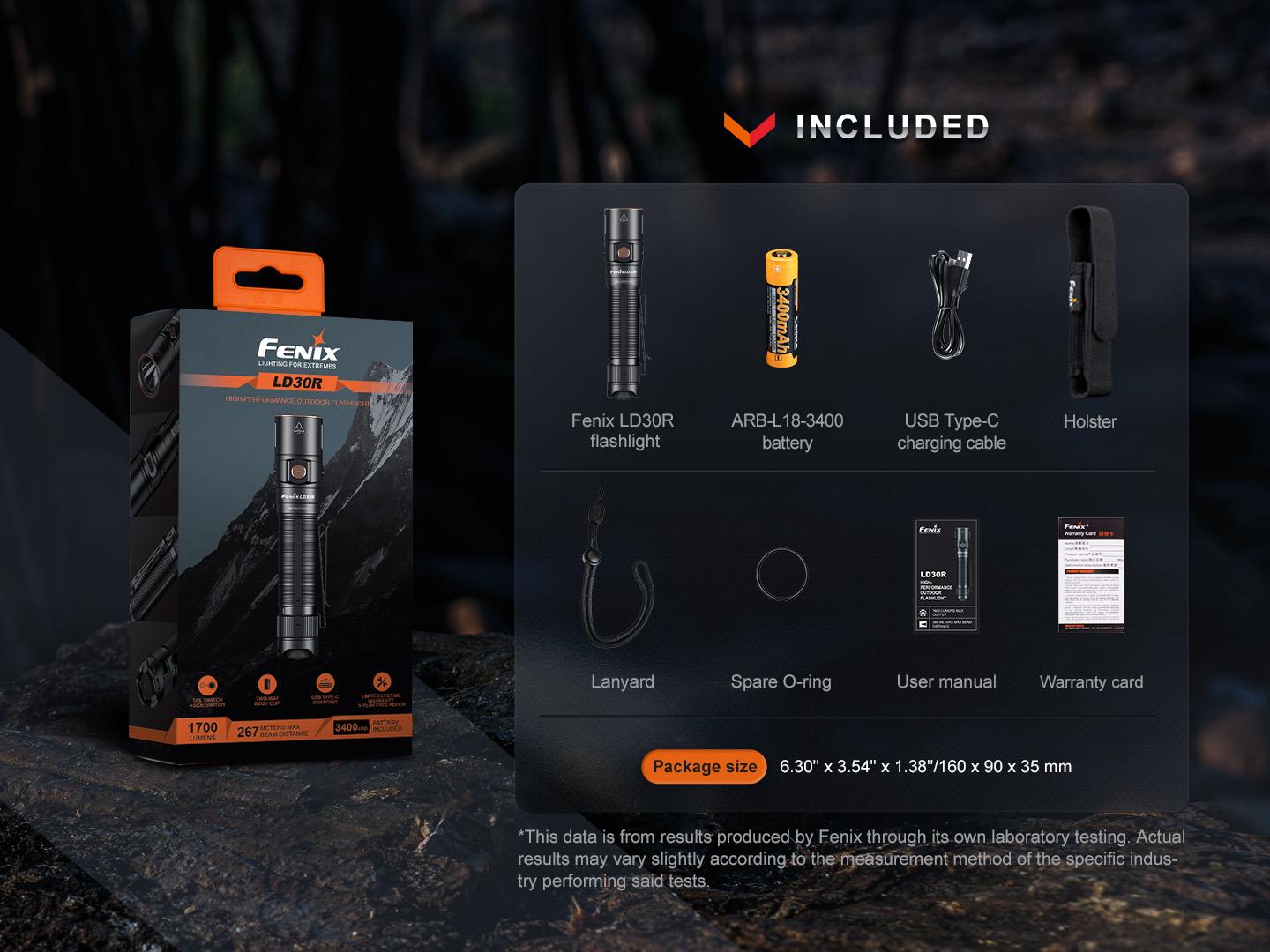

 - Included is one ARB-L18-3400 battery.

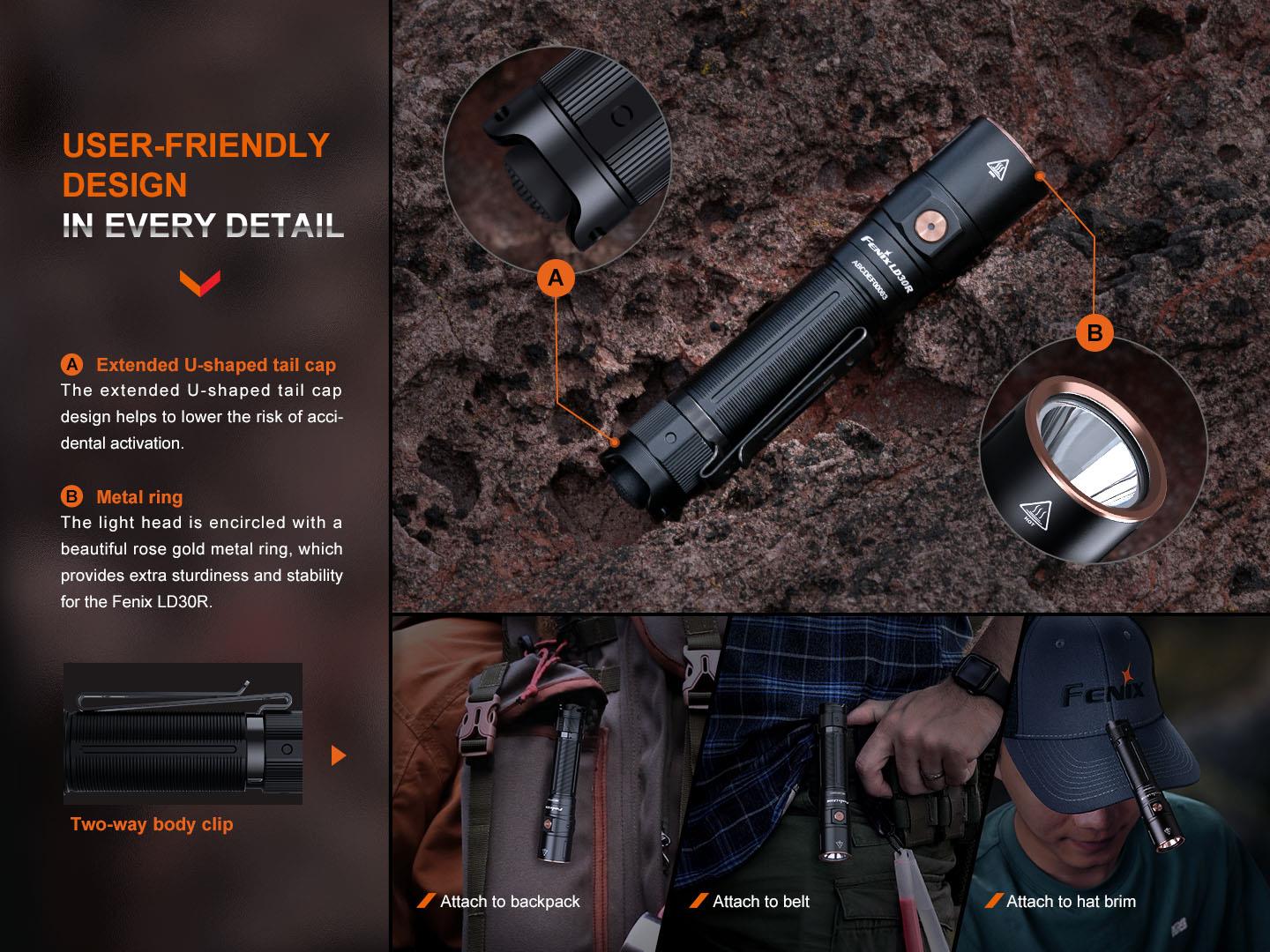

 - Two-way body clip for versatile attachment.
 - The Fenix LD30R is compatible with the Fenix AOD-S V2.0 diffuser tip, which could be used in outdoor camping.
 - Intelligent overheat protection circuitry to protect against high surface temperatures.
 - All-metal CNC machined light body.
 - Premium type HAIII hard-anodized anti-abrasive finish.
 - IP68 rated protection.

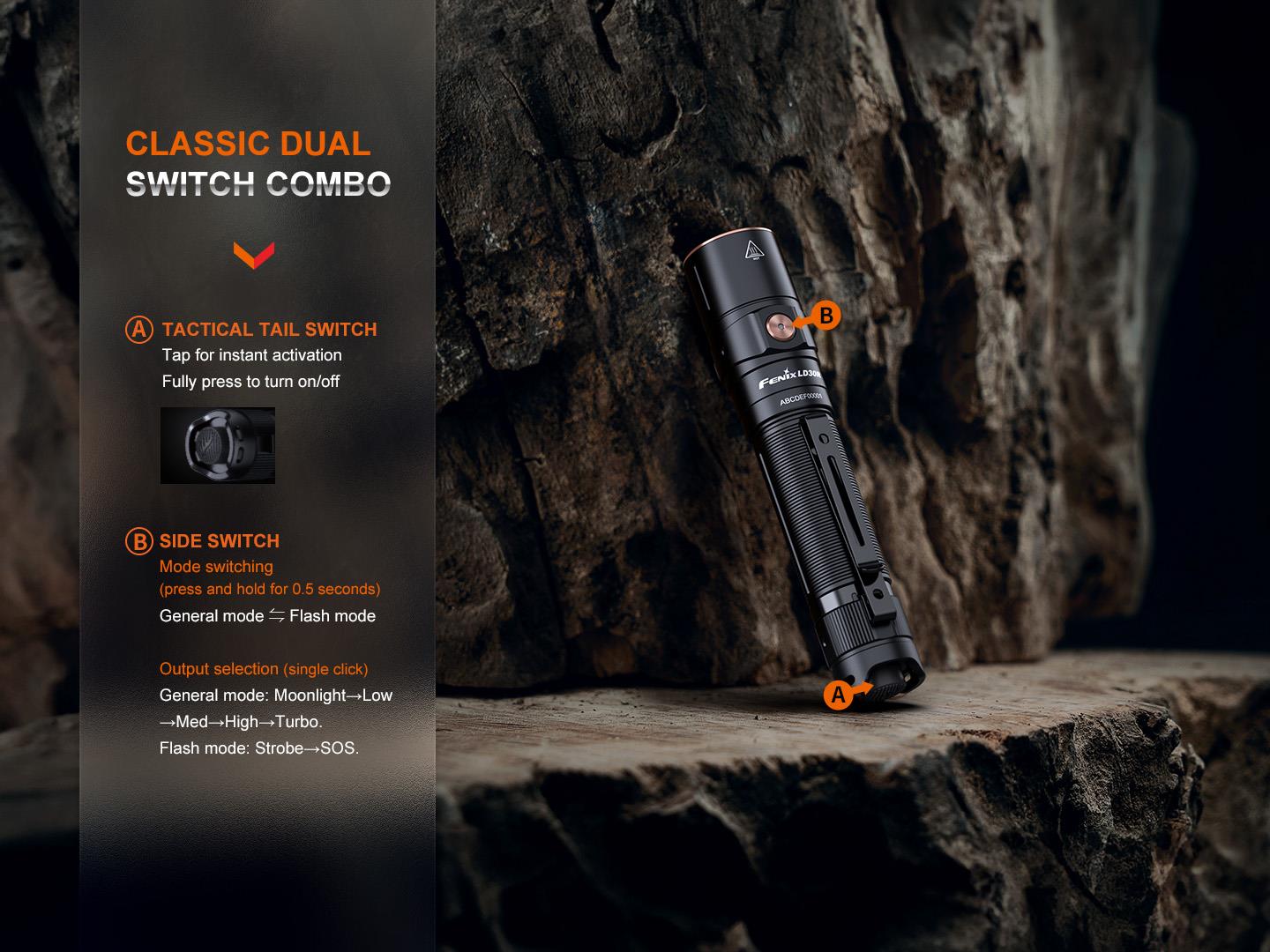

Operating Instructions

On/off

 - Tap the tail switch to momentarily turn on the flashlight, release it and the light will go out.
 - Fully press the tail switch to turn on or turn off the flashlight.

Mode switching

 - With the light switched on, press and hold the side switch for 0.5 seconds to enter the Flash Mode, press and hold the side switch for 0.5 seconds once again to return to the General Mode.

Output Selection

General Mode:

 - With the light switched on, single click the side switch to cycle through Moonlight, Low, Med, High, Turbo.

Flash Mode:

 - With the light switched on, press and hold the side switch for 0.5 seconds to enter Strobe, single click the side switch to cycle through Strobe, SOS.

Intelligent Memory Circuit

The flashlight automatically memorizes the last selected output of General Mode. When turned on again the previously used output of General Mode will be recalled.

Battery Specifications

Warning: Do not mix batteries of different brands, sizes, capacities or types. Doing so may cause damage to the flashlight or to the batteries being used.

*18650/16340 rechargeableLi-ion batteries are powerful cells designed for commercial applications and must be treated with caution and handled with care. Only using quality batteries with circuit protection will reduce the potential for combustion or explosion. Cell damage or short circuiting caused by using these types of battery is considered user induced damage and is not covered by any Fenix warranty or liability.

Battery Replacement

Unscrew the light body and insert the battery with the anode side (+) towards the light head, then screw the light body back on.

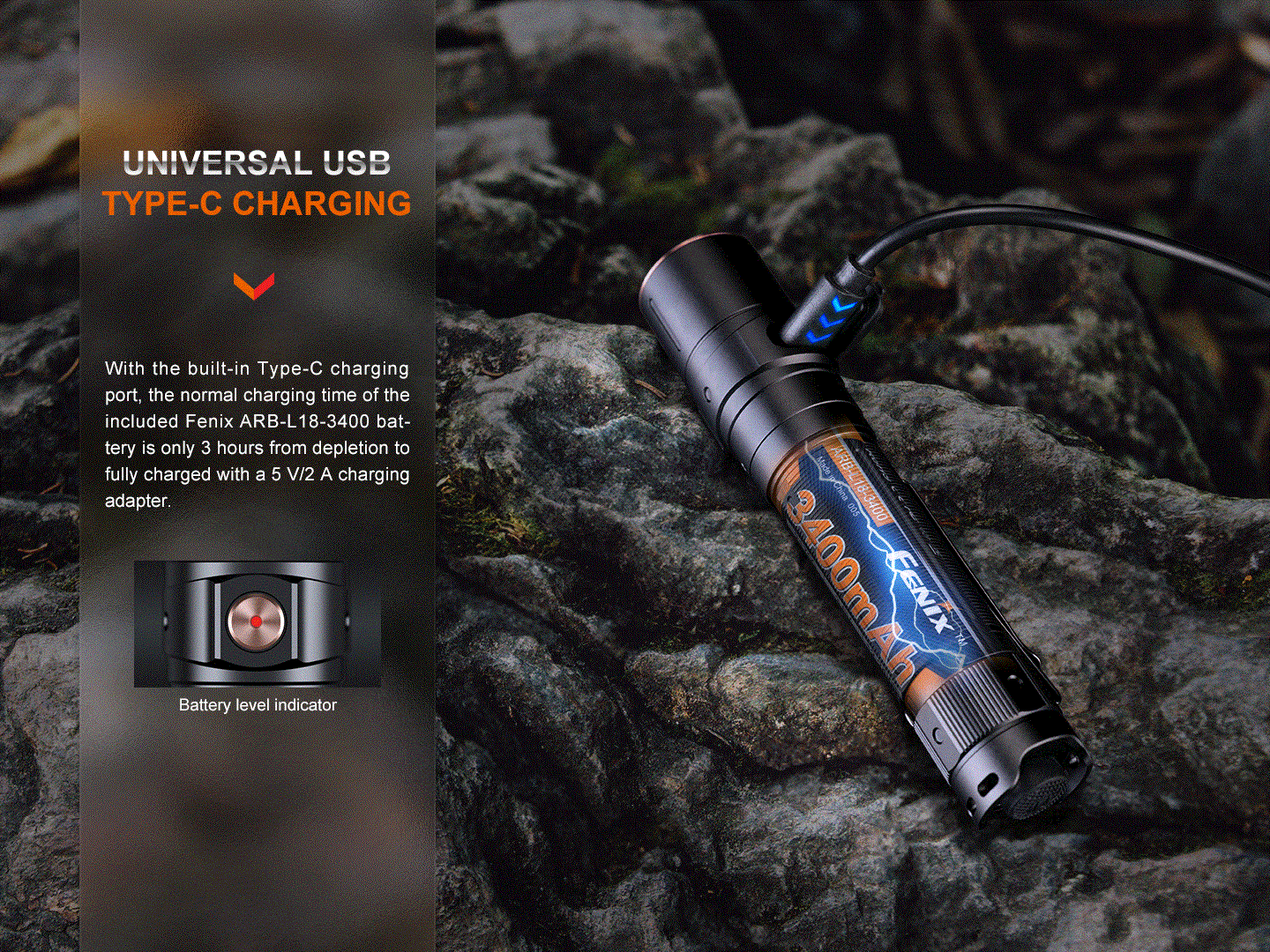

Charging

1, With the flashlight switched off, open the anti-dust cover to reveal the charging port, then connect the USB Type-C end of the charging cable to the flashlight.
2, The indicator will display red while charging, and will turn to green when fully charged.
3, Once charging is completed, be sure to close the anti-dust cover.
4, With the flashlight switched off, the normal charging time of the Fenix ARB-L18-3400 battery is about 3 hours from depleted to fully charged with a 5 V/2 A charging adapter. Only Moonlight output and Low output can be operated while charging.
5, Recharge a stored light every four months to maintain optimum performance of the battery.

Battery level indication

Each time the light is turned on, the battery level indicator in the middle of the switch will automatically display the battery status for 3 seconds.

 - Green light on: saturated 100% - 85%
 - Green light flashes: sufficient 85% - 50%
 - Red light on: poor 50% - 25%
 - Red light flashes: critical 25% - 1%

Note: This feature only works with a Fenix ARB-L18 Series rechargeable battery.

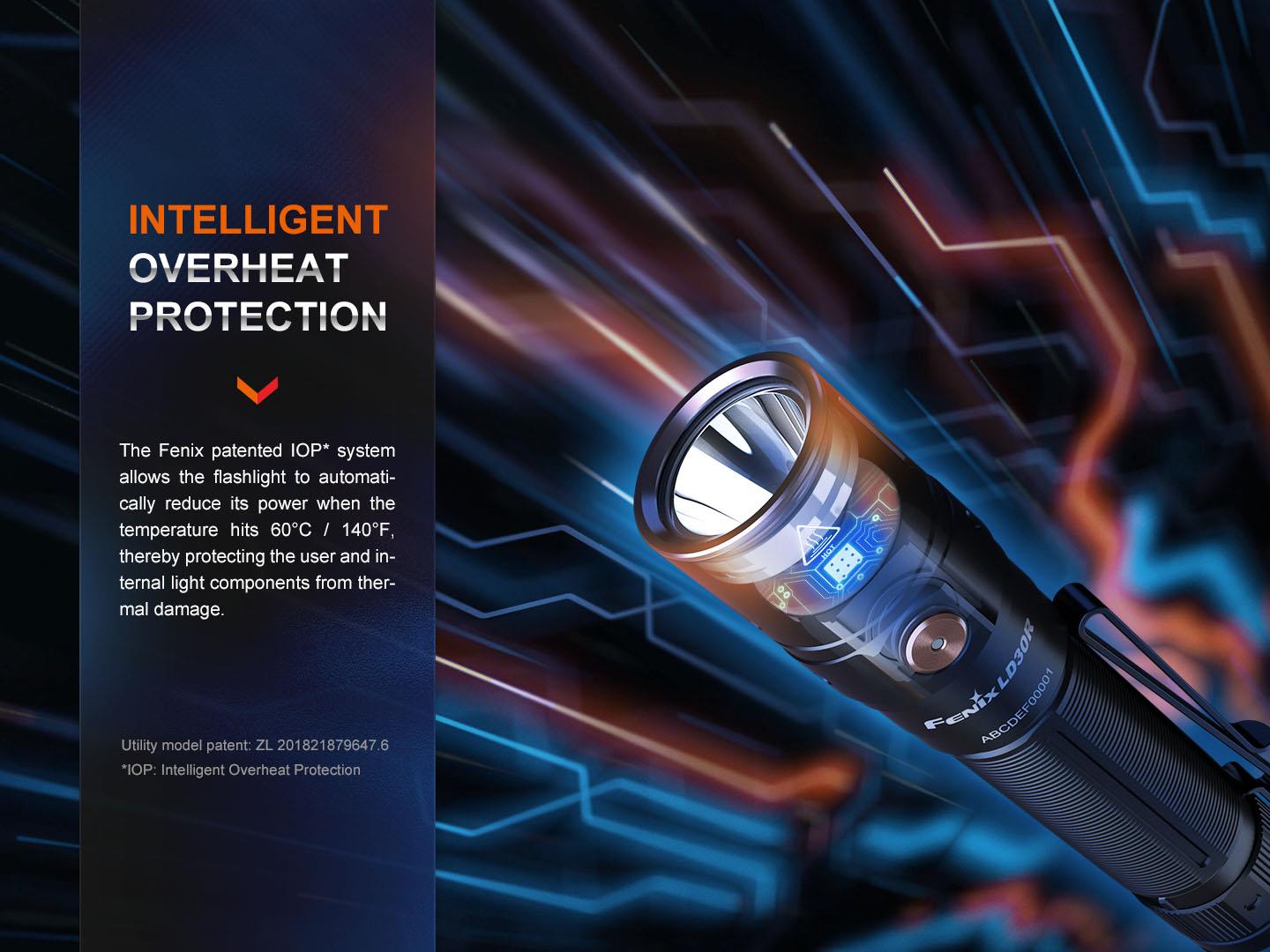

Intelligent Overheat Protection

The flashlight will accumulate a lot of heat when used at high output levels for extended periods. The light will automatically step down a few lumens to reduce the temperature to a safe level when this situation occurs.

Low-voltage Warning

When the voltage level drops below 3.0 V, the flashlight is programmed to downshift to a lower brightness level until Moonlight output is reached. When this happens in Moonlight output, the battery level indicator blinks red to remind you to replace or recharge the battery. To ensure normal use, the flashlight will not turn off automatically and will work till the battery level runs out.

Note: This feature only works with a Fenix ARB-L18 Series rechargeable battery.

Usage and Maintenance

 - Disassembling the sealed head can cause damage to the light and will void the warranty.
 - Fenix recommends using an excellent quality battery.
 - If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage or battery explosion.
 - Remove the battery to prevent accidental activation during storage or transportation.
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the lamp's performance as dirty contacts may cause the lamp to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: Poor battery level.
Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer's specifications).

B: The threads, PCB board contact or other contacts are dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
