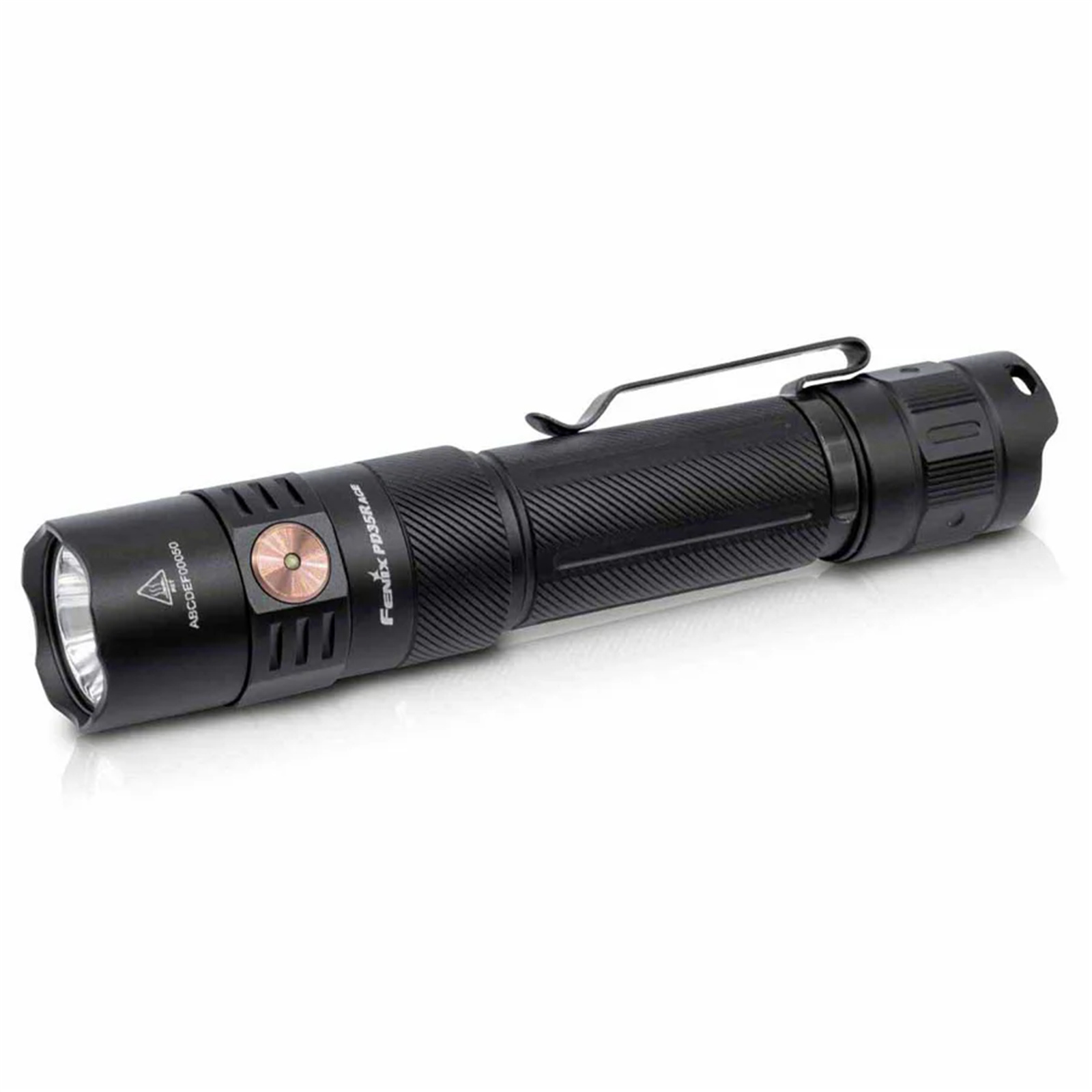

Fenix Tactical & Ourdoor Flashlights PD35R ACE High-Powered LED Torch Max 2,000 Lumens, Head: 1.04" (26.5mm), Max 380m Beam Distance, Powered by 1 x 18650 4,000 mAH Li-ion Rechargeable Battery Included, Build-In USB-C Charging Port, 5-Years

Warning:

 - Do NOT place this light in the reach of children!
 - Do NOT shine the light directly into the eyes of anyone!
 - Do NOT place light head near flammable objects, high temperatures can cause objects to overheat and become flammable/ignite!
 - Do NOT use the light in inappropriate ways such as holding the unit in your mouth, doing so could cause serious personal injury or death if the flashlight or internal battery fails!
 - This light will accumulate a significant amount of heat while operating, resulting in a high temperature of the flashlight shell. Pay close attention to avoid burns.
 - Unscrew the light tail a few turns or take out the battery to prevent accidental activation during storage or transportation.
 - The LED of this light is not replaceable; so the whole light will need to be replaced when the LED reaches the end of its lifespan.

Warranty: 5-Years Free Repair Warranty (Battery for 1 year)!

NOTE: Please ensure the insulation sheet of the battery removed for the first use.

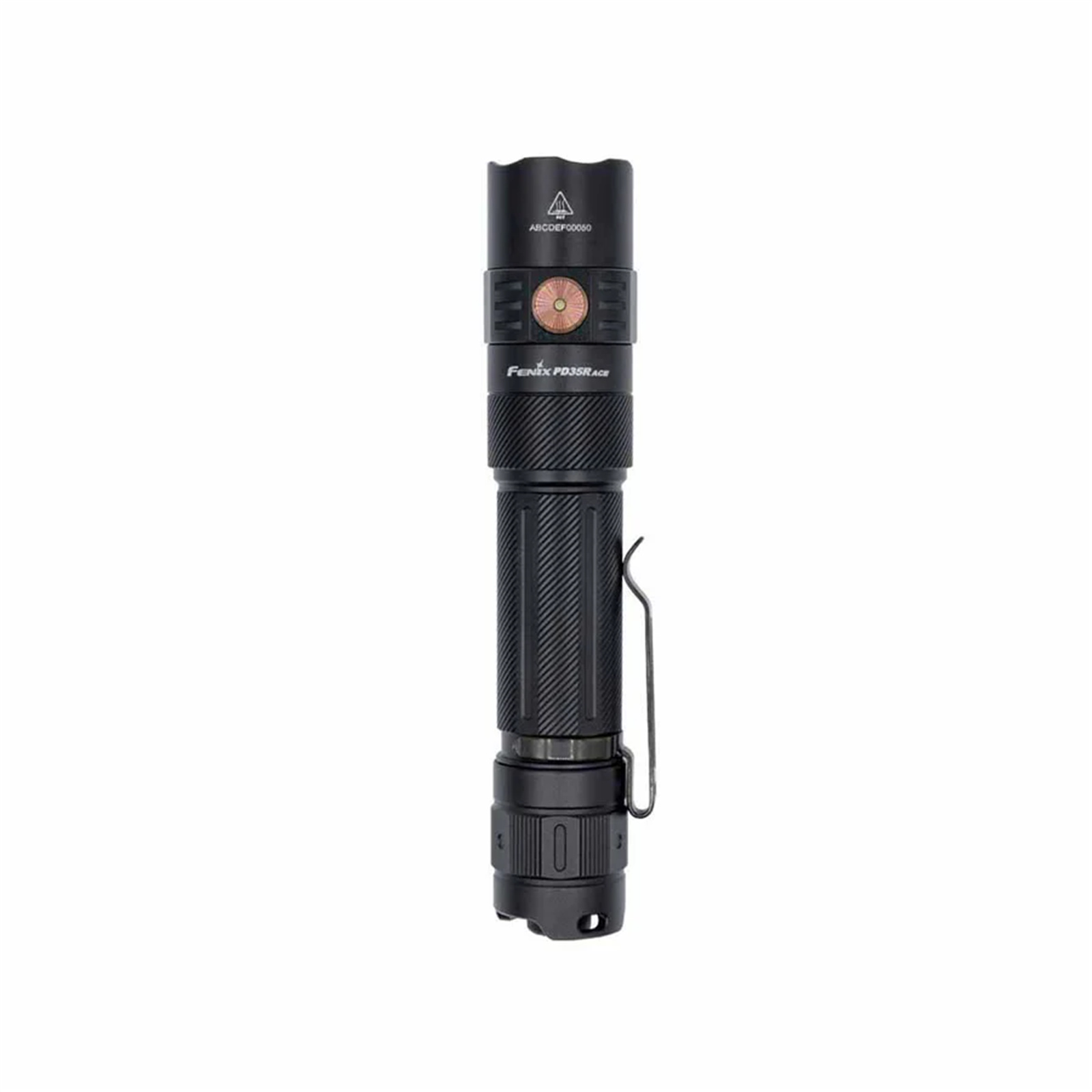

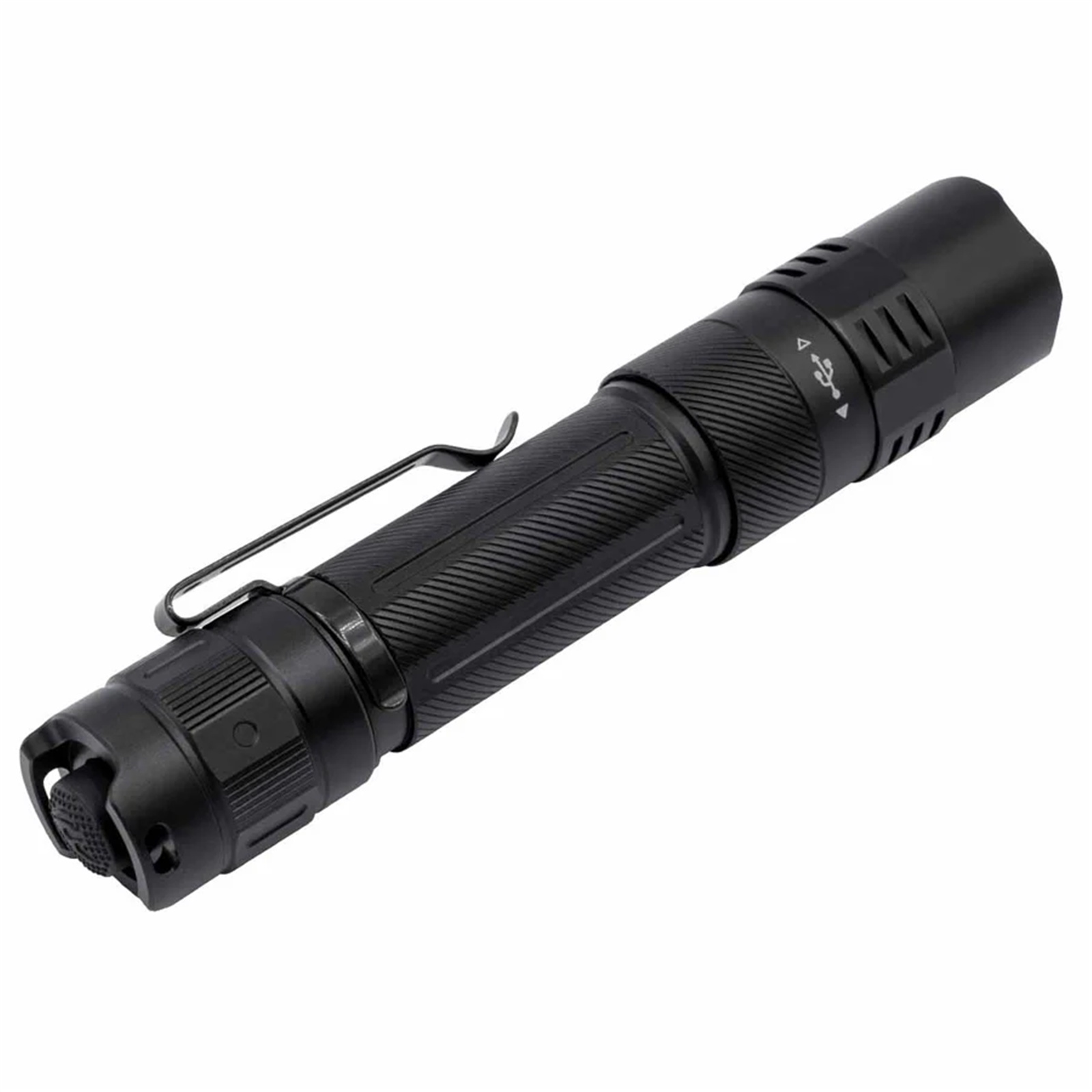

The Fenix PD35R ACE delivers powerful and reliable illumination with a maximum output of up to 2000 lumens and a maximum beam distance of 380 meters. Its innovative SET mode design provides three lighting options and a customizable Strobe mode to match the needs on various scenarios and your personal preferences. The tactical tail switch, the neck-mounted switch, and the hidden SET switch offer accurate and simple operations. The device features a hidden USB Type-C port, allowing for convenient charging of the included 4000mAh battery. Compact, durable, and multifunctional, the PD35R ACE is designed for outdoor and tactical use, making it an optimal lighting solution for everyday carry, law enforcement, daily duties, and other occasions.

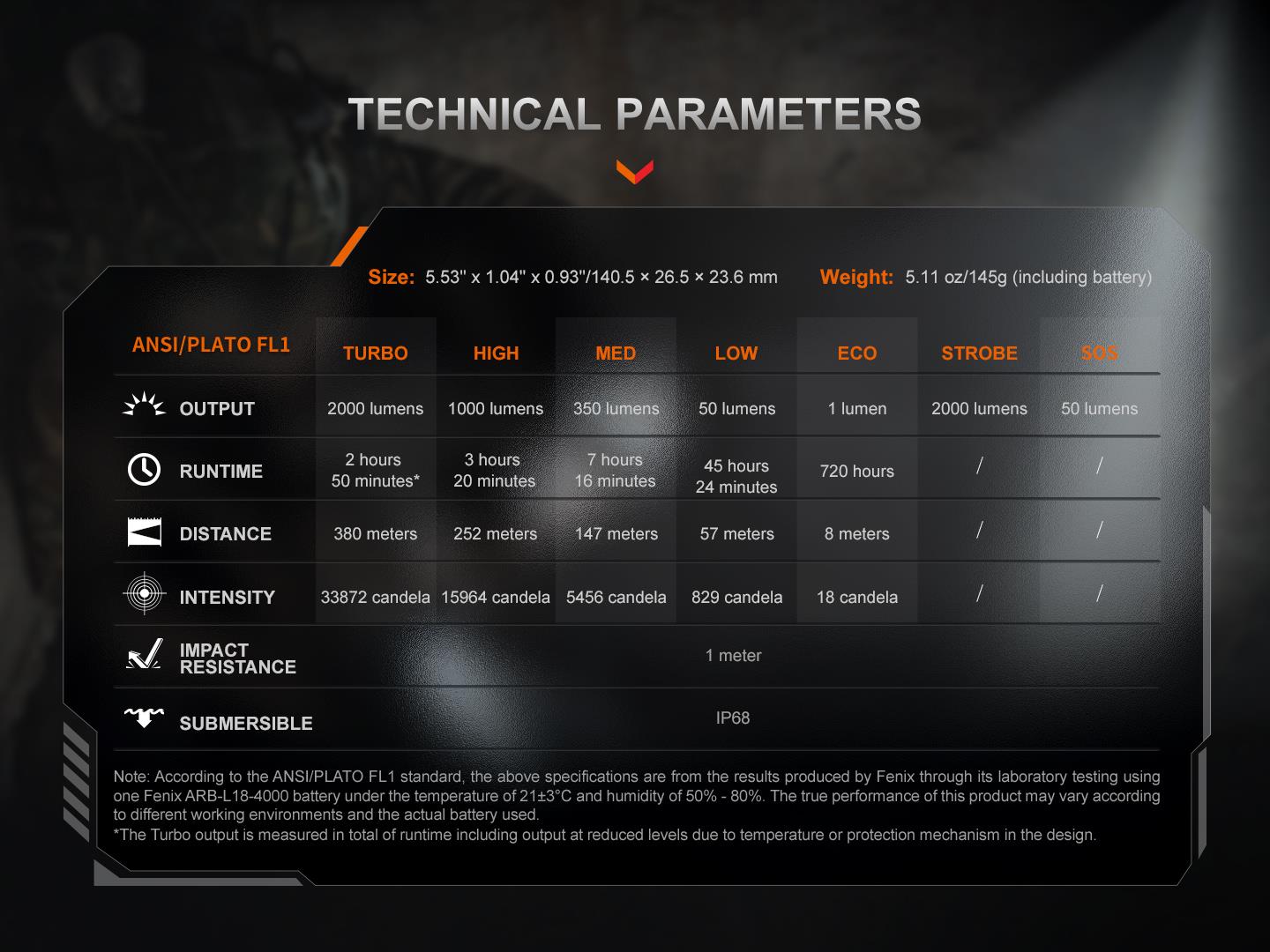

Size: 5.53'' x 1.04'' x 0.93''/140.5 x 26.5 x 23.6 mm
Weight: 5.11 oz/145 g (including battery)
Battery Type: ARB-L18-4000 battery

Product Features

 - 2000 lumens maximum output and 380 meters maximum beam distance.
 - Utilizes one Luminus SFT40 LED.
 - Innovative SET mode and customizable Strobe design match lighting needs on different occasions.

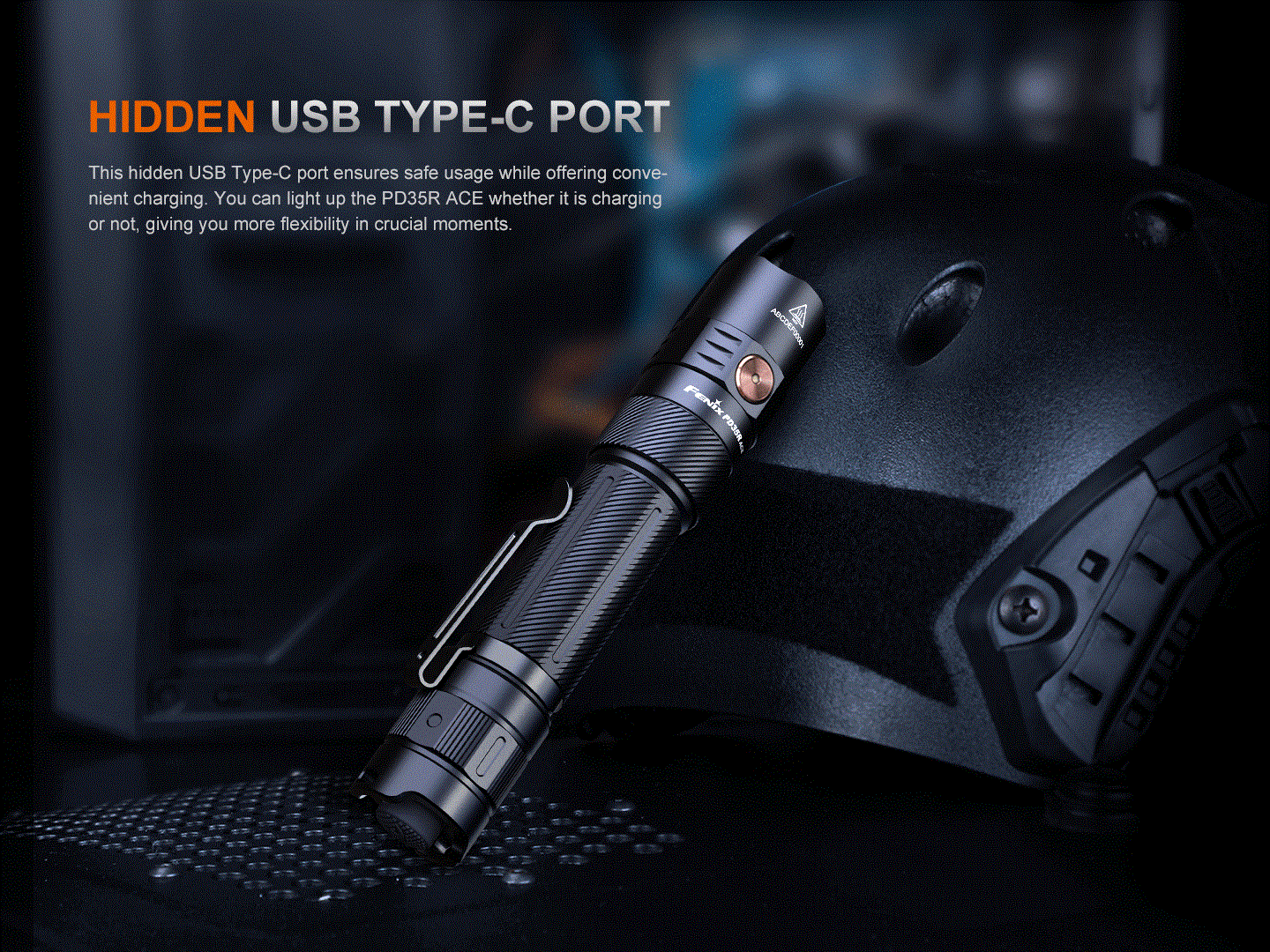

 - Hidden USB Type-C charging port.
 - Powered by a replaceable 4000mAh battery.
 - Compact size for easy carry.

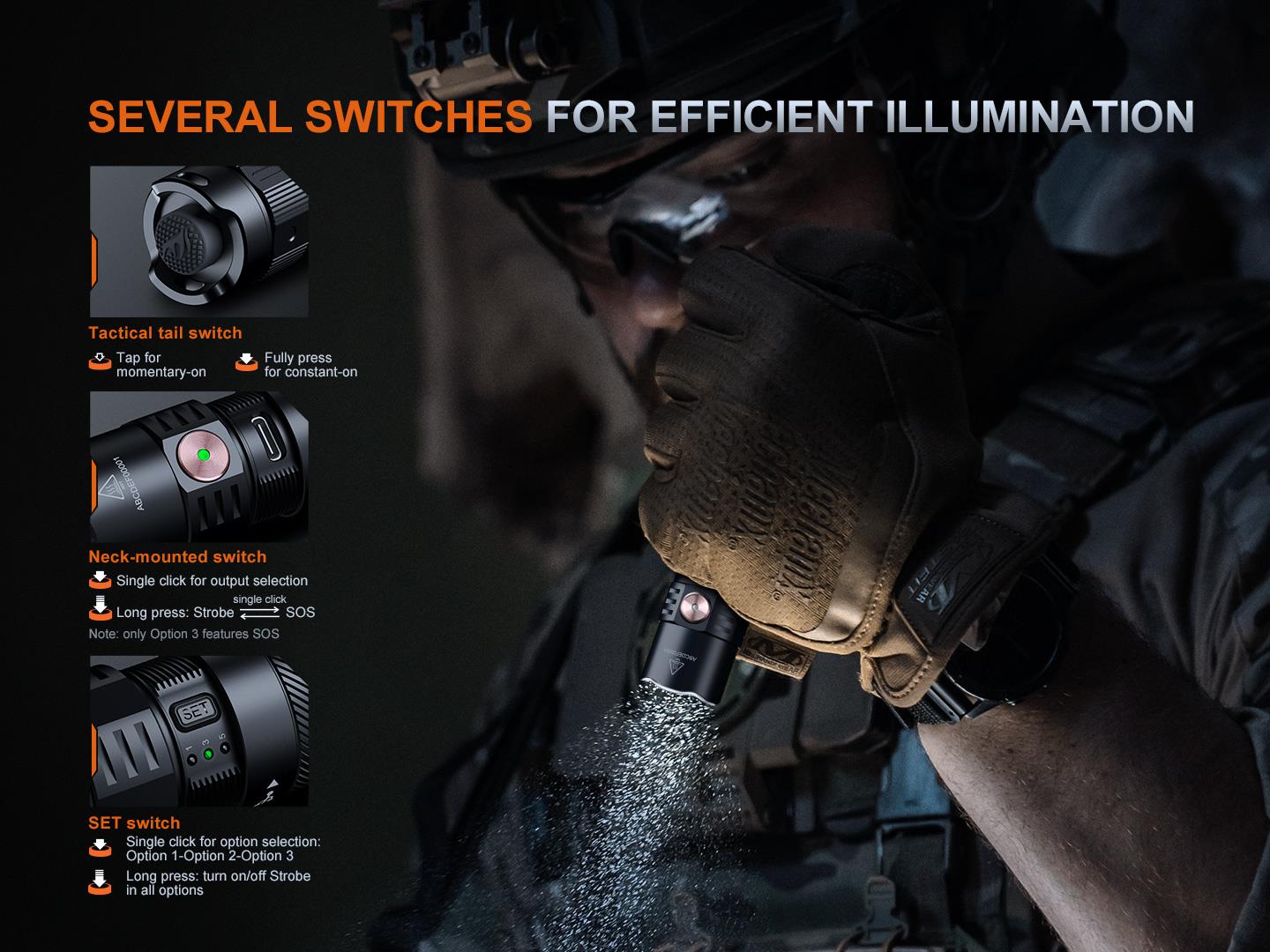

Operating Instructions

On/off

Tap the tactical tail switch to momentarily turn on the light, release it and the light will go out.

Fully press the tactical tail switch to constantly turn on the light, and press it again to turn off the light.

Output Selection

With the light turned on, single click the neck-mounted switch to cycle through Moonlight→Low→Med→High→Turbo.

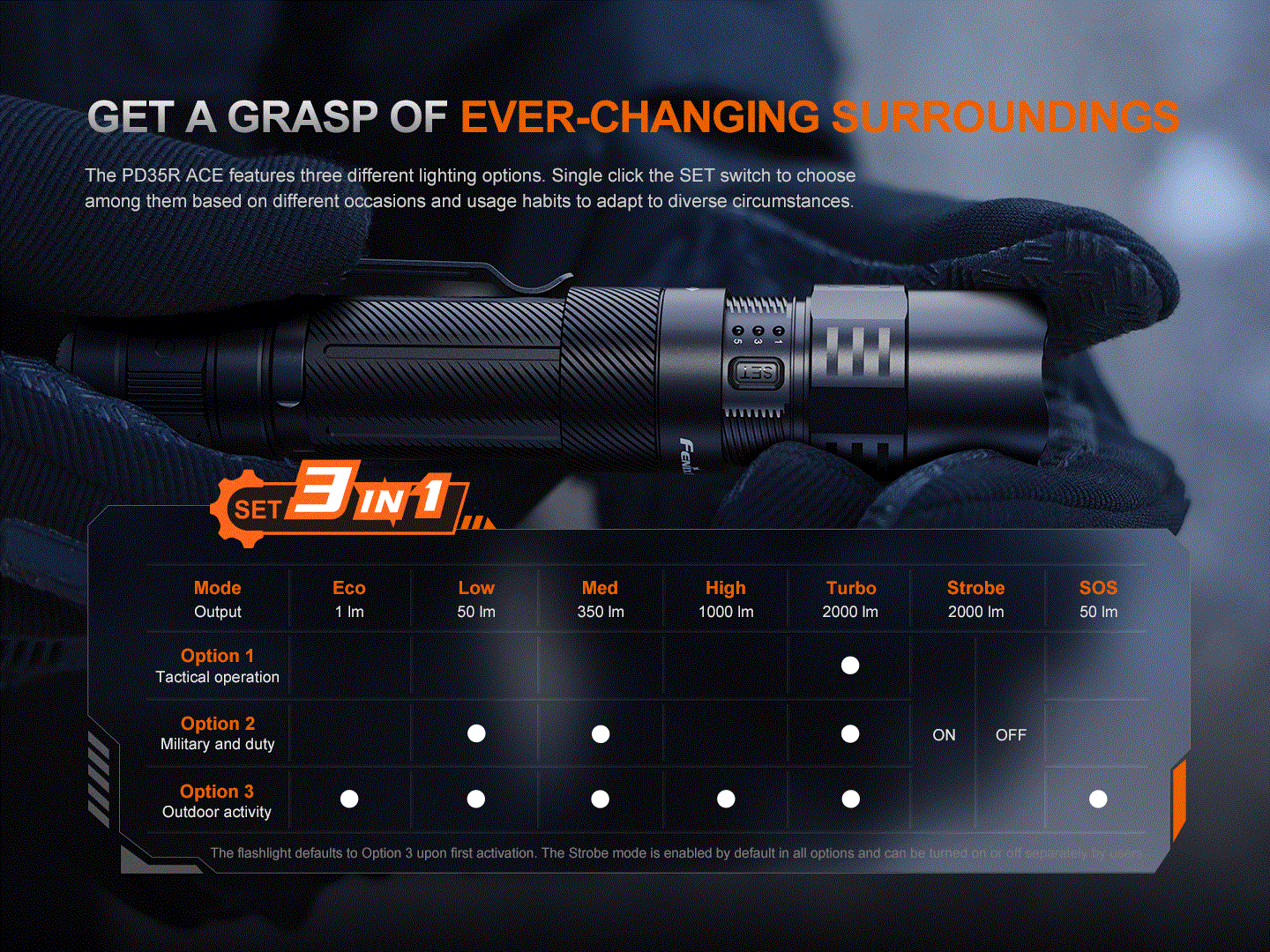

SET mode adjustment

The SET mode is built-in with three lighting options, which can be selected based on different lighting demands.

1, Loosen the light neck to reveal the hidden SET switch.
2, With the light turned on, single click the SET switch to cycle through Option 1 (1 output)→Option 2 (3 outputs)→Option 3 (5 outputs). When users turn on the flashlight for the first time, Option 3 will be selected by default.
3, When a lighting option is selected, its corresponding indicator will display green for 3 seconds to confirm the selection. The corresponding numbers indicate the currently available output amounts for each option.

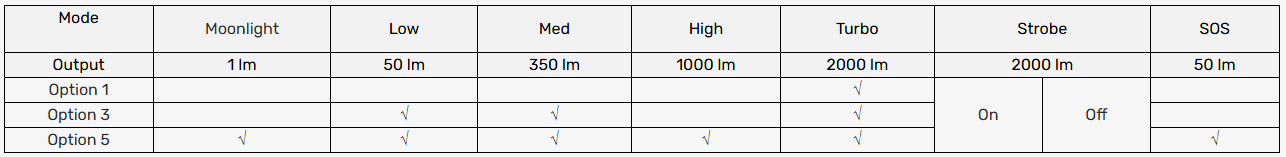

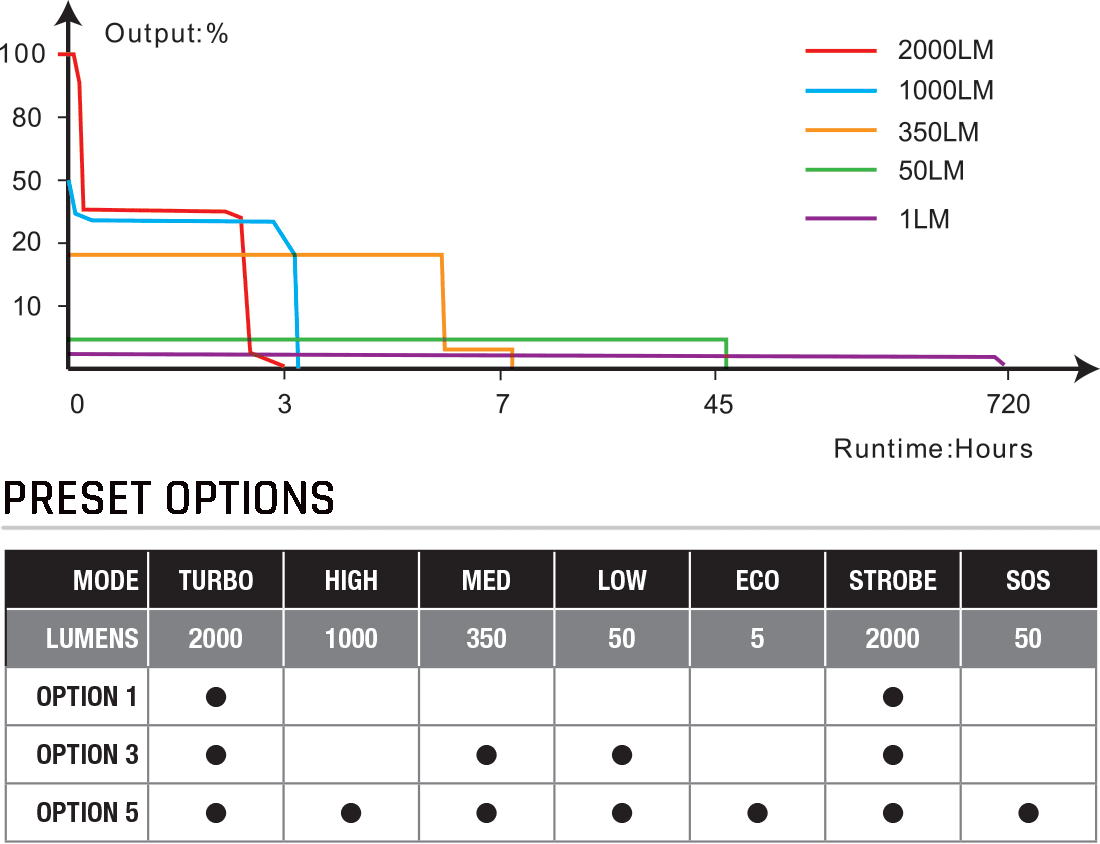

4, After the option selection is completed, single click the neck-mounted switch to select the needed output. The output settings of all three options are listed below:

Note:

1, When utilizing two CR123A batteries, the flashlight's Turbo mode provides a brightness level of 1000 lumens, and the flashlight's Strobe mode also provides a brightness level of 1000 lumens.
2, The customizable Strobe mode can be turned on or off independently by users. It is turned on in all options by default.
3. The output amounts for each lighting option do not include Strobe and SOS.

SOS & Strobe Modes

1, With the light turned on, press and hold the neck-mounted switch for 0.5 seconds to enter the Strobe mode, single click it once again to switch to the SOS mode. Press and hold the neck-mounted switch again for 0.5 seconds to recall the previously used lighting option and brightness level.
2, With the light turned on, press and hold the SET switch for 1.2 seconds to turn on/off the Strobe mode in all options. The flashlight will blink twice to confirm the selection.

Note: Only Option 5 features the SOS mode. After turning off the Strobe mode, press and hold the neck-mounted switch for 0.5 seconds to enter the SOS mode.

Intelligent Memory Circuit

The light automatically memorizes the last selected lighting option and brightness level excluding Strobe and SOS.

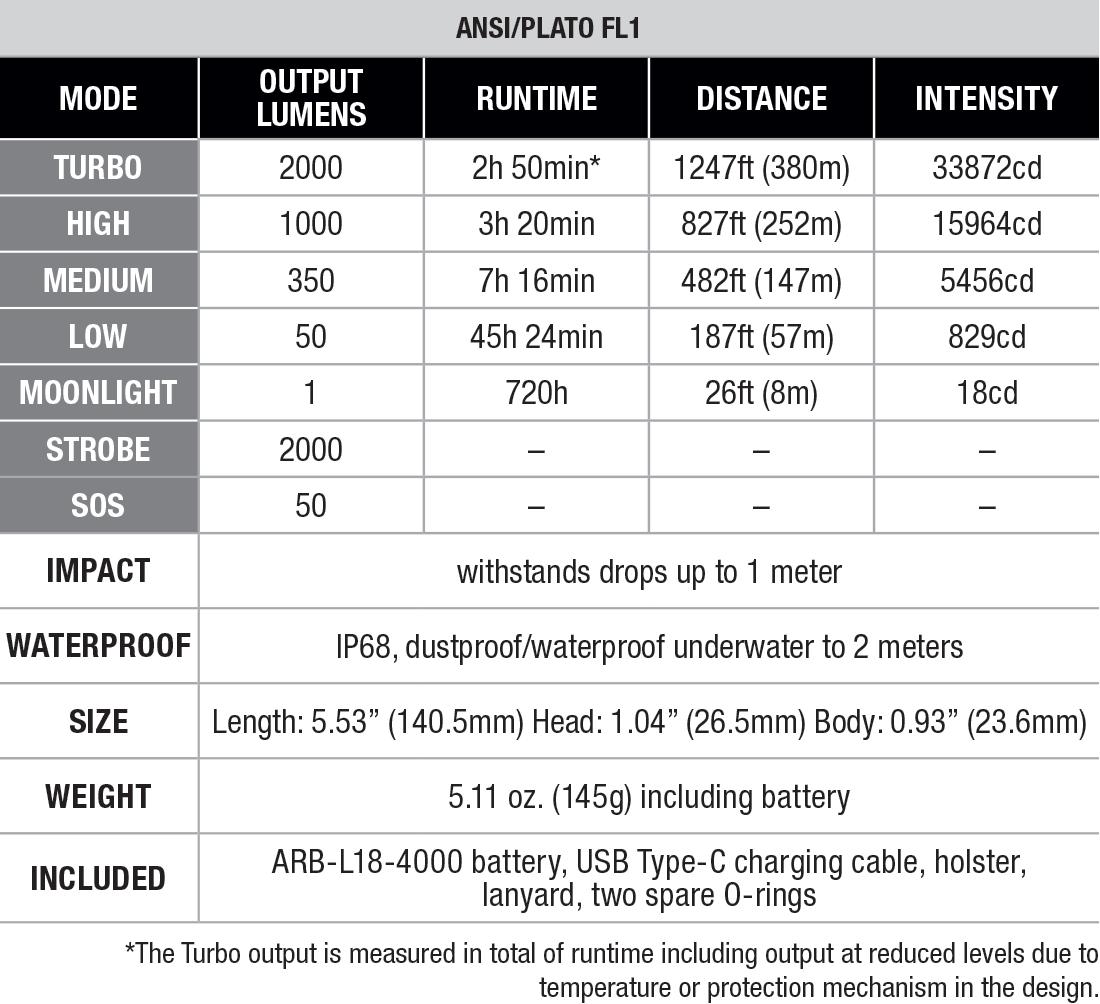

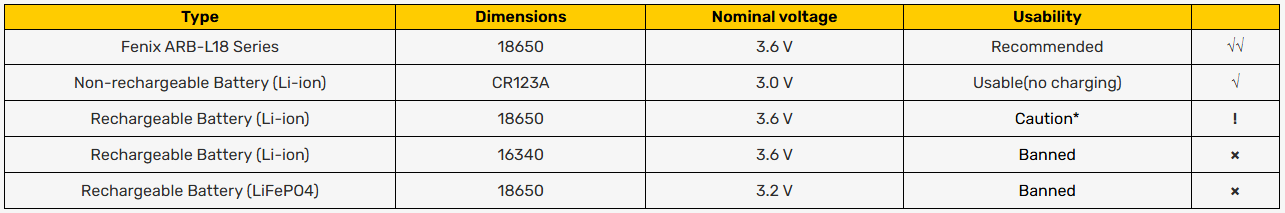

Battery Specifications

Battery Replacement

Unscrew the light body and insert the battery with the anode side (+) towards the light head, then screw the light body back on.

Charging

1, Loosen the light neck to reveal the USB Type-C charging port and battery level indicator, and connect the USB Type-C socket of the charging cable to the light.
2, The indicator will display red while charging, and will turn green when fully charged.
3, Once charging is completed, be sure to unplug the charging cable and tighten the light neck to ensure normal use.

Note:

1, The normal charging time of the included Fenix ARB-L18-4000 battery is approximately 3 hours from depleted to fully charged with a 5 V/3 A charging adapter.
2, Recharge a stored light every four months to maintain the optimum performance of the battery.
3, Press and hold the neck-mounted switch for 0.5 seconds to turn on/off the light while charging. During charging, the tail switch will not respond to any operation.
4, After turning off the light with the neck-mounted switch, if the tail switch is in fully pressed state while unplugging the charging cable, the light will light up automatically and recall the previously used brightness level.

Battery Level Indication

Each time the light is turned on, the indicator will show the current battery level and will stay illuminated for 3 seconds.

 - Green light on: saturated 100% - 85%
 - Green light flashes: sufficient 85% - 50%
 - Red light on: poor 50% - 25%
 - Red light flashes: critical 25% - 1%

Note: This feature only works with a Fenix ARB-L18 Series battery.

Intelligent Overheat Protection

The light will accumulate a lot of heat when used at Turbo output or Ultrahigh output for extended periods. When the light reaches a temperature of 60°C/140°F or above, the light will automatically step down a certain amount of lumens to reduce the temperature until Med output is reached. When the temperature drops below 60°C/140°F, the light will gradually recall the preset output level.

Low-voltage Warning

When the voltage level drops below 3.0 V, the light is programmed to downshift to a lower brightness level until Eco output is reached. When this happens in Eco output, the battery level indicator blinks red to remind you to recharge or replace the battery in a timely manner. To ensure normal use, the light will not turn off automatically and will work till the battery level runs out or the battery protection plate is triggered to stop discharging.

Note: This feature only works with a Fenix ARB-L18 Series battery.

Usage and Maintenance

 - Disassembling the sealed head can cause damage to the light and will void the warranty.
 - Fenix recommends using an excellent quality battery.
 - If the light will not be used for an extended period, remove the battery, or the light could be damaged by electrolyte leakage.
 - Unscrew the light tail a few turns or remove the battery to prevent accidental activation when the light is placed in a closed and flammable environment such as pockets and backpacks!
 - Long-term use can result in O-ring wear. To maintain a proper water seal, replace the O-ring with an approved spare.
 - Periodic cleaning of the battery contacts improves the light's performance as dirty contacts may cause the light to flicker, shine intermittently or even fail to illuminate for the following reasons:

A: Poor battery level.
Solution: Replace or recharge the battery (Ensure the battery is inserted according to the manufacturer's specifications).

B: The contact or contact point of the battery or flashlight is dirty.
Solution: Clean the contact points with a cotton swab soaked in rubbing alcohol.
