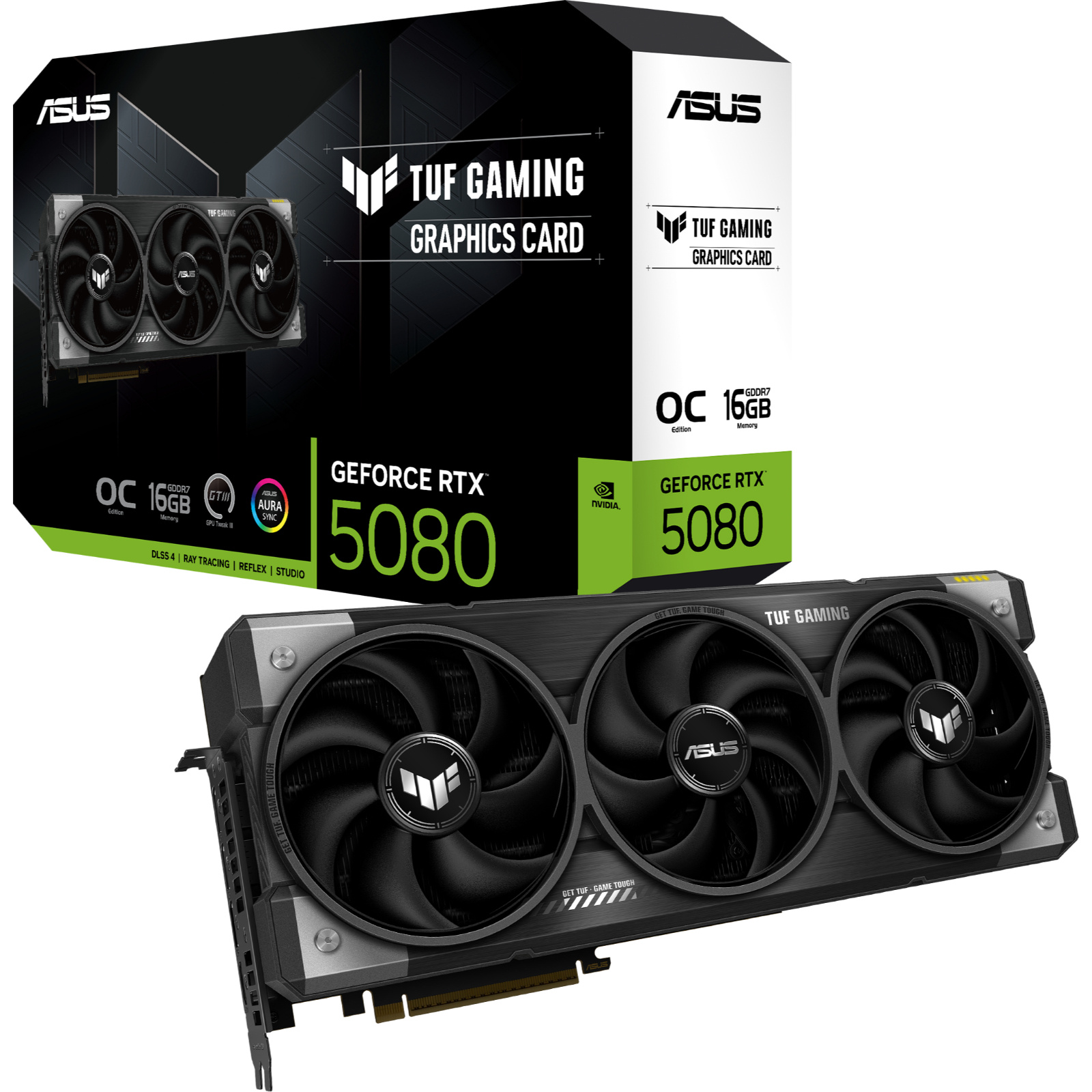

ASUS TUF NVIDIA GeForce RTX 5080 OC 16GB GDDR7 Graphics Card
PCIE 5.0 - 3.6 Slot - 1x 16 Pin Power - Minimum 850W PSU
ASUS TUF NVIDIA GeForce RTX 5080 OC 16GB GDDR7 Graphics Card
PCIE 5.0 - 3.6 Slot - 1x 16 Pin Power - Minimum 850W PSU
- Brand: ASUS
- MPN: TUF-RTX5080-O16G-GAMING
- Part #: VGAASU350801
- UPC: 197105856677
Select your store to check availability
What PB Tech customers are saying about this product...
See More Reviews
"Just get one - worth every penny!
I had my 2080ti for abo ...view more"
"Twice the price, twice the fun. Once I got past the price, no complaints. My racing games are all on max settings now. That's what I was after. Seeing as I've seen it mentioned els ...view more"
"It's a big card, but very well built. I've had the tuf / rog range since the 2080, including a 3090. This is very well made, and very good at cooling. My biggest surprise is how co ...view more"
COMBO DEALS: Buy Together and SAVE!
Cruxtec DisplayPort Cable - 2m V1.4 - Full Ultra HD - 8K/60Hz & 4K/144Hz
$16.16 +GST
$18.58
Corsair RS120 ARGB Black 120mm ARGB Fan 3x Pack with daisy-chained 4-pin PWM and +5V ARGB...
$75.00 +GST
$86.25
Kingston NV3 1TB M.2 NVMe Internal SSD PCIe Gen 4 - Up to 6000MB/s Read - Up to 4000MB/s Write -...
$105.00 +GST
$120.75
MSI MAG 850W Power Supply 80 Plus Gold - ATX 3.1 PCIe 5.0 Ready - 12VHPWR 12+4-Pin - Full Modular...
$167.20 +GST
$192.28
Features
Game TUF. Built to Last. ASUS TUF Gaming GeForce RTX™ 5080
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5080, designed to withstand the harshest conditions and deliver unparalleled performance.
Military-Grade Components
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.
Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Large Vapor Chamber
A vapor chamber and jumbo-size heatsink efficiently soaks up heat from the GeForce RTX 5080 GPU, helping to ensure premium performance in a variety of scenarios.
Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 23% more air than standard fans.

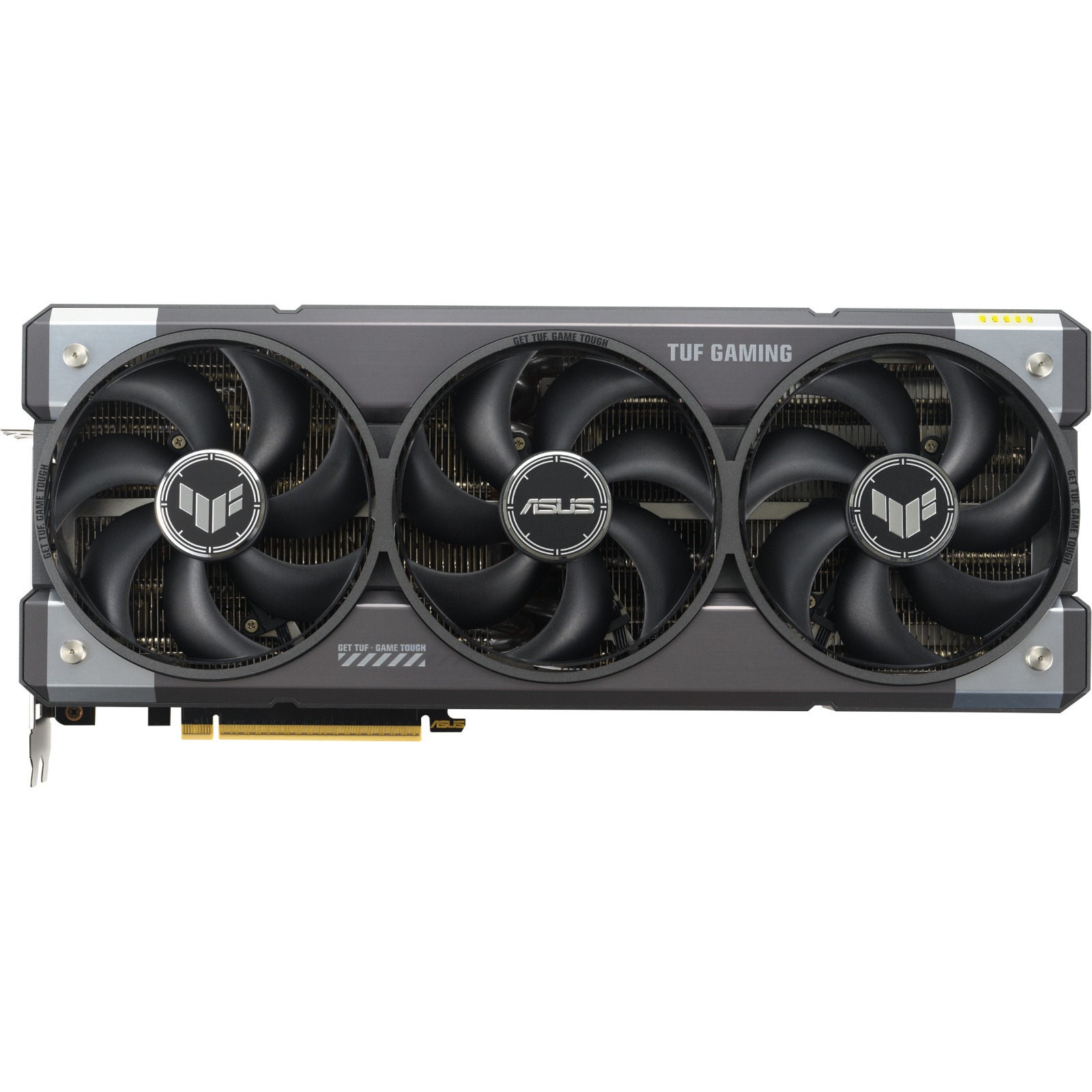

New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics.

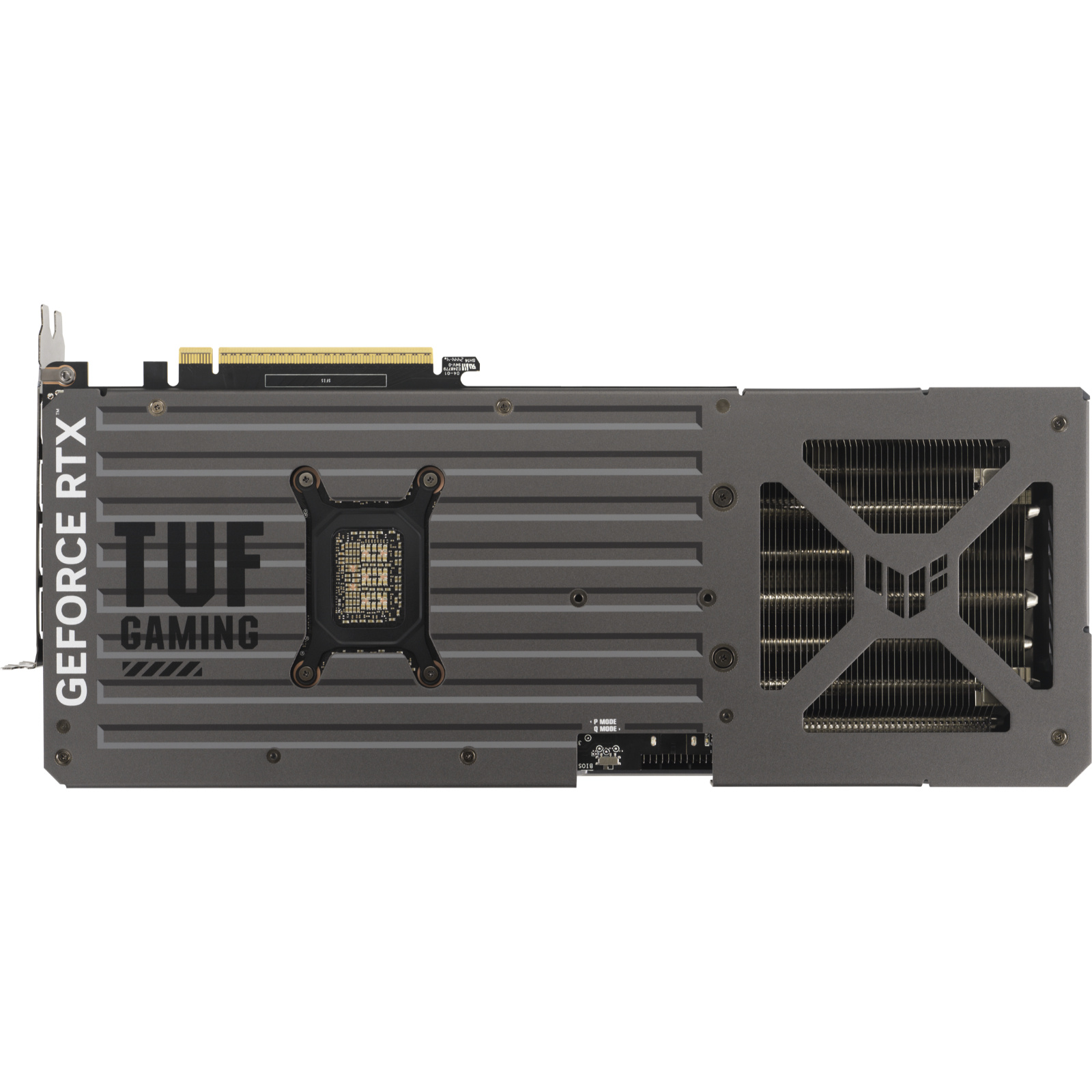

Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Auto-Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultimate GPU Tuning Utility
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and the Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display and logging capabilities ensure that you get the most out of your graphics card.
Grow your dreams with AI magic
MuseTree is an AI-powered image-generation app designed to spark your creativity. Effortlessly create and manage images and visual ideas, unlocking endless new inspirations. With its intuitive visual interface, generating stunning images has never been easier!
Light 'em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that's uniquely you.
Specifications
Reviews
Do you own this product?

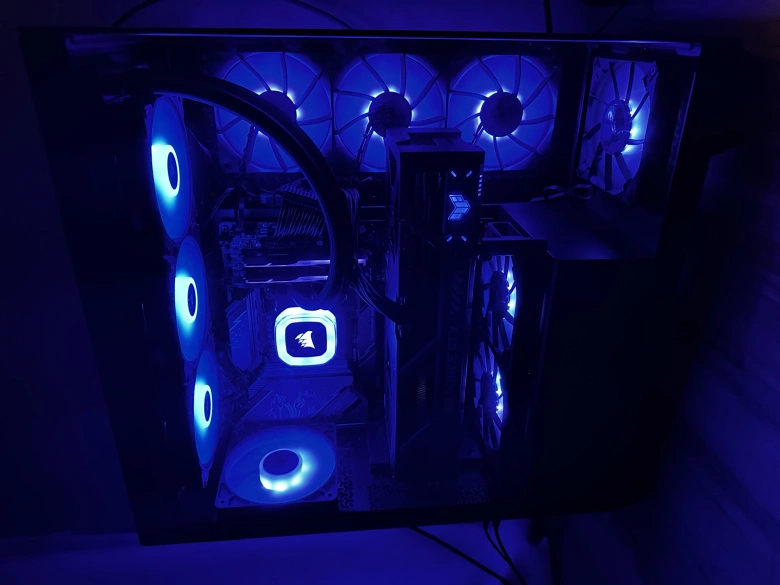

2080ti to 5080 - Epic
Just get one - worth every penny!
I had my 2080ti for about 5 years, and could still play 4k 60fps on most games on low/medium sometimes high usually with AA off, but i wanted to go beyond 60fps and get a new monitor.
I went for a 1440p 180hz curved AoC screen and whilst the 2080ti handled that well, i still had to muck around with graphics settings all the time.
Once i got the 5080, boom! Whole new world, in most cases its just set the game to max and no problems at all.
Card runs quiet, temps are great, card looks super cool.
At first i was going to get a 5070ti, then decided i should get a 9070xt. When it came time to purc...view more
3070 to 5080
Twice the price, twice the fun. Once I got past the price, no complaints. My racing games are all on max settings now. That's what I was after. Seeing as I've seen it mentioned elsewhere: no coil whine at all. (One star off for crazy gpu prices)
Well built
It's a big card, but very well built. I've had the tuf / rog range since the 2080, including a 3090. This is very well made, and very good at cooling. My biggest surprise is how cool it stayed under load. Highly recommend you check the length and upgrade your PSU to an ATX 3.1 PSU at the same time.
Great GPU with hidden features
What sets this apart from the rest of competition is 2 HDMI port and new batch of 5080 TUF and Astrals are 450w bios unlocked to allow more OC potential
Best GPU! 🫶
I’ve built many gaming pcs now and this RTX 5080 was a great combo with my AMD 9800X3D. Great FPS and low temps under heavy load.
Highly recommend 🙌
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Nvidia GeForce Desktop Graphics Cards
Gigabyte NVIDIA GeForce RTX 5070 WINDFORCE OC 12GB GDDR7 Graphics...
Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 6GB GDDR6...
Gigabyte NVIDIA GeForce RTX 5070 Ti WINDFORCE OC 16GB GDDR7...
ASUS DUAL NVIDIA GeForce RTX 5060 Ti 16GB GDDR7 Graphics Card...
Gigabyte NVIDIA GeForce RTX 5070 WINDFORCE 12GB GDDR7 Graphics...
ASUS TUF NVIDIA GeForce RTX 5080 OC 16GB GDDR7 Graphics Card PCIE 5.0 - 3.6 Slot - 1x 16 Pin Power - Minimum 850W PSU
- Brand: ASUS
- MPN: TUF-RTX5080-O16G-GAMING
- Part #: VGAASU350801
- UPC:197105856677
Product URL: https://www.pbtech.co.nz/product/VGAASU350801/ASUS-TUF-NVIDIA-GeForce-RTX-5080-OC-16GB-GDDR7-Gra
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 2 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 2 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 1 | |
| Auckland - Westgate | 3 | |
| Auckland - Penrose | 3 | |
| Auckland - Henderson (Express) | 1 | |
| Auckland - St Lukes | 1 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 2 | |
| Petone | 2 | |
| Wellington | 2 | |
| Auckland - Head Office | 9 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 1 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 3 |
Features
Game TUF. Built to Last. ASUS TUF Gaming GeForce RTX™ 5080
NVIDIA Blackwell architecture is elevated by enhanced cooling and power delivery, fortified with rugged reinforcements for exceptional durability. Lock, load and dominate with the TUF Gaming GeForce RTX™ 5080, designed to withstand the harshest conditions and deliver unparalleled performance.
Military-Grade Components
TUF Chokes & MOSFETs
Certified military-grade TUF chokes and MOSFETs deliver rock-solid power to the GPU, which can help improve system stability.
TUF Capacitors
TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X longer lifespan than standard capacitors.
Phase-Change GPU Thermal Pad
By melting to effectively fill the gaps between the GPU and the thermal module, a premium phase-change GPU thermal pad provides superior thermal conductivity and enhanced heat dissipation, ensuring optimal performance and longevity for graphics cards under heavy loads.
Protective PCB Coating
A protective conformal coating envelops the circuit board to help protect against short-circuits caused by moisture, dust or debris.
Dual-ball Fan Bearings
Dual-ball bearings offer an extensive lifespan of up to 80,000 hours, double the longevity of sleeve bearings and surpassing fluid dynamic bearings. This helps ensure long-lasting, reliable and quiet cooling.
Cooling Mastery
This advanced cooling design features the ASUS-exclusive MaxContact manufacturing technique, a phase-change GPU thermal pad and efficient Axial-tech fans, helping to ensure premium thermal performance, optimized airflow and quiet operation, all within a robust and vented metal exoskeleton.
MaxContact Design
MaxContact is a special ASUS manufacturing process that effectively expands the surface area of the heat spreader that sits atop the GPU by 5%, compared to traditional designs. This improves temperatures by up to 2°C, in concert with an extensive heatsink array and powerful Axial-tech fans.
Large Vapor Chamber
A vapor chamber and jumbo-size heatsink efficiently soaks up heat from the GeForce RTX 5080 GPU, helping to ensure premium performance in a variety of scenarios.
Axial-tech Upgrades
Axial-tech fans spin on dual-ball bearings and propel up to 23% more air than standard fans.
New Directions
The two outer fans spin counterclockwise to reduce turbulence and enhance air dispersion. All three fans stop when GPU temps are below 50°C, for quieter operation during light tasks. They restart above 55°C, following a speed curve that balances performance and acoustics.
Vented Exoskeleton
A high-quality diecast shroud and aluminum backplate help prevent PCB flex and feature large vents to further increase heat dissipation
ASUS GPU Guard & Bracket
ASUS GPU Guard applies adhesive to secure all four corners to reduce the risk of cracks, while a GPU bracket helps ensure uniform mounting pressure and extra stability.
Auto-Extreme Technology
An automated manufacturing process that sets new standards in the industry by allowing all soldering to be completed in a single pass. This reduces thermal strain on components and avoids the use of harsh cleaning chemicals, resulting in less environmental impact, lower manufacturing power consumption and a more reliable product overall.
Ultimate GPU Tuning Utility
ASUS GPU Tweak III is more intuitive and feature-rich than ever before. A revamped interface offers greater accessibility by integrating core functions into a centralized dashboard, and the Voltage-Frequency tuner has been overhauled to make overclocking even easier. Additional goodies like 0dB fan technology, automatic profile swapping, a fully customizable on-screen display and logging capabilities ensure that you get the most out of your graphics card.
Grow your dreams with AI magic
MuseTree is an AI-powered image-generation app designed to spark your creativity. Effortlessly create and manage images and visual ideas, unlocking endless new inspirations. With its intuitive visual interface, generating stunning images has never been easier!
Light 'em Up!
Aura-compatible ARGB lighting on the shroud adds a dash of customizable color or functional effects to your build. Pair up with a vast range of compatible system components and coordinate the glow to create a theme that's uniquely you.
Specifications
Graphic Engine
NVIDIA® GeForce RTX™ 5080
AI Performance
TBD
Bus Standard
PCI Express 5.0
OpenGL
OpenGL®4.6
Video Memory
16GB GDDR7
Engine Clock
TBD
CUDA Core
10752
Memory Speed
30 Gbps
Memory Interface
256-bit
Resolution
Digital Max Resolution 7680 x 4320

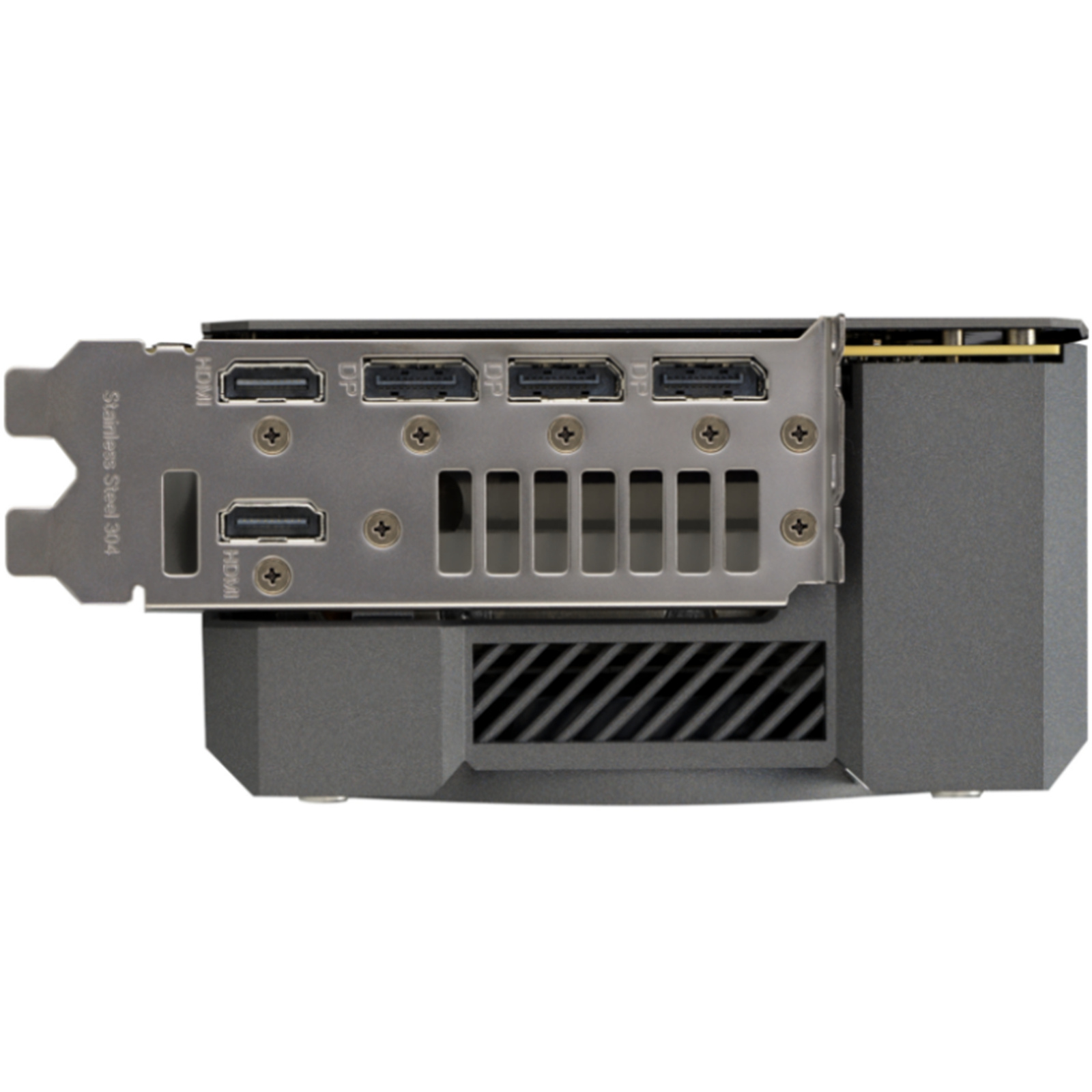

Interface
Yes x 2 (Native HDMI 2.1b)
Yes x 3 (Native DisplayPort 2.1a)
HDCP Support Yes (2.3)
Maximum Display Support
4
NVlink/ Crossfire Support
No
Accessories
1 x Speedsetup Manual
1 x TUF Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x TUF Magnet
1 x TUF Gaming Certificate
1 x Thank You Card
1 x Adapter Cable (1 to 3)?
Software
ASUS GPU Tweak III & MuseTree & GeForce Game Ready Driver & Studio Driver: please download all software from the support site.
Dimensions
348 x 146 x 72 mm
13.7 x 5.7 x 2.8 inch
Recommended PSU
850W
Power Connectors
1 x 16-pin
Slot
3.6 Slot
AURA SYNC
ARGB
Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the "Choose By Wattage" feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* Maximum Display Support is specifically applied to simultaneous display situation.
