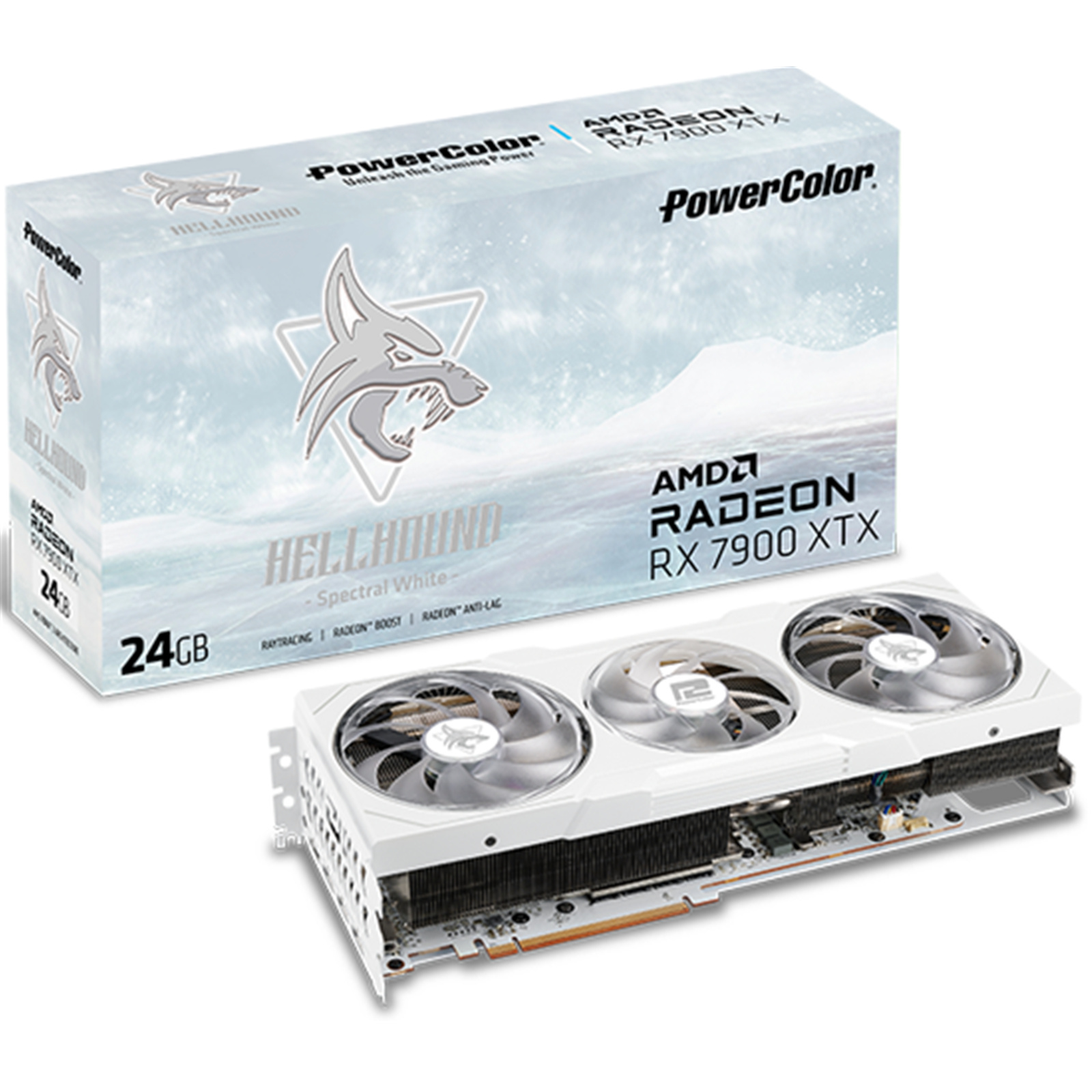

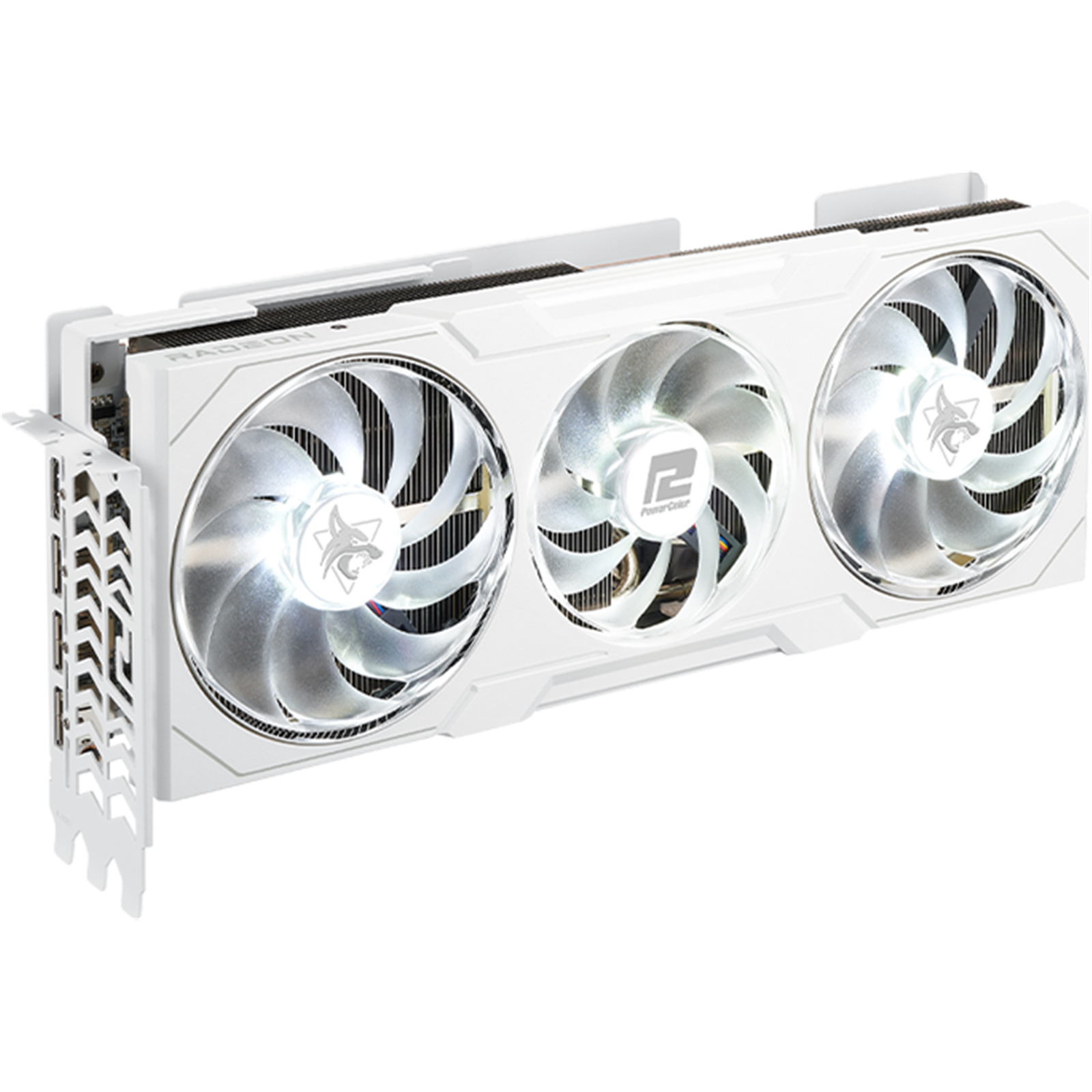

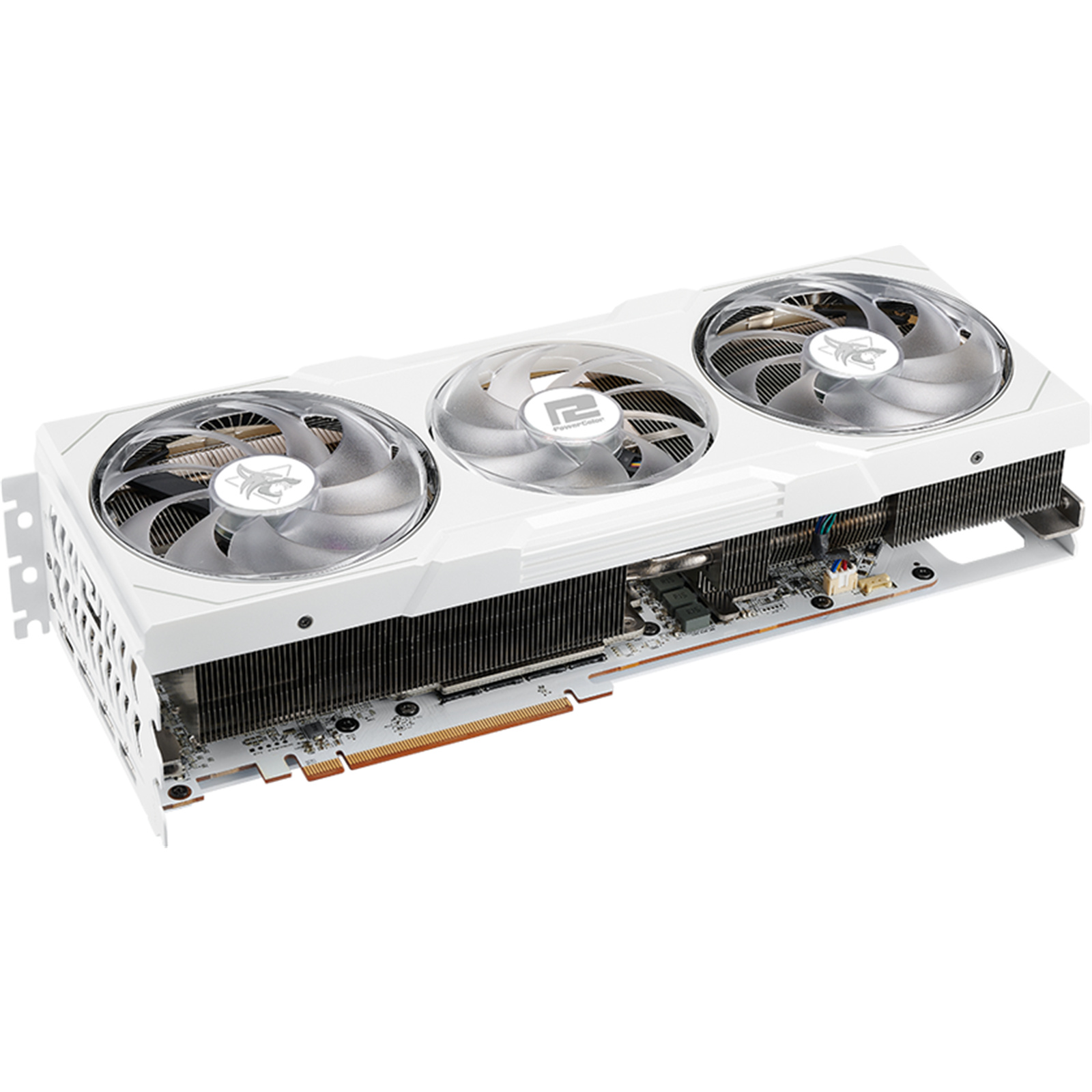

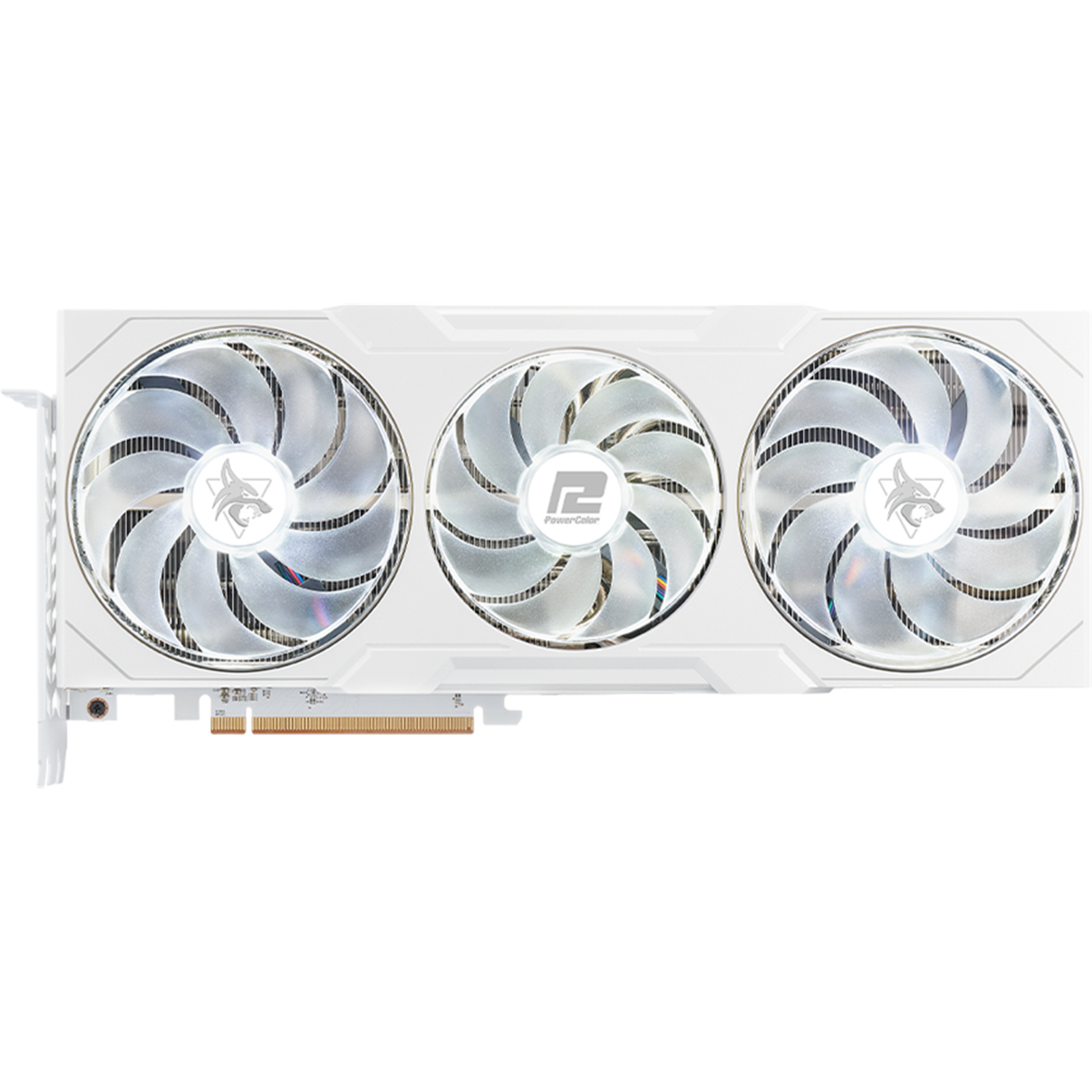

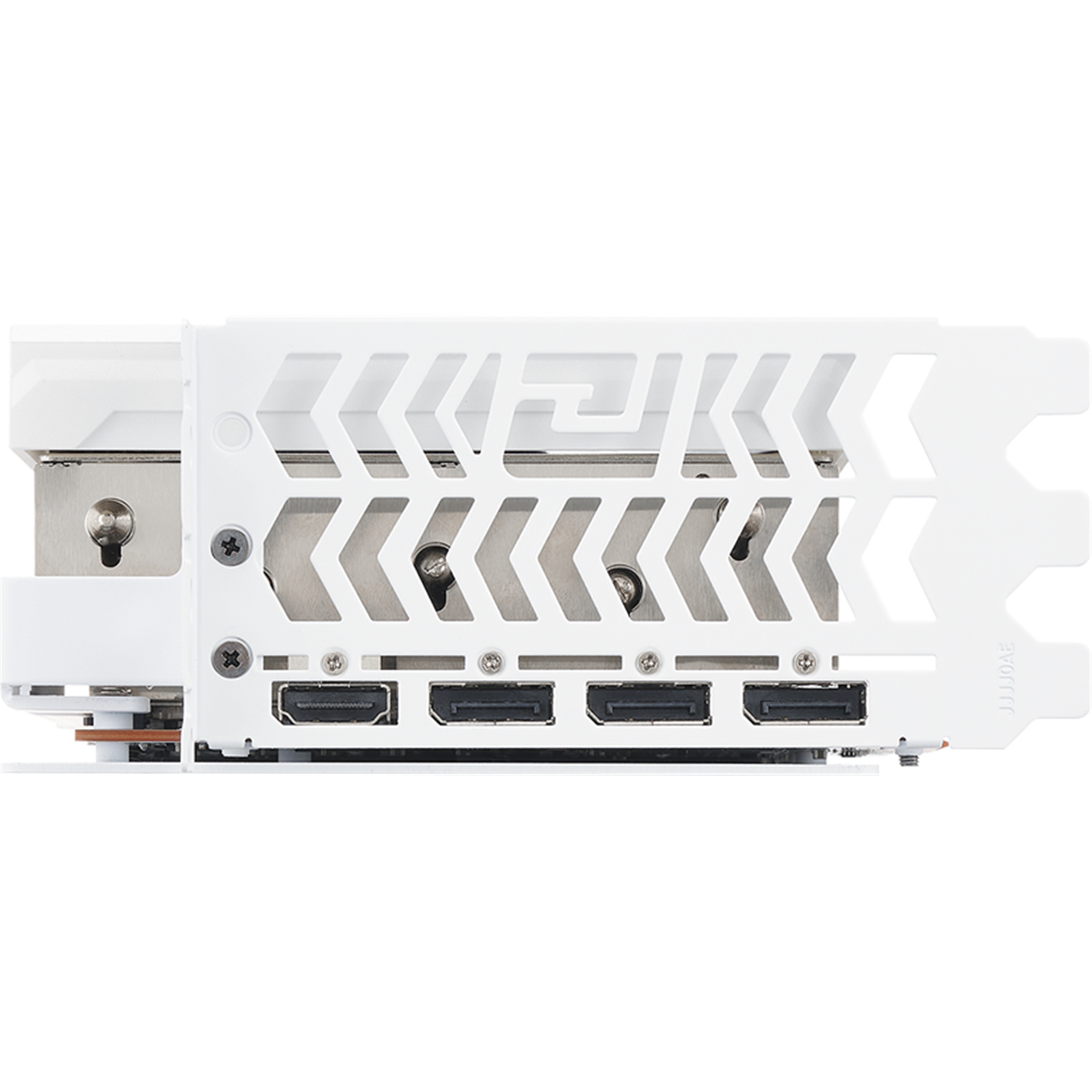

Powercolor Hellhound Spectral White AMD Radeon RX 7900 XTX OC 24GB GDDR6 Graphics Card

New Atmosphere of Hellhound

Hellhound has long been guarding the gaming underworld and is committed to deliver the most reliable gaming experience. Remain simple and sleek; it is never humble in showing its strength when the gamers calls for. The Hellhound of this generation features two LED color options. - glacier white-to provide a different atmosphere in your PC build.

Engineered for Performance and Reliability

The PowerColor Hellhound RX 7900 XTX adopts a triple ringed-fan solution (100 x 90 x 100mm), a set of 8 x 6f heatpipes running through the heatsink, and a copper plate directly touching the GPU while covering VRAM to achieve better cooling efficiency. In addition, the product is built with 12+3+2+2+1 phase VRM design and DrMOS that comes with IMON real-time digital monitoring, aiming at providing reliable performance output during gaming.

1. Metal Reinforced Backplate
2. Dual BIOS
3. High Quality 14-Layer PCB Design
4. DrMOS with IMON Digital Monitoring
5. Optimum Heatpipe Arrangement
6. Ice Blue and Glacier White LED Color
7. Ring-fan Blade Design

High Quality Japanese Dual Ball Bearings

Dual ball bearings reduce rotational friction, providing excellent heat dissipation and effectively doubling the expected lifetime of the fans.

Intelligent Fan Controller

Utilizing temperature detection from a smart chip, fans will start running when the GPU reaches 60? and shut down below 50?. Efficient cooling, fan-noise reduction, and extended product lifetime are all benefits of a more accurate temperature monitoring.

Unprecedented Ring-fan Blade Design

The newest 9-blade design of our fans generate better airflow and air pressure under the same noise level, improving cooling performance to reduce GPU temperatures by more than 3? compared to previous generations.

GPU Direct-Contact Copper Plate

We have increased the copper plate area to provide direct contact with the GPU while covering VRAM to increase the heat transfer threshold to the max.

Vertical Fin Heatsink

A large heatsink with vertical fins spaced closely is mounted on PCB and offers better heat-spread area and radiation, allowing airflow to disperse heat efficiently.

Turbulence Reducing Fan Rotation

The middle fan spins in the reverse way so as to reduce the air turbulence between neighboring fans when drawing in cool air. The mechanism therefore maximizes the air flow and pressure when less turbulence occurs to offset, further to lower the noise level without sacrificing the cooling efficiency.

Optimum Heatpipe Arrangement

A set of 8 x 6f nickel-plated copper heatpipes align closely above the PCB to more quickly and effectively transfer heat from the GPU and VRAM to the cooling array.

Car-Grade Power Module DrMOS with iMON Real Time Digital Monitoring

Hellhound adopts a 12+3+2 phase VRM design with DrMOS to power the GPU as well as an additional 2+1 phase specifically designated for the VRAM. New IMON technology monitors and reports the electric current and power consumption on each individual phase. By balancing the workload, the Hellhound ensures unparalleled stability and thermal protection during overclocking.

In addition, high quality car-grade polymer capacitors features long-lasting durability and high conductivity lowers power loss during transmission.

High Quality PCB Design

A premium 14-layer high TG PCB Board -including a 2 oz power layer- is utilized in the Hellhound RX 7900 XTX; a PCB such designed decreases signal loss during transmission: important especially for higher-end GPUs with increased demands for higher currents and stability.

Anti-Sag Bracket

A robust metal bracket is installed on the side of the PCB and is supported all the way to the I/O plate, making the card stand firmly in place inside the chassis.

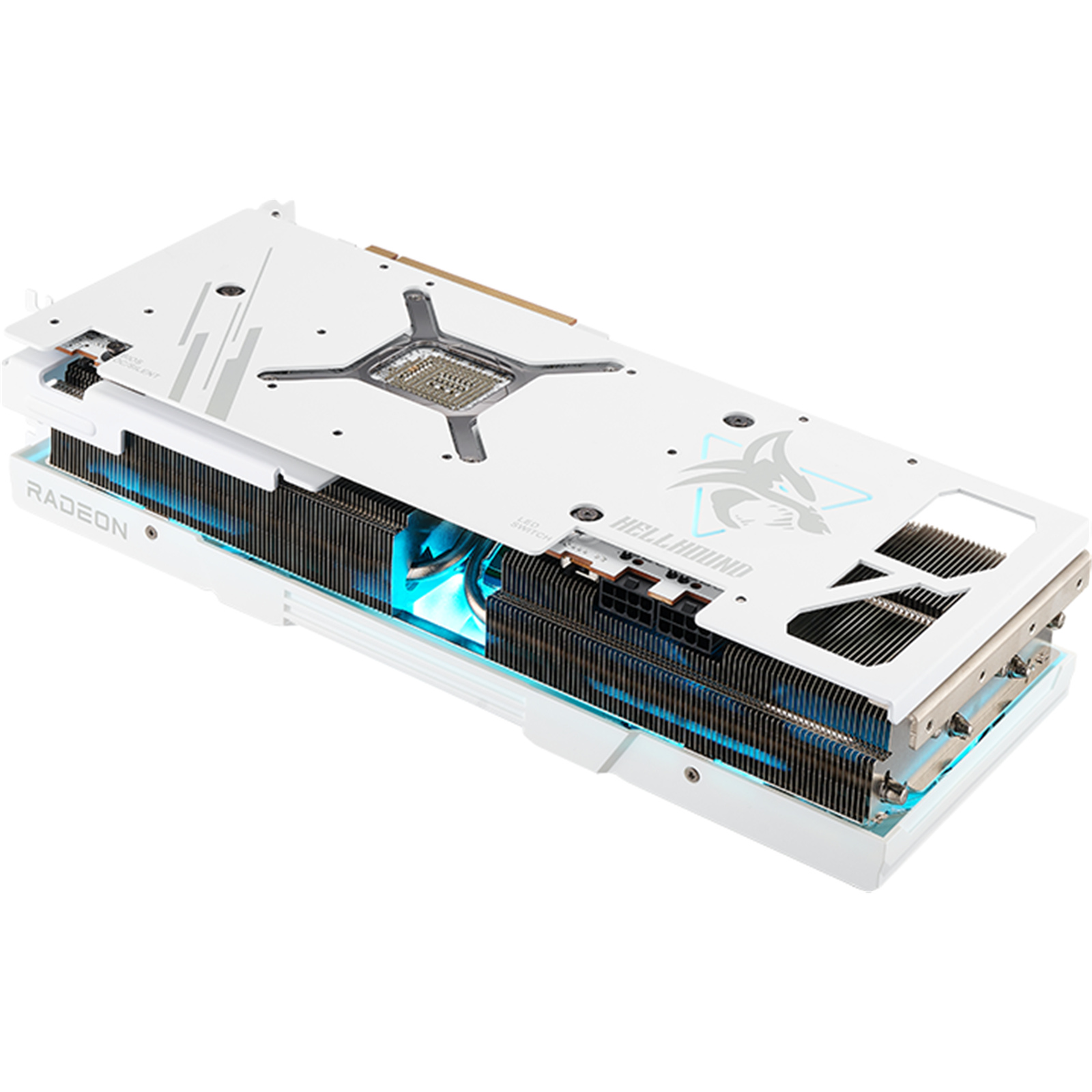

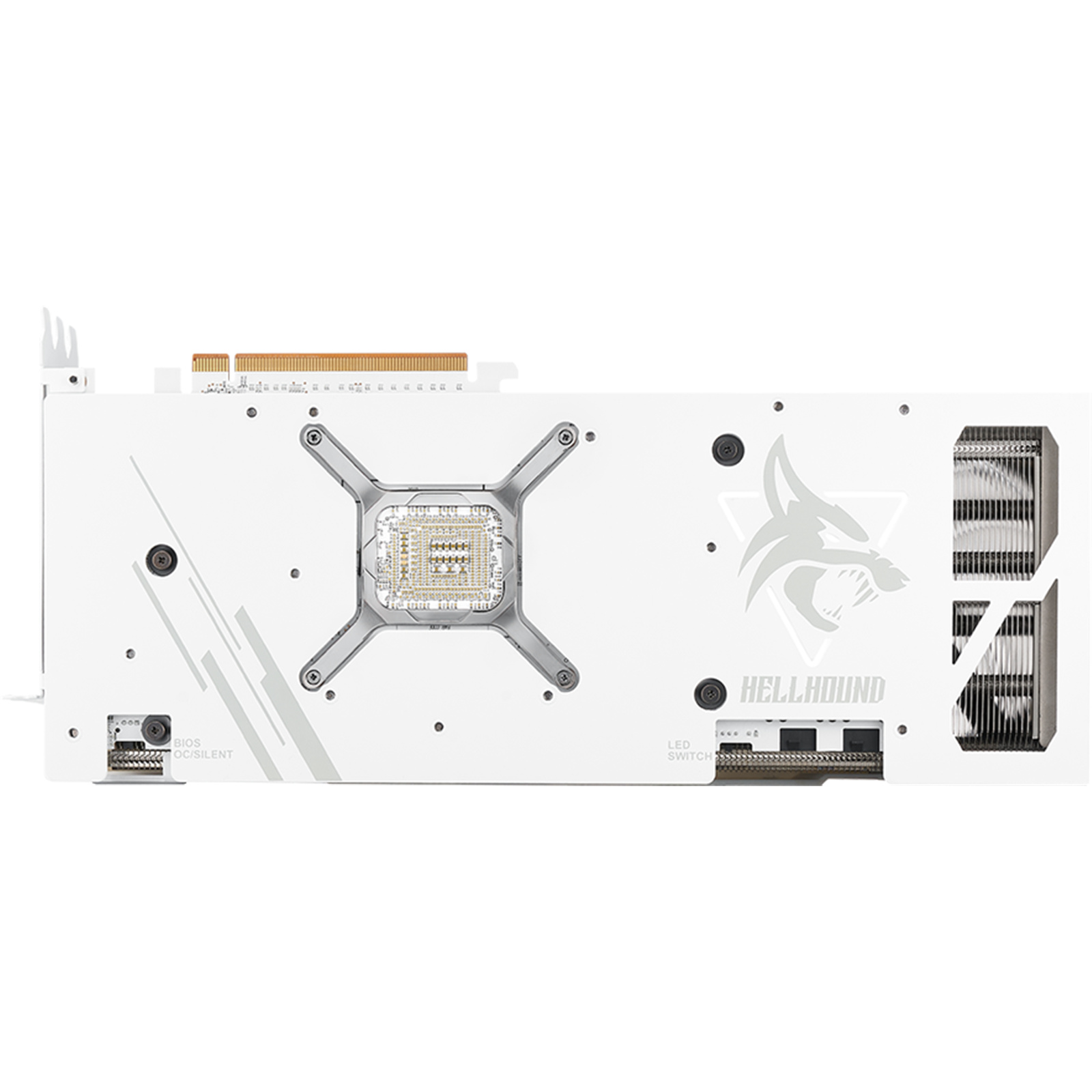

Metal Reinforced Backplate

The metal backplate strengthens and protects the internal components from PCB bend, and a cut-out design on the back plate allows exhaust heat to properly flow through for heat-dissipation efficiency.

Ice Blue and Glacier White LED Color

Hellhound of this generation now comes with two LED color options. Gamers are able to choose the color they want by flipping the switch on side of the card.
Ice blue shows the Hellhound's coolness while glacier white represents its elegance and calmness.

Dual BIOS Mode

Hellhound RX 7900 XTX features Dual BIOS built-in and a switch for easy swapping.
-OC BIOS: A boosted mode that increases fan RPM to keep your card operating at a lower temperature to drive higher performance.
-Silent BIOS: Focused on lower noise and fan longevity, a milder fan speed, trading fan speed and noise for moderate, but still controlled, temperatures while maintaining performance.

AMD FidelityFX™ Super Resolution Technology

AMD FidelityFX™ Super Resolution technology, or FSR, uses cutting-edge super-optimized spatial upscaling technology to generate super high-quality edges and distinctive pixel detail. With FSR, turn on the latest features and settings in your games while maintaining an acceptable framerate.

Optimized for Windows 11

AMD Radeon™ RX 7000 Series Graphics power the ultimate Windows 11 gaming experience with optimized support for DirectX® 12 Ultimate, AutoHDR, and DirectStorage.

AMD RDNA™ 3 Architecture with Hardware Raytracing

The AMD RDNA™ 3 architecture features industry-advancing chiplet technology to deliver next-generation performance, visuals, and power efficiency. Discover new levels of performance with advanced AMD RDNA™ 3 compute units, featuring redesigned raytracing accelerators for incredible performance while improving image quality.

AMD FreeSync™ Technology

Take full advantage of the AMD Radeon™ RX 7000 Series graphics cards by pairing with a certified AMD FreeSync™ technology-enabled monitor to enable an exceptional stutter and tear-free gaming experience with high refresh rates, low latency, and stunning HDR.
