Loctek Pro Mount, 17"-30" Dual Ergonomic Gas Spring Monitor Stand - White - VESA 75 & 100mm - Max Load 2-9KG Per Arm - 5 Years Warranty

PB Tech price
PB Tech price
$ 130 .00
 +GST
$ 149 .50
 inc GST
$130.00  +GST
$149.50

Loctek Pro Mount, 17"-30" Dual Ergonomic Gas Spring Monitor Stand - White - VESA 75 & 100mm - Max Load 2-9KG Per Arm - 5 Years Warranty

Perfect for your home or office computing setup
  • Brand: Loctek
  • MPN: DLB508D
  • Part #: MOALCK0121
  • UPC:
PB Tech price
$ 130 .00 $ 149 .50
 +GST  inc GST


Click & Collect: Available from 17 stores.
Select your store to check availability
Delivery: Order now and it ships today When will I receive it?
Uber Delivery: Order now and get it within 3 hours. Some areas, max $1k order. How does it work?
$130.00  +GST
$149.50

Four payments of $37.75 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: Loctek
  • MPN: DLB508D
  • Part #: MOALCK0121
  • UPC:

Mounts Supported

1 2

Colour

Grey

Min Screen Size Supported

17 inches

Max Screen Size Supported

30 inches

Max Weight Supported

9kg

Max Rotation

180 Degrees

What PB Tech customers are saying about this product...

See More Reviews

Customer Review Summary

"Customers love this product for its easy setup. Its clamp mount feature allows it to fit perfectly even on a desk pushed against the wall. The range of movement it offers, particul ...view more"

AI avatar icon
Summarised by AI 22/05/25
AI Bot
2

"I was not sure about what kind of desk would be compatible with this."

RR
By: RebeccaR782 17/05/25
2

"Easy set-up and works well"

G
By: Guest 24/03/25

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the Loctek Pro Mount, 17"-30" Dual Ergonomic Gas Spring Monitor Stand -...
Loctek Pro Mount, 17"-30" Dual Ergonomic Gas Spring Monitor Stand - White - VESA 75 & 100mm - Max Load 2-9KG Per Arm - 5 Years Warranty
Total:
$ 274 .16
 +GST
$ 315 .28
Buy together and save $10.52 $12.10
FlexiSpot CMP502 Cable Management Tray - 500x122x90mm - White Under Desk - Fits 25mm Thick Tabletop
FlexiSpot CMP502 Cable Management Tray - 500x122x90mm - White Under Desk - Fits 25mm Thick Tabletop
$26.08 $29.99

$22.60  +GST

$25.99

You save 13% You save 13%
Belkin 8 Outlet Surge Protection Strip with 2x USB-A 2.4A Charging Ports
Belkin 8 Outlet Surge Protection Strip with 2x USB-A 2.4A Charging Ports
$60.00 $69.00

$56.96  +GST

$65.50

You save 5% You save 5%
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo
Logitech MK235 Wireless Desktop Keyboard & Mouse Combo

$42.60  +GST

$48.99

Loctek NCS105 10"-17.3" Laptop Holder Tray -Black, Compatible with all LOCTEK Desk Mount / 5 Years Warranty (Desk Mount as shown in photos are not included)
Loctek NCS105 10"-17.3" Laptop Holder Tray -Black, Compatible with all LOCTEK Desk Mount / 5 Years Warranty (Desk Mount as shown in photos are not included)
$26.00 $29.90

$22.00  +GST

$25.30

You save 15% You save 15%

Features

 DLB508D for dual monitors features 360° rotation, -85°/+15° tilt up & down, -90°/+90° tilt left & right and 180° swivel arms which fully extend to 20 inches (502cm). Just use your hands to move your monitors into the desired position - no tools required!


Fully Adjustable

Height adjustment through the spring arms, swivel/articulate each arm connection, tilt and rotate at the monitor holder. The mechanical spring hovering system makes it incredibly easy to change monitor height with the touch of a finger.


Cable Management Channels

Allow wires to move freely while you adjust your screen position.


Hassle Free

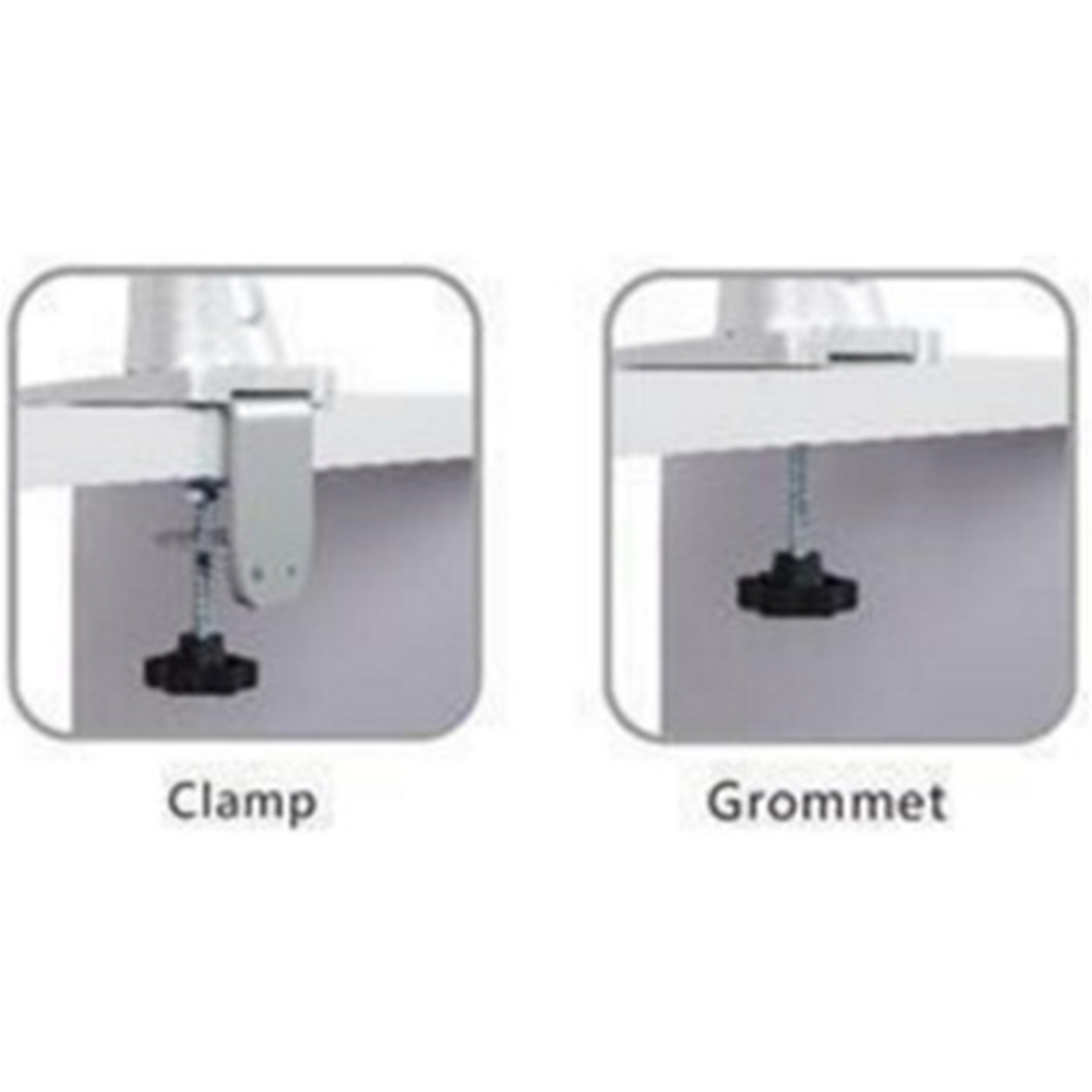

C-clamp and grommet mount bases are included for easy and quick installation.

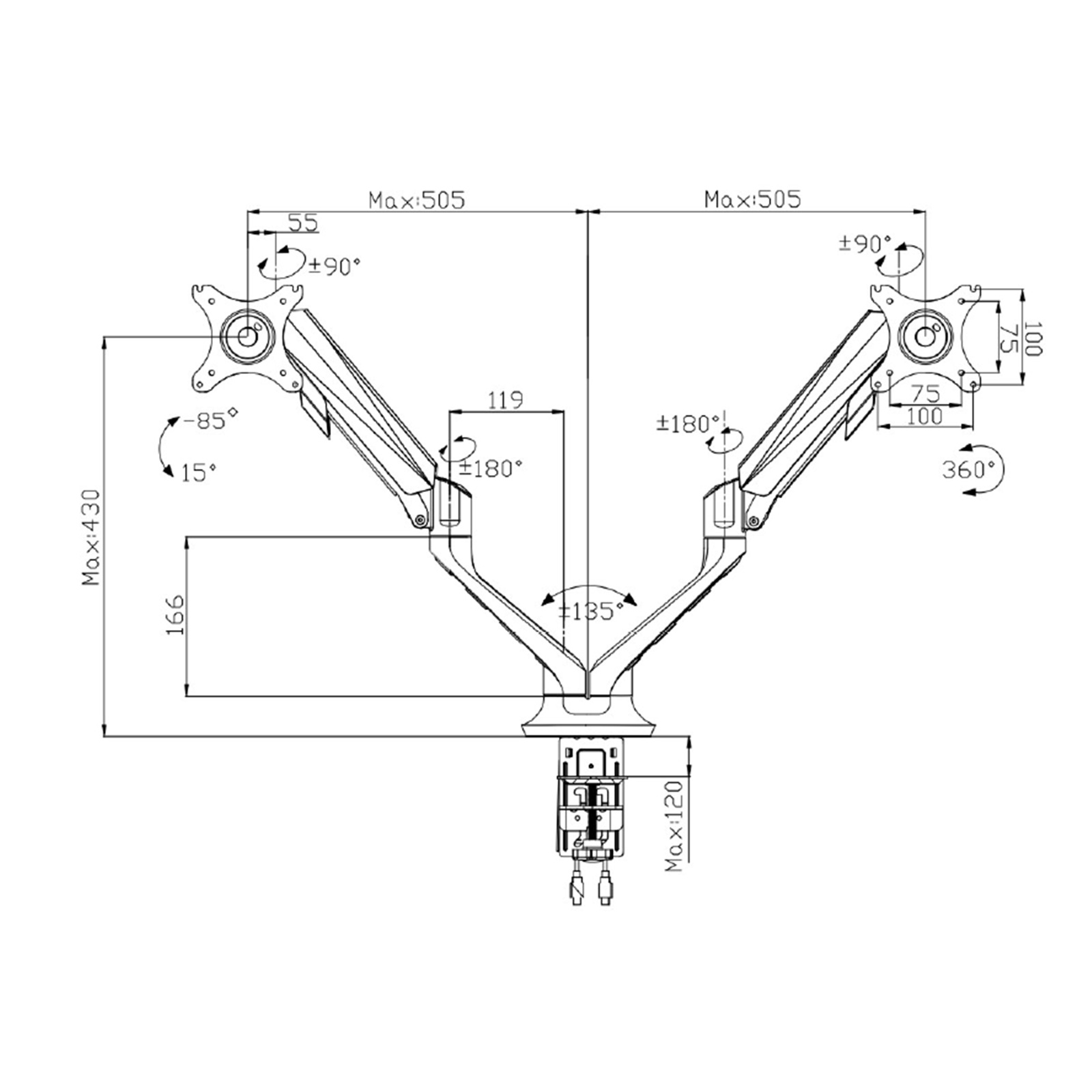

Specifications

Model name

DLB508D

Weight Capacity

2 - 9kg Per Arm

Material

Aircraft grade aluminum

Screen Tilt

85° up and 15° down

Screen Pivot

-+ 90°

Arm Pivot

-+ 180°

Fit screen

17" - 30"

Extension

505 mm / 20 inch

Lift

430 mm / 17 inch

VESA

75 x 75;100 x 100

Manufacturer Part No:
DLB508D
Brand:
Product Type:
Gas Spring Monitor Stand
UPC
-
Product Family:
Pro Mount,
Shipping Weight:
5.774 kg
PB Part No:
MOALCK0121
Product Model:
17"-30" Dual Ergonomic
Warranty: 60 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.4 out of 5 Stars Based on 101 reviews
5 Stars
69
4 Stars
17
3 Stars
9
2 Stars
3
1 Stars
3

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Great product with good capacity

Mounts Supported: 1

Holds by 34" ultrawide and doesn't slip out of position. Amazingly flexible and solid design.

CM
By: CameronM7 08/10/20
Verified Owner
5 out of 5 users found this review helpful
Did you find it helpful?

Functional, visually appealing but too short and tricky to set up

Mounts Supported: 2

Pros:
- Easy to swing and lower / raise my 28" monitor
- Visually appealing
Cons:
- When mounted to the desk and fully extended, the arms are too short to raise the monitor to the recommended eye level (for good posture, I'm 6ft).
- VESA mount is not detachable so the monitor must be held up in place while attaching to the arm which is difficult.

G
By: Guest 17/07/21
5 out of 7 users found this review helpful
Did you find it helpful?

Solid, Sturdy and Cheap

Mounts Supported: 2

I went into buying this arm with no desk mounting experience and found it easy to set up, just make sure the depth of you desk (above and below where you are mounting) exceeds 12cm just to be safe.
Quality for price is top notch, arms are sturdy holding my 2 27" LG Ultragear monitors and maneuvering is easy.
Once you have the arms where you want them they can be tightened to fix them in place with a covered bolt on the joint of the arm, its accessible at any position too.
All round a great purchase, I'm very happy with it

DT
By: DanielT281 15/03/21
Verified Owner
3 out of 3 users found this review helpful
Did you find it helpful?

great arms

Mounts Supported: 2

easy to set-up: the clamp mount can be pulled right apart so that you can work with a desk cramped up against a wall.

range of movement: great for monitors with a low vesa mount. One of my monitors has the vesa mount in its top half, which renders some of the arm movement useless :( My other monitor has the vesa mount holes on the bottom half and so I can move it all over the place however I want.

trick for newbies: you might think it's hard to get the arms to move if you try moving them without the monitors mounted, but once you have the monitors on it the arms move real smooth and position well. At first I was worried the arms w...view more

G
By: Guest 19/03/20
3 out of 3 users found this review helpful
Did you find it helpful?

Nice solid mount, I wish the white one had the extra plastic cord cover the black version has

Mounts Supported: 1

Great mount, I brought two of these to set up a dual monitor stand with 2x 34" Ultra wide monitors. A great way to clean up the desk and they have no trouble holding the 34" ultra wides which I was concerned about due to the listing only being for up to 30"

JQ
By: JonathanQ2 22/07/24
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

would not recommend

Mounts Supported: 1

I rushed this purchase, unfortunately.
it turns out to be smaller than my other mount, and cannot lift the screen as high as I would like it.
but dimensions aside, the design is quite bad, there's no ready access for an Allen key to tighten and loosen the joints, you have to unscrew other parts first, or worse still, dismount the entire base clamp and get underneath it.
but once it's all set up it does the job, as well as the specs allow.

TD
By: TylerD52 13/01/23
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Great for the price, but struggles to hold my 5.5kg monitor without tilting forward.

Mounts Supported: 1

Bought this a couple weeks ago for my Samsung Odyssey g7 27'' monitor. The monitor stand seems well built and high quality. However it struggles to hold my 5.5kg monitor without tilting forward regardless of how much I tighten the tilt joint. But once it's in the correct position and as long as you don't touch it/move it, it'll mostly remain in its position. So its not too bad.

CA
By: ChathuranA 17/04/22
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Really good monitor arms to add to your setup

Mounts Supported: 2

Got these around 29Dec 2021 and they've been working wonders imo nice white and black mix which I like with my setup being white, cables you can hide which is pretty cool for cable management.

I've seen couple people complain about it not being able to extend enough and I honestly don't see a problem as I'm 6 foot and monitors are perfect for me.

Only con I really came across was that I was sort of confused on how to build the thing as I didn't bother reading instructions because looked too confusing

By: TheunsS 13/01/22
1 out of 1 user found this review helpful
Did you find it helpful?

CHECK BEFORE YOU TAKE AWAY

Mounts Supported: 2

Absolutely disappointed with quality control of this product. The screw holes where the clamp attaches to the mount has not been died out so there is no possible way you can screw in the screws. Cannot attach any sort of clamp without tapping the holes out yourself. CHECK THE SCREWS FIT IN THE HOLES BEFORE YOU TAKE THIS PRODUCT AWAY.

G
By: Guest 28/11/21
1 out of 1 user found this review helpful
Did you find it helpful?

Robust

Mounts Supported: 1

Very good build quality - the product is pretty solid and weighs a bit so make sure you have a steady, weighted desk, otherwise the whole desk might wobble.
Installation was pretty straightforward. The arm itself looks very sleek aesthetically. Range of motion is great and holds very steady without much bouncing around. Quite happy with this

G
By: Guest 18/03/21
1 out of 1 user found this review helpful
Did you find it helpful?

Fantastic Monitor arm

Mounts Supported: 1

Works well on the loctek 1800mmx800m desk.

JR
By: joker 27/01/21
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

Great Quality

Mounts Supported: 2

Product is fairly easy to setup,
Using it to support 2 x AOC 24inch wide monitors and handles the weight easily
Cable management works well, only visible at the elbow but its not mad at all.
cant compare this to the normal spring operated as I have never owned one before, but this gas spring seems to works well
Would definitely recommend

SC
By: SachinC18 14/04/20
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?
