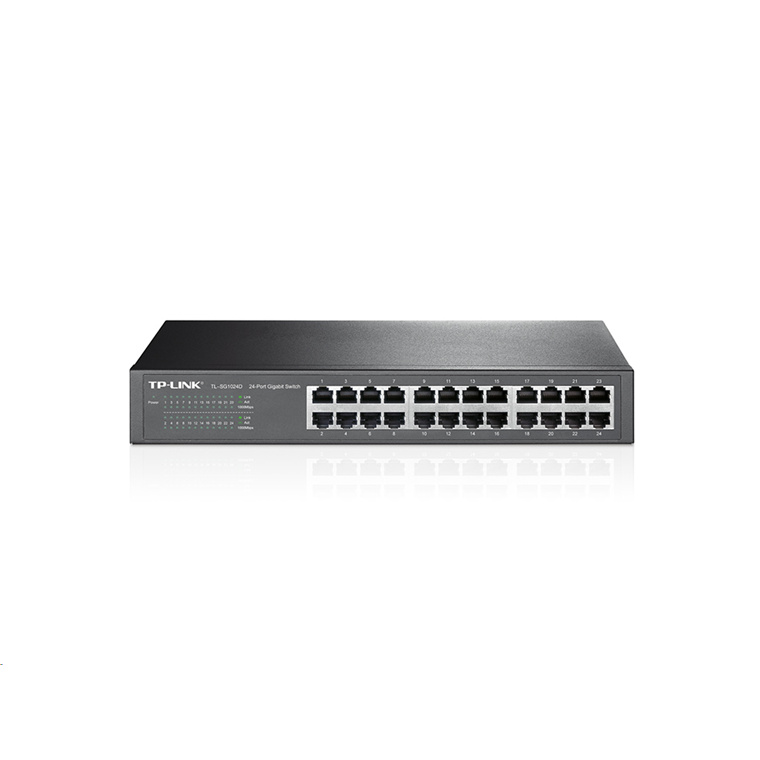

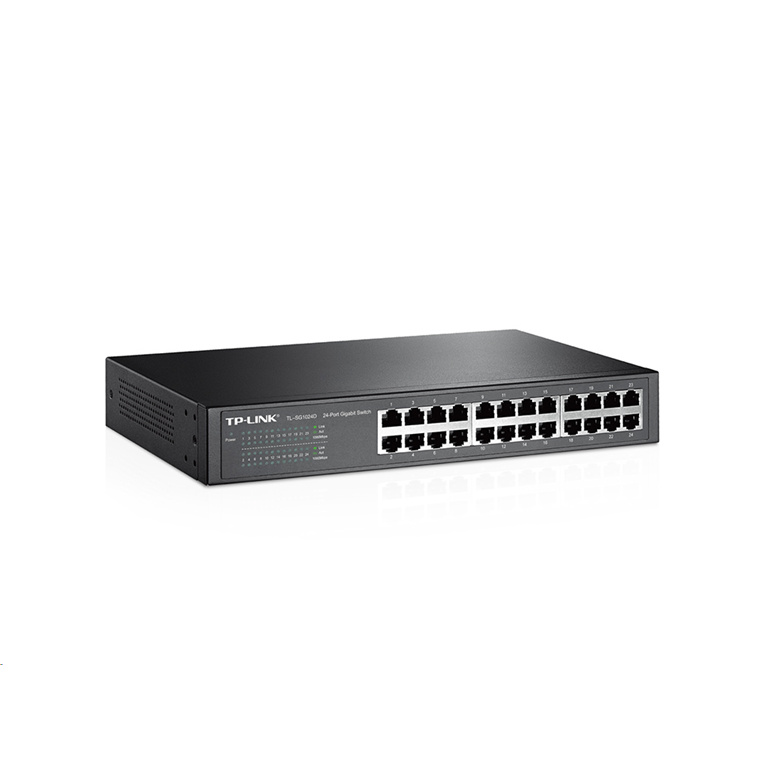

TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch, Fanless, QoS, 13" Rackmountable Case

PB Tech price
PB Tech price
$ 155 .65
 +GST
$ 179 .00
 inc GST
$155.65  +GST
$179.00

TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch, Fanless, QoS, 13" Rackmountable Case

Limited 5-Year Warranty
  • Brand: TP-Link
  • MPN: TL-SG1024D
  • Part #: SWHTPL1023
  • UPC:
FREE SHIPPING
2
PB Tech price
$ 155 .65 $ 179 .00
 +GST  inc GST
Hurry, only 3 units left!


Click & Collect: Available from 3 stores.
Select your store to check availability
Delivery: Order now and it ships tomorrow When will I receive it?
$155.65  +GST
$179.00

Four payments of $45.20 per fortnight*

Afterpay lets you spread the cost of your purchase over 4, interest-free, fortnightly payments.

Click the button below or select Afterpay as your payment method during the checkout process.

If you do not have a Afterpay account you will be able to create one at checkout.

*Repayments shown above are indicative only and may vary. Ts and Cs and lending criteria apply.

Learn more about Afterpay

  • Brand: TP-Link
  • MPN: TL-SG1024D
  • Part #: SWHTPL1023
  • UPC:

Form Factor

1U Rackmount

10 Gigabit

No

10 Gigabit Ports

0 Ports

Management Level

Unmanaged

Number of Ports

24 Ports

PoE

No

PoE Ports

0 Ports

PoE Budget

N/A

What PB Tech customers are saying about this product...

See More Reviews

"I think I know why this product is loved for a long time. It's cheap, but the performance is never cheap."

CP
By: ChristianP71 12/05/23
Verified Owner

"good value,"

G
By: Guest 13/07/20

COMBO DEALS: Buy Together and SAVE!

Save even more by creating your own combo deal with any of the items below and the TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch, Fanless, QoS, 13"...
TP-Link TL-SG1024D 24-Port Gigabit Unmanaged Switch, Fanless, QoS, 13" Rackmountable Case
Total:
$ 259 .35
 +GST
$ 298 .25
Buy together and save $5.79 $6.66
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
TP-Link Tapo L930-5 Smart Light Strip -5M, RGB Multicolour, Dimmable
$76.52 $88.00

$73.04  +GST

$84.00

You save 4% You save 4%
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
TP-Link Tapo L530E Smart Wi-Fi RGB LED Light Bulb E27 - 2 Pack
$29.57 $34.01

$27.83  +GST

$32.00

You save 5% You save 5%
Cruxtec 1m Cat6 Ethernet Cable -  Black Color
Cruxtec 1m Cat6 Ethernet Cable -  Black Color

Cruxtec 1m Cat6 Ethernet Cable - Black Color

Collect from 18 stores by 9:33am today
Ships today

$2.83  +GST

$3.25

You save 16% You save 16%

Features

24-Port Gigabit Desktop/Rackmount SwitchTL-SG1024D

  • 24 10/100/1000Mbps ports
  • Innovative energy-efficient technology saves power consumption
  • Supports MAC address self-learning, Auto MDI/MDIX and Auto negotiation
  • Plug & play design
  • Innovative energy-efficient technology saves power consumption
  • Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
  • Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
  • 48Gbps Switching Capacity
  • 10KB Jumbo frame improves performance of large data transfers
  • Auto-MDI/MDIX eliminates the need for crossover cables
  • Supports MAC address auto-learning and auto-aging
  • Store and forward Switching scheme
  • Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
  • Desktop and Rack-mountable design
  • Plug and Play design simplifies installation

What This Product Does

The TL-SG1024D Gigabit Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SG1024D can save up to 25% of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.


TP-LINK Green Technology

This new generation TL-SG1024D Gigabit Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.


High Performance

All 24 ports are Gigabit RJ-45 ports which can provide large file transferring and also be compatible with 10Mbps and 100Mbps Ethernet devices. Featuring non-blocking switching architecture, TL-SG1024D forwards and filters packets at full wire-speed for maximum throughput. With 10KB Jumbo frame, the performance of large files transfers is improved significantly. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the tra­ffic congestion and make The TL-SG1024D work reliably. It's a perfect choice to update your network to Gigabit while protecting your previous investment properly.


Easy to Use

The auto features of this gigabit switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

- Innovative energy-efficient technology saves power up to 25%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 48Gbps Switching Capacity
- 10K Jumbo frame improves performance of large data transfers
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Store and forward Switching scheme
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps and 1000Mbps hardware.
- Desktop and Rack-mountable design
- Plug and Play design simplifies installation

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab , IEEE 802.3x

Interface
24 10/100/1000Mbps RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)

Network Media
10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
100BASE-TX/1000BASE-T: UTP category 5, 5e or above cable (maximum 100m)

Fan Quantity
Fanless

Dimensions ( W x D x H )
11.6*7.1*1.7 in. (294*180*44 mm)

Power Consumption
Maximum: 14.6W (220V/50Hz)

Power Supply
100-240VAC, 50/60Hz


PERFORMANCE

Switching Capacity
48Gbps

MAC Address Table
8K

Packet Forwarding Rate
35.7Mpps

Jumbo Frame
10KB

Green Technology
Innovative energy-efficient technology saves power up to 25%

Transfer Method
Store-and-Forward


OTHERS

Certification
FCC, CE, RoHS

Package Contents
- 24-Port Gigabit Desktop/Rackmount Switch
- Power Cord
- Installation Guide
- Rackmount Kits
- Rubber Feet

System Requirements
Microsoft Windows XP, Vista, Windows 7 or Windows 8, MAC OS, NetWare, UNIX or Linux.


Environment

Operating Temperature:
0~40 (32~104);

Storage Temperature:
-40~70 (-40~158);

Operating Humidity:
10%~90% non-condensing;

Storage Humidity:
5%~90% non-condensing

Manufacturer Part No:
TL-SG1024D
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
2.283 kg
PB Part No:
SWHTPL1023
Product Model:
TL-SG1024D
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

4.5 out of 5 Stars Based on 2 reviews
5 Stars
1
4 Stars
1
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Great!!!

I think I know why this product is loved for a long time. It's cheap, but the performance is never cheap.

CP
By: ChristianP71 12/05/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

good

good value,

G
By: Guest 13/07/20
0 out of 0 users found this review helpful
Did you find it helpful?
