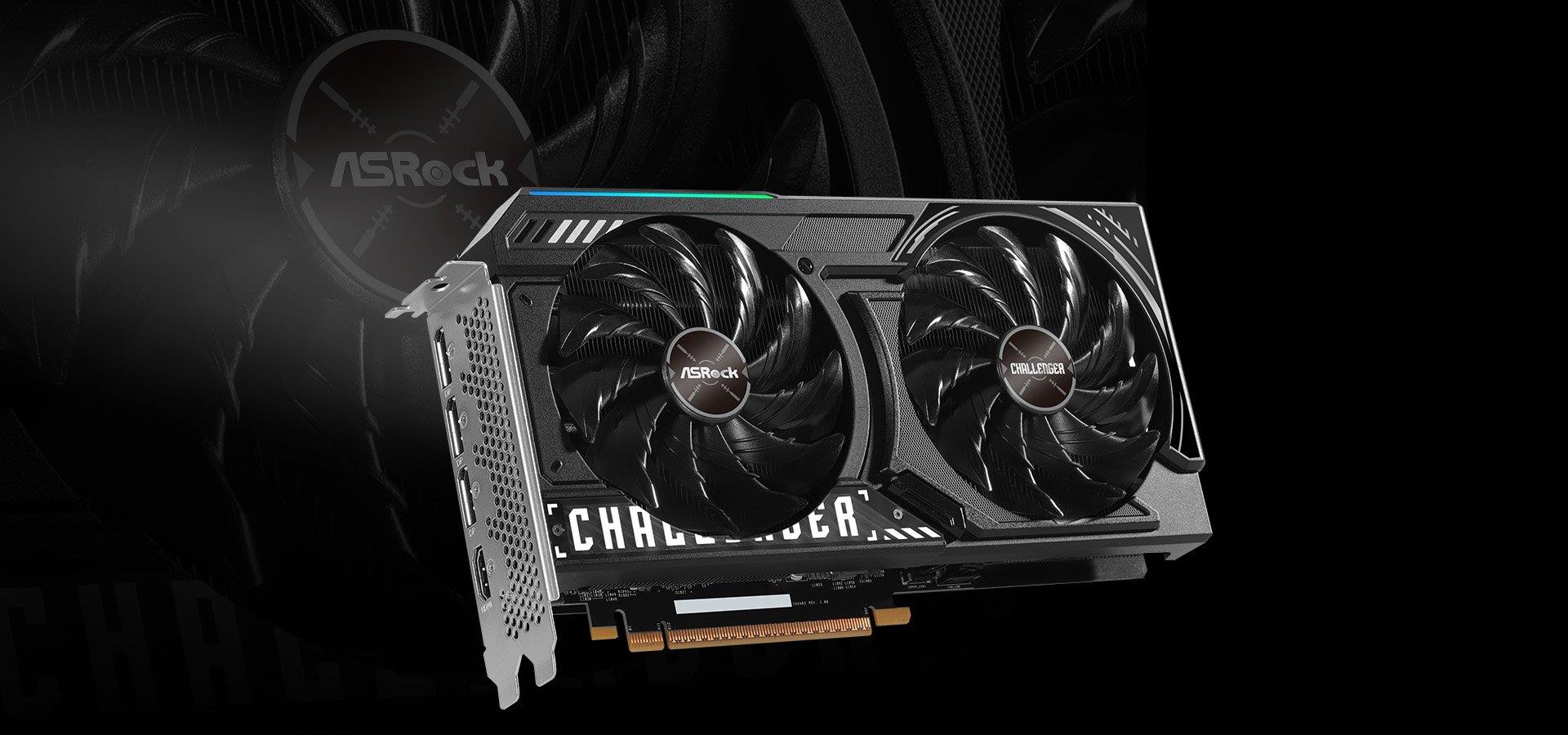

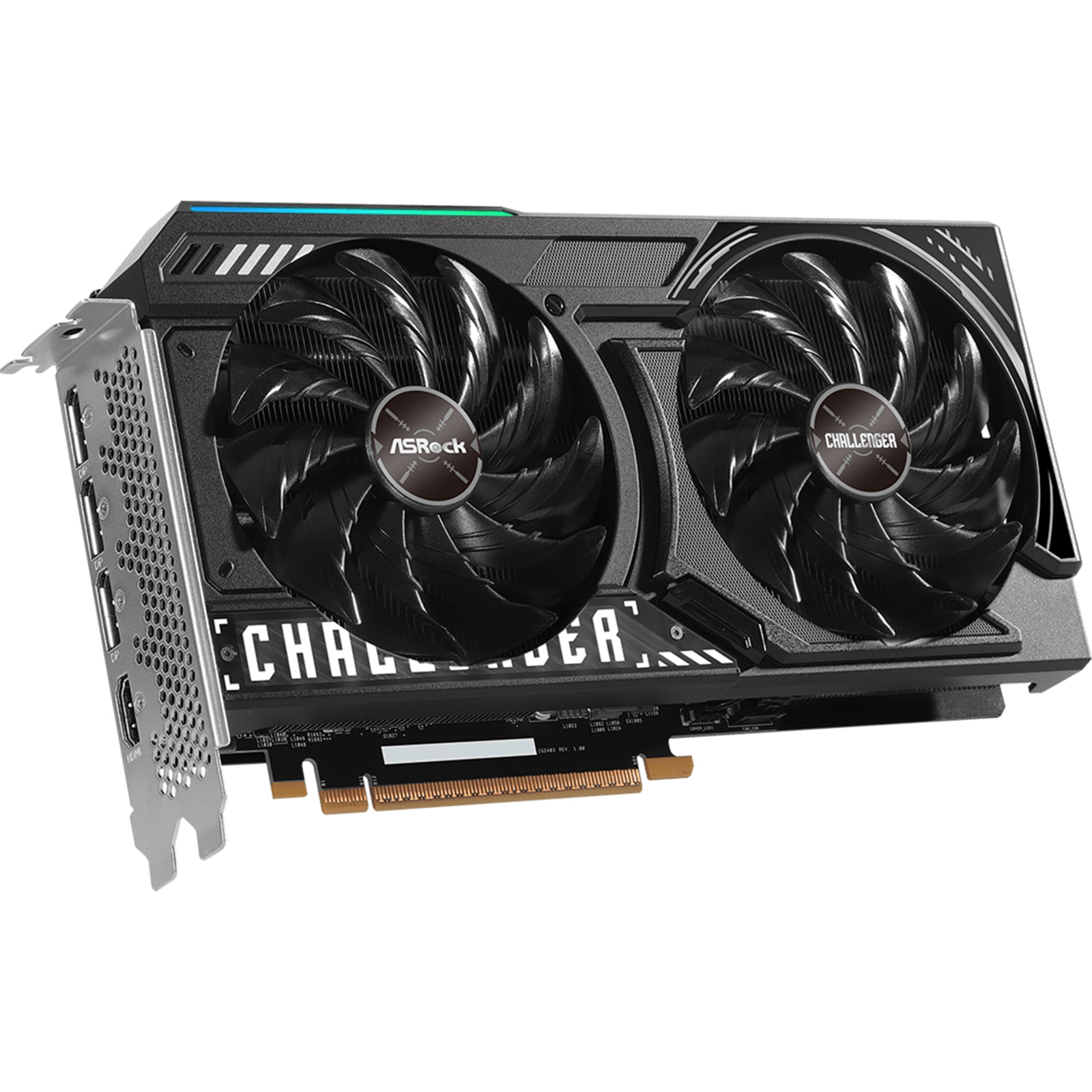

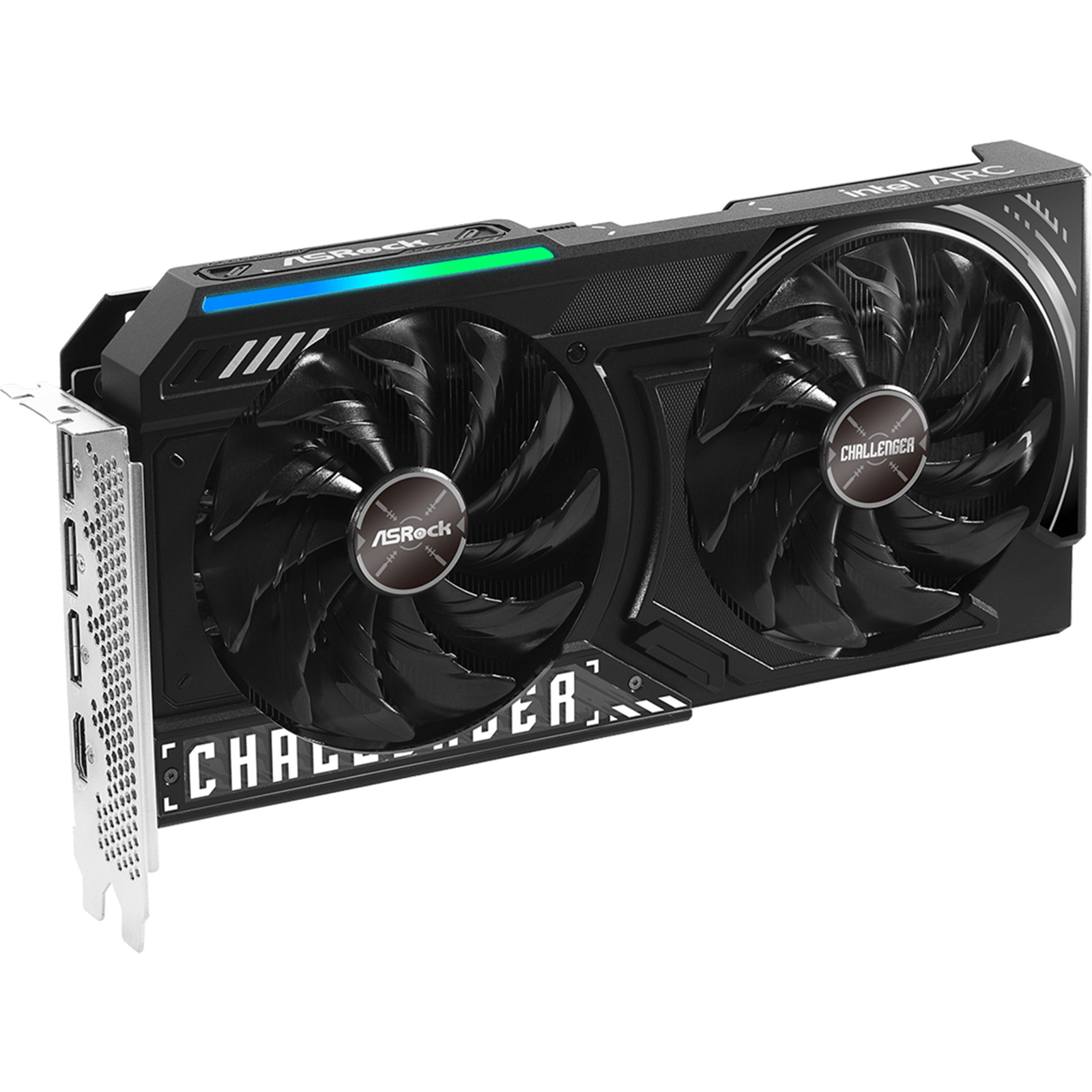

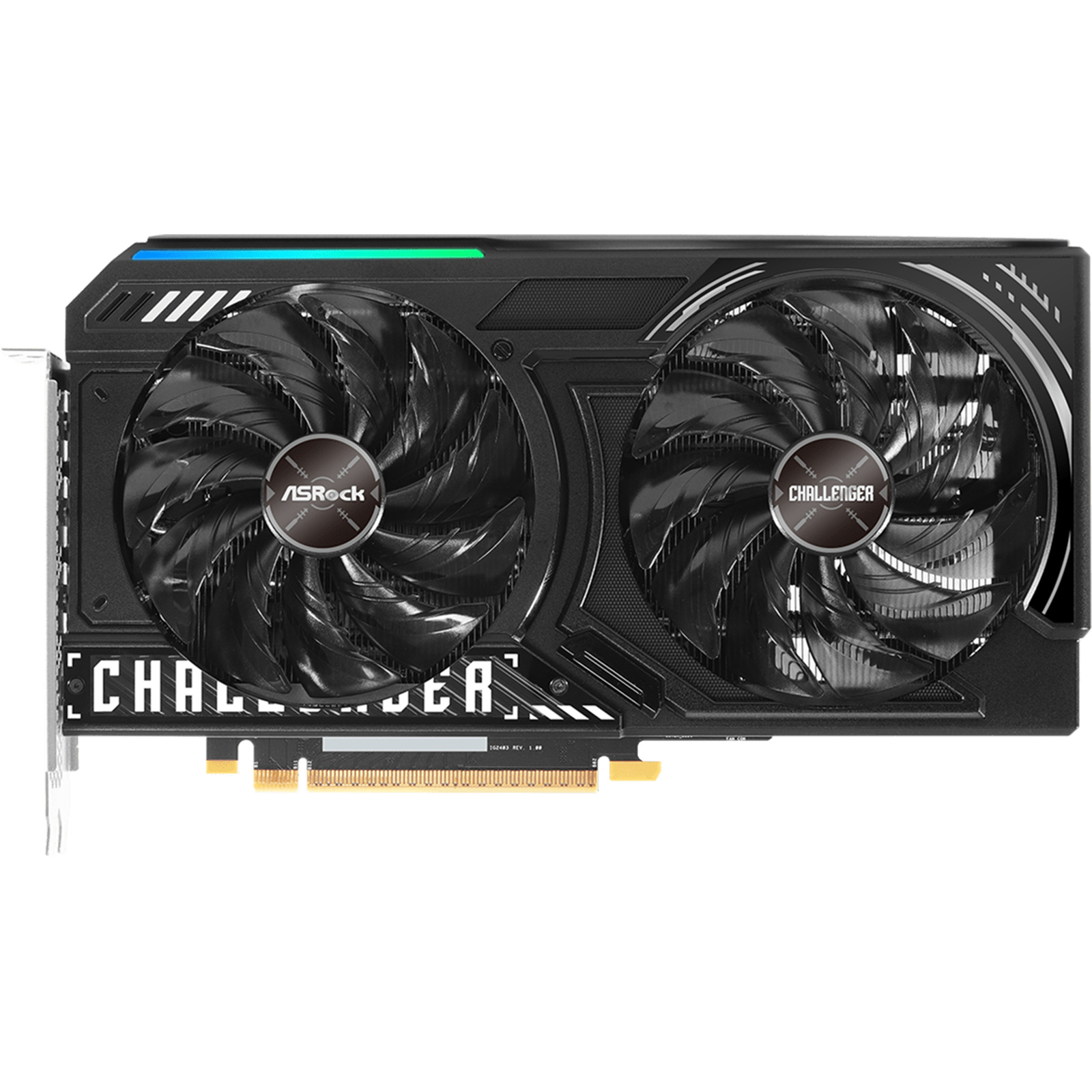

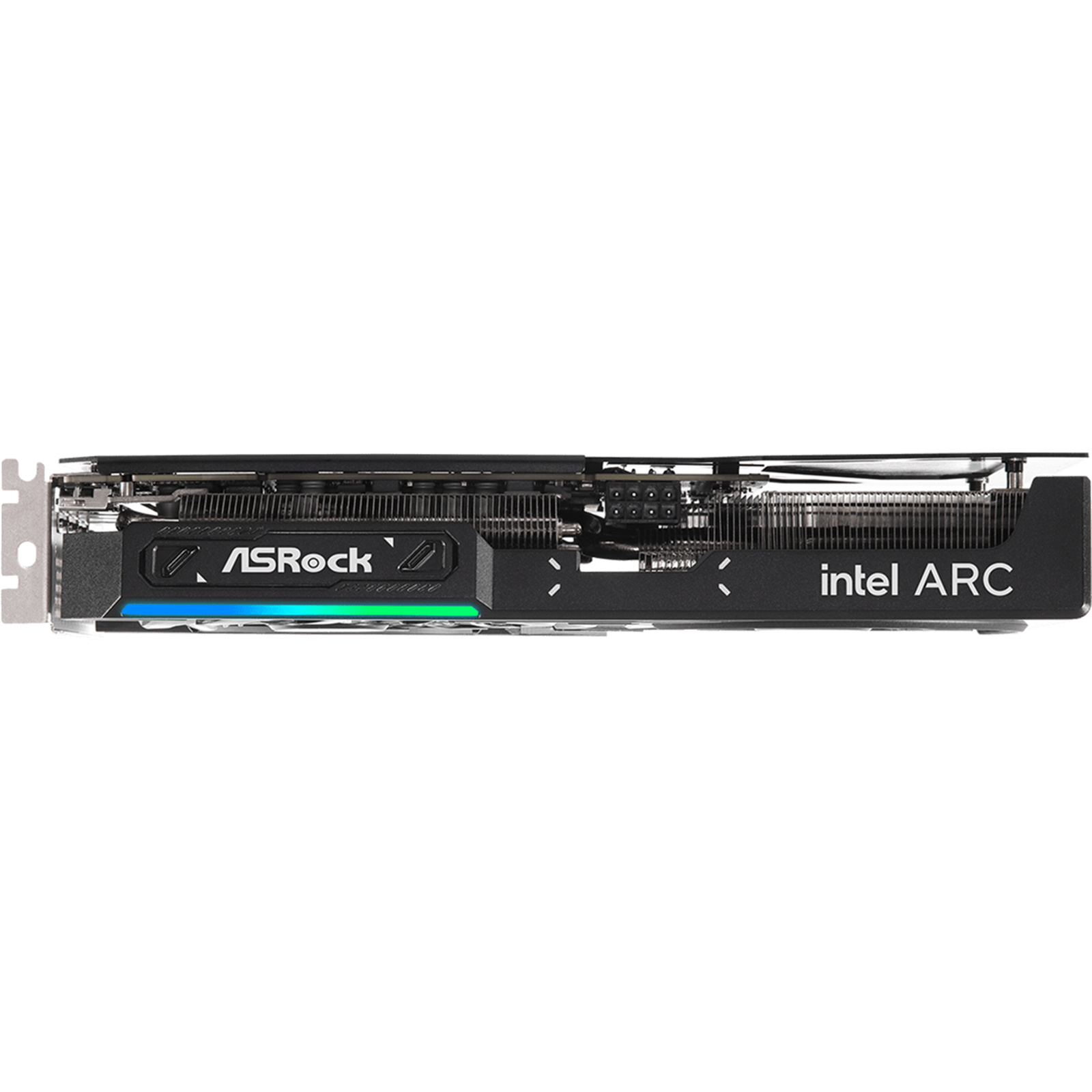

ASRock Intel Arc B570 Challenger 10GB OC GDDR6 Graphics Card
2 Slot - 1x 8 Pin Power - Minimum 600W PSU
Out of stock
ASRock Intel Arc B570 Challenger 10GB OC GDDR6 Graphics Card
2 Slot - 1x 8 Pin Power - Minimum 600W PSU
- Brand: ASRock
- MPN: B570 CL 10GO
- Part #: VGAASR02570
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"As brand new cards go this is great value for 1080p enjoyers. I mostly play games from the 2010's but even newer titles like Marvel Rivals and Elden Ring run no issues on fairly hi ...view more"
Features
Intel Arc B570 Challenger 10GB OC
CLOCK: GPU / MEMORY
GPU Clock: 2600 MHz
Memory Clock: 19 Gbps
KEY SPECIFICATION
Intel® Arc™ B570 Graphics
10GB 160-bit GDDR6
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel® XeSS 2)
Intel® Xe Matrix Extensions (Intel® XMX)
DirectX® 12 Ultimate
1x 8-pin Power Connectors
3x DisplayPort™ 2.1 / 1x HDMI™ 2.1a
KEY FEATURES
Dual Fan Design
Stylish Metal Backplate
Striped Axial Fan
LED Indicator
0dB Silent Cooling
Super Alloy Graphics Card
Dual Fan Design - Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.

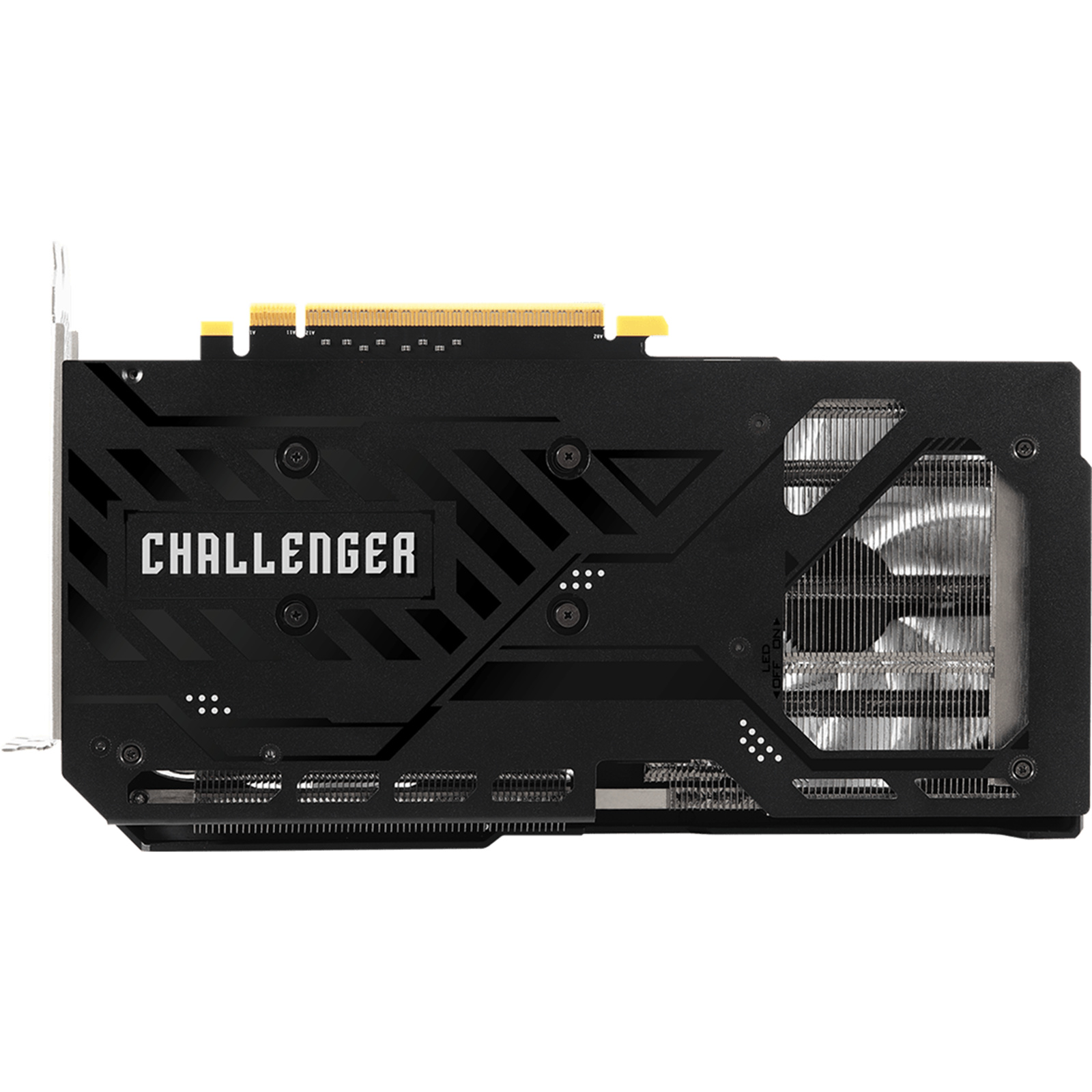

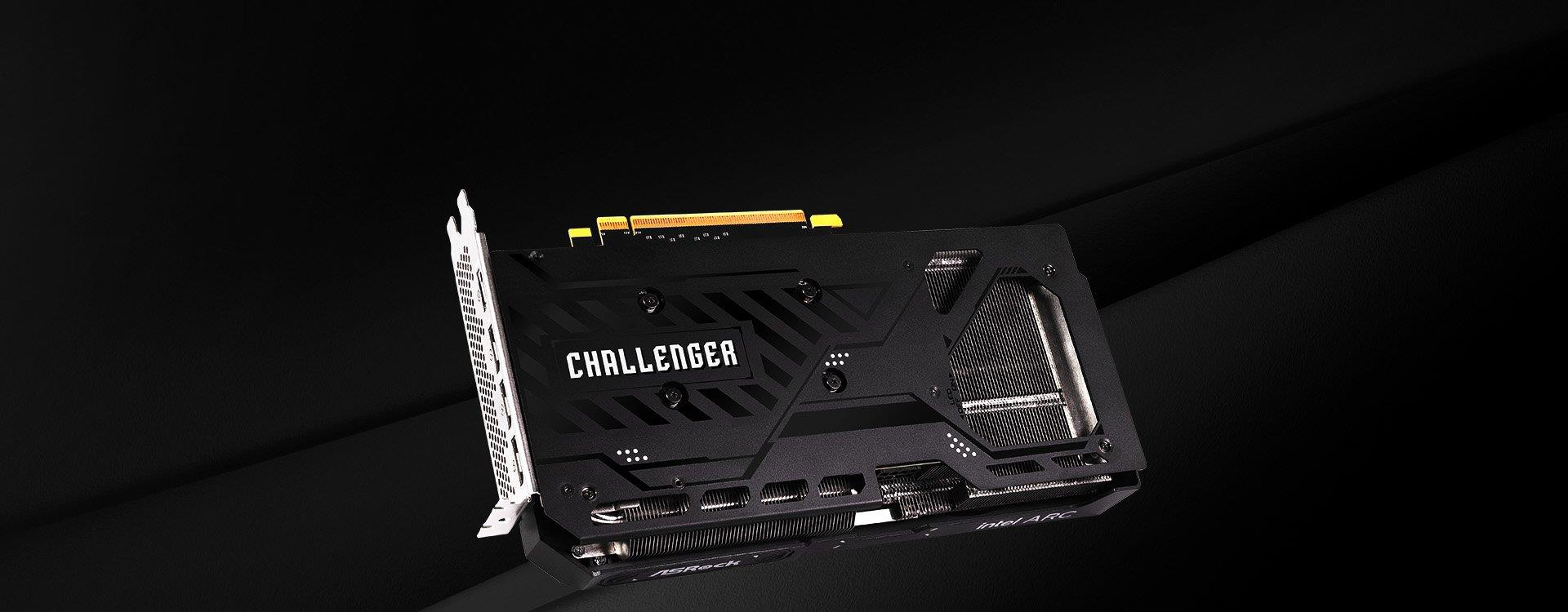

Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
Striped Axial Fan - Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.

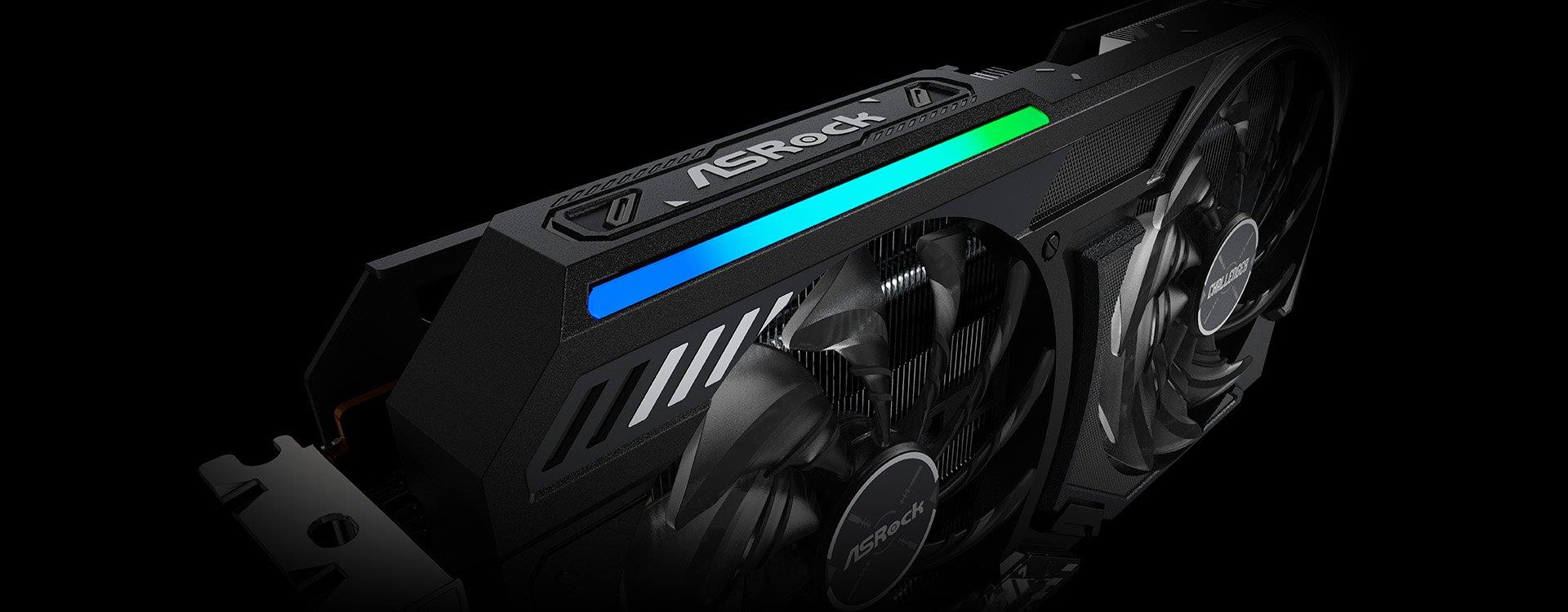

LED Indicator - More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.

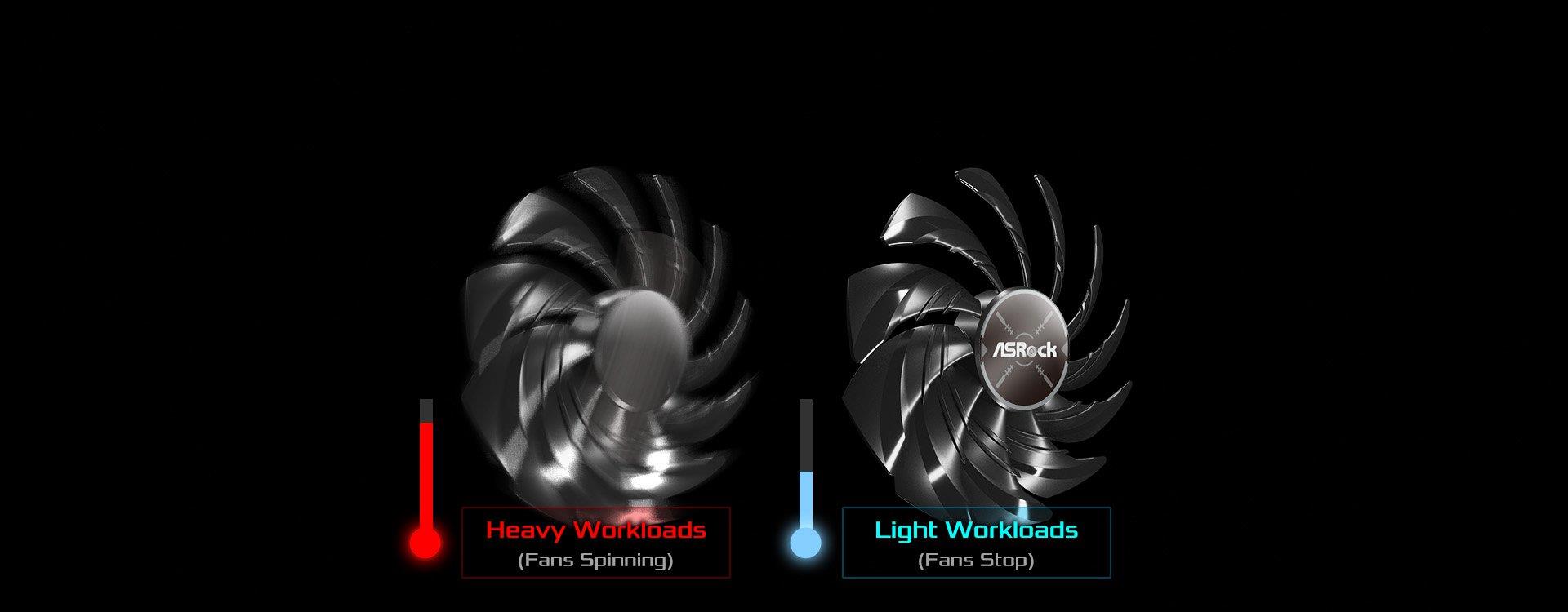

0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.

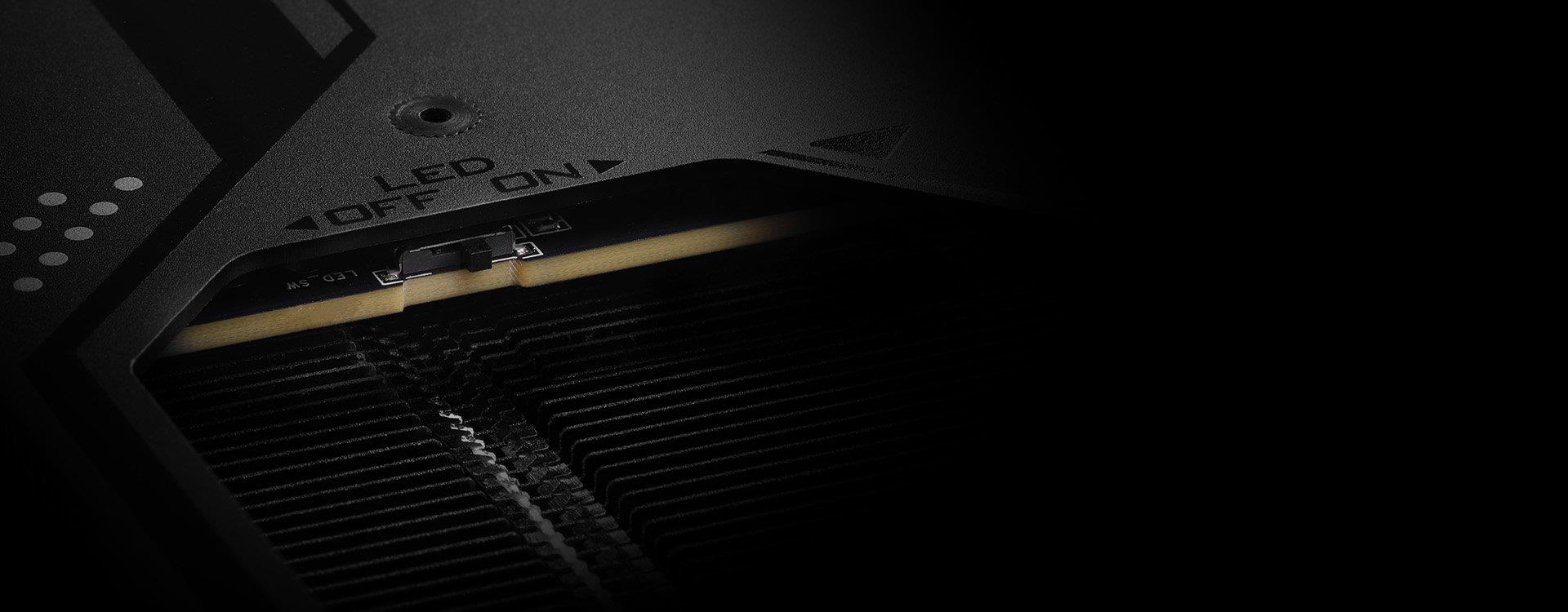

LED Switch - Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste - Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.

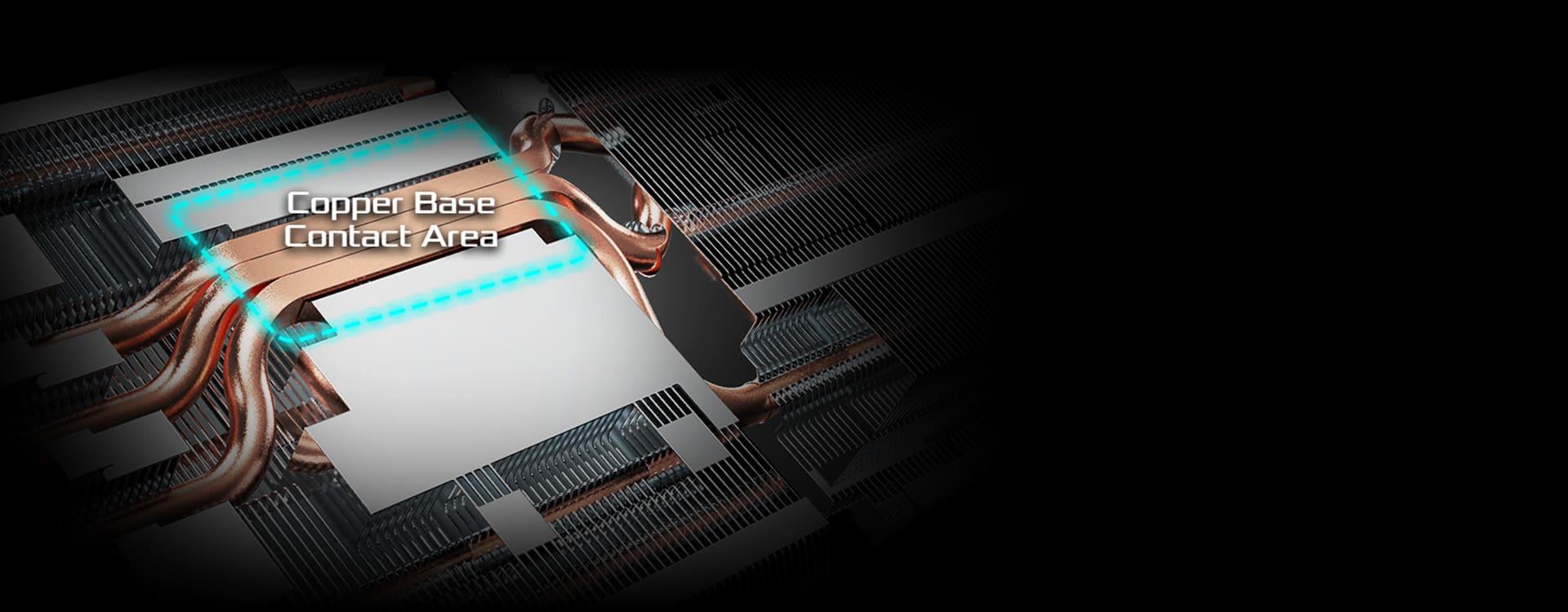

Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.

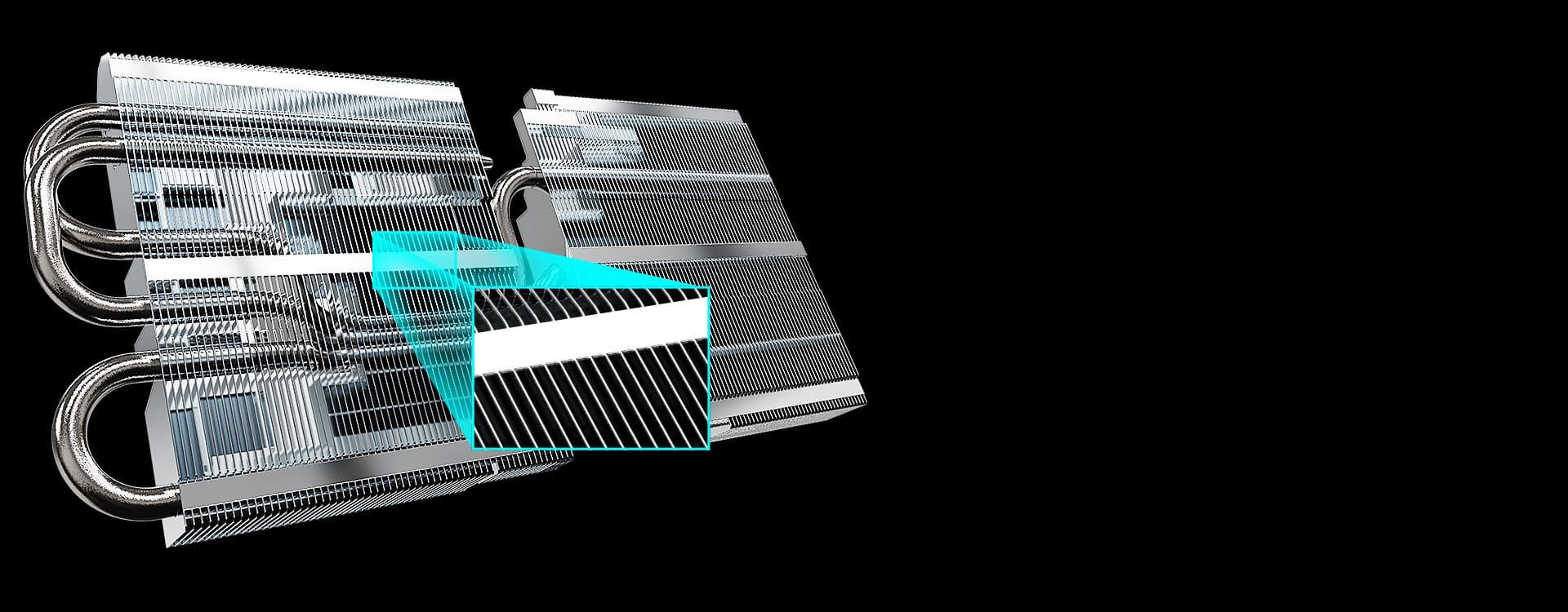

High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.

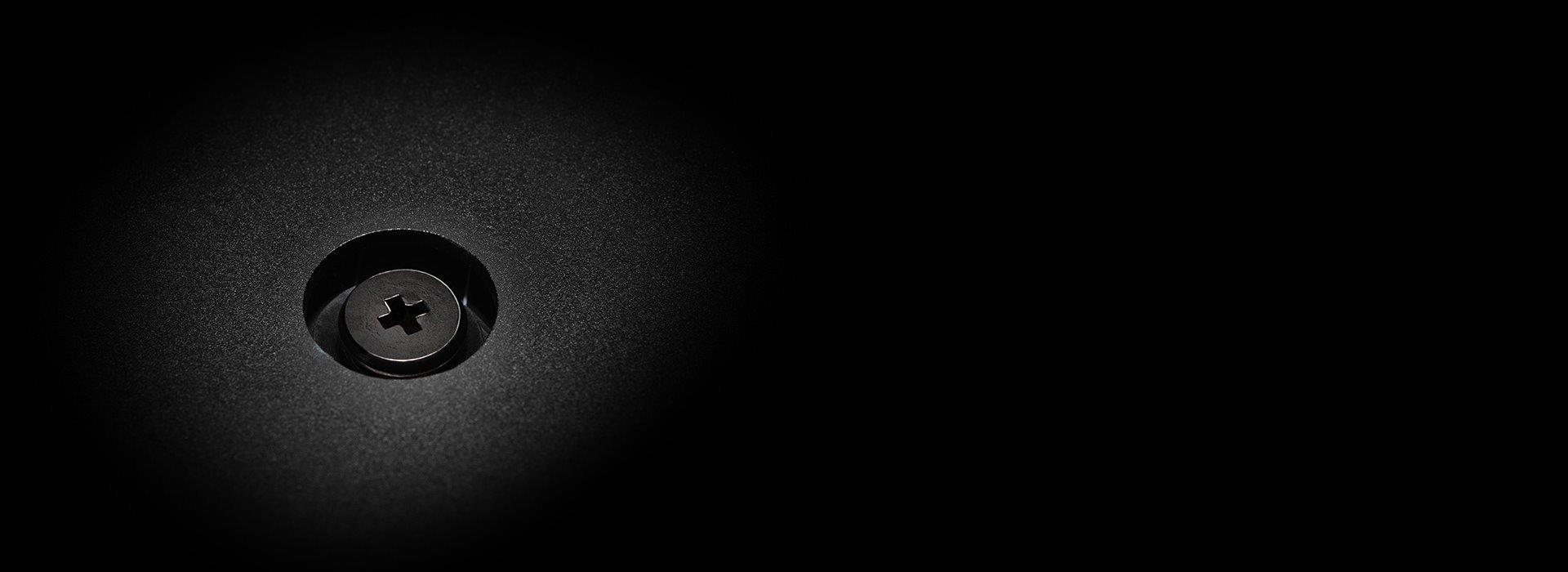

Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.

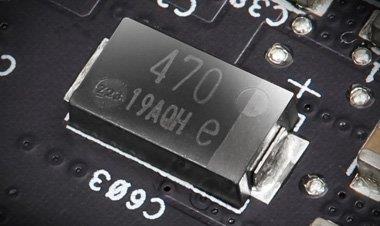

Japanese SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.

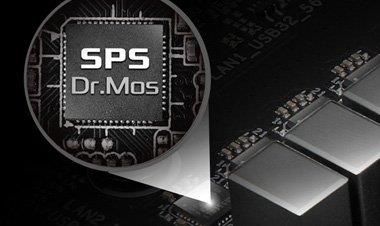

SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.

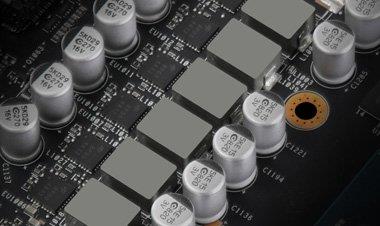

Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.

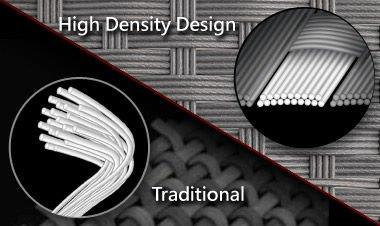

High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Game ready, feature packed
Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect, at the prices you deserve.
Game-changing, modern tech
Increase performance, responsiveness, and more with Intel® Arc™ gaming technologies.
Get exceptional performance and visual quality in over 150 games enabled with AI-boosted, Intel® Xe Super Sampling (XeSS) technology.
Make your games play smoother and more responsive with Intel® XeSS Frame Generation and Intel® Xe Low Latency technologies from Intel.
Up-to-date, software releases
Stay up to date with regular software releases supporting the latest games and get consistently improved gaming experiences.
A versatile creator toolkit
Save time and export videos quickly with twin media transcoders supporting dual-encode.Create content with support for the most popular media formats including cutting-edge AV1.
The powerful Xe media engine enables you to create and edit content quickly in high-res.
Built to explore AI
Explore the latest AI experiences such as text to image generation and AI chatbots right on your PC. AI Playground, a free and private app, brings AI capabilities together into an easy-to-use experience.
Enjoy enhanced gaming, speed through creating, and more with specialized AI Engines built into Intel® Arc™ Graphics called Xe Matrix eXtensions (XMX).
Specifications
Reviews
Accessories
Delivery & Pick-up
Delivery Estimates
The estimated time to ship for each product we sell is detailed on the individual product page just underneath the price. From when your items ship, products typically arrive within 1-2 working days for North Island deliveries and 2-3 working days for South Island deliveries. Rural deliveries may take an extra working day. Bulk & hazard deliveries may take an extra 2-4 working days.
Next Day Delivery
Need your order in a hurry? PB Tech offers next day delivery for local Auckland addresses. Simple place your order before 4pm (provided your items are in stock) and select our next day delivery option in the checkout. T&C's apply. Learn more about Next Day Delivery.
Same Day Delivery
Need your order in a hurry? PB Tech offers same day delivery for Auckland, Hamilton, Wellington and Christchurch. Simple place your order before 1pm (provided your items are in stock) and select one of our same day delivery options 'Evening Delivery' or 'Urgent 3-hour Delivery' in the checkout. T&C's apply. Learn more about Same Day Delivery.
Shipping Costs
Shipping costs vary based on your location and the items being shipped and in some cases shipping may even be FREE.
To calculate what the shipping costs will be for your order, add the items you are interested in to your cart, view the Shopping Cart page, and select your 'Delivery Area' to calculate the shipping cost.
Shipping Security & Insurance
All orders shipped by PB Tech are sent via a courier with a signature required for each delivery. In some cases, and only where you have given the courier company permission to leave orders at a designated location, your order may be delivered without requiring a signature. All orders sent by PB Tech are fully insured in the unlikely event that your item(s) are damaged or go missing in transit.
1 Hour Store Pick-up / Click & Collect
You can pick-up your online order from any of our stores nationwide. You can select which store you want to pick up from at the checkout. Provided the store you select has stock and there's no hold-ups with payment we will have your order ready within 1 hour (during normal trading hours for that store) otherwise it may take up to 5 working days to transfer the stock to the store so your order can be fulfilled. Learn more about our Click & Collect process.
Overseas Shipments
PB Tech regularly ships overseas to Australia and beyond. If you are located in Australia, you can order directly from our Australian site www.pbtech.com/au. If you are from another country you can order from www.pbtech.com
Returns & Warranty
Related Promotions
Popular Graphics Cards
Gigabyte NVIDIA GeForce RTX 5070 WINDFORCE OC 12GB GDDR7 Graphics...
Gigabyte NVIDIA GeForce RTX 3050 WINDFORCE OC V2 6GB GDDR6...
Intel Arc B580 12GB GDDR6 Graphics Card 2.5 Slot - 1x 8 Pin Power...
Sapphire NITRO+ AMD Radeon RX 9070 XT Gaming OC 16GB GDDR6...
Powercolor Reaper AMD Radeon RX 9060 XT 16GB GDDR6 Graphics Card...
ASRock Intel Arc B570 Challenger 10GB OC GDDR6 Graphics Card 2 Slot - 1x 8 Pin Power - Minimum 600W PSU
- Brand: ASRock
- MPN: B570 CL 10GO
- Part #: VGAASR02570
Product URL: https://www.pbtech.co.nz/product/VGAASR02570/ASRock-Intel-Arc-B570-Challenger-10GB-OC-GDDR6-Gra
| Branch | New Stock | On Display |
|---|---|---|
| Auckland - Albany | 0 | |
| Auckland - Glenfield | 0 | |
| Auckland - Queen Street | 0 | |
| Auckland - Auckland Uni | 0 | |
| Auckland - Newmarket | 0 | |
| Auckland - Westgate | 0 | |
| Auckland - Penrose | 0 | |
| Auckland - Henderson (Express) | 0 | |
| Auckland - St Lukes | 0 | |
| Auckland - Manukau | 0 | |
| Hamilton | 0 | |
| Tauranga | 0 | |
| New Plymouth | 0 | |
| Palmerston North | 0 | |
| Petone | 0 | |
| Wellington | 0 | |
| Auckland - Head Office | 0 | |
| Auckland - East Tamaki Warehouse | 0 | |
| Christchurch - Hornby | 0 | |
| Christchurch - Christchurch Central | 0 | |
| Dunedin | 0 |
Features
Intel Arc B570 Challenger 10GB OC
CLOCK: GPU / MEMORY
GPU Clock: 2600 MHz
Memory Clock: 19 Gbps
KEY SPECIFICATION
Intel® Arc™ B570 Graphics
10GB 160-bit GDDR6
Intel® Xe2-HPG Architecture
Intel® Xe Super Sampling 2 (Intel® XeSS 2)
Intel® Xe Matrix Extensions (Intel® XMX)
DirectX® 12 Ultimate
1x 8-pin Power Connectors
3x DisplayPort™ 2.1 / 1x HDMI™ 2.1a
KEY FEATURES
Dual Fan Design
Stylish Metal Backplate
Striped Axial Fan
LED Indicator
0dB Silent Cooling
Super Alloy Graphics Card
Dual Fan Design - Optimized Cooling Efficiency.
Provides not only the fancy outlook but also the optimized cooling efficiency for the best balance between performance and silence.
Stylish Metal Backplate
With the Phantom Gaming look, the stylish metal backplate on the Phantom Gaming graphics cards makes it more fancy in visual and solid in construction. Otherwise, the thermal pad at the backside also helps to enhance the thermal efficiency.
Striped Axial Fan - Designed For Enhanced Airflow.
ASRock's custom Striped Axial Fan delivers enhanced airflow to optimize cooling from not only the stripe structure on each fan blade but also the polishing surface on the bottom side.
LED Indicator - More Decoration. More Beauty.
Multiple-color LED Indicator embellishes the graphics card to make it more beautiful.
0dB Silent Cooling - Spin For Cooling, Stop For Silence.
The fan spins when the temperature goes high for the optimal cooling, and stops when the temperature goes low for the complete silence.
LED Switch - Switch on/off as you want.
You can switch LED on or off depends on the scenarios or your need.
Nano Thermal Paste - Perfect Thermal Teamwork.
Eliminate the gaps in the contact area to maximize heat transfer and thermal efficiency.
Ultra-fit Heatpipe - Consolidated to Maximize the Contact.
The heatpipes are consolidated to maximize the contact among each others and also the GPU baseplate for the optimized heat dissipation.
High-density Metal Welding - Improve Heat Dissipation.
Effectively isolate all coverage of the gap between pipe and stacked fins, hence improve heat dissipation effectively.
Precise Screw Torque - Optimized Mounting Pressure.
ASRock adopts precise screw torque when assembling its graphics cards to optimize the cooler mounting pressure to improve thermal efficiency while avoiding damage to GPU die.
Japanese SP-Cap
With a high conductive polymer as the electrolyte, it has a lower equivalent series resistance (ESR) to provide outstanding electrical characteristics. In addition to that, it also has excellence in product operational life, reliability and heat resistance.
SPS (Smart Power Stage)
Dr.MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the GPU with enhanced performance and OC capability.
Premium Power Choke
Compared to traditional chokes, ASRock's premium power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the graphics card.
2oz Copper PCB
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the graphics card against electrical shorts caused by humidity.
Game ready, feature packed
Enjoy high performance in the latest games at 1080p and 1440p with AI upscaling and ray tracing. Get the performance and features you expect, at the prices you deserve.
Game-changing, modern tech
Increase performance, responsiveness, and more with Intel® Arc™ gaming technologies.
Get exceptional performance and visual quality in over 150 games enabled with AI-boosted, Intel® Xe Super Sampling (XeSS) technology.
Make your games play smoother and more responsive with Intel® XeSS Frame Generation and Intel® Xe Low Latency technologies from Intel.
Up-to-date, software releases
Stay up to date with regular software releases supporting the latest games and get consistently improved gaming experiences.
A versatile creator toolkit
Save time and export videos quickly with twin media transcoders supporting dual-encode.Create content with support for the most popular media formats including cutting-edge AV1.
The powerful Xe media engine enables you to create and edit content quickly in high-res.
Built to explore AI
Explore the latest AI experiences such as text to image generation and AI chatbots right on your PC. AI Playground, a free and private app, brings AI capabilities together into an easy-to-use experience.
Enjoy enhanced gaming, speed through creating, and more with specialized AI Engines built into Intel® Arc™ Graphics called Xe Matrix eXtensions (XMX).
Specifications
Graphics Engine
Intel® Arc B570
Bus Standard
PCI® Express4.0 x 8
DirectX
12 Ultimate
OpenGL
4.6
Memory
GDDR6 10GB
Engine Clock
2600 MHz
Intel® XMX Engines
144
Compute Units
18
Memory Clock
19 Gbps
Memory Interface
160-bit
Resolution
Digital Max Resolution: 7680 x 4320
Interface
1 x DisplayPort 2.1 (Primary, up to UHBR13.5)
2 x DisplayPort 2.1 (Up to UHBR10)
1 x HDMI 2.1a
HDCP
Yes
Multi-view
4
Recommended PSU
600W
Power Connector
1 x 8-pin
Accessories
1 x Quick Installation Guide
Dimensions
249 x 132 x 41mm, 2-slot
Net Weight
720 g
